Drexel 5700 Series Triplex Mast IPB SwingMast Lift Truck Parts Manual – PDF
$16.95
Drexel 5700 Series Triplex Mast IPB SwingMast Lift Truck Parts Manual 1415055 – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Drexel 5700 Series Triplex Mast IPB SwingMast Lift Truck Parts Manual 1415055 – PDF DOWNLOAD
FILE DETAILS:
Drexel 5700 Series Triplex Mast IPB SwingMast Lift Truck Parts Manual 1415055 – PDF DOWNLOAD
Language : English
Pages : 46
Downloadable : Yes
File Type : PDF

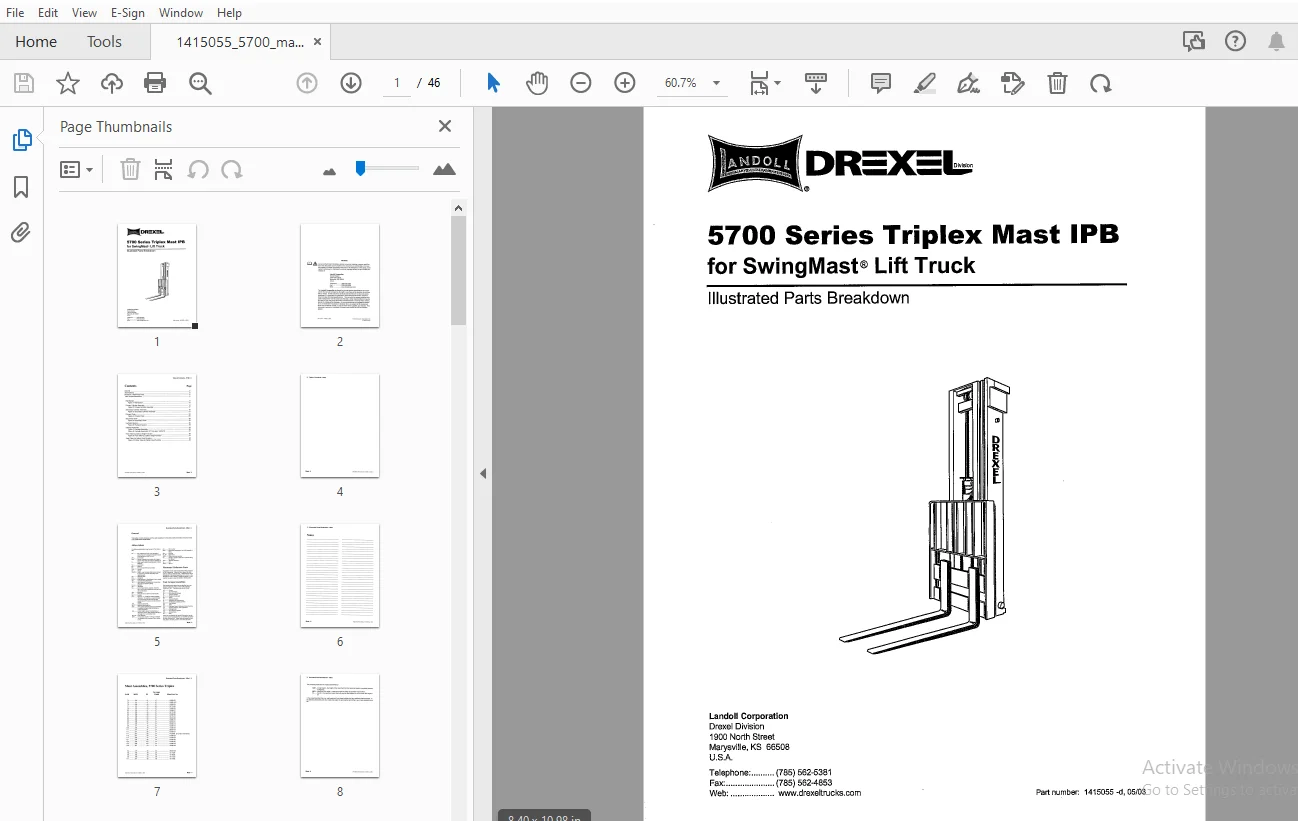

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Drexel 5700 Series Triplex Mast IPB SwingMast Lift Truck Parts Manual 1415055 – PDF DOWNLOAD
General Information
Abbreviations
- Phantoms I Reference Paris a
Task Groups/Assemblies
Rail System
- Figure 1: Rail System
Primary Cylinder Assembly
- Figure 2: Primary Cylinder Assembly
Secondary Cylinder Assembly
- Figure 3: Secondary Cylinder Assembly
Primary Chain
- Figure 4: Primary Chain
Secondary Chain
- Figure 5: Secondary Chain
Hydraulic System
- Figure 6: Hydraulic System
Carriage Assembly
- Figure 7: Carriage Assembly
- Figure 8: Carriage Assembly, 53′ Only (pin: 1422517)
Hose Take-Up Option
- Single Function
- Figure 9: Hose Take-Up Option, Single Function
- Dual Function
- Figure 10: Hose Take-Up Option, Dual Function
S.S 05/24
