Drexel SLT35 Series Mast Installation, HLC SwingMast Parts Manual – PDF

Description

Mast Installation and Parts Manual for Drexel SLT35 HLC SwingMast

This manual, part number 1420173, is a specialized guide for the HLC SwingMast used on the Drexel SLT35 Series lift truck. This document serves a dual purpose: it provides instructions for mast installation and also functions as a parts manual for the mast assembly itself.

A Technical Guide for Service Professionals

This is a critical resource for technicians performing major service, such as installing or rebuilding the mast on a Drexel SLT35. The installation section provides the procedural steps required for correct and safe fitting of the HLC SwingMast. The parts section contains detailed exploded diagrams and part number lists for all components within the mast assembly, including chains, rollers, cylinders, and fittings.

• Mast Installation Guide: Provides key instructions for fitting the mast assembly.
• Detailed Parts Information: Exploded views and part numbers for the HLC SwingMast.
• Essential for Major Repairs: A must-have for technicians and rebuilders.

Document Details

This is a focused, technical PDF document for service use.

• Brand: Drexel
• Series: SLT35
• Component: HLC SwingMast
• Manual Type: Mast Installation & Parts Manual
• Part Number: 1420173
• Language: English
• Pages: 16
• Format: PDF

For complex jobs like mast installation or overhaul, having the correct factory information is crucial. This manual provides the specific details you need. Download the PDF now to get instant access to this essential technical guide.

Original Product Details

Drexel SLT35 Series Mast Installation, HLC SwingMast Lift Truck Parts Manual 1420173 – PDF DOWNLOAD

FILE DETAILS:

Drexel SLT35 Series Mast Installation, HLC SwingMast Lift Truck Parts Manual 1420173 – PDF DOWNLOAD

Language : English
Pages : 16
Downloadable : Yes
File Type : PDF

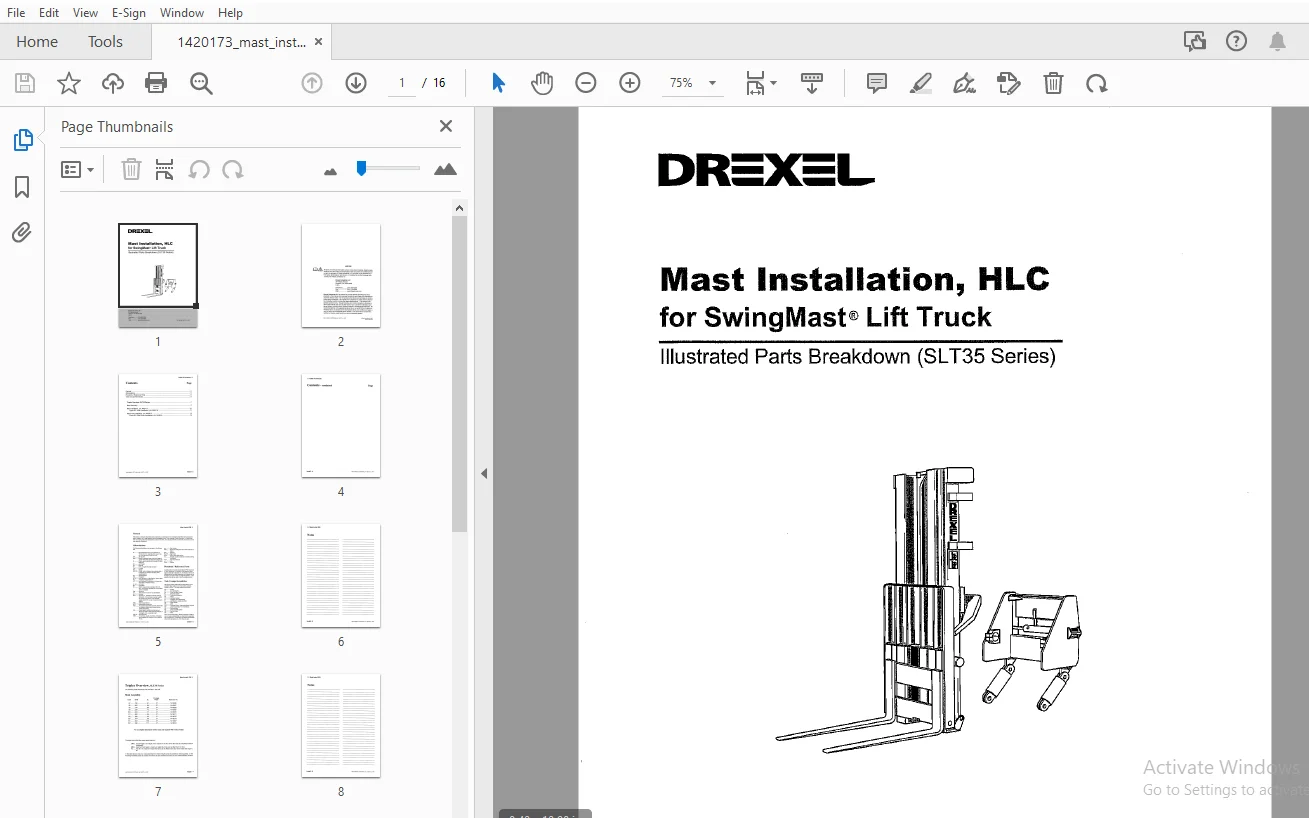

IMAGES PREVIEW OF THE MANUAL:
