Dynapac CA250D Spare Parts Catalogue SCA250D-4EN2 – PDF DOWNLOAD

Description

Dynapac CA250D Spare Parts Catalogue SCA250D-4EN2 – PDF DOWNLOAD

TABLE OF CONTENTS:

Dynapac CA250D Spare Parts Catalogue SCA250D-4EN2 – PDF DOWNLOAD

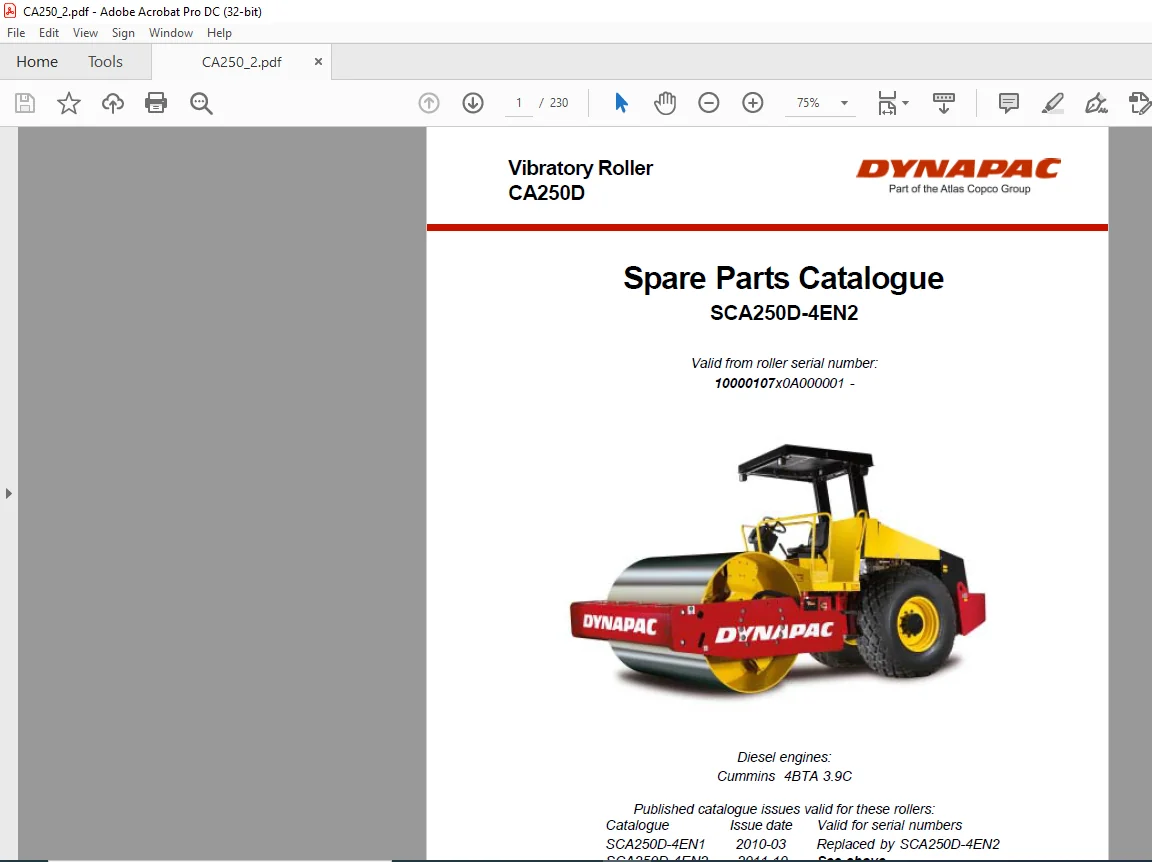

Vibratory Roller
CA250D
Spare Parts Catalogue
SCA250D-4EN2
Valid from roller serial number:
10000107x0A000001 –
Diesel engines:
Cummins 4BTA 3.9C
Published catalogue issues valid for these rollers:
Catalogue Issue date Valid for serial numbers
SCA250D-4EN1 2010-03 Replaced by SCA250D-4EN2
SCA250D-4EN2 2011-10 See above

CA250D SN 10000107x 0A000001 – 2
Service kits 4
4812156751 Service kit 50 h 6
4700938527 Service kit 250/750 h 8
4700950196 Service kit 500 h 10
4700950197 Service kit 1000 h 12
Repair kits 14
4700938558 Steering hitch kit 16
4700938894 Eccentric shaft kit 18
4700938891 Drum rotation kit 20
4700938878 Shock absorber kit, drum 22
Frame 24
Frame 26
Scraper and beam 28
Scrapers, Urethan Rubber Option 30
Scrapers, Spring Steel Option 32
Hitch 34
Structure 36
Side covers Option 38
Noise suppression 40
Drum shroud Option 42
Drum 44
Drum 46
4700380462 Drum gear 50
4700372987 Drum gear 52
Engine 54
Engine 56
Fan and Fan clutch 58
Cooling system 60
Combustion air system 64
Fuel system 66
Exhaust system 68
Pre air cleaner Option 70
Transmission 72
Rear axle and wheels 74
4700393002 Rear axle 76
Differential with limited slip 78
TC 2
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
Differential housing and brakes 80
Planet gear 82
4700383856 Rear axle No-Spin, Option 84
Differential with no-spin 86
Differential housing and brakes 88
Planet gear 90
4700396309 Rear axle 92
Differential with limited slip 78
Differential housing and brakes 80
Planet gear 82
Hydraulic system 94
Propulsion system, Front 96
4700371509 Propulsion motor 98
Propulsion system, Rear 100
4700395385 Hydraulic pump 102
Vibration system 106
4700395384 Vibration pump 108
4700395386 Hydraulic motor, vibration 112
Steering system 114
4700376000 Steering valve 116
4700392002 Steering cylinder 118
Brake system 120
Hydraulic oil tank 122
Central test panel hydraulic Option 124
Central test panel, Sauer Danfoss Option 126
Central test panel, Rexroth Option 128
Electrical equipment 130
Electric system 132
Control panel 134
Working lights Option 136
Working light rear 138
Rotating beacon Option 140
Back-up alarm Option 142
Compaction meter Option 144
Drivers platform 146
Drivers platform 148
Control panel 150
Throttle controls 152
Forward and reverse control 154
Forward and reverse control handle 156
Steering column 158
Rops and fops 160
TC 3
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
Cab mounting 162
Cab 4700378308 164
Cab Screens 166
Cab Door, left side 170
Cab Interior rear mirror 172
Wiper arm with blade, front 174
Cab Electric 176
Cab Exterior, rear mirror 178
Cab Work light 180
Decals 182
Decals 184
Decals 186
Standard equipment 188
Standard equipment 190
Optional equipment 192
Tool equipment 194
Pad shell 196
Dy-Mic 198
Air conditioner and heater, Simple cab 200
Air conditioner and heater unit 204
4700383413 Condensor, cpl 206
Heater Simple cab 208
4700385222 Heater 210

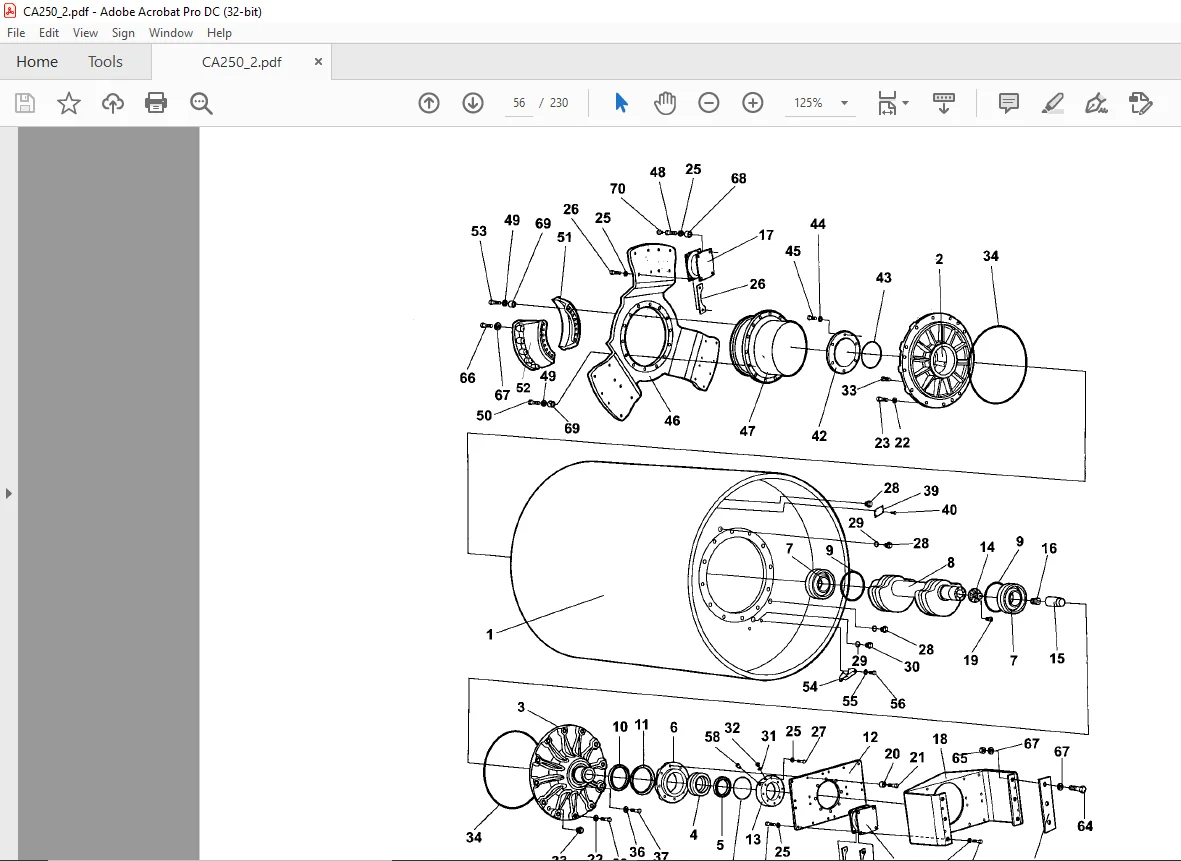

IMAGES PREVIEW OF THE MANUAL:
