DYNAPAC CA5500 Vibratory Roller Parts Catalog Manual 4812163360 PDF DOWNLOAD

Description

DYNAPAC CA5500 Vibratory Roller Parts Catalog Manual 4812163360 PDF DOWNLOAD

FILE DETAILS:

DYNAPAC CA5500 Vibratory Roller Parts Catalog Manual 4812163360 PDF DOWNLOAD

Language : English
Pages : 520
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

DYNAPAC CA5500 Vibratory Roller Parts Catalog Manual 4812163360 PDF DOWNLOAD

CA5500D/PD s/n 10000175xxA024527 –
Cummins QSF 4.5 (Stage V/T4f)

CA5500D/PD (stageV/T4f) SN 10000175xxA024527 – 1
Service kits
4812156993 Service kit, 50h Plus 3
4812163254 Service kit, 500h 5
4812163255 Service kit, 1000h 7
4812163256 Service kit, 2000h 9
Repair kits
Eccentric shaft kit 11
4812157275 Drum rotation kit 13
4812158576 Shock absorber kit, drum 15
General – Keys and others
Fuses 17
Keys 19
Frame
Frame, front 21
Crossbeam 23
4812117507 Steering hitch, cpl 25
Scrapers, option
Scrapers, option 27
Scraper module Hardox 29
Scraper module Rubber 31
Scraper assy 33
Scraper module PD Hardox 35
Scraper module PD Heavy duty 37
Scraper mount 39
Engine structure
Engine structure 41
Engine hood 43
4812128176 Engine hood, cpl 45
4812118994 Lock handle, cpl 47
Fender module 49
Hinge module 51
Lock handle assy 53
Gas spring module 55
Safety link module 57
Rear frame module 59
Cover assembly 61
Drum
Drum, cpl 63
4812111831 Drum gear, cpl 67
Drum cartridges
4812157393 Drum cartridge, vibration side (D/PD version) 69
4812157394 Drum cartridge, vibration side (VM/VP 3-class) 71
4812157784 Drum cartridge with shaft nut, vibration side (D/PD version) 73
4812157390 Drum cartridge, drive side (D/PD version) 75
4812157785 Drum cartridge with shaft nut, vibration side (VM/VP 3-class) 77
4812157391 Drum cartridge, drive side (VM/VP 3-class) 79
Tooth wheel module 81
Vibration motor adapter 83
Engine
Engine 85
4812128972 Diesel engine QSF 4.5 (Stage V) 87
Belt guard module 89
Engine brackets 91
Cooling system
Cooling system 93
Cooler stand module 95
Hose assy kit 97
Fuel system
Fuel system 99
Fuel tank module 101
Fuel tank 103
Brackets, fuel tank 105
Filling module 107
Fuel hoses 109
Fuel draining module 111
Air cleaner system 113
Air cleaner module 115
Exhaust module 117
Expansion tank system 119
Urea/DEF equipment system 121
Urea pump and hoses 123
DEF/Urea equipment module 125
DEF/Urea box 127
Step, DEF box 129
Transmission
Rear axle and wheels 131
4812111833 Rear axle No-Spin
4812111833 Rear axle No-Spin 133
Differential with no-spin 135
Differential housing and brakes 137
Planet gear 139
4812111832 Rear axle Limited-Slip
4812111832 Rear axle Limited-Slip 141
Differential 143
Central housing and brakes 145
Hub reduction 147
Hydraulic systems
Hydraulic system, drum
Hydraulic system, drum 149
Hydraulic motor 151
4812116969 Hydraulic motor
4812116969 Hydraulic motor 153
Rotary group 155
4812157180 Flush & boost pressure valve 157
Lock ring 159
Hydraulic motor 161
4812112200 Hydraulic motor
4812112200 Hydraulic motor 163
Loop flushing 167
Hydraulic system, drum Anti-spin option
Hydraulic system, drum Anti-spin option 169
Hydraulic motor See page 151
4812116969 Hydraulic motor
4812116969 Hydraulic motor See page 153
Rotary group See page 155
4812157180 Flush & boost pressure valve See page 157
Lock ring See page 159
Hydraulic motor 171
4812112202 Drum motor
4812112202 Drum motor 173
Drum motor. Front section 175
Loop flushing 177
Drum motor. Rear section 179
Hydraulic system, rear axle
Hydraulic system, rear axle – Traction control, no slip 181
Hydraulic motor 183
4812122932 Hydraulic motor 185
Hydraulic system, rear axle Anti-spin option
Hydraulic system, rear axle Anti-spin option 189
Hydraulic motor 191
4812112213 Rear axle motor
4812112213 Rear axle motor 193
Front section 195
Loop flushing 197
Rear section 199
Hydraulic system, oil tank
Hydraulic system, leak, fan and filter 201
Hydraulic oil tank assembly 203
Hydraulic valve module 207
4812120840 Hydraulic valve 209
Connector assy 211
Fan module, front 213
Fan module, rear 215
Hydraulic system, pumps
Hydraulic system, pumps 217
Propulsion pump module 221
4812112171 Hydraulic pump
4812112171 Hydraulic pump 223
End cap, cpl 227
Vibration pump module 229
Hose brackets 231
Hydraulic system, frame rear
Hydraulic system, frame rear 233
Connector kit 235
Connector kit 237
Hydraulic system, steering
Hydraulic system, steering 239
Hydraulic cylinder 241
4812121947 Hydraulic cylinder 243
Steering valve module 245
Hydraulic hoses, steering 247
Emergency steering option
Hydraulic system, emergency steering 249
4812112188 Hydraulic pump Emergency steering unit 251
4812112236 Hydraulic valve 253
Electric system
Electric cables, power supply, 1-pole
Electric cables, power supply, 1-pole 255
Battery module 257
Battery disconnector module 259
Electric cables, power supply, 2-pole, option
Electric cables, power supply, 2-pole, option 261
Battery module See page 257
Battery disconnector, 2-pole 263
Electric cables, engine – ECU Horn, back-up alarm, sensor
Electric cables, engine – ECU Horn, back-up alarm, sensor 265
ECU, Inclination sensor, Power converter, fuses 267
Standard ECU assembly 269
Inclination sensor module 271
Horn module 273
Back-up alarm module 275
Back-up alarm module, Quacker 277
Bracket module, Quacker 279
Cable harness kit Power supply cab
Cable harness kit Power supply cab 281
Driving & side direction lights, number plate light, option
Driving & side direction lights, number plate light, option 283
Steering column switch module 285
Cable harness kit 287
Registration plate light module 289
Registration plate light 291
Holder, Registration plate light 293
Reversing light, option
Reversing light module 295
DCA/GPS equipment module, option
DCA/GPS equipment module, option 297
Holder 299
GPS equipment module 301
GPS equipment assy 303
Computer 305
Tachograph, option
Tachograph, option 307
Holder assy 309
Power supply module 311
Speed sensor, frequency sensor, option
Speed sensor, frequency sensor, option 313
Pulse sensor module (6-pol) 315
Pre-heater installation, option
Pre-heater installation, option 317
Rotating beacon, working light, option
Rotating beacon, working light, option 319
Rotating beacon module 321
Bracket, Rotating beacon 323
Working light module H3 325
Cable harness, emergency steering, option
Cable harness, emergency steering, option 327
Regenering delay, displacement shift
Regenering delay, displacement shift 329
Compaction meter, option
Compaction meter, option 331
Power supply 333
External emergency stop, option
External emergency stop, option 335
Drivers platform
Platform, rops
Platform, rops 337
4812120544 Platform with 4-post ROPS
4812120544 Platform with 4-post ROPS 339
Basic kit Rops, roof, front handrail 341
Rear cover 343
Handrail 345
Cab, basic kit 347
Manual box 349
Decals basic kit 351
Cab symmetric module
Cab symmetric module 353
4812119364 Cab, cpl Comfort
4812119364 Cab, cpl Comfort 355
Screens 357
4812115202 Cab door, cpl 359
4812115200 Sliding screen, left hand 361
Windshield wiper 363
Roof 365
Heater assy 367
Hose kit heater 369
Cab Interior 371
Cab cable harness 373
Cab, electrical equipment 375
Emergency hammer, hook 377
Cab, front cover 379
Cab, rear cover 381
Floor mat 383
Step light, front wiper switches 385
Cab, basic kit See page 347
Air channel 387
Sun-blind, inner light 389
Basic kit AC-ACC 391
4812113623 Evaporator, cpl 393
Hose assy kit for AC 395
4812113624 ACC kit 397
4812119365 Cab, cpl Basic
4812119365 Cab, cpl Basic 399
Screens See page 357
4812115202 Cab door, cpl See page 359
4812115200 Sliding screen, left hand See page 361
Windshield wiper See page 363
Roof See page 365
Hose kit heater See page 369
Heater assy See page 367
Heater mounts 401
Heater and ac controls 403
Cab Interior 405
Cab cable harness See page 373
Cab, electrical equipment See page 375
Emergency hammer, hook See page 377
Cab, rear cover 407
Cab, front cover 409
Wiper switch, front 411
Cab, basic kit See page 347
4812124074 Cab, cpl Basic manual ac
4812124074 Cab, cpl Basic manual ac 413
Screens See page 357
4812115202 Cab door, cpl See page 359
4812115200 Sliding screen, left hand See page 361
Windshield wiper See page 363
Roof See page 365
Hose kit heater See page 369
Heater assy See page 367
Heater mounts See page 401
Heater and ac controls See page 403
Cab Interior See page 405
Cab cable harness See page 373
Cab, electrical equipment See page 375
Emergency hammer, hook See page 377
Cab, rear cover See page 407
Cab, front cover See page 409
Wiper switch, front See page 411
Cab, basic kit See page 347
Basic kit AC-ACC See page 391
4812113623 Evaporator, cpl See page 393
Hose assy kit for AC See page 395
Manual box See page 349
Decals basic kit See page 351
Heater hoses 415
Air conditioning
Air conditioning 417
Drying filter module 419
4812114257 Drying filter assy 421
Condensor assembly 423
Hose kit, refrigerant AC 425
AC Compressor module 427
Car stereo module, option 429
Rear view mirror 431
Rear view mirror module 433
Drivers seat
Drivers seat 435
Seat frame structure 437
4700391163 Steering column 439
Seat frame adapter module, rotating 441
Seat frame adapter module, fixed 443
Seat comfort, fabric suspensioned 445
Seat, galon suspensioned 447
Floor cassette module 449
Seat belts
Seat belt 2″ 451
Seat belt 3″ 453
Seat belt 2″ with reminder 455
Seat belt 3″ with reminder 457
Control module 459
Forward reverse control module 461
Display unit 463
Control panel cover 465
Decals
Decals 467
Decals 471
Optional equipment
Level sensor module, option
Level sensor module, option 473
Fire extinguisher/First Aid Cushion
Fire extinguisher/First Aid Cushion 475
Fire extinguisher 477
SMV-sign
SMV-sign 479
Cooling box module
Cooling box module 481
Lunch box
Lunch box 483
Dyn@lyzer 485
Dyn@Link module 487
4812013038 GPS module 489
Compaction meter (DCM) 491
Appendix B:Parts Index 493

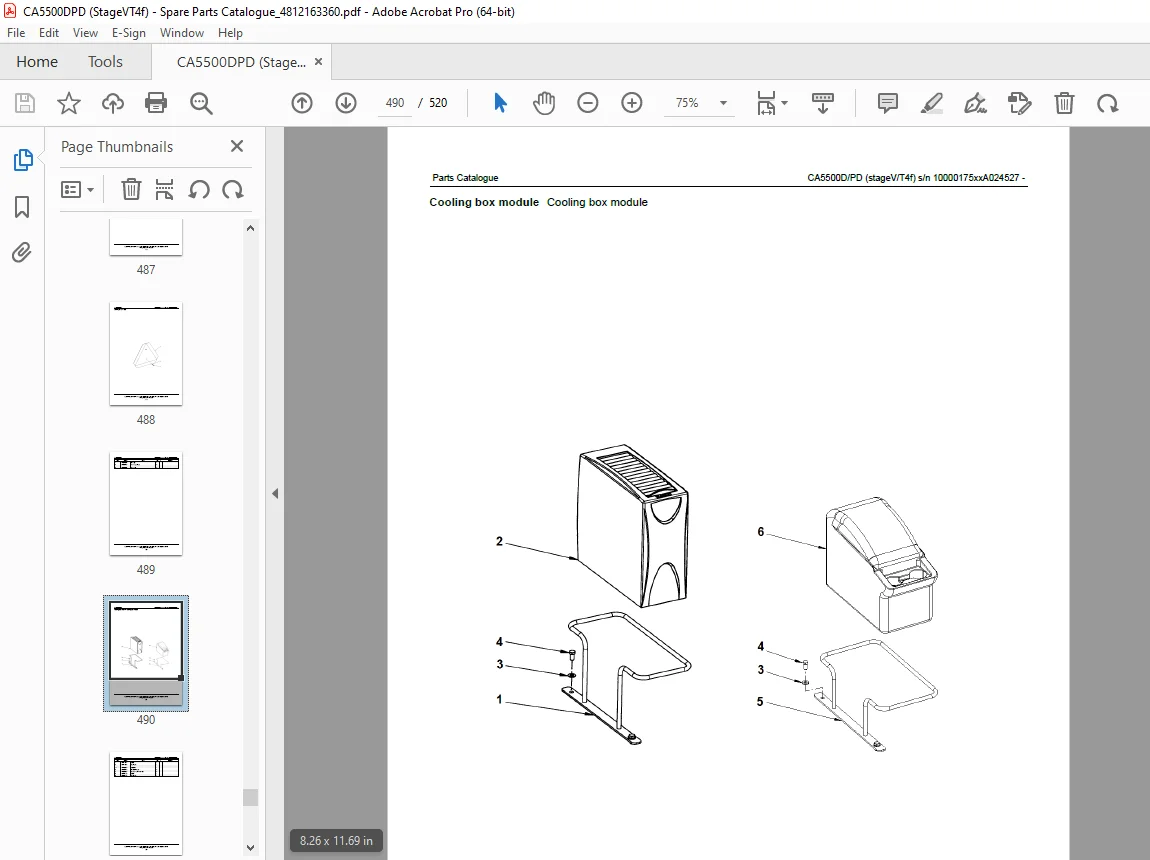

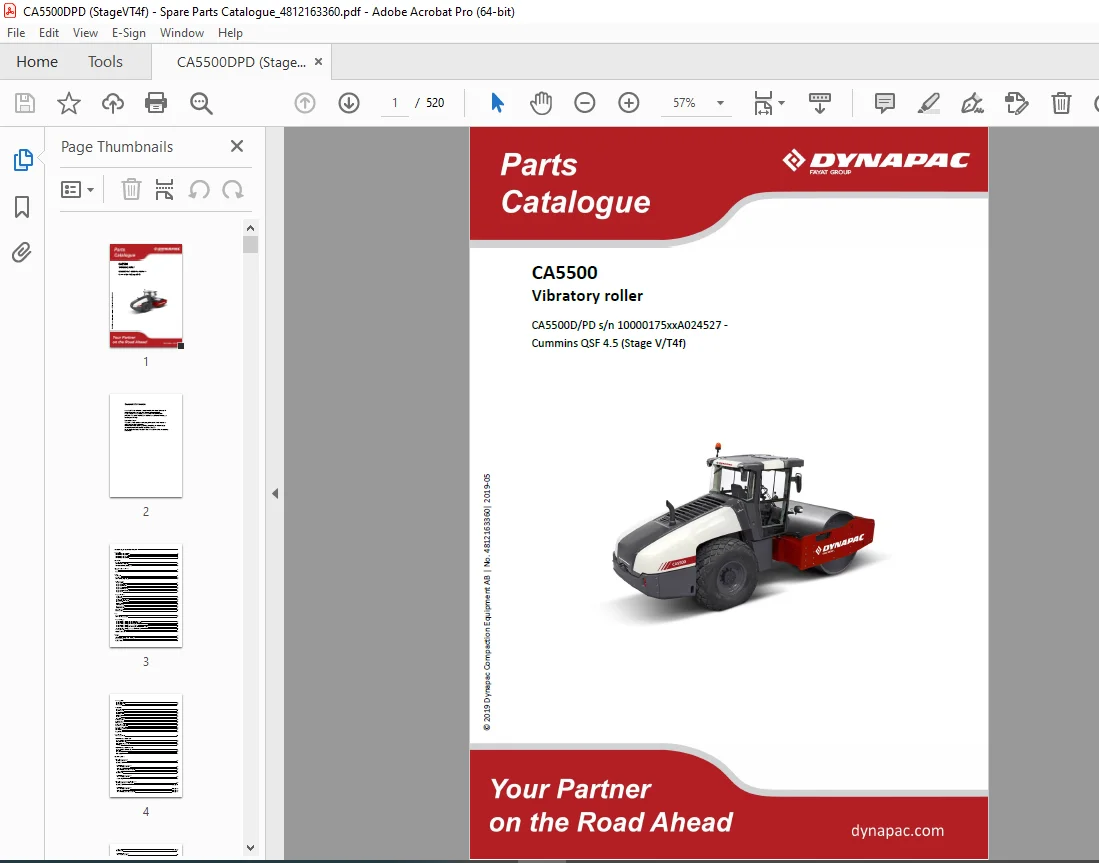

IMAGES PREVIEW OF THE MANUAL:
