Vibratory Roller
CC1000
Spare Parts Catalogue
SCC1000-1EN5
Valid from roller serial number:
*90130025* – *90132699*
Diesel engines:
Perkins 403C-11
Published catalogue issues valid for these rollers:
Catalogue Issue date Valid for serial numbers
SCC1000-1EN1 2004-03 Replaced by SCC1000-1EN2
SCC1000-1EN2 2004-11 Replaced by SCC1000-1EN3
SCC1000-1EN3 2005-08 Replaced by SCC1000-1EN4
SCC1000-1EN4 2006-05 Replaced by SCC1000-1EN5
SCC1000-1EN5 2008-03 See above

$21.95 $80.00

  Happy to Help You :) Any queries / Requests? CLICK HERE to ask!

Dynapac CC1000 Spare Parts Catalogue SCC1000-1EN5 – PDF DOWNLOAD

TABLE OF CONTENTS:

Dynapac CC1000 Spare Parts Catalogue SCC1000-1EN5 – PDF DOWNLOAD

CC1000 SN 90130025 – 90132699 2
Service kits 4
Service kits 6
940208 Service kit, Perkins 50h 8
940209 Service kit, Perkins 500h 10
940210 Service kit, Perkins 1000h 12
Repair kits 14
Repair kits 16
940664 Shock absorber kit, drum Up to 90131469 18
945552 Shock absorber kit, drum From 90131470 20
940673 Scraper blade, kit CC1000 22
945928 Repair kit, Steering hitch 24
945710 Eccentric shaft kit 26
945711 Drum rotation kit 28
Frame 30
Frames 32
377621 Hitch 34
377621 Hitch From 90130221 34
Scrapers 36
Engine hood 38
Sprinkler system 40
Drum 42
Drum 44
Engine 46
Engine Perkins 403C-11 48
Cooling system 50
Exhaust system 52
Fuel system 54
Air intake system 56
Hydraulic system 58
Hydraulic propulsion and brake system motor 60
Hydraulic propulsion and brake system pump 62
Hydraulic vibration 64
Hydraulic steering 68
Electrical equipment 70
Electrical equipment 72
Control panel, relays 74
Driving lights Option 76
Working lights Option 78
Rotating beacon with Rops Option 80
Back-up alarm Option 82
Drivers platform 84
Drivers seat Up to 90131040 86
Drivers seat From 90131041 Up to 90131898 88
Drivers seat From 90131899 90
F/R- and throttle control 92
Forward and reverse control handle Up to 90131088 94
TC 2
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
Forward and reverse control handle From 90131089 96
Rops Option 98
Decals and documentation 100
Decals and documentation 102
Standard equipment 104
Standard equipment 106
Optional equipment 108
Battery disconnector 110
Watertank, option From 90131041 112
Dual forward/reverse control 114
SMV sign 116
SMV sign Mounting on watertank 118
Registrations – plate with light 120
Hydraulic vibration, shut off front/rear drum 122
Rear view mirror 124
Tool equipment 126

FILE DETAILS:

Dynapac CC1000 Spare Parts Catalogue SCC1000-1EN5 – PDF DOWNLOAD

Language : English
Pages :143
Downloadable : Yes
File Type : PDF
Size:1.22 MB

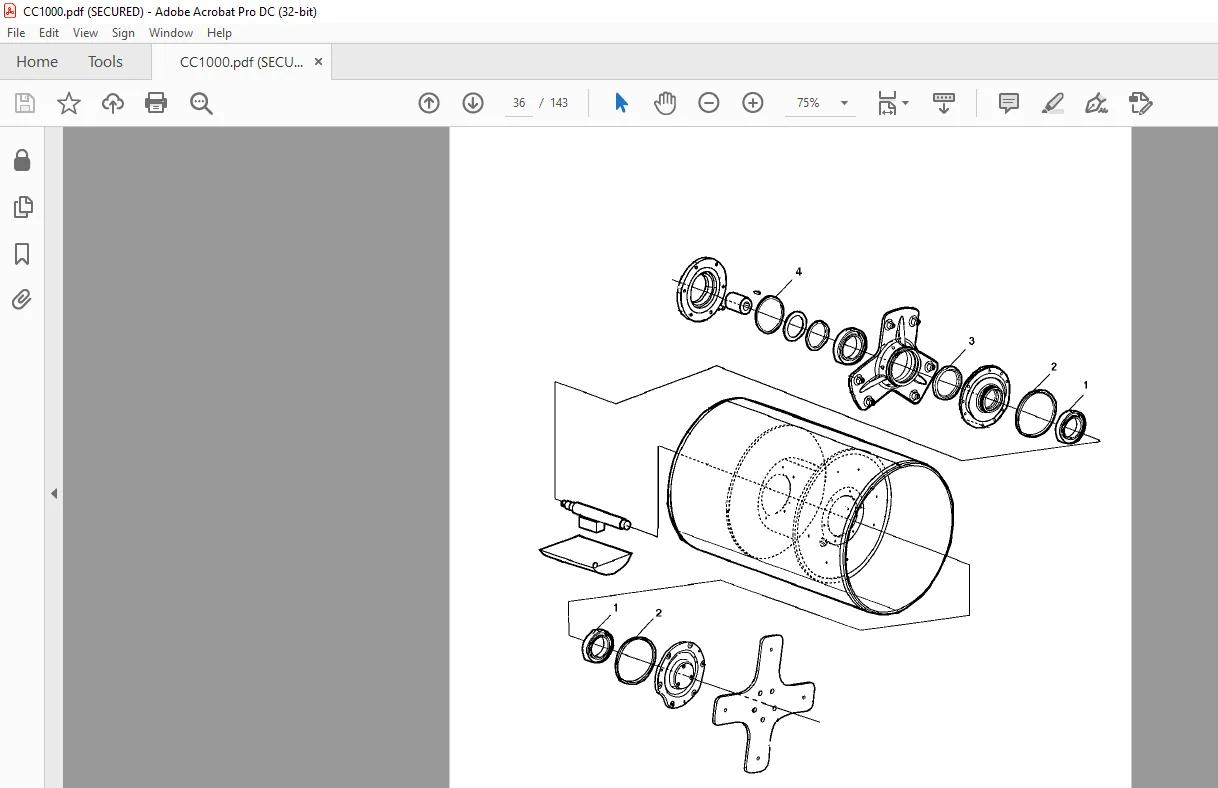

IMAGES PREVIEW OF THE MANUAL:
