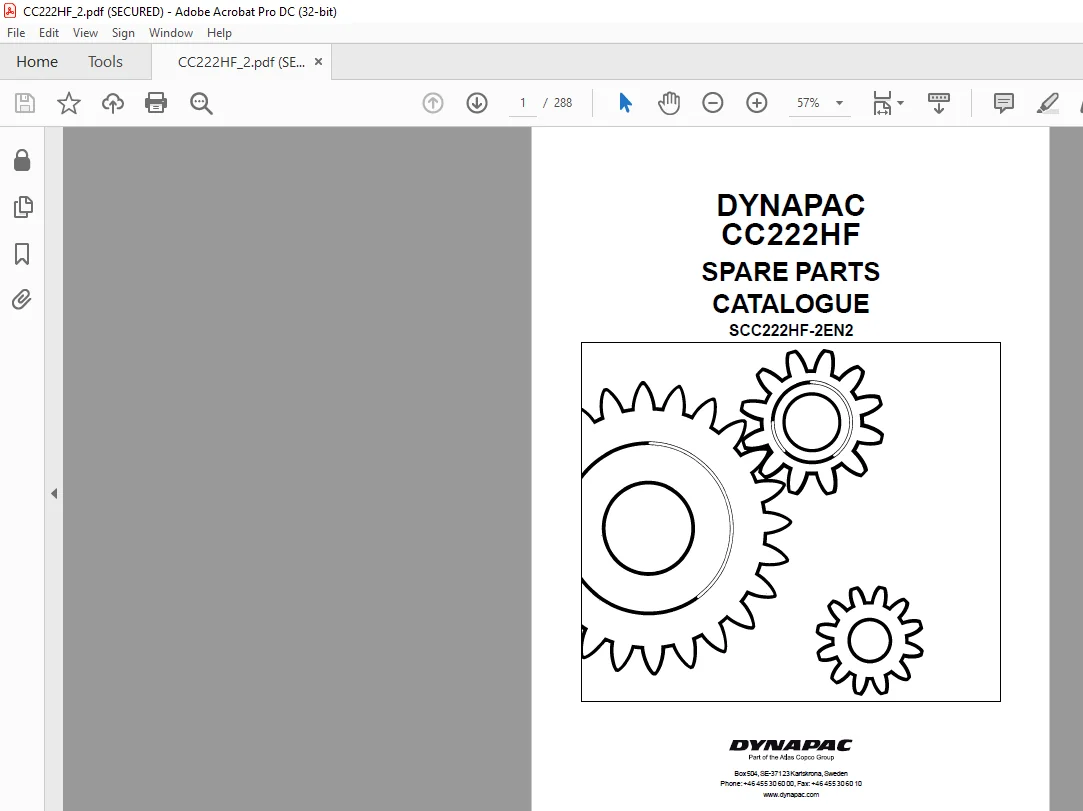

Dynapac CC222HF Spare Parts Catalogue SCC222HF-2EN2 – PDF DOWNLOAD

CC222HF SN 61712100- 2
Service kits 4
Service kits 6
940237 Service kit 50h, Deutz 4cyl 2011 8
940238 Service kit 500h, Deutz 4cyl 2011 10
940239 Service kit 1000h, Deutz 4cyl 2011 12
Repair kits 14
Repair kits 16
945721 Eccentric shaft kit 18
938891 Drum rotation kit 20
945719 Scraper kit CC222/232, CG223/233 22
945717 Shock absorber kit, drum CC222/322,CG223 24
938558 Steering hitch kit 26
Frame 28
Frames 30
Covers, ladders 32
Scrapers Standard 34
Scrapers, spring loaded, front drum 36
Scrapers, spring loaded, rear drum 40
Sprinkler mat Option 42
Articulated link 44
Structure 46
Noise suppression Left hood 50
Sprinkler system Tanks 52
Sprinkler system, front 56
Sprinkler system, rear 60

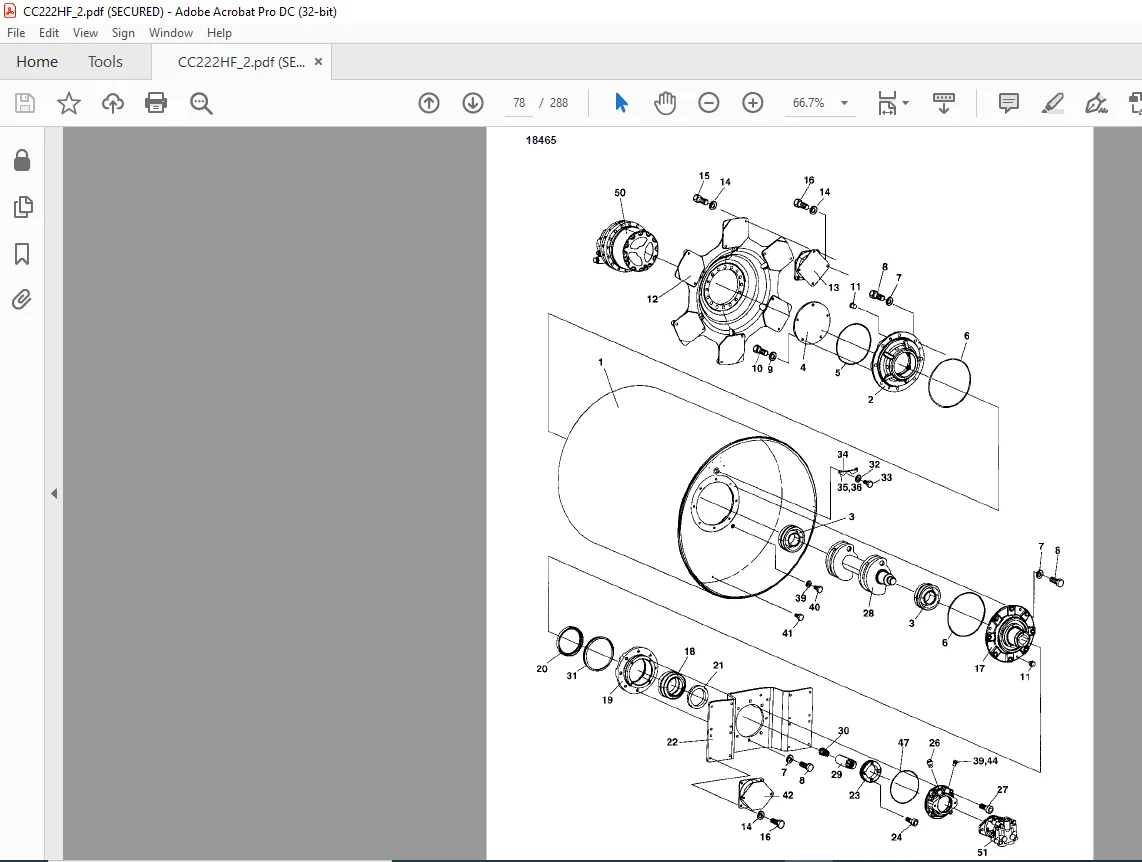

Drum 64
Drum 66
Engine 68
Diesel engine Deutz BF04L 2011 Up to 61712399 70
Diesel engine Deutz TD2011 L04 I From 61712400 72
Intake system 74
Fuel system 76
Exhaust system 78
Hydraulic system 80
Propulsion system Pump 82
Propulsion system Motors 86
Vibration system Pump 88
Vibration system Motors 92
359140 Valve Vibration 94
374494 Oil cooler cpl 96
Steering system Up to 61712399 98
Steering system From 61712400 102
359139 Pilot valve 106
Offset drum Option 108
380780 Direction control valve 110
373403 Cylinder Offset drum 112
Brake system 114
Electrical equipment 116
Electrical equipment 118
TC 2
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
Electrical equipment Additional for cab 122
Electric battery switch 124
Instrument box 126
Instrument panel, main 128
Speed and frequency Sensors 130
Instrument panel Upper left 132
Instrument panel Upper right 134
Instrument panel Lower left 136
Instrument panel Lower right 138
Instrument panel Relay, fuses 140
Emergency stop panel 142
Driving lights Direction & licenseplate light 144
Working lights with/without Rops 146
Protecting cover, Headlight 148
Working lights, cab 150
Rotating beacon 152
Tachograph 154
Offset drum Electrical equipment 156
Drivers platform 158
Drivers platform 160
Drivers platform For cab 162
Drivers seat, turn-over 164
Drivers seat, turn-over in cab 166
Cross sliding Controls 168
Cross sliding Carrier 170
391163 Steering column 172
Forward and reverse control 174
Speed limiter Option 176
Engine controls Up to 61712399 178
Engine controls From 61712400 180
Rear mirror 182
Rops and fops With seat belt 184
Canopy 186
Cab, asymmetric 188
Cab, interior 190
Cab, screens 192
Cab, inside panels 194
Cab, wipers, right side 196
Cab, wipers, front and rear 198
Cab, door, left side 200
Cab, door, left side (3-split) 202
Cab, heater and, fan system 204
385769 Heater unit 206
Cab, roof mounted, electrical switches 208
Cab, symmetric 210
Cab Interior 212
Cab Screens 214
Cab Inside panels 216
Cab, wipers, front and rear 198
Cab, door, left side 200
Cab, door, left side (3-split) 202
Cab, heater and, fan system 204
385769 Heater unit 206
Cab, roof mounted, electrical switches 208
Cab, equipment 218
Cab, water tank wipers 220
Exterior rear mirrors 222
Radio and cassette/cd player 224
TC 3
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
Decals 226
Plates and decals 228
Standard equipment 232
Standard equipment 234
Optional equipment 236
Eyelet 238
SMV-sign, Plate holder 240
Air conditioner assembly 242
Condensor assembly 246
385766 Heater/AC unit 248
Roof hatch 250
Tool equipment 252
Edge cutter, cpl 254
Edge cutter 256
Edge cutter Hydraulics without offset 258
Edge cutter Hydraulics with offset 260
Edge cutter Sprinkler system 262
Asphalt temperature meter 264
