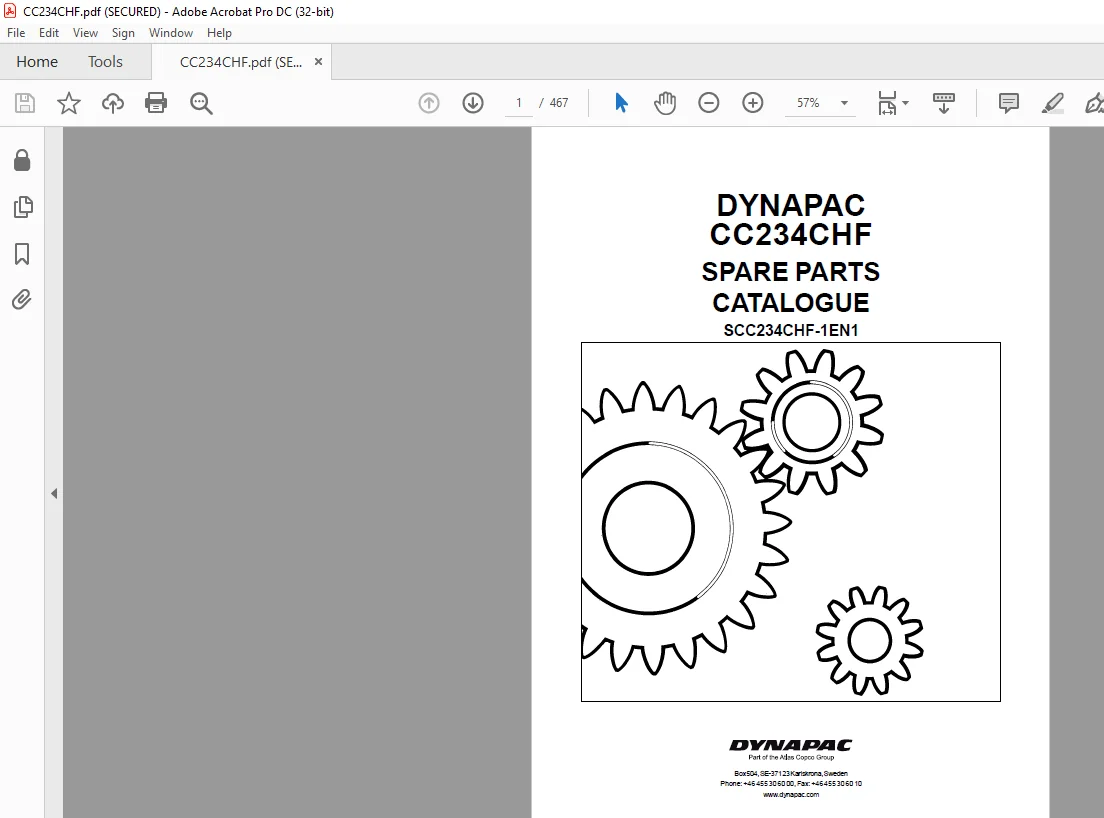

Vibratory Roller
CC234CHF
Spare Parts Catalogue
SCC234CHF-1EN1
Valid from roller serial number:
284S00006*
Diesel engines:
Cummins QSB 3.3
Published catalogue issues valid for these rollers:
Catalogue Issue date Valid for serial numbers
SCC234CHF-1EN1 2009 – 08 *284S00006* –

$27.95 $80.00

  Happy to Help You :) Any queries / Requests? CLICK HERE to ask!

Dynapac CC234CHF Spare Parts Catalogue SCC234CHF-1EN1 – PDF DOWNLOAD

TABLE OF CONTENTS:

Dynapac CC234CHF Spare Parts Catalogue SCC234CHF-1EN1 – PDF DOWNLOAD

C234CHF SN 284S00006 – 2
Service kits 4
4700950174 Service kit 50h, Cummins QSB 3.3 6
4700939076 Service kit 250 / 750 h 8
4700950175 Service kit 500h, Cummins QSB 3.3 10
4700950176 Service kit 1000h, Cummins QSB 3.3 12
Frame 14
Front frame 16
Front frame module 18
4700391023 Steering cylinder 20
Steering hitch lock 22
Tank structure module 24
Sprinkler tank structure mount 26
4700391307 Cover 28
Hose support 30
Hitch module 32
Hitch link 34
Grab handle module 36
Rear frame 38
Rear frame 40
Cover 42
Engine structure, module 44
Engine structure 46
Engine cover, left 48
Engine cover, right 50
Hose support 30
Oil cooler 52
Radiator assembly 54
Fan 56
Fan assembly 58
Noise suppression plates 60
Noise suppression, covers 62
Stabilizer module 64
Sprinkler system 66
Sprinkler pump module 68
Sprinkler pump 70
Sprinkler pump, backup 72
Filling pipe module 74
Filling pipe 76
Cover lock module 78
Lock bracket 80
Locking device module 82
Water hoses 84
Emulsion tank module 86
Emulsion tank mount 88
Sprinkler pump module, emulsion 90
Sprinkler pump mount 92
Sprinkler box cpl 94
Sprinkler pipe module, wheel 96
Sprinkler pipe 98
End frame, front 100
End frame, front 102
Frame assy 104
Fork, vibration side 106
Fork, propulsion side 108
Cover plate 110
Hose clamp, propulsion side 112
TC 2
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
Hose clamp, vibration side 114
Step, vibration side 116
Step 118
Scraper module, without nozzles 120
Scraper assy 122
Scraper module, with nozzles 124
Scraper assy with nozzles 126
4700394340 Scraper bracket, cpl 128
Grab handle, release 130
Grab handle, lift 132
Eyelet module 134
End frame, rear 136
End frame, rear 138
Frame assy 140
Combi unit, basic kit 142
Connection block 144
Micro switch 146
Wheel module 148
Wheel 150
Wheel spacer module 152
Scraper bracket module 154
Scraper bracket 156
Scraper module 158
Scraper assy 160
Step module 162
Step assy 164
Cover plate 110
SMV-sign module 166
SMV-sign 168
Protecting covers 170
Drum 172
Drum 174
Split drum module 176
Propulsion motor module 178
Drive unit,cpl 180
Vibration motor module 182
Vibrating unit 184
Engine 186
Engine room 188
Engine 190
Engine module 192
Air cooler hoses 194
Water cooler hoses 196
Air cleaner module 198
Air cleaner hose module 200
Muffler 202
Exhaust pipe module 204
Fuel hose module 206
Charge air cooler 208
Water cooler 210
Radiator, cpl 212
Expansion tank assembly 214
Coolant hoses 216
Hydraulic system 218
Hydraulic system, front drum 220
Hydraulic system, frame 222
Hydraulic system, engine room 224
TC 3
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB

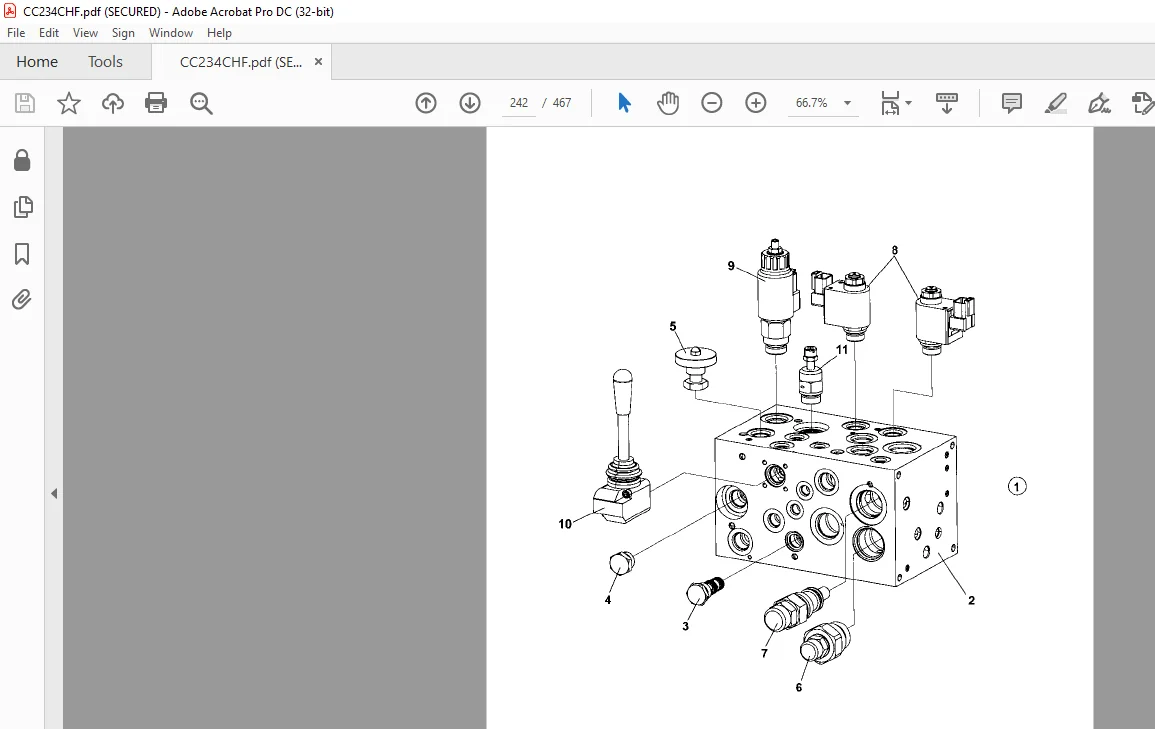

Hydraulic valve module 226
Hydraulic valve 228
4700391016 Hydraulic valve 230
Hydraulic pump module 232
Hydraulic pump 234
Hydraulic system, steering Std 236
Hose bracket 238
Hydraulic steering, sliding seat Std 240
Steering, slideable 242
Hydraulic valve module, offset 244
Hydraulic valve 246
4700391017 Hydraulic valve 248
Electrical equipment 250
Electric cables, power supply 252
Battery disconnector 254
Battery disconnector 256
Electric cables, power supply cab 258
Electric cables, engine – ECU 260
Standard ECU module 262
Standard ECU assembly 264
Electric cables, sensors/ horn/ back-up alarm 266
Horn module 268
Horn 270
Back-up alarm module 272
Back-up alarm 274
Tachograph 276
Tachograph holder module 278
Cable harness kit 280
Power supply module 282
Driving & side direction lights 284
Accessories ECU module 286
Driving lights, front RH 288
Driving lights, front LH 290
Turn signals 292
Driving lights, rear 294
Steering column switch module 296
Cable harness and switch module 298
Registration plate light module 300
Registration plate light 302
Rotating beacon, working light 304
Rotating beacon module 306
Rotating beacon module 308
Rotating beacon mount 310
Working light module H3 312
Working light module Xenon 314
Drivers platform 316
Platform, no cab 318
Platform with 4-post ROPS 320
Rear covers 322
Platform no ROPS 324
Rear covers 322
Hand rail, left 326
Hand rail 328
Hand rail, right 330
Hand rail 332
Hand rail 334
Lunch box module 336
Canopy option 338
TC 4
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
Canopy assy 340
Bracket 342
Cab, asymmetric 344
4700390865 Cab, cpl 346
Cab frame, right side 348
General parts 350
Windshield wiper, front 352
Windshield wiper, rear 354
Windshield washer reservoir 356
Electric equipment 358
Door frame 360
4700395806 Door 362
Rear covers 322
Air channel 364
Heater unit 366
Heater 368
Heater controls 370
Manual box 372
Cab heater system 374
Heater hoses 376
Cab noise cover 378
Radio and cd player 380
Radio and cd player module 382
Rear view mirror module 384
Drivers seat 386
Seat frame structure 388
Seat frame 390
Steering column 392
Seat, galon suspensioned 394
Seat, fabric suspensioned 396
Controls, slidable and turning 398
Cross sliding 400
Carrier 402
Drive control, cpl 404
Drive control 406
Control panel cover 408
Display unit 410
Display 412
Decals 414
Decals 416
Optional equipment 418
Air conditioning 420
Compressor module 422
Compressor complete 424
Condensor module 426
Condensor 428
Evaporator module 430
4700393584 Evaporator unit 432
Hose kit AC 434
Hose kit AC 436
Hose kit Compressor 438
Hose kit AC 440
ACC module 442
ACC controls 444
Belt guard module 446
