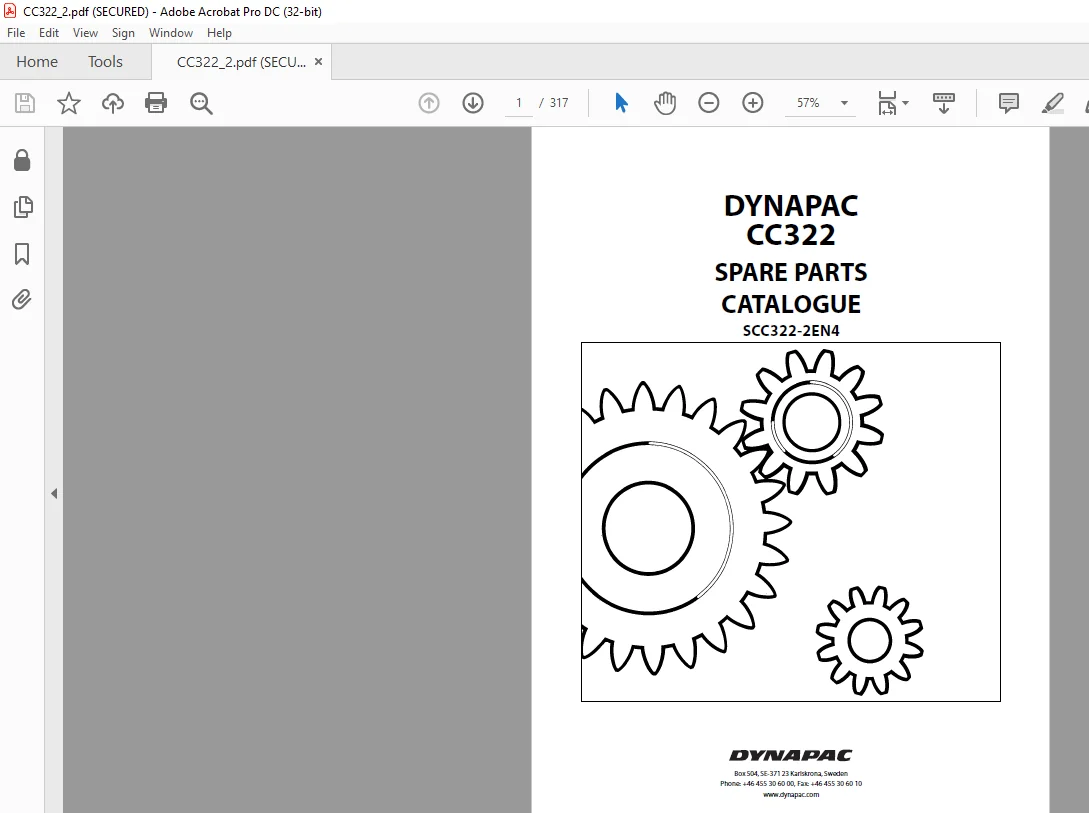

Dynapac CC322 Spare Parts Catalogue SCC322-2EN4 – PDF DOWNLOAD

Published catalogue issues valid for these rollers:

Catalogue Issue date Valid for serial numbers

5CC322—2EN 1 2004—01 Replaced by 5CC322—2EN2

5CC322—2EN2 2004— 12 Replaced by 5CC322—2EN3

5CC322—2EN3 2005— 10 Replaced by 5CC322—2EN4

5CC322—2EN4 2006—04 See above

CC322 SN 62110600- 2
Service kits 4
Service kits 6
940237 Service kit 50h, Deutz BF4L 2011 8
940238 Service kit 500h, Deutz BF4L2011/BF4M2011 10
940239 Service kit 1000h, Deutz BF4L 2011 12
Repair kits 14
Repair kits 16
938901 Eccentric shaft kit 18
938891 Drum rotation kit 20
938917 Scraper kit CC322/422/432 22
938880 Shock absorber kit, drum 24
938558 Steering hitch kit 26
Frame 28
Frames 30
Covers, ladders 32
Scrapers Standard Up to 62110636 34
Scrapers Standard From 62110637 36
Scrapers, spring loaded Foldable Up to 62110636 38
Scrapers, spring loaded, front drum From 62110637 40
Scrapers, spring loaded, rear drum From 62110637 44
Articulated link 46
Structure Up to 62110699 48
Structure From 62110700 52
Noise suppression Left hood 56
Sprinkler system Tanks 58
Sprinkler system, front Up to 62110636 62
Sprinkler system, front From 62110637 66
Sprinkler system, rear Up to 62110636 70
Sprinkler system, rear From 62110637 74
Drum 78
Drum 80
Engine 84
Diesel engine Deutz BF04L 2011 86
Intake system 88
Fuel system 90
Exhaust system 92
Hydraulic system 94
Propulsion system Pump 96
Propulsion system Motors 100
376374 Hydraulic pump Propulsion and vibration 102
Hydraulic pump Propulsion pump 104
Valve block Middle part 108
Hydraulic pump Vibration pump 110
Hydraulic motors Propulsion 112
Shut-off valve For towing, option 114

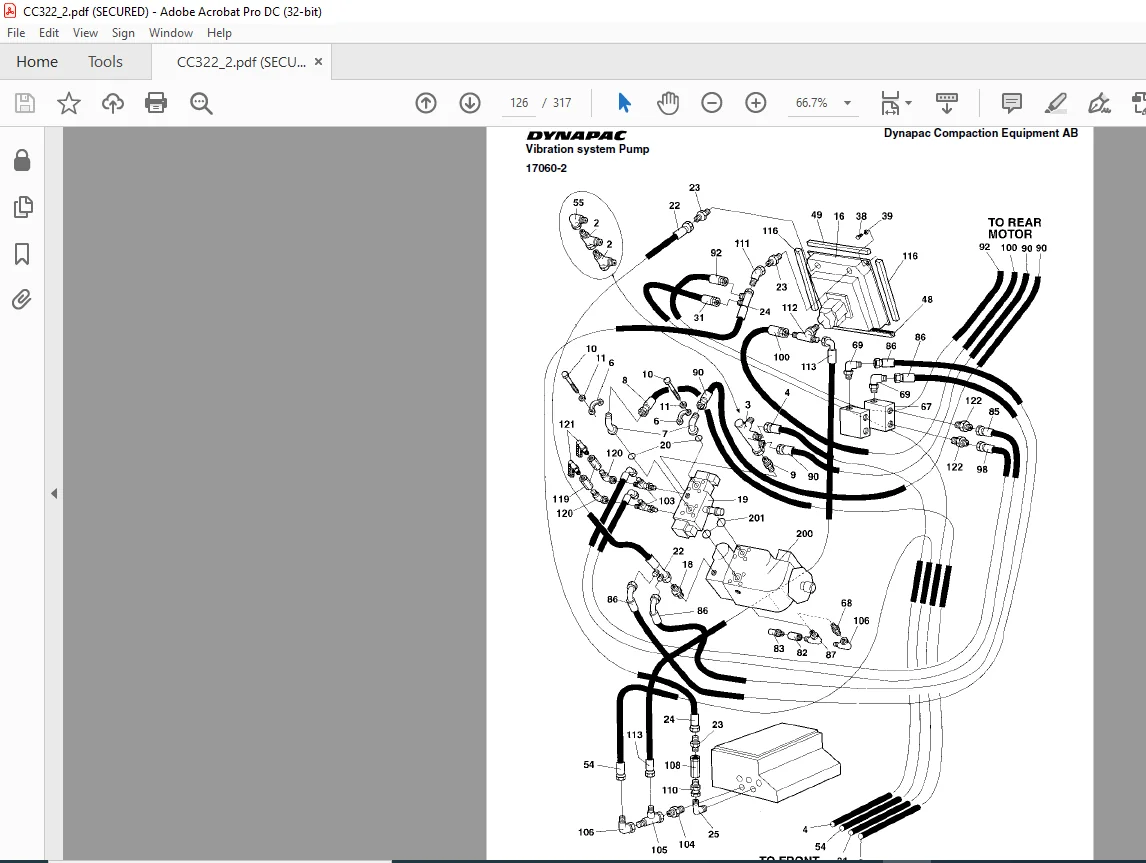

Vibration system Pump 116
Vibration system Motors 120
359140 Valve Vibration 122
TC 2
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
374494 Oil cooler cpl 124
Steering system Up to 62110642 126
Steering system From 62110643 130
374027 Hydraulic pump Steering 134
359139 Pilot valve 136
375031 Hydraulic cylinder 138
Offset drum Option 140
380780 Direction control valve 142
373403 Cylinder Offset drum 144
Brake system 146
Electrical equipment 148
Electrical equipment 150
Electrical equipment Additional for cab 154
Electric battery switch 156
Instrument box 158
Instrument panel, main 160
Speed and frequency Sensors 162
Instrument panel Upper left 164
Instrument panel Upper right 166
Instrument panel Lower left 168
Instrument panel Lower right 170
Instrument panel Relay, fuses 172
Emergency stop panel 176
Driving lights Direction & licenseplate light 178
Working lights with/without Rops 180
Protection cover, Head light 182
Working lights, cab 184
Rotating beacon 186
Tachograph 188
Offset drum Electrical equipment 190
Drivers platform 192
Drivers platform 194
Drivers platform For cab 196
Drivers seat, turn-over 198
Drivers seat Turn-over in cab 200
359918 Steering column 202
Cross sliding Controls 204
Cross sliding Carrier 206
Forward and reverse control 208
Speed limiter Option 210
Engine controls 212
Rear mirror 214
Rops and fops With seat belt 216
Canopy 218
Cab, asymmetric 220
Cab, interior 222
Cab, screens 224
Cab, inside panels 226
Cab, wipers, right side 228
Cab, wipers, front and rear 230
Cab, door, left side 232
Cab, door, left side (3-split) 234
Cab, heater and, fan system 236
385769 Heater unit 238
Cab, roof mounted, electrical switches 240
Cab, symmetric 242
TC 3
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
Cab Interior 244
Cab Screens 246
Cab Inside panels 248
Cab, wipers, front and rear 230
Cab, door, left side 232
Cab, door, left side (3-split) 234
Cab, heater and, fan system 236
385769 Heater unit 238
Cab, roof mounted, electrical switches 240
Cab, equipment 250
Cab, water tank wipers 252
Exterior rear mirrors 254
Radio and cassette/cd player 256
Plates and decals 258
Plates and decals 260
Standard equipment 264
Standard equipment 266
Optional equipment 268
Eyelet 270
Sign Slow moving vehicle 272
Edge cutter cpl 274
Edge cutter 276
Edge cutter Hydraulics without offset 278
Edge cutter Hydraulics with offset 280
Edge cutter Sprinkler system 282
Air conditioner assembly 284
Condensor assembly 286
385766 Heater/AC unit 288
Roof hatch 290
Tool equipment 292
Asphalt temperature meter 294
