Vibratory Tandem Roller
CC522HF
Spare Parts Catalogue
SCC522HF-2EN4
Valid from roller serial number:
*43720522*
Diesel engines:
CUMMINS 4B 3.9 TAA
Published catalogue issues valid for these rollers:
Catalogue Issue date Valid for serial numbers
SCC522HF-2EN1 2003-04 Replaced by SCC522HF-2EN2
SCC522HF-2EN2 2004-12 Replaced by SCC522HF-2EN3
SCC522HF-2EN3 2006-03 Replaced by SCC522HF-2EN4
SCC522HF-2EN4 2007-06 See above

CC522HF SN 43720522 – 2
Service kits 4
Service kits 6
939563 Service kit 50 h 8
939564 Service kit 500 h 10
939565 Service kit 1000 h 12
Repair kits 14
Repair kits 16
938905 Eccentric shaft kit 18
938891 Drum rotation kit 20
938918 Scraper kit CC522 22
938888 Shock absorber kit, drum 24
938558 Steering hitch kit 26
Frames 28
Frames 30
Covers, ladders 32
Scrapers, standard, front drum Up to 43720637 36
Scrapers, standard, rear drum Up to 43720637 38
Scrapers, standard From 43720638 40
Scrapers, spring loaded Foldable Up to 43720637 42
Scrapers, spring loaded, front drum From 43720638 44
Scrapers, spring loaded, rear drum From 43820638 48
Articulated link 50
Structure 52
Noise suppression 56
Noise reduction hood 58
Sprinkler systems, tanks 60
Sprinkler system, front Up to 43720637 64
Sprinkler system, front From 43720638 68
Sprinkler system, rear Up to 43720637 72
Sprinkler system, rear From 43720638 76
Drum 80
Drum, standard, front/rear 82
Engine 86
Diesel engine Cummins 4B3.9 TAA Up to 43720605 88
Diesel engine Cummins 4B3.9 TAA From 43720606 90
Cooling system 92
Intake system 94
Fuel system 96
Exhaust system 98
Pumpdrive and coupling 100
373354 Gear box 102
Hydraulic system 104
Propulsion system, pump Up to 43720605 106
Propulsion system, pump From 43720606 108
Propulsion system, motors Up to 43720605 110
Propulsion system, motors From 43720606 112
Vibration system, pump 114
359140 Valve Vibration 118
TC 2
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
Vibration system, motors Up to 43720542 120
Vibration system, motors From 43720543 122
Steering system Up to 43720624 124
359145 Steering valve 128
375031 Hydraulic cylinder 130
Hydraulic oil tank 132
Steering system From 43720625 134
359145 Steering valve 128
Hydraulic oil tank 132
Offset drum 138
381217 Direction control valve 140
380780 Direction control valve 142
Brake system 144
Electrical equipment 146
Electrical equipment 148
Electric battery switch 152
Instrument box 154
Instrument panel, main 156
Speed and frequency, sensors 158
Instrument panel, upper left 160
Instrument panel, upper right 162
Instrument panel, lower left 164
Instrument panel, lower right 166
Instrument panel, relay, fuses 168
Emergency stop panel 170
Driving lights Direction & licenseplate light 172
Working lights with/without Rops 174
Working lights, cab 176
Working lights, Xenon lamp 178
Protection cover, Head light 180
Rotating beacon 182
Tachograph 184
Drivers platform 186
Drivers platform 188
Drivers platform, for cab 190
Drivers seat, turn-over Up to 43720631 192
Drivers seat, turn-over From 43720632 194
Drivers seat Turn-over in cab Up to 43720631 196
Drivers seat, turn-over in cab From 43720632 198
359918 Steering column Up to 43720631 200
391163 Steering column From 43720632 202
Cross sliding Controls 204
Cross sliding Carrier 206
Forward and reverse control 208
Speed limiter Option 210
Engine control 212
Rear mirror 214
Rops / fops 216
Cab, asymmetric 218
Cab, interior 220
Cab, screens 222
Cab, inside panels 224
Cab, wipers, right side 226
Cab, wipers, front and rear 228
Cab, door, left side 230
Cab, door, left side (3-split) 232
TC 3
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
Cab, heater and, fan system 234
385770 Heater unit 236
Cab, roof mounted, electrical switches 238
Cab, symmetric 240
Cab Interior 242
Cab Screens 244
Cab Inside panels 246
Cab, wipers, front and rear 228
Cab, door, left side 230
Cab, heater and, fan system 234
385770 Heater unit 236
Cab, roof mounted, electrical switches 238
Cab, water tank wipers 248
Cab, sun curtain, first aid kit, int mirror 250
Exterior rear mirrors 252
Radio and cassette/cd player 254
Decals 256
Plates and decals 258
Standard equipment 262
Standard equipment 264
Optional equipment 266
Compaction meter 268
Edge cutter cpl 270
Edge cutter 272
Edge cutter Hydraulics without offset 274
Edge cutter Hydraulics with offset 276
Edge cutter Sprinkler system 278
Eyelet 280
SMV sign 282
Tool equipment 284
Air conditioner assembly 286
Condensor assembly 288
385587 Heater/AC unit 290
Compressor assembly 292
Roof hatch 294
Asphalt temperature meter 296

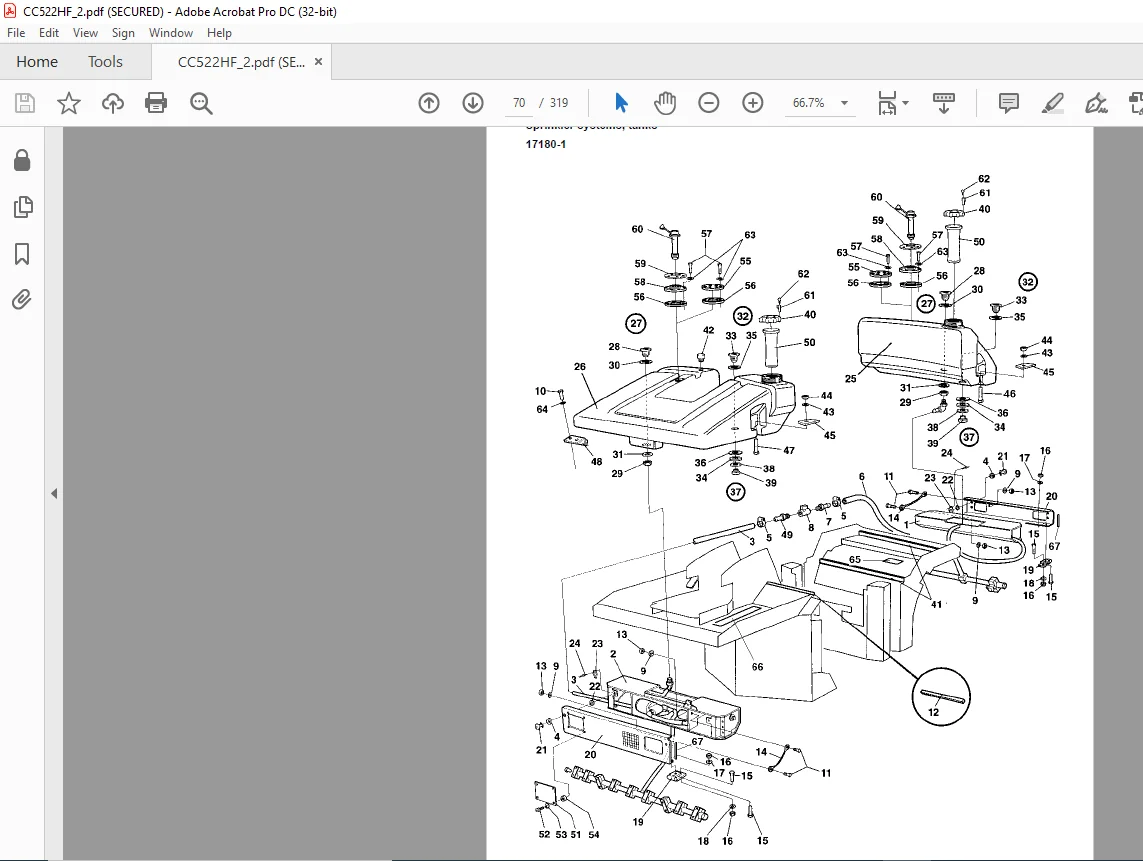

IMAGES PREVIEW OF THE MANUAL:
