Vibratory Roller
CC900
Spare Parts Catalogue
SCC900-2EN3
Valid from roller serial number:
*89232700* –
Diesel engines:
Perkins 403D-11
Published catalogue issues valid for these rollers:
Catalogue Issue date Valid for serial numbers
SCC900-2EN1 2008-03 Replaced by SCC900-2EN2
SCC900-2EN2 2009-04 Replaced by SCC900-2EN3
SCC900-2EN3 2009-12 See above

$21.95 $80.00

  Happy to Help You :) Any queries / Requests? CLICK HERE to ask!

Dynapac CC900 Spare Parts Catalogue SCC900-2EN3 – PDF DOWNLOAD

TABLE OF CONTENTS:

Dynapac CC900 Spare Parts Catalogue SCC900-2EN3 – PDF DOWNLOAD

CC900 SN 89232700 – 2
Service kits 4
4700940208 Service kit, Perkins 50h 6
4700940209 Service kit, Perkins 500h 8
4700940210 Service kit, Perkins 1000h 10
Repair kits 12
4700945552 Shock absorber kit, drum 14
4700940671 Scraper kit CC900/900G/900S 16
4700945928 Repair kit, Steering hitch 18
4700945710 Eccentric shaft kit 20
4700945711 Drum rotation kit 22
Frames 24
Frames 26
4700377621 Hitch 28
Frames 30
4700377621 Hitch 28
Scrapers 32
Engine hood 34
Sprinkler system 36
Drum 38
Drum 40
Engine 42
Engine Perkins 403D-11 44
Cooling system 46
Exhaust system 48
Fuel system 50
Air intake system 52
Hydraulic system 54
Hydraulic propulsion and brake system motor 56
4700387270 Hydraulic motor 58
Hydraulic propulsion and brake system pump 60
Hydraulic vibration 62
Hydraulic steering 64
4700387274 Steering valve 66
4700387275 Hydraulic cylinder 68
Electrical equipment 70
Electrical equipment Up to 89232882 72
Electrical equipment From 89232883 74
Control panel, relays Up to 89232817 76
Control panel, relays From 89232818 78
Driving lights Option 80
Driving lights Option 82
Working lights Option 84
Rotating beacon with Rops Option 86
Back-up alarm Option 88
Drivers platform 90
Drivers seat 92
F/R- and throttle control 94
TC 2
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
Forward and reverse control handle 96
Rops Option 98
Decals and documentation 100
Decals and documentation 102
Standard equipment 104
Standard equipment 106
Optional equipment 108
Battery disconnector 110
Battery disconnector From ECN 9452 112
Water tank, option 114
Dual forward/reverse control 116
SMV-sign 118
SMV-sign Mounting on watertank 120
SMV-sign on high water tank 122
Registrations – plate with light 124
Hydraulic vibration, shut off front/rear drum 126
4700387276 Combination valve 128
Rear view mirror 130
Rear view mirror 132
Tool equipment 134

FILE DETAILS:

Dynapac CC900 Spare Parts Catalogue SCC900-2EN3 – PDF DOWNLOAD

Language : English
Pages :150
Downloadable : Yes
File Type : PDF
Size:1.32 MB

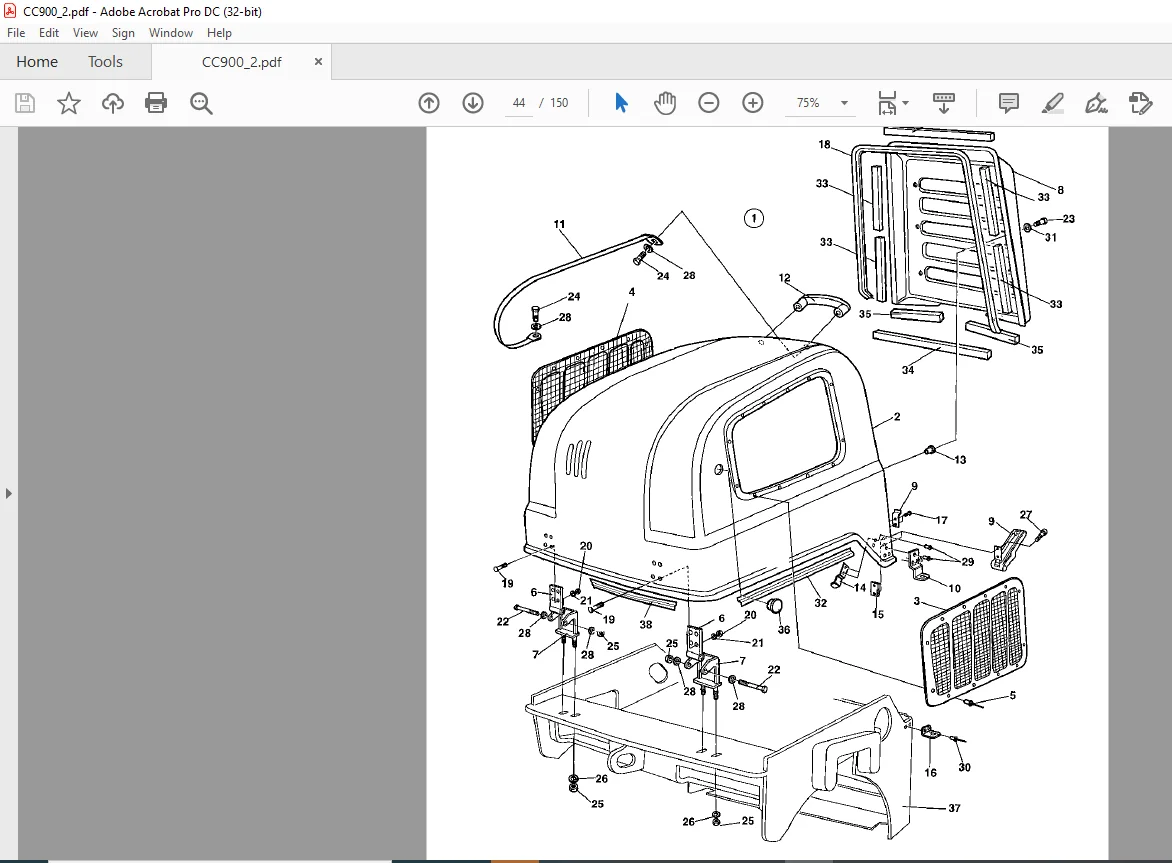

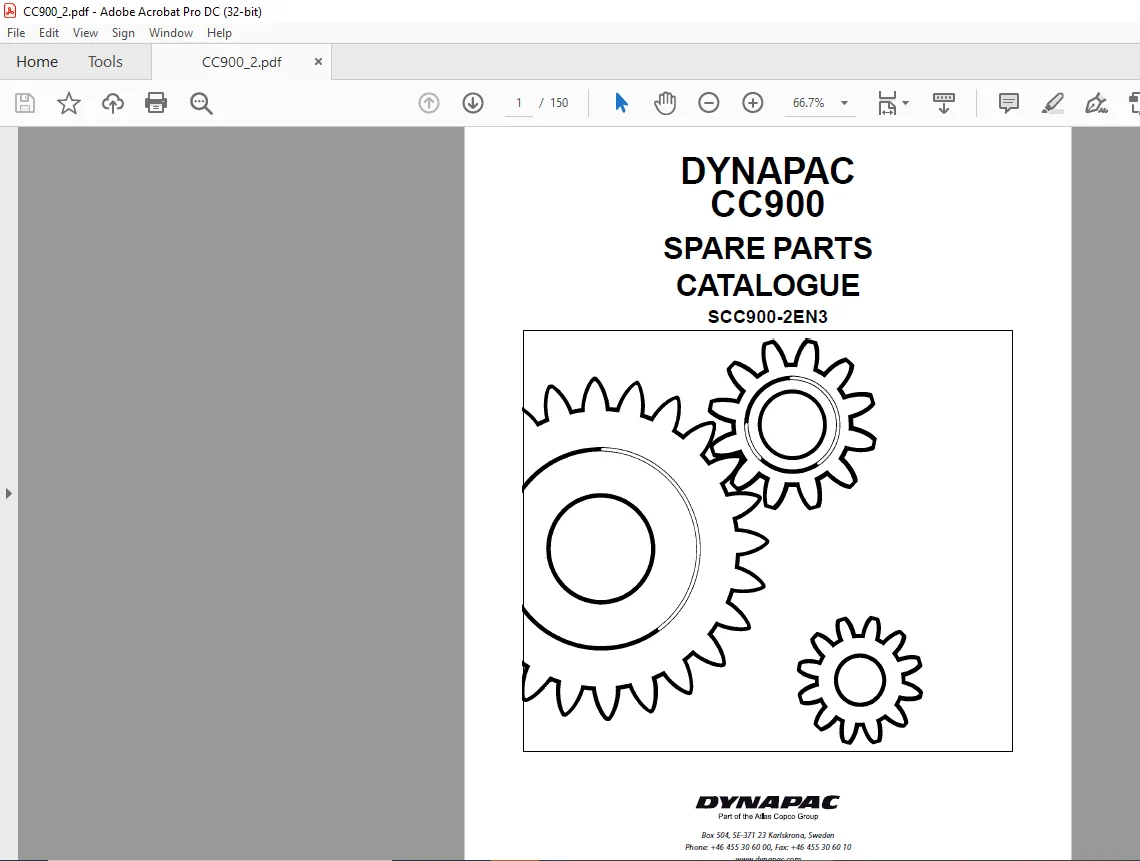

IMAGES PREVIEW OF THE MANUAL:
