Vibratory Combination Roller
CC900S
Spare Parts Catalogue
SCC900S-2EN3
Valid from roller serial number:
*89532700* –
Diesel engines:
Perkins 403D-11
Published catalogue issues valid for these rollers:
Catalogue Issue date Valid for serial numbers
SCC900S-2EN1 2008-03 Replaced by SCC900S-2EN2
SCC900S-2EN2 2009-04 Replaced by SCC900S-2EN3
SCC900S-2EN3 2009-12 See above

$21.95 $80.00

  Happy to Help You :) Any queries / Requests? CLICK HERE to ask!

Dynapac CC900S Spare Parts Catalogue SCC900S-2EN3- PDF DOWNLOAD

TABLE OF CONTENTS:

Dynapac CC900S Spare Parts Catalogue SCC900S-2EN3- PDF DOWNLOAD

CC900S SN 89532700 – 2
Service kits 4
4700940208 Service kit, Perkins 50h 6
4700940209 Service kit, Perkins 500h 8
4700940210 Service kit, Perkins 1000h 10
Repair kits 12
4700945850 Shock absorber kit, front drum 14
4700945552 Shock absorber kit, drum 16
4700940671 Scraper kit CC900/900G/900S 18
4700945928 Repair kit, Steering hitch 20
4700945710 Eccentric shaft kit 22
4700945711 Drum rotation kit 24
4700950150 Eccentric shaft kit Single arm drum 26
Frames 28
Frames 30
4700377621 Hitch 32
Scrapers 34
Spring loaded Scrapers Option 36
Engine hood 38
Sprinkler system 40
Drum 42
Drum Single arm 44
Drum Rear 46
Engine 48
Engine Perkins 403D-11 50
Cooling system 52
Exhaust system 54
Fuel system 56
Air intake system 58
Hydraulic system 60
Hydraulic propulsion and brake system 62
Hydraulic vibration 66
4700387276 Combination valve 70
Hydraulic steering 72
4700387274 Steering valve 74
4700387275 Hydraulic cylinder 76
Electrical equipment 78
Electrical equipment 80
Control panel, relays Up to 89532816 82
Control panel, relays From 89532817 84
Driving lights Option 86
Driving lights Option 88
Working lights Option 90
Rotating beacon with Rops Option 92
Back-up alarm Option 94
Drivers platform 96
Drivers seat 98
F/R- and throttle control 100
TC 2
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
Forward and reverse control handle 102
Rops Option 104
Decals and documentation 106
Decals and documentation 108
Standard equipment 110
Standard equipment 112
Optional equipment 114
Battery disconnector 116
Battery disconnector From ECN 09452 118
Water tank, option 120
Dual forward/reverse control 122
SMV-sign 124
SMV-sign Mounting on watertank 126
SMV-sign on high water tank 128
Registrations – plate with light 130
Hydraulic vibration, shut off front/rear drum 132
4700387276 Combination valve 70
Rear view mirror 134
Rear view mirror 136
Tool equipment 138

FILE DETAILS:

Dynapac CC900S Spare Parts Catalogue SCC900S-2EN3- PDF DOWNLOAD

Language : English
Pages :154
Downloadable : Yes
File Type : PDF
Size:1.33 MB

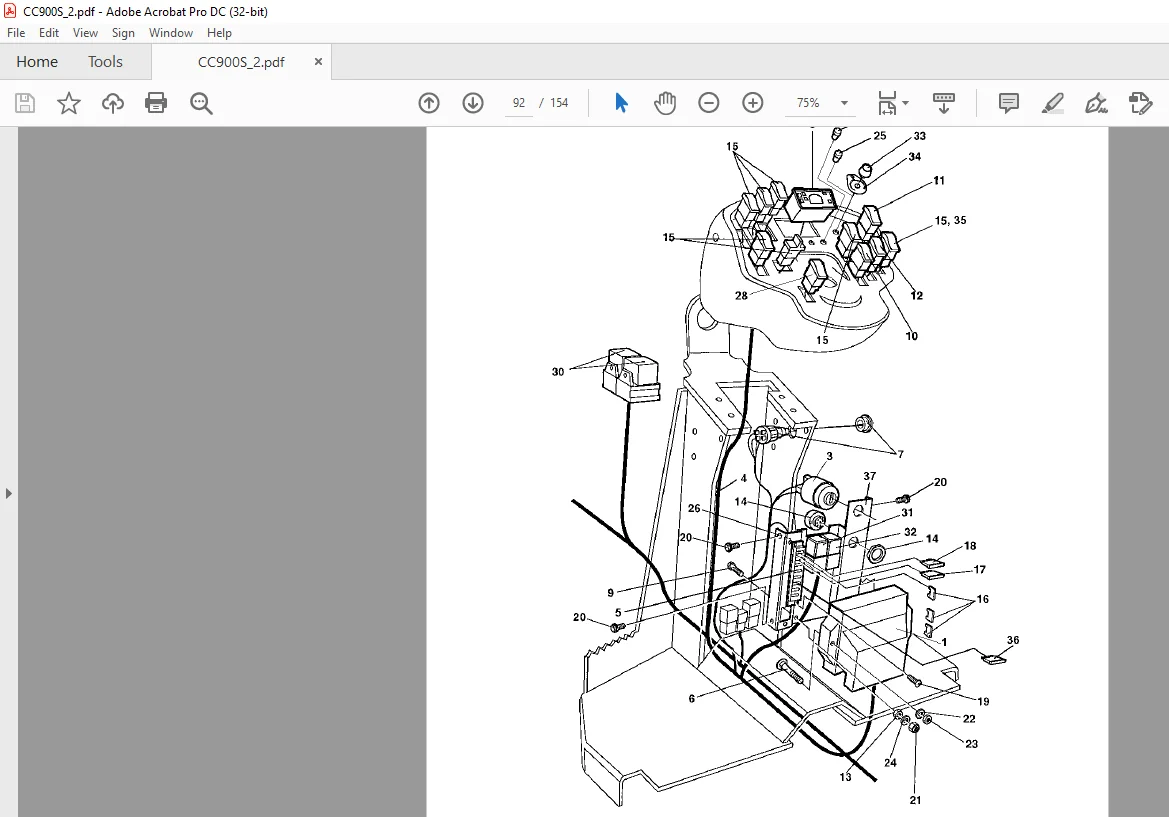

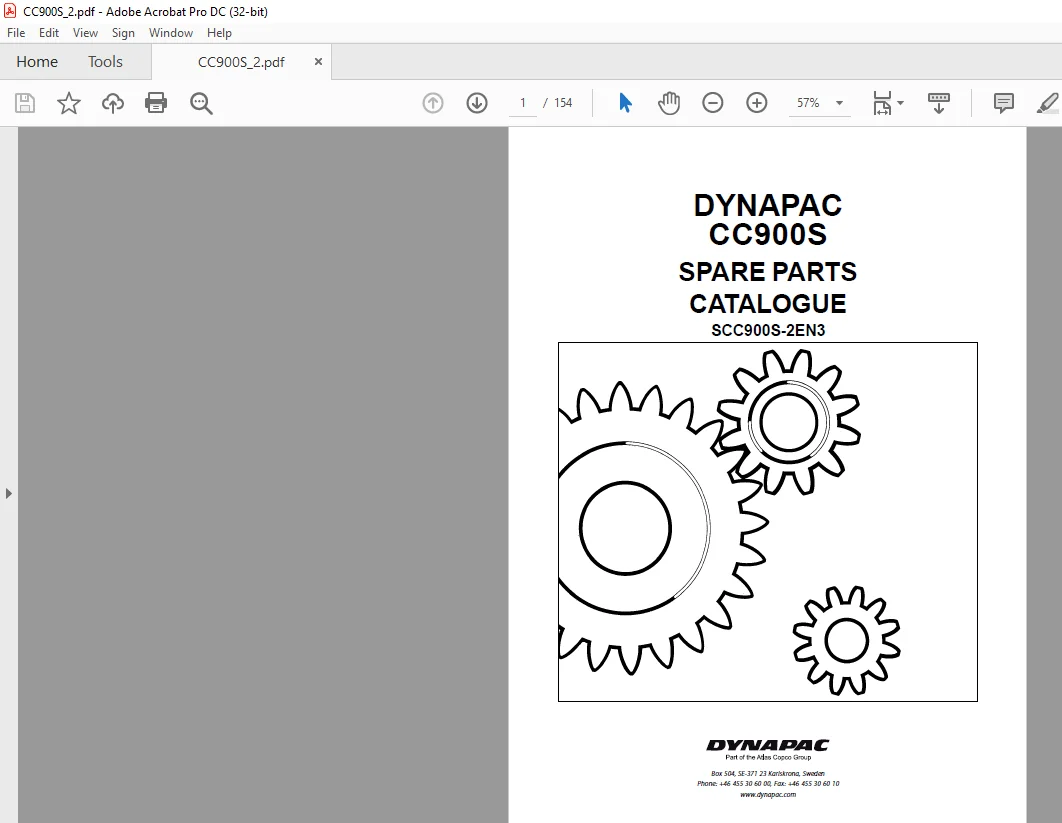

IMAGES PREVIEW OF THE MANUAL:
