Dynapac CP 132 Spare Parts Catalogue SCP132-2EN1 – PDF DOWNLOAD

Description

Dynapac CP 132 Spare Parts Catalogue SCP132-2EN1 – PDF DOWNLOAD

FILE DETAILS:

Dynapac CP 132 Spare Parts Catalogue SCP132-2EN1 – PDF DOWNLOAD

Language : English
Pages :114
Downloadable : Yes
File Type : PDF
Size:910 KB

TABLE OF CONTENTS:

Dynapac CP 132 Spare Parts Catalogue SCP132-2EN1 – PDF DOWNLOAD

CP132 21620331 – 2
Frame 4
Frame and hood 6
Scrapers 8
Scrapers and mat 10
Sprinkler system One pump 12
Sprinkler system Two pumps 14
Suspension 16
Front suspension 18
Rear suspension 20
Wheel and tyre 22
Spare wheel 24
Engine 26
Engine 28
Cooling system 30
Air cleaner 32
Fuel system 34
Exhaust system 36
Hydraulic system 38
Hydraulic drive 40
381280 Hydraulic pump 42
938237 Rotary group 44
938238 Control unit 46
938242 Positioning piston 48
936295 Valve block 50
936296 Charge pump 52
938239 Control module 54
938248 Control module 56
Drain system 58
Speed hydraulic system 60
Steering hydraulic 62
925536 Steering unit 64
Hydraulic brake 66
Solenoid valve brake 68
Electrical equipment 70
Electrical equipment 72
Driving & working lights 74
Instrument panel, relay, fuses 76
Drivers platform 80
Drivers platform 82
Rops and seat belt 84
Engine controls 86
Decals 88
Plates and decals 90
Optional equipment 92
Canopy 94
Rotating beacon 96
Sign smv 98

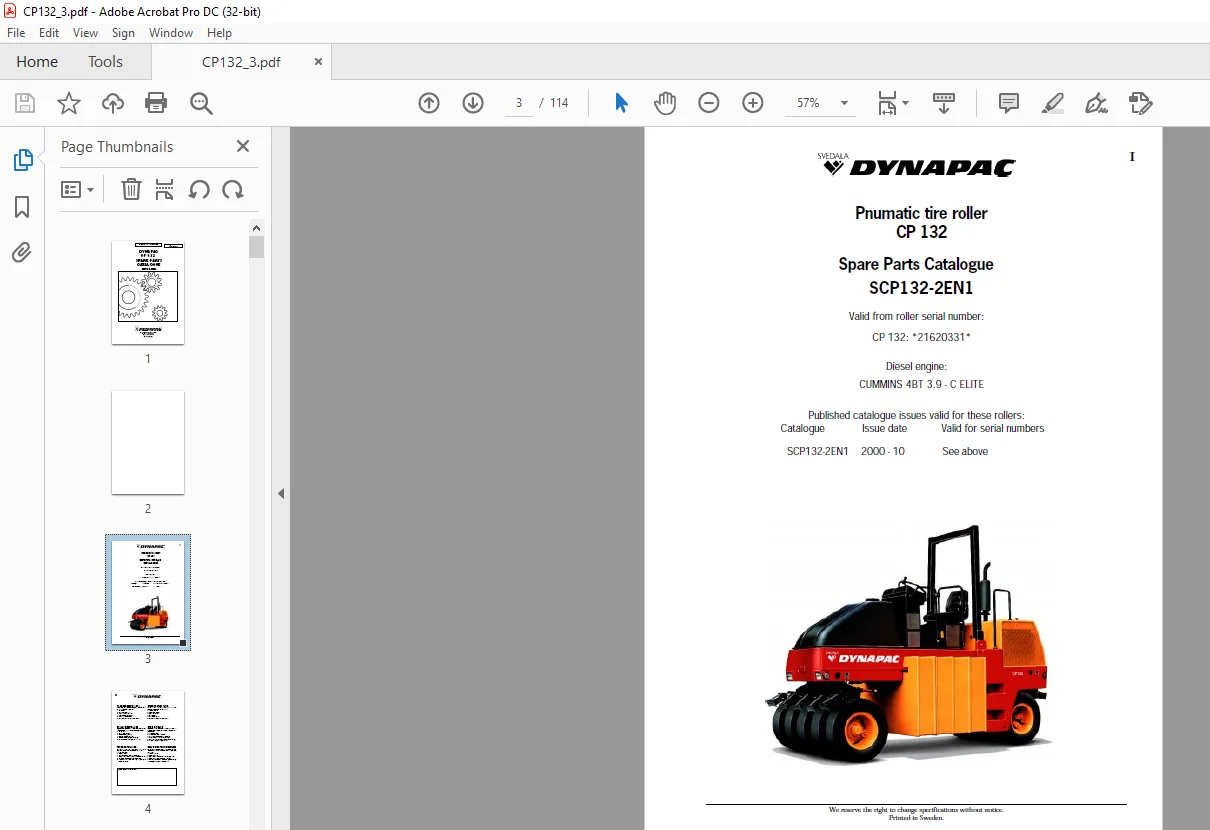

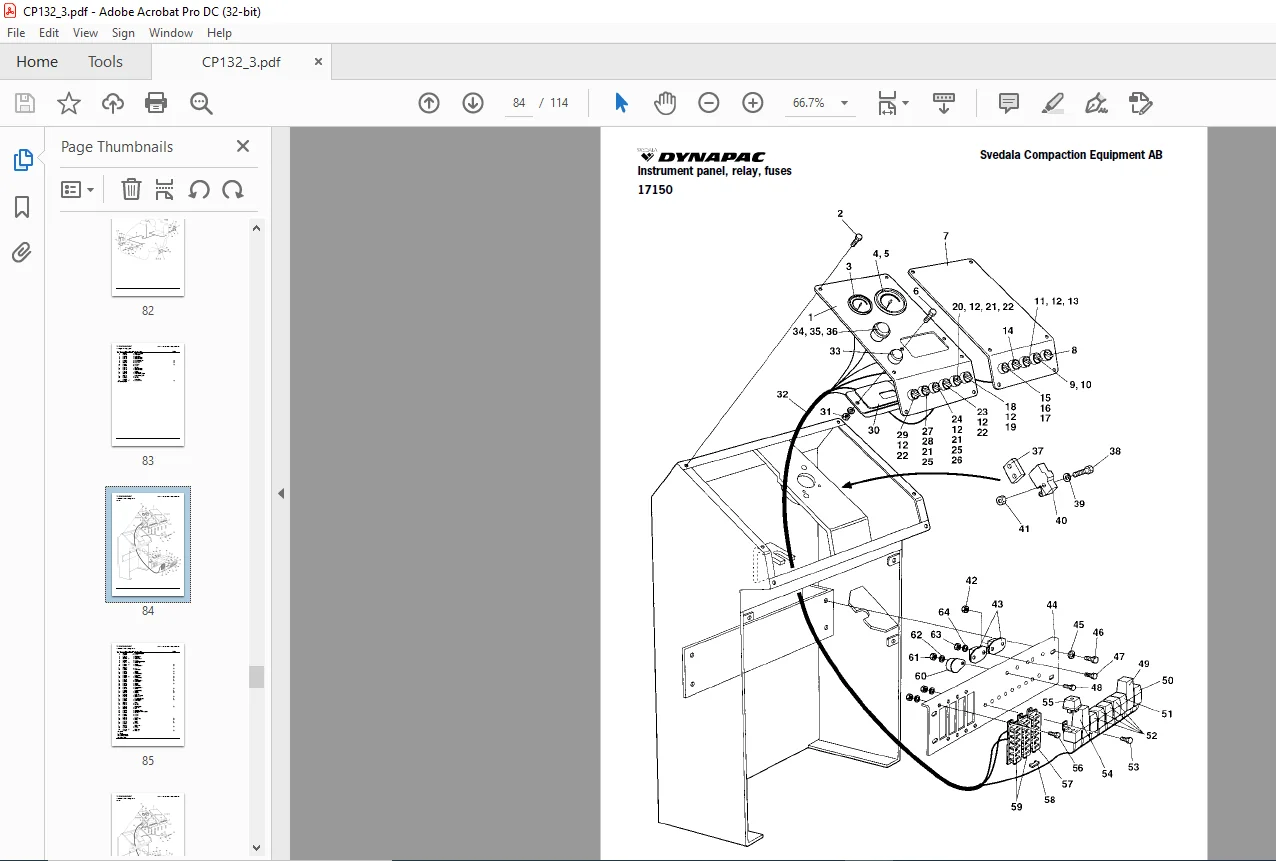

IMAGES PREVIEW OF THE MANUAL:
