Dynapac DFP12D Forward Plate Engine Hatz 1B20 CARB Phase III Spare Parts Catalogue Manual DL00825777 – PDFDOWNLOAD

Description

Dynapac DFP12D Forward Plate Engine Hatz 1B20 CARB Phase III Spare Parts Catalogue Manual DL00825777 – PDFDOWNLOAD

FILE DETAILS:

Dynapac DFP12D Forward Plate Engine Hatz 1B20 CARB Phase III Spare Parts Catalogue Manual DL00825777 – PDFDOWNLOAD

Language : English
Pages :105
Downloadable : Yes
File Type : PDF
Size:17.3 MB

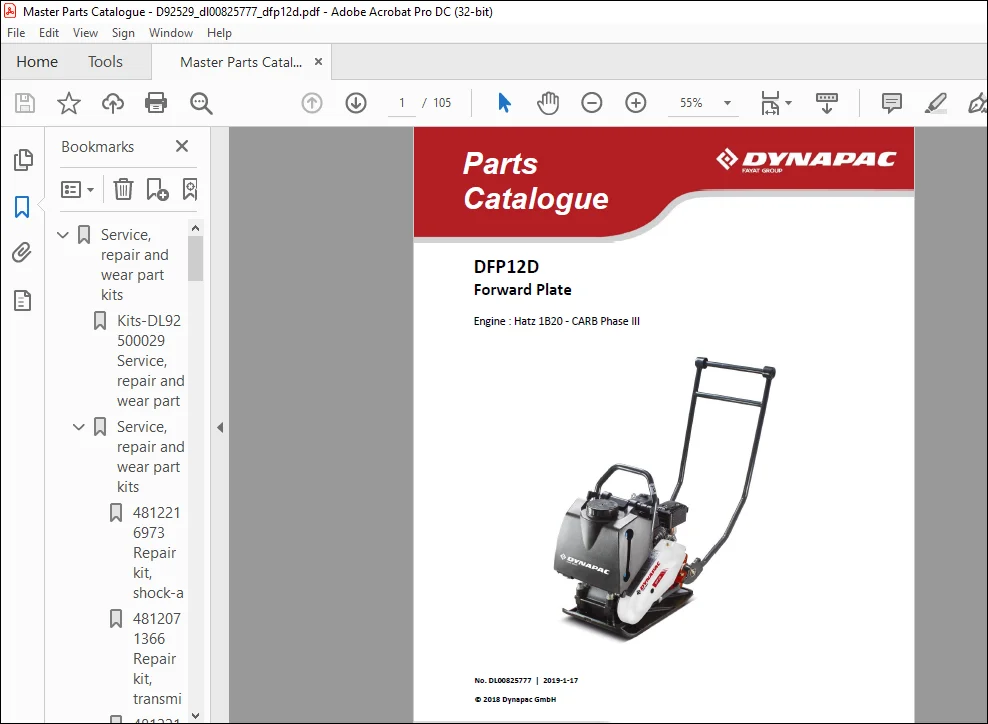

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Dynapac DFP12D Forward Plate Engine Hatz 1B20 CARB Phase III Spare Parts Catalogue Manual DL00825777 – PDFDOWNLOAD

Service, repair and wear part kits 6
Kits-DL92500029 Service, repair and wear part kits 6
Service, repair and wear part kits 8
4812216973 Repair kit, shock-absorber 8
4812071366 Repair kit, transmission 10
4812216981 Repair kit, exciter unit 12
DL92492425_00 Service kit 14
Refurbishing kits 16
Refurbishing kit 16
4812073947 Refurbishing kit – covering 18
4812073945 Refurbishing kit – decals 20
Color Dynapac-Light 22
Field kits 24
Field kit 24
DL92401001 X5-Synthetic plate 26
DL92401003_01 Water sprinkler system 28
DL92401030_00 L19-Comfort handle 30
DL92401008 T1-Transport wheels 33
10 Engine 36
DL92400026_00_010_DFP12D-29 Engine / Fitting Parts 36
Engine / Fitting Parts 38
DL05706451_1001E Engine Parts List 38
DLMOT018962_00 Crankcase 40
DLMOT019112_00 Front Cover 42
DLMOT011987_00 Cylinder And Piston 45
DLMOT011985_00 Crankshaft 47
DLMOT018969_00 Cylinder Head 49
DLMOT011986_00 Camshaft 52
DLMOT018968_00 Fuel Tank 54
DLMOT018966_00 Throttle Control 57
DLMOT018964_00 Cooling Air Duct 60
DLMOT011993_00 Recoil Starter 63
DLMOT011487_00 Engine Shut Off 65
DLMOT011982_00 Seal Kit 67
DLMOT017198_00 Aircleaner & Exhaust 69
DL92410076_00 Engine Carrier 71
DL92410751_00 Engine 73
DLEA002909_00 Centrifugal Clutch 76
50 Frame 78
DL92400026_00_050_DFP12D-29 Frame with Attachment Parts 78
Frame with Attachment Parts 80
DL23060026_01 Steering Handle 80
DL92410164_00 Protection Bow 82
65 Plate 84
DL92400026_00_065_DFP12D-29 Plate / Foot 84
Plate / Foot 86
DL23020007_01 Base Plate 86
DL23010002_01 Exciter Unit 88
100 Accessories 90
DL92400028_00_100_DFP12D-29 Accessories 90
Accessories 92
DL92410755_00 Decals 92
110 Options 94
DL92400026_00_110_DFP12D-29 Special Equipment 94
Special Equipment 96
DL92400104_01 W1-Water sprinkler system 96
DL23003471_00 Water tank, assembled 98
DL23000205_01 L19-Comfort handle 100
DL23000612_00 T1-Transport wheels 102
