Dynapac DFP8 Forward Plate Engine Honda GX 120 CARB Phase III Parts Catalogue Manual DL00825479 – PDF DOWNLOAD

Description

Dynapac DFP8 Forward Plate Engine Honda GX 120 CARB Phase III Parts Catalogue Manual DL00825479 – PDF DOWNLOAD

FILE DETAILS:

Dynapac DFP8 Forward Plate Engine Honda GX 120 CARB Phase III Parts Catalogue Manual DL00825479 – PDF DOWNLOAD

Language : English
Pages : 102
Downloadable : Yes
File Type : PDF
Size: 17.1 MB

TABLE OF CONTENTS:

Dynapac DFP8 Forward Plate Engine Honda GX 120 CARB Phase III Parts Catalogue Manual DL00825479 – PDF DOWNLOAD

Service, repair and wear part kits
Service, repair and wear part kits 1
Service, repair and wear part kits
4812216974 Repair kit, shock-absorber 3
4812216979 Repair kit, transmission 5
4812216995 Repair kit, exciter unit 7
DL92492434_00 Service kit 9
Refurbishing kits
Refurbishing kit 11
4812071383 Refurbishing kit – covering 13
4812062153 Refurbishing kit – decals 15
Color Dynapac-Light 17
Field kits
Field kit 19
DL92400124_00 X5-Synthetic plate 21
DL92400125_00 W1-Water sprinkler system 23
DL92400126_00 L19-Comfort handle 25
DL92401011 T1- Transport wheels 28
Lubricants
Lubricants and operating substances 30
10 Engine
DL92400034_00_010_DFP8-34 Engine / Fitting Parts 32
Engine / Fitting Parts
DL05747047_8061E Engine Parts List 34
DLMOT015147_00 Crankcase 36
DLMOT017188_00 Front Cover 38
DLMOT015149_00 Cylinder Head 40
DLMOT015150_00 Camshaft 42
DLMOT017189_00 Crankshaft And Piston 44
DLMOT015152_00 Fuel Tank 46
DLMOT015153_00 Dry Air Filter 48
DLMOT017190_00 Throttle Control 50
DLMOT017191_00 Silencer 52
DLMOT015156_00 Recoil Starter 54
DLMOT015157_00 Covering 56
DLMOT015158_00 Contact Breaker/Ign.Coil 58
DLMOT015159_00 Carburetor 60
DL92410106_00 Engine Carrier 62
DL92410601_00 Engine 64
DLEA004916_00 Centrifugal Clutch 66
50 Frame
DL92400034_00_050_DFP8-34 Frame with Attachment Parts 68
Frame with Attachment Parts
DL83408026_00 Protection Bow 70
DL83408027_00 Steering Handle 72
65 Plate
DL92400034_00_065_DFP8-34 Plate / Foot 74
Plate / Foot
DL22100000_02 Base Plate 76
DL92410462_00 Exciter Unit 78
100 Accessories
DL92400034_00_100_DFP8-34 Accessories 80
Accessories
DL92410602_00 Decals 82
110 Options
DL92400034_00_110_DFP8-34 Special Equipment 84
Special Equipment
DL92400117_00 S9-Protection bow 86
DL92400116_00 W1-Water sprinkler system 88
DL83400219_00 L19-Comfort handle 90
DL83400147_05 T1-Transport wheels 92
DL83400154_01 X5-Synthetic plate 94

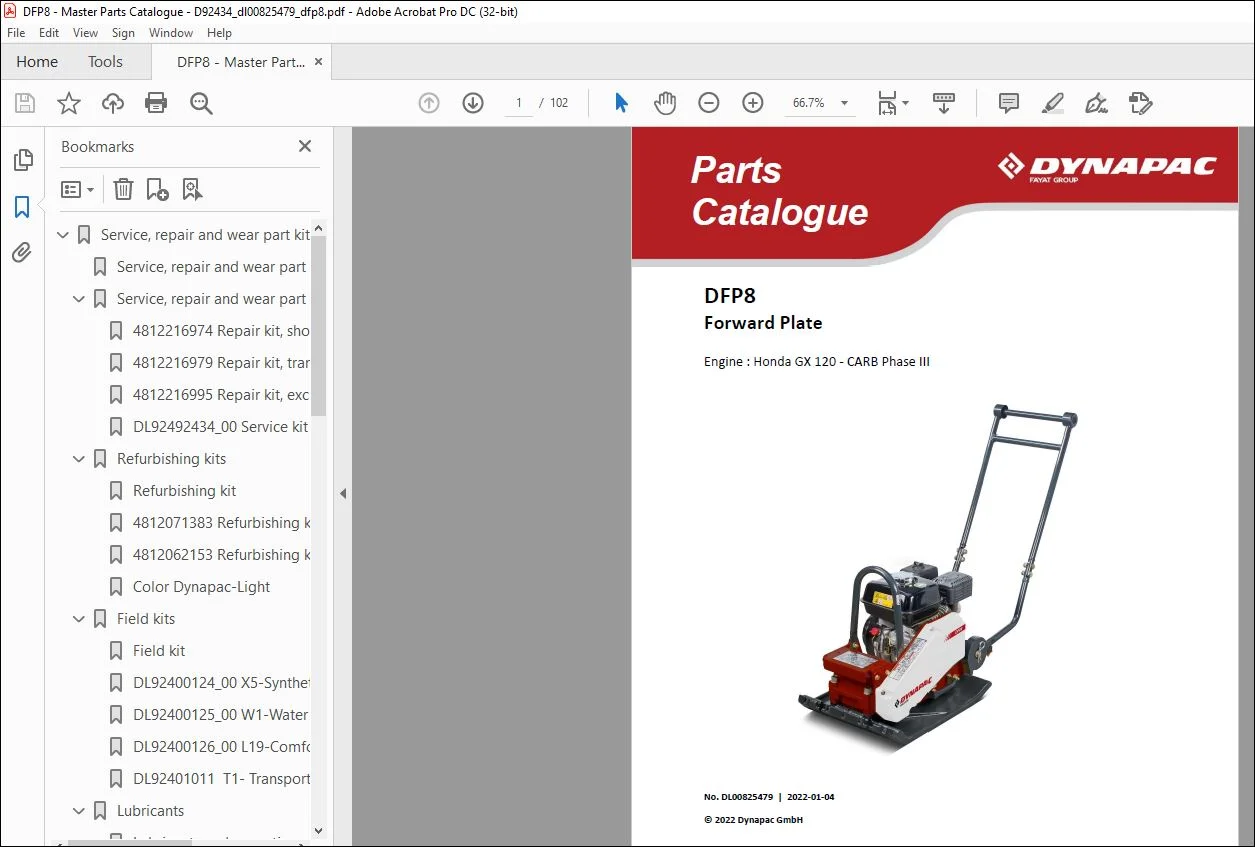

IMAGES PREVIEW OF THE MANUAL:
