Dynapac Paver F1000W T3 Spare parts list Manual SN0P0D007828 – PDF DOWNLOAD

Description

Dynapac Paver F1000W T3 Spare parts list Manual SN0P0D007828 – PDF DOWNLOAD

FILE DETAILS:

Dynapac Paver F1000W T3 Spare parts list Manual SN0P0D007828 – PDF DOWNLOAD

Language : English
Pages : 357
Downloadable : Yes
File Type : PDF
Size: 91.8 MB

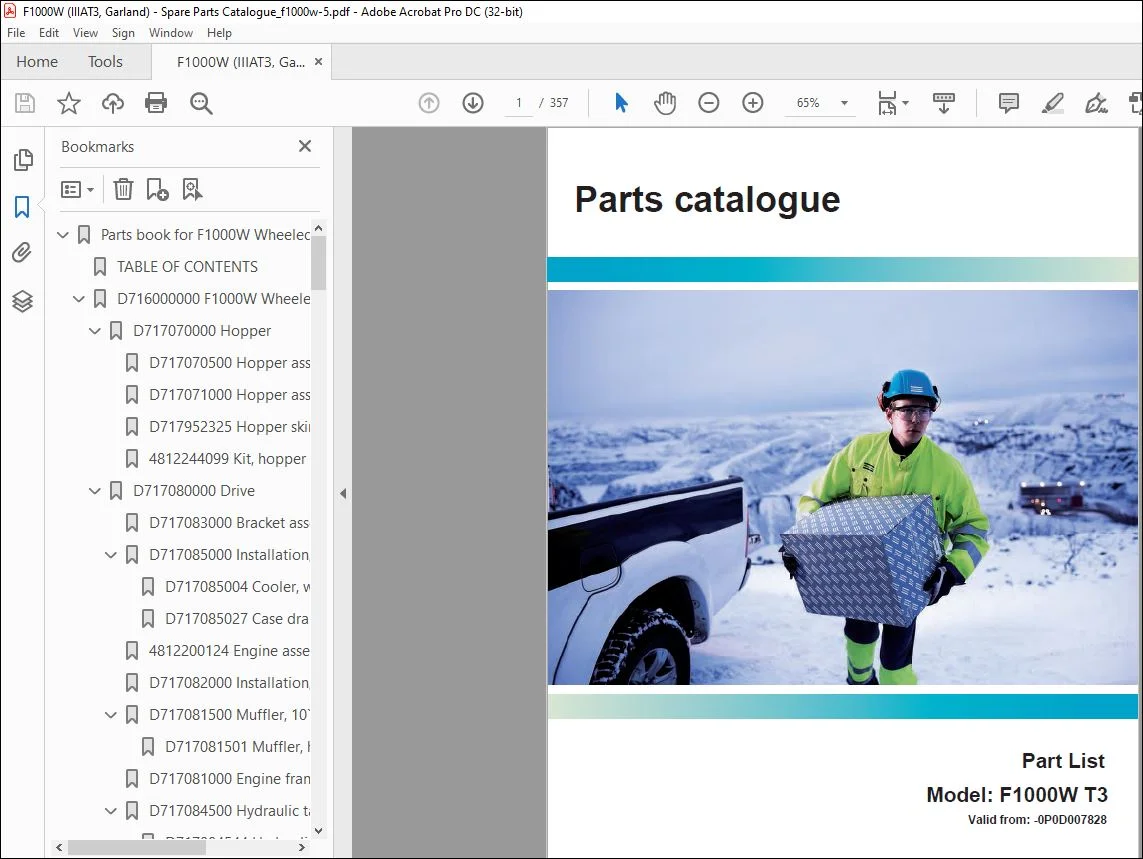

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Dynapac Paver F1000W T3 Spare parts list Manual SN0P0D007828 – PDF DOWNLOAD

Assembly / Description / Page /
D716000000 F1000W Wheeled Paver, Tier 3, 10 FT 1
D717070000 Hopper 3
D717070500 Hopper assembly, left side, 10 ft. 4
D717071000 Hopper assembly, right side, 10 ft. 5
D717952325 Hopper skirt kit 6
4812244099 Kit, hopper skirt-low version 7
D717080000 Drive 9
D717083000 Bracket assembly, hydraulik tank 12
D717085000 Installation, water-oil-air cooler 13
D717085004 Cooler, water-oil-air 16
D717085027 Case drain manifold 17
4812200124 Engine assembly 18
D717082000 Installation, air cleaner 19
D717081500 Muffler, 10‘ drive complete 21
D717081501 Muffler, hood mount, bottom 22
D717081000 Engine frame 23
D717084500 Hydraulic tank 25
D717084544 Hydraulic filter 27
D716190000 Pump drive complete 29
D716191000 Pump, propel front 31
D717192500 Pump, auger tandem 36
D717194500 Pump, conveyor / work 40
D717193500 Pump, generator 43
D717193001 Pump, vibration 49
D716191500 Pump, propel rear 50
D716020000 Rear axle 55
D717171014 Motor track assy 56
4812200107 Wheel & tire assembly 59
D716010000 Frame 61
D716010500 Frame 64
D716010685 Retainer arm 70
D717012500 Fume extractor 71
D717011500 Guide pole 72
D717013000 Front conveyor cover 73
D717900500 Truck hitch 74
D717900501 Truck hitch 75
D717900502 Guide pole support 76
D717900503 Guide pole support, left 77
D717900504 Guide pole support, right 78
4812221160 Push roller crosshead, 10’ 79
D717011005 Roller 80
D717011000 Push roller crosshead, 8’ 81
D717011005 Roller 80
D716110000 Platform complete 83
D717113000 Operator station, left 85
TOC 2
TABLE OF CONTENTS
Assembly / Description / Page /
D717904500 Umbrella 87
D717111500 Hood frame 88
D717113500 Operator station, right 90
D717904500 Umbrella 87
D716114000 Side moulding 93
D716110500 Footwell, platform 95
D716110504 Door, middle 96
D716110510 Door, right 97
D716085048 Radiator shroud 98
4812221633 Hand rail 99
D716060000 Conveyor complete 101
D717060501 Tension assembly 103
D716061500 Conveyor chain 104
D716061501 Conveyor chain 105
D716061000 Conveyor drive 106
D717061009 Motor and gear box 107
D717061018 Drive, conveyor 108
D716064500 Conveyor lubrication 109
D717952332 Kit, chain, conveyor drive 110
D717952339 Conveyor chain kit 111
D717952346 Conveyor guide kit 112
D717952353 Wear plate kit 113
D717952360 Conveyor sprocket kit 114
D716083500 Fuel tank 115
D716030000 Steering complete 117
D716030500 Suspension, wheel 120
D716031507 Steering link 121
D716031509 Steering link 122
D716031511 Steering link 123
D716031555 Steering sensor 124
D716902500 Front wheel assist 125
D716090528 HIC, front wheel assist 126
D716902600 Non-powered steering 127
D716410000 Decal installation 129
D716100000 Electrical assembly 133
D717101000 Engine controls 136
D717101011 Switch, battery disconnect 139
D717100500 Generator drive 140
D717100501 Generator 141
D717100506 Motor, hydraulic 142
D717104500 AC main panel 144
D716010691 Generator mount 146
D716103000 Operator console, left 147
D716103001 Dynamic steering valve 151
D716103500 Operator console, right 152
TOC 3
TABLE OF CONTENTS
Assembly / Description / Page /
D716103001 Dynamic steering valve 151
D717104000 DC control panel 156
D717102000 Auger & conveyor controls, moba 159
D717105500 Lighting system 160
D717905000 Auxiliary power panel 161
4812222082 Key replacement kit 163
D716090000 Hydraulic component 165
D717091001 Auger lift cylinder 168
D717091503 Cylinder, screed level, front 169
D717091502 Cylinder, screed lift, rear 170
D717091501 Cylinder, hopper pivot 171
D717091002 Pressure filter 172
D716090001 Hose kit 173
4812200090 Hose kit, auger system 175
4812200094 Hose kit, miscellaneous 176
4812200095 Hose kit, propel system 177
4812200096 Hose kit, vibe system 178
4812221104 Front work function 179
4812200104 Front manifold 180
4812221105 Rear work function 182
D717091507 Valve bank, rear work function 183
D717953711 HIC, rear valve 184
4812220748 Filter, high-pressure 185
D717180001 Auger 187
D717180000 Auger 189
D722180000 Auger 190
D722181600 Auger 191
D756183300 Auger gear 192
D722183400 Engine support 194
D717180010 Auger splash, left 195
D717091018 Hose retention 196
4812200217 Auger lubrication 197
D717903008 Kit, 11’’, auger extension 198
D722181900 Auger left, cpl, 290mm 199
D722182000 Auger, right, cpl, 290mm 200
D717903015 Kit, 17’’, auger extension 201
D722182100 Auger, left, cpl, 434mm 202
D722182200 Auger, right, cpl, 434mm 203
D717903022 Kit, 34’’, auger extension 204
D722182300 Auger, left, cpl 868mm 205
D722182400 Auger, right, cpl 868mm 206
D717903500 Tunnel extensions kit 207
D717951674 Left flight kit 208
D717951681 Right flight kit 209
4812222659 Wide-width paving kit 210
D717903500 Tunnel extensions kit 207
TOC 4
TABLE OF CONTENTS
Assembly / Description / Page /
D722182300 Auger, left, cpl 868mm 205
D722182100 Auger, left, cpl, 434mm 202
D722182400 Auger, right, cpl 868mm 206
D722182200 Auger, right, cpl, 434mm 203
D716040000 Leveling arm 217
D717040518 Slope arm 219
D626000000 Carlson screed 221
4812200294 Easy IV screed assembly 224
4812200296 EZR sceed assembly 225
D717102501 Topcon leveling control 226
D717102000 Auger & conveyor controls, moba 159
D717901501 Non contacting SAS 228
D717901505 Sonic averaging 229
D717952549 SAS beam kit 230
4812200264 MOBA-matic Leveling System 231
4812224504 Kit, screed, disconnect 232
Aftermarket kits 233
4700679743 Auger flight kit, complete 235
D299010014 Kit, inboard bearing 236
D717903008 Kit, 11’’, auger extension 198
D722181900 Auger left, cpl, 290mm 199
D722182000 Auger, right, cpl, 290mm 200
D717903015 Kit, 17’’, auger extension 201
D722182100 Auger, left, cpl, 434mm 202
D722182200 Auger, right, cpl, 434mm 203
D717903022 Kit, 34’’, auger extension 204
D722182300 Auger, left, cpl 868mm 205
D722182400 Auger, right, cpl 868mm 206
D717951674 Left flight kit 208
D717951681 Right flight kit 209
D717952304 Kit, startup, 100hr 248
D717952311 Kit, maintenance, 500hr 249
D717952318 Kit, maintenance, 1000hr 250
D717952325 Hopper skirt kit 6
4812244099 Kit, hopper skirt-low version 7
D717952339 Conveyor chain kit 111
D717952346 Conveyor guide kit 112
D717952353 Wear plate kit 113
D717952360 Conveyor sprocket kit 114
D717952458 Kit, screed disconnect 257
D717954677 Kit, outboard bearing 258
D717954684 Kit, conveyor bearing 259
D717954691 Kit, rear plate, wheel 260
4812200217 Auger lubrication 197
D717951702 Uptime kit 262
4812222082 Key replacement kit 163
TOC 5
TABLE OF CONTENTS
Assembly / Description / Page /
D717951989 Emergency hose kit 265
4812269105 Auger reinforcement kit 269
Options F1000W, Tier 3 271
D717908500 Standard track 272
D717908000 Smooth track 273
D717901501 Non contacting SAS 228
D717901505 Sonic averaging 229
D717952549 SAS beam kit 230
D717900500 Truck hitch 74
D717900501 Truck hitch 75
D717900502 Guide pole support 76
D717900503 Guide pole support, left 77
D717900504 Guide pole support, right 78
D717102501 Topcon leveling control 226
D717904500 Umbrella 87
D717900500 Truck hitch 74
D717900501 Truck hitch 75
D717900502 Guide pole support 76
D717900503 Guide pole support, left 77
D717900504 Guide pole support, right 78
