Dynapac Paver F2500C Spare parts list Manual SN0G000522 – PDF DOWNLOAD

Description

Dynapac Paver F2500C Spare parts list Manual SN0G000522 – PDF DOWNLOAD

FILE DETAILS:

Dynapac Paver F2500C Spare parts list Manual SN0G000522 – PDF DOWNLOAD

Language : English
Pages : 567
Downloadable : Yes
File Type : PDF
Size: 56.0 MB

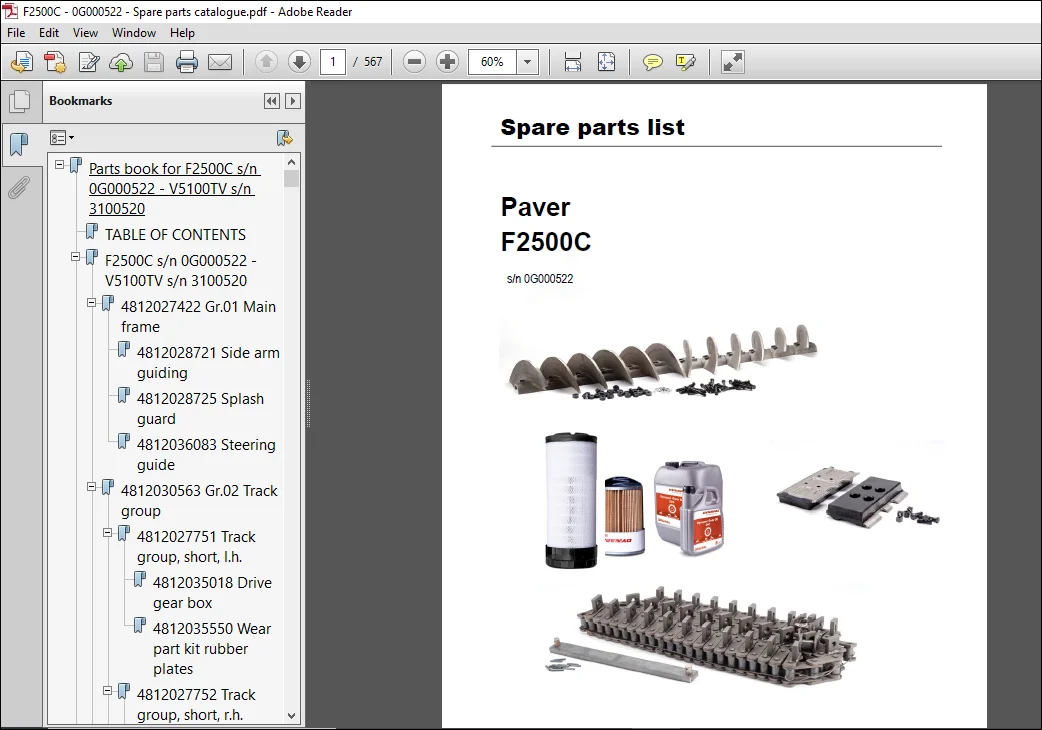

TABLE OF CONTENTS:

Dynapac Paver F2500C Spare parts list Manual SN0G000522 – PDF DOWNLOAD

Parts book for F2500C s/n 0G000522 – V5100TV s/n 3100520 4
TABLE OF CONTENTS 4
F2500C s/n 0G000522 – V5100TV s/n 3100520 20
4812027422 Gr 01 Main frame 24
4812028721 Side arm guiding 25
4812028725 Splash guard 26
4812036083 Steering guide 27
4812030563 Gr 02 Track group 28
4812027751 Track group, short, l h 29
4812035018 Drive gear box 31
4812035550 Wear part kit rubber plates 32
4812027752 Track group, short, r h 33
4812035018 Drive gear box 35
4812035550 Wear part kit rubber plates 36
4812028439 Track cleaner, cpl l h and r h 37
4812030910 Scraper, l h 38
4812030911 Scraper, r h 39
4812027435 Gr 03 Push roller 40
Gr 04 Conveyor 42
4812027438 Conveyor drive 43
4812027441 Wear part kit conveyor plates 44
4812026816 Conveyor turn 45
4812027439 Conveyor motor 46
4812027440 Wear part kit conveyor guide plates 47
4812030487 Conveyor limit switch, conv 48
4812025724 Conceyor limit switch, l h 49
4812025728 Conveyor limit switch, r h 50
4812009079 Conveyor limit switch, conv 51
4812009072 Conveyor limit switch, r h 52
4812009078 Conceyor limit switch, l h 53
D635060800A Chain guide 54
4812028525 Gr 04 Conveyor, single no of bars 56
4812029178 Wear part kit conveyor chain 57
4812030490 Gr 04 Conveyor, double no of bars 58
4812027444 Wear part kit conveyor chain 59
4812027429 Gr 05 Hopper 60
4812028684 Hopper, l h 61
4812029458 Hopper lock 62
4812028685 Hopper, r h 63
4812029458 Hopper lock 64
4812028563 Bulk material flap 65
4812027554 Gr 06 Side Screed arms, mech locked 66
4812029165 Side screed arm, l h 68
4720000097 Side arm guiding 70
4812029197 Side screed arm, r h 71
4720000097 Side arm guiding 73
4812029222 Locking, mechanical 74
4812032785 Gr 07 Drive TIER 3 76
4812005952 Cable W12 77
4812039023 Combined cooler / air filter 80
4812042138 Combined cooler 83
4812030290 Fuel system 85
4812028928 Fuel tank 86
4812026685 Engine 88
4812030280 Engine support 89
4812030294 Attaching parts 90
4812030230 Muffler 92
4812037845 End pipe / rotary feedthrough 93
4812037585 Joint rod 94
4812037863 End pipe / push variant 95
Service parts 96
4812030458 Gr 08 Split gear 98
4812035280 Split gear 99
4812037837 Split gear 100
4812009002 Motor coupling 103
4812037689 Gear oil drain 104
4812039759 Gr 08 Split gear 106
4812038966 Split gear 107
4812009002 Motor coupling 110
4812037689 Gear oil drain 111
Gr 08 Split gear box 112
4812026136 Pump 114
4812026139 Pump 115
Gr 08 Split gear box 116
4812026136 Pump 118
4812026139 Pump 119
4812026574 Gr 09 Hydraulic 120
4812026654 Hydrl drive 121
4812026136 Pump 123
4812026139 Pump 124
4812026522 Manual pump 125
4812026660 Hydrl auger 126
4812033929 Control block 129
4812008585 Directional spool valve 130
4812032146 Receptacle 131
4812026661 Hydraulic, conveyor 132
4812026541 Pressure relief valve 134
4812008584 Directional spool valve 135
4812010925 Connecting plate 136
4812010974 Connecting plate 137
4812026662 Hydrl tamper / vibration 138
4812038619 Work hydraulic 140
D964006104 Filter 144
4812026615 Control block 145
4812038583 without fume absorbing system 146
4812026664 Hydraulic, fan 147
D964006104 Filter 149
4812028458 Hydraulic tank, collector 150
4812028192 Hydraulic tank, cpl 151
4812009435 Return suction filter 152
4812030007 Hydrl coupling 153
4812035052 Ganged valve support 155
4812032146 Receptacle 156
4812037431 Hose package 157
4812036430 Hose package screed 616 / 617 158
4812036460 Screed in / out 159
4812036450 Tamper / Vibration 160
Cylinder schema 162
4812038605 Gr 09 Hydraulic 166
4812026654 Hydrl drive 167
4812026136 Pump 169
4812026139 Pump 170
4812026522 Manual pump 171
4812026660 Hydrl auger 172
4812033929 Control block 175
4812008585 Directional spool valve 176
4812032146 Receptacle 177
4812026661 Hydraulic, conveyor 178
4812026541 Pressure relief valve 180
4812008584 Directional spool valve 181
4812010925 Connecting plate 182
4812010974 Connecting plate 183
4812026662 Hydrl tamper / vibration 184
4812038619 Work hydraulic 186
D964006104 Filter 190
4812026615 Control block 191
4812038583 without fume absorbing system 192
4812026664 Hydraulic, fan 193
D964006104 Filter 195
4812028458 Hydraulic tank, collector 196
4812028192 Hydraulic tank, cpl 197
4812009435 Return suction filter 198
4812035052 Ganged valve support 199
4812036430A Hose package screed 616 / 617 200
4812036460 Screed in / out 201
4812036450A Tamper / Vibration 202
Cylinder schema 204
4812038521 Gr 10 Electric 208
4812028947 Electric 209
4812028944 Junction box 213
4812038522 Operator desk 219
4812038371 Vandalism protection 227
4812227674 Vandalism protection 228
4812031245 Cable harness W11 229
4812040943 Cable W40 231
4812040944 Cable W41 232
4812040945 Cable W42 233
4812038523 Wiring 234
4812029580 Cable W1 244
4812029581 Cable W2 245
4812029589 Cable W3 246
4812038524 Cable W4 247
4812029590 Cable W5 248
4812038525 Cable W6 249
4812038526 Cable W7 250
4812038527 Cable W8 251
4812029595 Cable W9 252
4812029596 Cable W10 253
4812031250 Cable harness W15 254
4812031268 Cable harness W16 255
4812031251 Cable harness W17 257
4812031252 Cable harness W19 258
4812005953 Cable W12 260
D977436121 Ground strap 263
4812036435 Cable harness W13 264
4812026356 Steering unit 265
4812033242 Remote control 266
4812033259 Remote control Konv 267
4812033261 Housing 268
4812033334 Gr 11 Op platf , fix 270
4812030579 Operation platform, fix 271
4812030609 Operation platform, fix 272
4812040999 Console 275
4812037030 Operator desk, fixed 276
4812029859 Cable harness W14 277
4812033335 Gr 11 Op platf , fix, roof, short 280
4812030738 Operation platform, fix 281
4812030609 Operation platform, fix 282
4812040999 Console 285
4812037030 Operator desk, fixed 286
4812029859 Cable harness W14 287
4812033253 Wiring roof 289
4812033224 Cable W25 290
4812030616 Roof frame 291
4812036948 Roof hydraulic 293
4812033253 Wiring roof 294
4812033224 Cable W25 295
4812037029 Roof, short 296
4812037524 Lamp holder 297
4812037029 Roof, short 298
4812030826 Gr 12 Covering 300
4812030755 Hood fastener 303
4812030891 Intermediate section 304
4812034712 Door 305
4812041407 Support rod 306
4812034765 Door 307
4812041407 Support rod 308
4812033167 Stop bolt 309
4812032211 Hood center part, r h 310
4812034713 Locking 311
4812032151 Hood center part, l h 312
4812034713 Locking 313
4812033243 Covering center part, l h 314
4812033244 Covering center part, r h 315
4812032307 Disc frame 316
4812034763 Support plate, l h 317
4812034767 Support plate, r h 318
4812034770 Air guide, l h 319
4812034771 Air guide, r h 320
4812034772 Air guide, rear 321
4812034776 Cover 322
4812034779 Retainer 323
4812034799 Bulk head 324
4812034849 Cover, l h 325
4812034891 Cover, r h 326
4812030781 Gr 12 Ascension 328
4812030757 Ascent, middle 329
4812033260 Ascent, l h 330
4812033262 Ascent, r h 331
4812036549 Box 332
4812039571 Gr 12 Ascension f Varioscreed / f Variobohle 334
4812039193 Ascent, middle 335
4812038797 Ascent, l h 336
4812039420 Ascent, r h 338
4812039563 Box 340
4812030872 Gr 13 Auger Ø380mm, 2,50m 342
4812031821 Auger Ø380mm, basic width 343
4812027684 Auger box 344
4812026736 Outer support 346
4812004559 Auger support 348
4812027478 Wear part kit auger wings Ø380mm 349
4812027479 Mounting parts 350
4812027591 Auger gear 351
4812034818 Spare parts gear 352
4812045075 Auger gear 353
Gr 13 Auger extensions 354
4720000140 Auger extension, l h L:320mm 358
4720000816 Auger extension, r h L:320mm 359
4720000818 Auger extension, l h L:640mm 360
4720000137 Auger extension, r h L:640mm 361
4720000138 Auger extension, l h L:960mm 362
4720000139 Auger extension, r h L:960mm 363
4812028794 Material tunnel, cpl L:320mm 364
4812028792 Material tunnel, cpl L:640mm 365
4812030927 Material tunnel, cpl L:960mm 366
4812028782 Strut material duct, l h L:960mm 367
4812028787 Strut material duct, r h L:960mm 368
4812028789 Strut material duct L:960mm 369
4812031805 End support, cpl 370
D439082200 End support 371
4812031804 Outer support 373
D438081200 End support 374
4812029259 Brace 376
4812028882 Cross struts 378
4812032195 Auger wing Ø380mm, l h 379
4812032196 Auger wing Ø380mm, r h 380
4812030868 additional Extension parts 381
4812030869 additional Extension parts 382
4812032496 additional Extension parts 383
4812030870 additional Extension parts 384
4812030909 Gr 13 Auger Ø380mm, 3,14m 386
4812031788 Auger Ø380mm, 3,14m 387
4812030915 Gr 13 Auger Ø380mm, 3,78m 388
4812032182 Auger Ø380mm, 3,78m 389
4812030930 Gr 13 Auger Ø380mm, 4,42m 390
4812032184 Auger Ø380mm, 4,42m 391
4812030975 Gr 13 Auger Ø380mm, 5,06m 392
4812032187 Auger Ø380mm, 5,06m 393
4812031046 Gr 13 Auger Ø380mm, 5,70m 394
4812032190 Auger Ø380mm, 5,70m 395
4812031048 Gr 13 Auger Ø380mm, 6,34m 396
4812032193 Auger Ø380mm, 6,34m 397
4812031050 Gr 13 Auger Ø380mm, 6,98m 398
4812032197 Auger Ø380mm, 6,98m 399
4812033240 Gr 13 Auger Ø380mm, 7,62m 400
4812031789 Auger Ø380mm, 7,62m 401
Gr 14 Inscription, Tools, Accessories 402
4812036436 Decals tracked paver 403
Inscription 405
4812035048 Tools and accessories 406
4812009821 Tools and accessories 407
4812035580 Tools and accessories (Rus) 408
4812038453 Infrared thermometer 409
D978000024 Welding protection 410
4812005418 Test adapter 411
Replace key 412
4812035521 Drivers seat 414
4812030771 Auxiliary weight 416
4812035458 Drivers seat Standard, Cobo, kpl 418
4812027721 Mech hight adjustment auger 420
4812027720 Ratchet 421
4812030908 Auger limit switch ultrasonic, analog 422
4812032429 Electric 423
4812032428 cable cpl 424
4812030906 Auger level indicator 426
4812035023 Spot light for auger 428
4812028823 Spot light 429
4812035433 Rotaflare light, conv , without roof 430
4812031239 Electric rotaflare light 431
4812035837 Slip-on pipe 432
4812033636 Retainer 433
4812036193 Rotaflare light, conv , with roof 434
4812031239 Electric rotaflare light 435
4812035837 Slip-on pipe 436
4812036227 Retainer 437
4812037018 Fire extinguisher 438
D654905800 Fire extinguisher 439
4812034226 Emulsion spray system 440
4812034614 Tank with pump 441
4812034147 Tank 443
4812034823 Hose package 444
4812029938 Electric emulsion spray system 445
4812034227 Emulsion spray system 448
4812034599 Hose reel 449
4812034614 Tank with pump 450
4812034147 Tank 452
4812029938 Electric emulsion spray system 453
4812034869 Gloria spraying device 456
4812002731 First-aid kit 458
4812035395 Spot light 460
4812028819 Spot light, Xenon 462
4812038790 Emulsion spray system 464
4812038837 Tank with pump 465
4812042118 Hose reel 467
4812039908 Electric emulsion spray system 468
4812038808 Emulsion spray system 470
4812038837 Tank with pump 471
4812042128 Hose package 473
4812039908 Electric emulsion spray system 474
4812040056 Fire extinguisher 476
Gr 16 Levelling 478
D900624801 Altitude control 480
D900624831 Altitude control 482
D900624835 Handset 484
D900624754 Inclination regulator 486
4812011781 Box MOBA-Matic 488
4812038561 Big Ski 9 m 490
D830158000 Electric parts big ski 491
4812038559 Big Ski 9 m 492
4812038560 Side arm support 493
4812038563 Big Ski 13 m 494
D830158000 Electric parts big ski 495
4812038562 Big Ski 13 m 496
4812038560 Side arm support 497
D830031300 Trailing ski, 6m 498
4700688225 Trailing ski, 6m 499
4700691720 Mounting parts 501
D830031400 Trailing ski, 9m 502
4700688226 Trailing ski, 9m 503
4700691720 Mounting parts 505
4720000701 Wire tensioner cpl 506
Gr 17 Doku 508
Gr 18 Wear part and Inspection kits TIER 3 518
4812027441 Wear part kit conveyor plates 520
4812027440 Wear part kit conveyor guide plates 521
4812029178 Wear part kit conveyor chain 522
4812027444 Wear part kit conveyor chain 523
4812035552 Wear part kit conveyor drive 524
4812035553 Wear part kit reversing roller 525
4812027478 Wear part kit auger wings Ø380mm 526
4812035550 Wear part kit rubber plates 527
4700691229 Service kit 500 h TIER 3 528
4812041235 Service kit 1000 h TIER 3 529
4812046969 Service kit 1000 h TIER 3, stage 2 530
4812043983 Service kit 500 h Plus TIER 3 531
Lubricants and operating substances T3 532
4812045783 Hopper rubber kit, standard 534
4812007262 Hopper rubber kit, standard 535
4812045834 Hopper rubber kit, hydr front flap 536
4812007263 Hopper rubber kit, reinforced, hydr fr flap 537
4812011023 Hopper rubber kit, standard, hydr fr flap 538
NUMERICAL INDEX 540

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.M
