Dynapac Paver MF2500CS Spare parts list Manual SN0G001311 – PDF DOWNLOAD

Description

Dynapac Paver MF2500CS Spare parts list Manual SN0G001311 – PDF DOWNLOAD

FILE DETAILS:

Dynapac Paver MF2500CS Spare parts list Manual SN0G001311 – PDF DOWNLOAD

Language : English
Pages : 567
Downloadable : Yes
File Type : PDF
Size: 66.1 MB

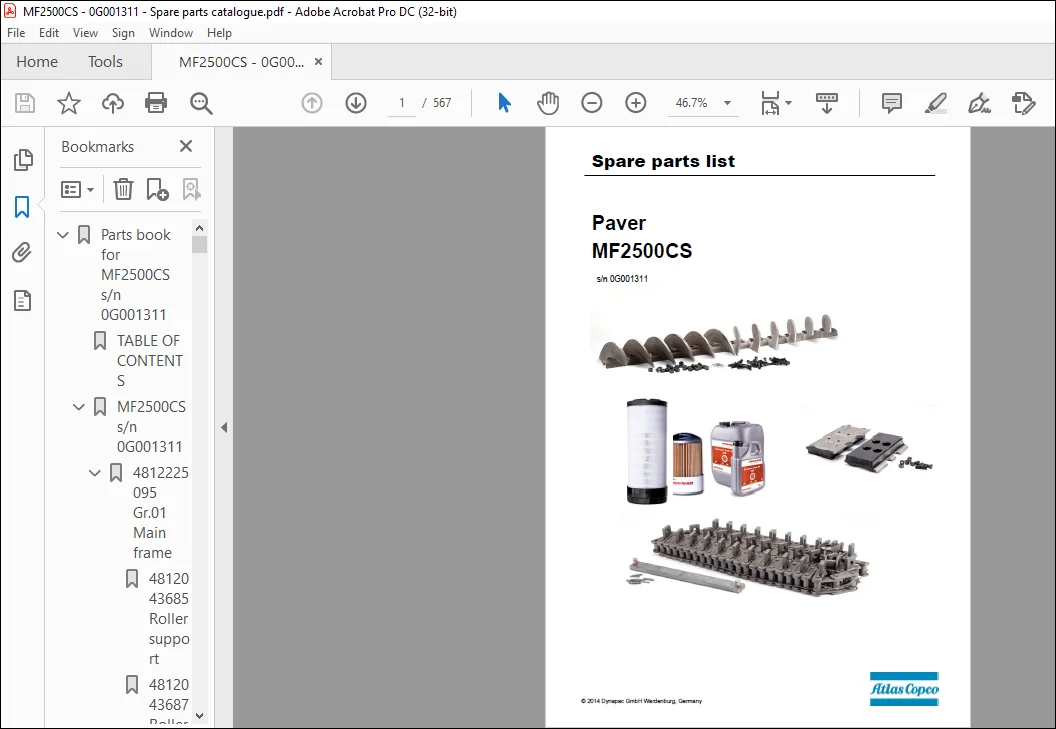

TABLE OF CONTENTS:

Dynapac Paver MF2500CS Spare parts list Manual SN0G001311 – PDF DOWNLOAD

Parts book for MF2500CS s/n 0G001311 4
TABLE OF CONTENTS 4
MF2500CS s/n 0G001311 22
4812225095 Gr 01 Main frame 26
4812043685 Roller support 29
4812043687 Roller support 30
4812225823 Side panel, l h 31
4812225421 Side panel, l h 32
4812225429 Side panel, l h 33
4812225822 Side panel, r h 34
4812225420 Side panel, r h 35
4812225427 Side panel, r h 36
4812225416 Side panel 37
4812011195 Maintenance lid 38
4812028730 Maintenance lid 39
4812225556 Plate 40
4812225730 Guide 41
4812221676 Conveyor turn 42
4812044536 Battery bracket 43
4812225067 Retainer 44
4812041511 Retainer 45
4812046068 Wear rail 46
4812225879 Wear rail 47
4812225724 Wear rail 48
4812036083 Steering guide 49
4812226900 hood support 50
4812225685 hood support 51
4812046070 Wear rail 52
4812225702 Plate 53
4812225704 Plate 54
4812225813 Support rod 55
4812227817 Angle 56
4812228446 Retainer 57
4812225766 Gr 02 Track group 58
4812225608 Track group, long, l h 59
4812225882 Track drive 61
4812027194 Drive gear box 62
4812035017 Drive gear box 63
4812041961 Idler 64
4812043052 Track roller 65
4812043053 Track roller 66
4812008621 Chain with rubber plates 67
4812045698 Cover 68
4812225609 Track group, long, r h 69
4812225882 Track drive 71
4812027194 Drive gear box 72
4812035017 Drive gear box 73
4812041961 Idler 74
4812043052 Track roller 75
4812043053 Track roller 76
4812008621 Chain with rubber plates 77
4812045698 Cover 78
4812225809 Track frame guide, l h 79
4812225810 Track frame guide, r h 80
4812226112 Track group support 81
4812042584 Track cleaner, r h 82
4812042543 Track cleaner, l h 83
4812220933 Gr 03 Push roller 84
4812046568 Pillow block 85
4812225937 Gr 04 Conveyor 86
4812225931 Tail piece 87
4812225944 Drive 89
4812225994 Side plate, l h 90
4812225993 Side plate, r h 91
4812225962 Holder cpl 92
4812226559 Guide 93
4812040780 Stripper 94
4812226121 Bearing shaft 95
4812042094 Reversing 96
4812226088 Chain lubrication system 97
4812226521 Retainer 98
4812225195 Sprayer 99
4812225841 Spraybar 101
4812225199 Tank 102
4812225919 Conveyor belt short 103
4812221221 Gr 05 Hopper, front hopper flap 104
4812044770 Hopper, l h 105
4812044771 Hopper, r h 106
4812030416 Front hopper, r h 107
4812030415 Front hopper, l h 108
4812221222 Front hopper, middle 109
4812042539 Gr 07 Drive TIER 4i 110
4812026135 Engine 111
4812046061 Combined cooler / air filter 112
4812038352 Combined cooler 115
4812041638 Fuel tank 116
4812008985 Attaching parts 117
4812046937 Engine support 118
4812046937A Engine support 119
4812030356 Muffler 120
4812041871 Particle filter 121
4812042096 Fuel system 122
4812044912 Oil drain 123
Service parts 124
4812041871 Particle filter 126
4812045547 Electric 127
4812046358 El parts pre- heating 128
4812046357 Cable W50 129
4812010194 Cable W12 TIER 4 W12 130
4812037812 Cable W12 TIER 4 W12 135
4812042540 Gr 07 Drive TIER 3 140
4812026687 Engine 141
4812039040 Combined cooler / air filter 142
4812038352 Combined cooler 145
4812041638 Fuel tank 146
4812046937 Engine support 147
4812046937A Engine support 148
4812030294 Attaching parts 149
4812030230 Muffler 151
4812042096 Fuel system 152
Service parts 153
4812045546 Cable W12 SPS TIER 3 W12 155
4812010195 Cable W12 SPS TIER 3l W12 159
4812039759 Gr 08 Split gear 164
4812038966 Split gear 165
4812009002 Motor coupling 168
4812037689 Gear oil drain 169
4812046361 Gr 09 Hydraulic 170
4812039978 Hydrl drive 171
4812038377 Pump 174
4812026522 Manual pump 175
4812046367 Hydr conveyor 176
4812007999 Pump 179
4812046368 Work hydraulic 180
4812038476 Control block 186
4812010854 Control block 187
4812010852 Control block 188
4812046393 Control block 189
4812010843 Control block 190
4812010823 Control block 191
4812044338 Filter 192
4812039981 Hydraulic tank 193
4812225758 Hydraulic tank 194
4812225231 Hydraulic tank 196
4812009435 Return suction filter 197
4812039989 Hydrl fan 198
4812044338 Filter 199
4812045617 Gr 10 Electric 200
4812037563 Electric 201
4812037564 Junction box 205
4812042314 Junction box 209
4812010664 Junction box 210
4812042314 Junction box 215
4812045614 Wiring 216
4812037793 Cable W1 1 219
4812044107 Cable W1 2 220
4812037794 Cable W2 1 221
4812010300 Cable W2 1 222
4812044108 Cable W2 2 223
4812010302 Cable W2 2 224
4812037795 Cable W3 225
4812037796 Cable W4 226
4812037797 Cable W5 227
4812037798 Cable W6 228
4812037799 Cable W7 229
4812037800 Cable W8 1 230
4812044109 Cable W8 2 231
4812037801 Cable W9 232
4812037802 Cable W10 233
4812037812 Cable W12 TIER 4 W12 234
4812010194 Cable W12 TIER 4 W12 239
4812037813 Cable harness W13 244
4812037805 Cable harness W14 246
4812010532 Cable harness W14 249
4812037806 Cable harness W15 252
4812044689 Cable harness W16 253
4812037808 Cable harness W17 256
4812037809 Cable harness W19 259
4812044515 Cable W18 261
4812010533 Cable W18 262
4812044528 Cable W21 263
4812037810 Cable harness W11 SPS 265
4812010531 Cable harness W11 SPS 266
D977436121 Ground strap 268
4812044678 Cable W24 269
4812033224 Cable W25 271
4812033255 Cable W26 272
4812045546 Cable W12 SPS TIER 3 W12 273
4812010195 Cable W12 SPS TIER 3l W12 277
4812044714 Mounting parts 281
4812046357 Cable W50 282
4812026356 Steering unit 283
4812009814 Operator desk 284
4812037810 Cable harness W11 SPS 287
4812010531 Cable harness W11 SPS 288
4812225902 Gr 11 Op platf , fix, roof 290
4812224928 Platform 291
4812222698 Track shoe 293
4812226165 Partition panel 294
4812226166 Partition panel 295
4812226164 Partition panel 296
4812226163 Partition panel 297
4812222828 Railing, front 298
4812226161 Retainer 299
4812224430 Seat support, r h 300
4812224430A Seat support, r h 302
4812224459 Seat support lh 304
4812224459A Seat support lh 306
4812225007 Locking 308
4812226162 Hand rail 309
4812226167 Hand rail, l h 310
4812226168 Hand rail, r h 311
4812226170 Ladder assy 312
4812226169 Hand rail 313
4812226171 Retainer 314
4812226179 Rubber buffer 315
4812226236 Retainer 316
4812225540 Roof 317
4812005140 Joint 319
4812005141 Joint 320
4812224530 Roof frame 321
4812225579 Front frame 322
4812006331 Roof 323
4812224868 Screw angle 324
4812005177 Roof hydraulic 325
4812043525 Hydr roof adjustment 326
4812005976 Cable W25 327
4812222577 Operation panel 328
4812224787 Fold away step 330
4812225933 Vibration damper 331
4812224469 Pigeon hole 332
4812037845 End pipe / rotary feedthrough 333
4812037585 Joint rod 334
4812005130 Gr 11 Op platf , fix, house 336
4812224928 Platform 337
4812222698 Track shoe 339
4812226165 Partition panel 340
4812226166 Partition panel 341
4812226164 Partition panel 342
4812226163 Partition panel 343
4812222828 Railing, front 344
4812226161 Retainer 345
4812224430 Seat support, r h 346
4812224430A Seat support, r h 348
4812224459 Seat support lh 350
4812224459A Seat support lh 352
4812225007 Locking 354
4812226162 Hand rail 355
4812226167 Hand rail, l h 356
4812226168 Hand rail, r h 357
4812226170 Ladder assy 358
4812226169 Hand rail 359
4812226171 Retainer 360
4812226179 Rubber buffer 361
4812226236 Retainer 362
4812225542 Weather protection house, cpl 363
4812225540 Roof 364
4812005140 Joint 366
4812005141 Joint 367
4812224530 Roof frame 368
4812225579 Front frame 369
4812006331 Roof 370
4812224868 Screw angle 371
4812005177 Roof hydraulic 372
4812043525 Hydr roof adjustment 373
4812005976 Cable W25 374
4812225541 Weather protection house 375
4812226223 Window cpl l h 377
4812226223A Window cpl l h 379
4812226222 Window cpl r h 381
4812226222A Window cpl r h 383
4812041932 Wiper system cpl 385
4812043526 Wiper system 386
4812226205 Retainer 387
4812222577 Operation panel 388
4812224787 Fold away step 390
4812225933 Vibration damper 391
4812224469 Pigeon hole 392
4812037845 End pipe / rotary feedthrough 393
4812037585 Joint rod 394
4812043625 Gr 12 Covering 396
4812225708 Door, l h 398
4812226336 Door, l h 399
4812041407 Support rod 400
4812225725 Door, r h 401
4812041407 Support rod 402
4812226380 Retainer, l h 403
4812042487 Disc frame 404
4812227654 Disc frame 405
4812227655 Disc 406
4812041608 Covering 407
4812226906 Intermediate section 408
4812225631 Intermediate section 409
4812226905 Iso- hood r h 410
4812225715 Iso- hood r h 411
4812034713 Locking 413
4812226907 Iso- hood l h 414
4812225717 Iso- hood l h 415
4812034713 Locking 417
4812226317 Cover plate 418
4812043627 Plate 419
4812042437 Bulk head 420
4812227721 Bulk head 421
4812224579 Covering 422
4812224048 Covering 424
4812224045 Covering 426
4812224604 Side plate, r h 428
4812227670 Side plate, r h 429
4812224610 Side plate, l h 430
4812227656 Side plate, l h 431
4812224278 Cover, l h 432
4812224284 Cover, r h 433
4812224984 Cover, r h 434
4812224985 Cover, l h 435
4812044971 Cover 436
4812224396 Cover 437
4812224667 Cover 438
4812225096 Side plate 439
4812224683 Cover, l h 440
4812224684 Cover, r h 441
4812226324 Cover plate 442
4812226135 Retainer, r h 443
4812226435 Support plate 444
Gr 14 Inscription, Tools, Accessories 446
4812011138 Signs 447
4812007540 Label MF2500CS black 448
4812226327 Label MF2500CS white 449
4812038453 Infrared thermometer 450
D978000024 Welding protection 451
4812005418 Test adapter 452
4812010556 Tools and accessories 453
4812009821 Tools and accessories 454
Color 455
Gr 15 Options 456
4812035452 Drivers seat Grammer, beheizbar 458
4812030001 Seat heater 459
4812009465 Drivers seat Standard 460
4812009466 Drivers seat, cpl 461
4812043337 Distance control 462
4812042658 Distance control 463
4812042666 El option traffic lights 464
4812042604 Traffic lights cpl 465
4812042661 Option engine room lighting 466
4812032841 Lamp interior 467
4812032889 Engine room lighting 468
4812043333 Spot light 470
4812227688 Lamp holder cpl 471
4812043334 Spot light, LED 472
4812227688 Lamp holder cpl 473
4812043445 Spot light, conveyor 474
4812043446 Spot light LED, conveyor 476
4812006710 Lighting balloon 478
4812225582 Mounting parts 479
4812006712 El option 480
4812045648 Rotaflare light 482
4812224786 Retainer, l h 483
4812224980 Retainer, r h 484
4812042653 El option 485
4812228157 Slip-on pipe 486
4812009876 Tools and accessories 488
D701011240 Spray arm 489
4812040056 Fire extinguisher 490
4812042654 El option Back-up alarm 492
4812042657 El option 12V Socket 494
4812043332 Camera 496
4812042665 Camera system 497
4812043182 Mounting parts 498
4812043177 Holding plate 499
4812043218 Steering control 10m 500
4812043252 Retainer 502
4812029931 Steering sensor 503
4812043196 Steering control 14m 504
4812043252 Retainer 506
4812029931 Steering sensor 507
4812006851 Option comfort light 508
4812006471 El option comfort light 509
4812044823 Bucket, short 510
4812029932 Emergency stop 511
Gr 18 Wear part and Inspection kits TIER 4i 512
4812007263 Hopper rubber kit, reinforced, hydr fr flap 514
4812011023 Hopper rubber kit, standard, hydr fr flap 515
4812008959 Wear part kit rubber plates 60 Teile / part 516
4812008960 Wear part kit rubber plates 56 Teile / part 517
4812009718 Wear part kit main frame 518
4812009720 Wear part kit rail guide 519
4812009723 Wear part kit scraper blade 520
4812042198 Service kit 500 h TIER 4i 521
4812012378 Service kit 500 h TIER 4i 522
4812043984 Service kit 500 h Plus TIER 4i 523
4812012382 Service kit 500 h Plus TIER 4i 524
4812046970 Service kit 1000 h TIER 4i, stage 2 525
4812012384 Service kit 1000 h TIER 4i, stage 2 526
L180000008 Lubricants and operating substances T4 527
Gr 18 Wear part and Inspection kits TIER 3 528
4812007263 Hopper rubber kit, reinforced, hydr fr flap 529
4812011023 Hopper rubber kit, standard, hydr fr flap 530
4812008959 Wear part kit rubber plates 60 Teile / part 531
4812008960 Wear part kit rubber plates 56 Teile / part 532
4812009718 Wear part kit main frame 533
4812009720 Wear part kit rail guide 534
4812009723 Wear part kit scraper blade 535
4700691229 Service kit 500 h TIER 3 536
4812043983 Service kit 500 h Plus TIER 3 537
4812046969 Service kit 1000 h TIER 3, stage 2 538
L180000009 Lubricants and operating substances T3 539
NUMERICAL INDEX 540

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.M
