Dynapac Paver SD2550C Spare parts list Manual SN0G000329 – PDF DOWNLOAD

Description

Dynapac Paver SD2550C Spare parts list Manual SN0G000329 – PDF DOWNLOAD

FILE DETAILS:

Dynapac Paver SD2550C Spare parts list Manual SN0G000329 – PDF DOWNLOAD

Language : English
Pages : 877
Downloadable : Yes
File Type : PDF
Size: 78.3 MB

TABLE OF CONTENTS:

Dynapac Paver SD2550C Spare parts list Manual SN0G000329 – PDF DOWNLOAD

Parts book for SD2550C s/n 0G000329 – V6000TV s/n 3100343 4
TABLE OF CONTENTS 4
SD2550C s/n 0G000329 – V6000TV s/n 3100343 30
4812027948 Gr 01 Main frame 36
4812028721 Side arm guiding 37
4812028725 Splash guard 38
4812036083 Steering guide 39
4812027763 Gr 02 Track group 40
4812027755 Track group, long, l h 41
4812035017 Drive gear box 44
4812035551 Wear part kit rubber plates 45
4812027756 Track group, long, r h 46
4812035017 Drive gear box 49
4812035551 Wear part kit rubber plates 50
4812028439 Track cleaner, cpl l h and r h 51
4812030910 Scraper, l h 52
4812030911 Scraper, r h 53
4812027435 Gr 03 Push roller 54
4812030492 Gr 03 Push roller, hydraulic 56
4812027642 Hydraulic, push roller 57
4812033247 Control block 59
Gr 04 Conveyor 60
4812027438 Conveyor drive 61
4812026817 Conveyor turn 62
4812026815 Tensioner 63
4812028402 Wear part kit conveyor plates 64
D635060800A Chain guide 65
4812028403 Wear part kit conveyor guide plates 66
4812035559 Gr 04 Conveyor, single no of bars 68
4812035563 Wear part kit conveyor chain 69
4812031231 Conveyor motor 70
4812029121 Hydraulic conveyor 71
4812029121A Hydraulic conveyor 72
4812030488 Conveyor limit switch, PLC 73
4812030488A Conveyor limit switch, PLC 74
4812044937 Conveyor limit switch, r h 75
4812044936 Conceyor limit switch, l h 76
4812035560 Gr 04 Conveyor, single no of bars, u-sonic 78
4812035563 Wear part kit conveyor chain 79
4812031231 Conveyor motor 80
4812029121 Hydraulic conveyor 81
4812029121A Hydraulic conveyor 82
4812031165 Ultrasonic sensor 83
4812031416 Ultrasonic sensor r h 84
4812031415 Ultrasonic sensor l h 85
4812035561 Gr 04 Conveyor, single no of bars, rev 86
4812035563 Wear part kit conveyor chain 87
4812031232 Conveyor motor, reversable 88
4812027604 Hydraulic conveyor, reversable 89
4812027604A Hydraulic conveyor, reversable 90
4812007901 Directional spool valve 91
4812030488 Conveyor limit switch, PLC 92
4812030488A Conveyor limit switch, PLC 93
4812044937 Conveyor limit switch, r h 94
4812044936 Conceyor limit switch, l h 95
4812035562 Gr 04 Conveyor, single no bars, rev , u-sonic 96
4812035563 Wear part kit conveyor chain 97
4812031232 Conveyor motor, reversable 98
4812027604 Hydraulic conveyor, reversable 99
4812027604A Hydraulic conveyor, reversable 100
4812007901 Directional spool valve 101
4812031165 Ultrasonic sensor 102
4812031416 Ultrasonic sensor r h 103
4812031415 Ultrasonic sensor l h 104
4812028401 Gr 04 Conveyor, double no of bars 106
4812028516 Wear part kit conveyor chain 107
4812031231 Conveyor motor 108
4812029121 Hydraulic conveyor 109
4812029121A Hydraulic conveyor 110
4812030488 Conveyor limit switch, PLC 111
4812030488A Conveyor limit switch, PLC 112
4812044937 Conveyor limit switch, r h 113
4812044936 Conceyor limit switch, l h 114
4812030494 Gr 04 Conveyor, double no of bars, u-sonic 116
4812028516 Wear part kit conveyor chain 117
4812031231 Conveyor motor 118
4812029121 Hydraulic conveyor 119
4812029121A Hydraulic conveyor 120
4812031165 Ultrasonic sensor 121
4812031416 Ultrasonic sensor r h 122
4812031415 Ultrasonic sensor l h 123
4812031237 Gr 04 Conveyor, double bars, rev 124
4812028516 Wear part kit conveyor chain 125
4812031232 Conveyor motor, reversable 126
4812027604 Hydraulic conveyor, reversable 127
4812027604A Hydraulic conveyor, reversable 128
4812007901 Directional spool valve 129
4812030488 Conveyor limit switch, PLC 130
4812030488A Conveyor limit switch, PLC 131
4812044937 Conveyor limit switch, r h 132
4812044936 Conceyor limit switch, l h 133
4812031238 Gr 04 Conveyor, double bars, rev , u-sonic 134
4812028516 Wear part kit conveyor chain 135
4812031232 Conveyor motor, reversable 136
4812027604 Hydraulic conveyor, reversable 137
4812027604A Hydraulic conveyor, reversable 138
4812007901 Directional spool valve 139
4812031165 Ultrasonic sensor 140
4812031416 Ultrasonic sensor r h 141
4812031415 Ultrasonic sensor l h 142
4812031995 Gr 05 Hopper 144
4812031998 Hopper, l h 145
4812029458 Hopper lock 146
4812031999 Hopper, r h 147
4812029458 Hopper lock 148
4812028563 Bulk material flap 149
4812029004 Gr 05 Hopper, hydraulic 150
4812029003 Hopper, l h 151
4812029458 Hopper lock 152
4812029037 Hopper, r h 153
4812029458 Hopper lock 154
4812028712 Front hopper, middle, long 155
4812027636 Hydraulic, front flap 156
4812027432 Front hopper, l h 157
4812027433 Front hopper, r h 158
4812027554 Gr 06 Side Screed arms, mech locked 160
4812029165 Side screed arm, l h 162
4720000097 Side arm guiding 164
4812029197 Side screed arm, r h 165
4720000097 Side arm guiding 167
4812029222 Locking, mechanical 168
4812027553 Gr 06 Side screed arms, hydr locked 170
4812029165 Side screed arm, l h 172
4720000097 Side arm guiding 174
4812029197 Side screed arm, r h 175
4720000097 Side arm guiding 177
4812029191 Locking, hydraulic 178
4812027609 Hydraulic 179
4812033247 Control block 180
4812032786 Gr 07 Drive 182
4812005952 Cable W12 183
4812039040 Combined cooler / air filter 186
4812038352 Combined cooler 189
4812030290 Fuel system 190
4812028928 Fuel tank 191
4812026687 Engine 193
4812030280 Engine support 194
4812030294 Attaching parts 195
4812030230 Muffler 197
4812037863 End pipe / push variant 198
4812037845 End pipe / rotary feedthrough 199
4812037585 Joint rod 200
Service parts 201
4812030461 Gr 08 Split gear 204
4812009002 Motor coupling 205
4812035281 Split gear 206
4812037847 Split gear 207
4812037689 Gear oil drain 210
Gr 08 Split gear box 212
4812026127 Pump 214
4812026128 Pump 215
4812031533 Variable displacement pump 216
4812026146 Pump 217
4812026131 Pump 218
Gr 08 Split gear box, w suction 220
4812026127 Pump 222
4812026128 Pump 223
4812031533 Variable displacement pump 224
4812026146 Pump 225
4812026131 Pump 226
4812026579 Gr 09 Hydraulic 228
4812027654 Hydraulic, drive system 229
4812026146 Pump 232
4812026522 Manual pump 233
4812026131 Pump 234
4812027655 Hydraulic, auger 235
4812026128 Pump 237
4812027656 Hydraulic, conveyor 238
4812010974 Connecting plate 241
4812010925 Connecting plate 242
4812031533 Variable displacement pump 243
4812007012 Control block 244
4812027657 Hydraulic, tamper/vibration 245
4812026127 Pump 246
4812027658 Work hydraulic 247
4812026616 Control block 251
4812036359 Control block 252
4812036358 Control block 253
4812033967 Control block 254
D964006104 Filter 255
4812029598 Control block 256
4812027659 Hydraulic, fan 257
D964006104 Filter 259
4812032615 Hydraulic tank, collector 260
4812028192 Hydraulic tank, cpl 261
4812009435 Return suction filter 262
4812035052 Ganged valve support 263
4812030007 Hydrl coupling 264
4812037434 Hose package 616/617/R300 266
4812036309 Hose package screed R300 Verstell / variable 267
4812036353A Screed in / out 268
4812036364 Tamper / Vibration 269
4812037363 Hose package screed 616 / 617 271
4812036460 Screed in / out 272
Cylinder schema 273
4812038608 Gr 09 Hydraulic 276
4812027654 Hydraulic, drive system 278
4812026146 Pump 281
4812026522 Manual pump 282
4812026131 Pump 283
4812027655 Hydraulic, auger 284
4812026128 Pump 286
4812027656 Hydraulic, conveyor 287
4812010974 Connecting plate 290
4812010925 Connecting plate 291
4812031533 Variable displacement pump 292
4812007012 Control block 293
4812027657 Hydraulic, tamper/vibration 294
4812026127 Pump 295
4812046992 Hydraulic, tamper/vibration 296
4812026526 Control block 298
4812038622 Work hydraulic 299
4812026616 Control block 303
4812036359 Control block 304
4812036358 Control block 305
4812033967 Control block 306
D964006104 Filter 307
4812029598 Control block 308
4812027659 Hydraulic, fan 309
D964006104 Filter 311
4812032615 Hydraulic tank, collector 312
4812028192 Hydraulic tank, cpl 313
4812009435 Return suction filter 314
4812035052 Ganged valve support 315
4812035032A Hose package screed 616 / 617 316
4812036460 Screed in / out 317
4812035034A Tamper / Vibration 318
4812007545 Hose package screed R300 Konstant / constant 320
4812036353A Screed in / out 321
4812007542 Tamper / Vibration Konstant / constant 322
4812007541 Hose package screed R300 Konstant / constant 324
4812007509 Screed in / out R300 VT 325
4812007542 Tamper / Vibration Konstant / constant 326
4812037372 Hose package roof profile 616/617 328
4812037363A Hose package screed 616 / 617 329
4812036460 Screed in / out 330
4812036309 Hose package screed R300 Verstell / variable 331
4812036353A Screed in / out 332
4812036364 Tamper / Vibration 333
4812007508 Hose package screed R300 Verstell / variable 335
4812007509 Screed in / out R300 VT 336
4812036364 Tamper / Vibration 337
Cylinder schema 339
4812038539 Gr 10 Electric 342
4812029470 Electric, PLC 343
4812028945 Junction box 346
4812038534 Operator desk 351
4812038371 Vandalism protection 354
4812227674 Vandalism protection 355
4812029597 Cable W11 356
4812038540 Wiring 357
4812029580 Cable W1 367
4812029581 Cable W2 368
4812029589 Cable W3 369
4812038524 Cable W4 370
4812029590 Cable W5 371
4812038525 Cable W6 372
4812038526 Cable W7 373
4812038527 Cable W8 374
4812029595 Cable W9 375
4812029596 Cable W10 376
4812029858 Cable harness W13 377
4812029860 Cable harness W15 379
4812029861 Cable harness W16 381
4812029862 Cable harness W17 383
4812038555 Cable harness W19 384
4812038554 Cable W19 385
4812033060 Mounting parts W19 388
D977436121 Ground strap 389
4812029597 Cable W11 390
4812026356 Steering unit 391
4812038587 Remote control 392
4812009789 Remote control 393
4812033336 Gr 11 Op platf , moveable 394
4812030580 Operation platform, moveable 395
4812030610 Operation platform, moveable 396
4812040799 Console l h 399
4812040830 Seat retainer 400
4812041041 Console, r h 401
4812041042 Seat retainer 402
4812036917 Guiding, front 403
4812040752 Support operator desk, foldable 404
4812029859 Cable harness W14 406
4812041845 Safety bow 408
4812041017 Safety bow 409
4812027610 Hydraulic, operation platform 410
4812033247 Control block 411
4812033337 Gr 11 Op platf , moveable, roof, short 412
4812030582 Operation platform, moveable 413
4812030610 Operation platform, moveable 414
4812040799 Console l h 417
4812040830 Seat retainer 418
4812041041 Console, r h 419
4812041042 Seat retainer 420
4812036917 Guiding, front 421
4812040752 Support operator desk, foldable 422
4812029859 Cable harness W14 424
4812033253 Wiring roof 426
4812033224 Cable W25 427
4812030616 Roof frame 428
4812036948 Roof hydraulic 430
4812033253 Wiring roof 431
4812033224 Cable W25 432
4812037029 Roof, short 433
4812037524 Lamp holder 434
4812037029 Roof, short 435
4812041845 Safety bow 436
4812041017 Safety bow 437
4812027610 Hydraulic, operation platform 438
4812033247 Control block 439
4812033338 Gr 11 Op platf , moveable, house, short 440
4812030584 Operation platform, moveable 441
4812030610 Operation platform, moveable 442
4812040799 Console l h 445
4812040830 Seat retainer 446
4812041041 Console, r h 447
4812041042 Seat retainer 448
4812036917 Guiding, front 449
4812040752 Support operator desk, foldable 450
4812029859 Cable harness W14 452
4812033253 Wiring roof 454
4812033224 Cable W25 455
4812030617 Roof frame 456
4812036948 Roof hydraulic 458
4812033253 Wiring roof 459
4812033224 Cable W25 460
4812037029 Roof, short 461
4812037524 Lamp holder 462
4812037029 Roof, short 463
Weather protection house 464
4812041672 Window, cpl , r h 466
4812041671 Window, cpl , l h 468
4812041932 Wiper system cpl 470
4812043526 Wiper system 471
4812041845 Safety bow 472
4812041017 Safety bow 473
4812027610 Hydraulic, operation platform 474
4812033247 Control block 475
4812033340 Gr 11 Op platf , moveable, roof, long 476
4812030588 Operation platform, moveable 477
4812030610 Operation platform, moveable 478
4812040799 Console l h 481
4812040830 Seat retainer 482
4812041041 Console, r h 483
4812041042 Seat retainer 484
4812036917 Guiding, front 485
4812040752 Support operator desk, foldable 486
4812029859 Cable harness W14 488
4812033253 Wiring roof 490
4812033224 Cable W25 491
4812030619 Roof frame 492
4812036948 Roof hydraulic 494
4812033253 Wiring roof 495
4812033224 Cable W25 496
4812037026 Roof, long 497
4812037524 Lamp holder 498
4812037026 Roof, long 499
4812041845 Safety bow 500
4812041017 Safety bow 501
4812027610 Hydraulic, operation platform 502
4812033247 Control block 503
4812033341 Gr 11 Op platf , moveable, house, long 504
4812030590 Operation platform, moveable 505
4812030610 Operation platform, moveable 506
4812040799 Console l h 509
4812040830 Seat retainer 510
4812041041 Console, r h 511
4812041042 Seat retainer 512
4812036917 Guiding, front 513
4812040752 Support operator desk, foldable 514
4812029859 Cable harness W14 516
4812033253 Wiring roof 518
4812033224 Cable W25 519
4812030619 Roof frame 520
4812036948 Roof hydraulic 522
4812033253 Wiring roof 523
4812033224 Cable W25 524
4812037026 Roof, long 525
4812037524 Lamp holder 526
4812037026 Roof, long 527
Weather protection house 528
4812041672 Window, cpl , r h 530
4812041671 Window, cpl , l h 532
4812041932 Wiper system cpl 534
4812043526 Wiper system 535
4812041845 Safety bow 536
4812041017 Safety bow 537
4812027610 Hydraulic, operation platform 538
4812033247 Control block 539
4812030826 Gr 12 Covering 540
4812030755 Hood fastener 543
4812030891 Intermediate section 544
4812034712 Door 545
4812041407 Support rod 546
4812034765 Door 547
4812041407 Support rod 548
4812033167 Stop bolt 549
4812032211 Hood center part, r h 550
4812034713 Locking 551
4812032151 Hood center part, l h 552
4812034713 Locking 553
4812033243 Covering center part, l h 554
4812033244 Covering center part, r h 555
4812032307 Disc frame 556
4812034763 Support plate, l h 557
4812034767 Support plate, r h 558
4812034770 Air guide, l h 559
4812034771 Air guide, r h 560
4812034772 Air guide, rear 561
4812034776 Cover 562
4812034779 Retainer 563
4812034799 Bulk head 564
4812034849 Cover, l h 565
4812034891 Cover, r h 566
4812030781 Gr 12 Ascension 568
4812030757 Ascent, middle 569
4812033260 Ascent, l h 570
4812033262 Ascent, r h 571
4812036549 Box 572
4812031059 Auger Ø430mm, 2,50m 574
4812031822 Auger Ø430mm, basic width 575
4812027684 Auger box 576
4812026736 Outer support 578
4812004559 Auger support 580
4812027479 Mounting parts 581
4812027733 Wear part kit auger wing Ø430mm 582
4812027592 Auger gear 583
4812034819 Spare parts gear 584
4812045075 Auger gear 585
Gr 13 Auger extensions 586
4812030995 Auger extension, l h L: 320mm 590
4812030997 Auger extension, r h L: 320mm 591
4812030998 Auger extension, l h L: 640mm 592
4812031000 Auger extension, r h L: 640mm 593
4812031010 Auger extension, l h L: 960mm 594
4812031011 Auger extension, r h L: 960mm 595
4812028794 Material tunnel, cpl L:320mm 596
4812028792 Material tunnel, cpl L:640mm 597
4812030927 Material tunnel, cpl L:960mm 598
4812028782 Strut material duct, l h L:960mm 599
4812028787 Strut material duct, r h L:960mm 600
4812028789 Strut material duct L:960mm 601
4812032289 End support, plate 602
D439082200 End support 603
4812031804 Outer support 605
D438081200 End support 606
4812029259 Brace 608
4812028882 Cross struts 610
4812032472 Brace package wide 611
4812028882 Cross struts 615
4812032804 Protection cover L:320 mm 616
4812032803 Protection cover L:640mm 617
4812032802 Protection cover L:960 mm 618
4812032393 Auger wing Ø430mm, l h 619
4812032395 Auger wing Ø430mm, r h 620
4812032499 additional Extension parts 621
4812032500 additional Extension parts 622
4812032502 additional Extension parts 623
4812032504 additional Extension parts 624
4812031060 Auger Ø430mm, 3,14m 626
4812031953 Auger Ø430mm, 3,14m 627
4812031063 Auger Ø430mm, 3,78m 628
4812032281 Auger Ø430mm, 3,78m 629
4812032049 Auger Ø430mm, 4,42m 630
4812032357 Auger Ø430mm, 4,42m 631
4812031108 Auger Ø430mm, 5,06m 632
4812032363 Auger Ø430mm, 5,06m 633
4812032051 Auger Ø430mm, 5,70m 634
4812032383 Auger Ø430mm, 5,70m 635
4812032052 Auger Ø430mm, 6,34m 636
4812032399 Auger Ø430mm, 6,34m 637
4812032053 Auger Ø430mm, 6,98m 638
4812032410 Auger Ø430mm, 6,98m 639
4812032054 Auger Ø430mm, 7,62m 640
4812032413 Auger Ø430mm, 7,62m 641
4812032055 Auger Ø430mm, 8,26m 642
4812032419 Auger Ø430mm, 8,26m 644
4812032056 Auger Ø430mm, 8,90m 646
4812032430 Auger Ø430mm, 8,90m 647
4812032057 Auger Ø430mm, 9,54m 648
4812032435 Auger Ø430mm, 9,54m 649
4812032058 Auger Ø430mm, 10,18m 650
4812032437 Auger Ø430mm, 10,18m 651
4812032059 Auger Ø430mm, 10,82m 652
4812032439 Auger Ø430mm, 10,82m 653
Gr 14 Inscription, Tools, Accessories 654
4812036436 Decals tracked paver 655
Inscription 657
4812035048 Tools and accessories 658
4812009821 Tools and accessories 659
4812035580 Tools and accessories (Rus) 660
4812038453 Infrared thermometer 661
D978000024 Welding protection 662
4812005418 Test adapter 663
Replace key 664
4812035521 Drivers seat 666
4812028982 Refueling equipment 668
4812029968 Refueling equipment 669
4812035452 Drivers seat Grammer, beheizbar 670
4812030001 Seat heater 671
4812035458 Drivers seat Standard, Cobo, kpl 672
4812027698 Hydr hight adj auger 674
4812027603 Hydraulic, auger 675
4812027721 Mech hight adjustment auger 676
4812027720 Ratchet 677
4812031793 Auger limit switch ultrasonic 678
4812228334 Retainer 679
4812032431 Electric 680
4812030906 Auger level indicator 682
4812032415 Bio hydraulic oil / Panolin 684
4812027607 Hydr partial flow filter 685
D964013553 Partial flow filter 686
4812035023 Spot light for auger 688
4812028823 Spot light 689
4812034736 Powermoon, Halogen 690
4812032414 Powermoon 691
4812036596 cable cpl 692
4812046228 Lighting balloon 693
4812036192 Rotaflare light, PLC, with roof 694
4812029933 Electric rotaflare light 695
4812035837 Slip-on pipe 696
4812036227 Retainer 697
4812035432 Rotaflare light, PLC, without roof 698
4812029933 Electric rotaflare light 699
4812035837 Slip-on pipe 700
4812033636 Retainer 701
4812037881 Central lubrication 702
4812037776 Pump 703
4812037777 Pump 704
4812037782 Kit central lubrication f auger 706
4812030073 El option central lubrication 707
4812037018 Fire extinguisher 708
D654905800 Fire extinguisher 709
4812034226 Emulsion spray system 710
4812034614 Tank with pump 711
4812034147 Tank 713
4812034823 Hose package 714
4812029938 Electric emulsion spray system 715
4812034227 Emulsion spray system 718
4812034599 Hose reel 719
4812034614 Tank with pump 720
4812034147 Tank 722
4812029938 Electric emulsion spray system 723
4812034869 Gloria spraying device 726
4812002731 First-aid kit 728
4812027605 Crown adjustment 730
4812033247 Control block 731
4812046393 Control block 732
4812030959 Generator drive, crawler, 33kVA 734
4812034530 Electric / heating Serie 735
4812036663 Control box 736
4812039600 Vandalism protection 739
4812005418 Test adapter 740
4812033507 Generatorcable 741
4812034530A Electric / heating ab/from SN 3000547 742
4812033507 Generatorcable 743
4812040618 Control box 744
4812039600 Vandalism protection 750
4812005418 Test adapter 751
4812039600 Vandalism protection 752
4812031164 Generator drive, 80kVA 754
4812034537 Electric / heating Serie 755
4812036664 Control box 756
4812039600 Vandalism protection 758
4812005418 Test adapter 759
4812032103 Generatorcable 760
4812034537A Electric / heating 761
4812032103 Generatorcable 762
4812040619 Control box 763
4812039600 Vandalism protection 769
4812005418 Test adapter 770
4812039600 Vandalism protection 771
4812029934 Back-up alarm 772
4812035395 Spot light 774
Gr 16 Levelling 776
D900626011 Slope transmitter 778
4812038541 Sonic-Ski 780
4812038617 Digirotary Kit 782
4812038616 Ultrasonic sensor 784
4812038602 Sensor 785
4812011781 Box MOBA-Matic 786
4812038565 Big Ski 9 m 788
4812038564 Electric parts big ski 789
4812011781 Box MOBA-Matic 790
4812038559 Big Ski 9 m 791
4812038560 Side arm support 792
4812038566 Big Ski 13 m 794
4812038564 Electric parts big ski 795
4812011781 Box MOBA-Matic 796
4812038562 Big Ski 13 m 797
4812038560 Side arm support 798
D830031300 Trailing ski, 6m 800
4700688225 Trailing ski, 6m 801
4700691720 Mounting parts 803
D830031400 Trailing ski, 9m 804
4700688226 Trailing ski, 9m 805
4700691720 Mounting parts 807
4720000701 Wire tensioner cpl 808
Gr 17 Doku 810
DVD W-A-S 11 x (for service technicans) 821
Gr 18 Wear part and Inspection kits TIER 3 822
4812028402 Wear part kit conveyor plates 824
4812028403 Wear part kit conveyor guide plates 825
4812028516 Wear part kit conveyor chain 826
4812035552 Wear part kit conveyor drive 827
4812035553 Wear part kit reversing roller 828
4812027733 Wear part kit auger wing Ø430mm 829
4812035551 Wear part kit rubber plates 830
4700691229 Service kit 500 h TIER 3 831
4812041235 Service kit 1000 h TIER 3 832
4812046969 Service kit 1000 h TIER 3, stage 2 833
4812043983 Service kit 500 h Plus TIER 3 834
Lubricants and operating substances T3 835
4812045783 Hopper rubber kit, standard 837
4812007262 Hopper rubber kit, standard 838
4812045834 Hopper rubber kit, hydr front flap 839
4812007263 Hopper rubber kit, reinforced, hydr fr flap 840
4812011023 Hopper rubber kit, standard, hydr fr flap 841
NUMERICAL INDEX 842

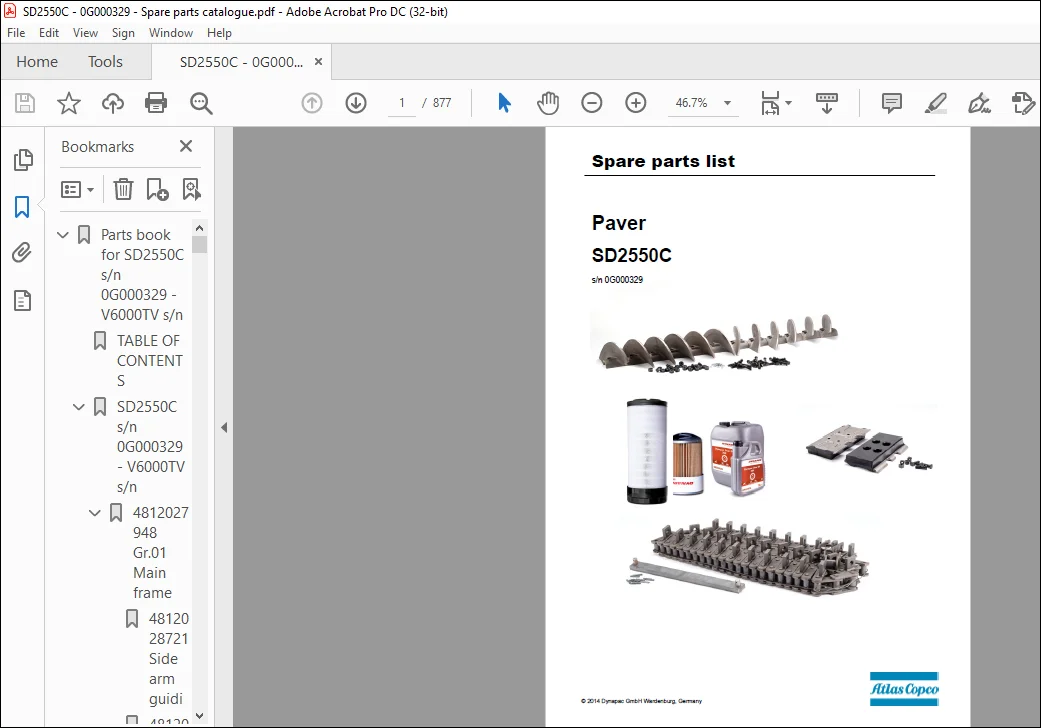

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.M
