Dynapac PL21000LS Spare Parts Catalogue Manual – PDF DOWNLOAD
TABLE OF CONTENTS:
Dynapac PL21000LS Spare Parts Catalogue Manual – PDF DOWNLOAD
Parts Book for 504.145 PL2000LS s/n 504.145.................... 2 TABLE OF CONTENTS.......................................... 2 504.145 PL2000LS s/n 504.145............................... 7 PL2000LS01_01_A Main frame, compl...................... 8 504-01100A Main frame.............................. 9 504-01110 Mounting parts main frame................ 12 504-01120 Belt covering............................ 14 504-01125A Accessories box......................... 16 504-01130 Engine hood, Tank covering, foot room.... 19 504-01135 Fuel tank, seats......................... 23 504-01140 Operator stand........................... 26 504-01145 Operating panel carrier.................. 28 504-01150 Ascent assy.............................. 30 500-01260 Lift and tip up mechanism................ 33 504-01500 Option weight PL2000LS................... 35 PL2000LS02_01_B Planer unit............................ 37 504-02600 Planer unit.............................. 38 504-02610 Milling section.......................... 40 504-02620 Milling housing.......................... 44 504-02130A Back flap............................... 47 504-02640 Cutting drum............................. 49 504-02650 Belt tensioner........................... 51 504-02670 Cutting drum bearing..................... 53 504-02750 Round shank bit.......................... 55 PL2000LS03_01_A Material feeder........................ 57 504-03100A Conveying system........................ 58 504-03160 Conveyor, rigid.......................... 60 504-03190 Covering................................. 63 504-03210 Lift unit, rigid......................... 65 504-03120 Conveyor suspension...................... 67 504-03130 Funnel................................... 69 504-03140 Fastening lever, compl................... 71 504-03200 Collating conveyor....................... 73 504-03110 Sliding shoe............................. 75 PL2000LS04_01_A Steering............................... 77 504-04110A Steering, compl......................... 78 PL2000LS05_01__ Track group............................ 81 504-05110 Track group.............................. 82 PL2000LS06_01_A Drive, compl........................... 85 504-06120A Drive unit.............................. 86 951058552 Split gear box Stiebel............... 88 504-06130 Exhaust system........................... 90 504-06140 Air filter unit, compl................... 92 504-06150 Guard.................................... 94 504-06160 Cooling system........................... 96 504-06170 Filling and ventilate.................... 99 PL2000LS07_01_B Hydraulic equipment, compl.............101 504-07100 Hydraulik oil tank, compl................102 504-07120 Drive....................................104 504-07130 Belt drives..............................111 504-07145 Steering 1...............................115 504-07155 Steering 2...............................120 504-07165 Steering 3...............................129 504-07175 Succion/return line......................135 504-07185 Engine hood..............................138 504-07195 Convertible roof Option..................141 504-07200 Foldable conveyor Option.................145 PL2000LS08_01__ Electronic unit........................148 504-08100 Clamp box, compl.........................149 504-08111 Operator stand, right....................152 504-08113 Warning lamp side shield.................154 504-08114 Control unit.............................156 504-08115 Operator desk II.........................158 504-08116 Fill pump................................160 504-08117 Lighting.................................162 504-08119 Input....................................164 504-08121 Drive....................................166 504-08122 Conveyor.................................168 504-08123 Hood.....................................170 504-08124 Input/output.............................172 504-08125 Camera system............................174 504-08127 Emergency steering.......................176 504-08128 Steering, rear Option....................178 504-08130 Changing TFT display.....................180 504-08135 Cable plan...............................182 504-08140 Diesel pump..............................187 504-08150 3D-levelling.............................189 PL2000LS09_01__ Water system, compl....................191 504-09100 Water system.............................192 504-09110 Water spray equipment....................194 504-09150 Water tank...............................197 504-09200 Water level Option.......................199 504-20160 Cleaning lance...........................201 PL2000LS10_02__ Accessories............................203 500-10110 Accessories box, rear shank bite box.....204 504-11100 Tools and accessories....................206 PL2000LS20_01_A Option.................................209 500-20120 GfK roof.................................210 500-20155 High pressure cleaner....................213 500-20160 Water fill hose..........................215 500-20200 Compressed-air plant.....................217 500-20210 Shank bit extensioner....................219 500-20220 Pneumatic screw driver...................221 500-20230 Blow pistol..............................223 500-20240 Grease pistol............................225 500-20250 Pressure air hose........................227 504-10105 Diesel refilling pump....................229 504-10120 Sonic sensor.............................231 504-10150 Steering, rear...........................233 504-08387 Remote control Option................235 504-10170 Pressure adjustment......................238 504-10160 Emergency steering.......................241 504-10180 Sonic ski................................243 830-15101 Adjustable grade control.............245 830-15102 Grade control....................247 830-15100 Support for grade control............249 504-10190 Sonic ski, twofold.......................251 504-10200 Actual value indicator, compl............253
FILE DETAILS:
Dynapac PL21000LS Spare Parts Catalogue Manual – PDF DOWNLOAD
Language : English
Pages :254
Downloadable : Yes
File Type : PDF
Size:9.01 MB

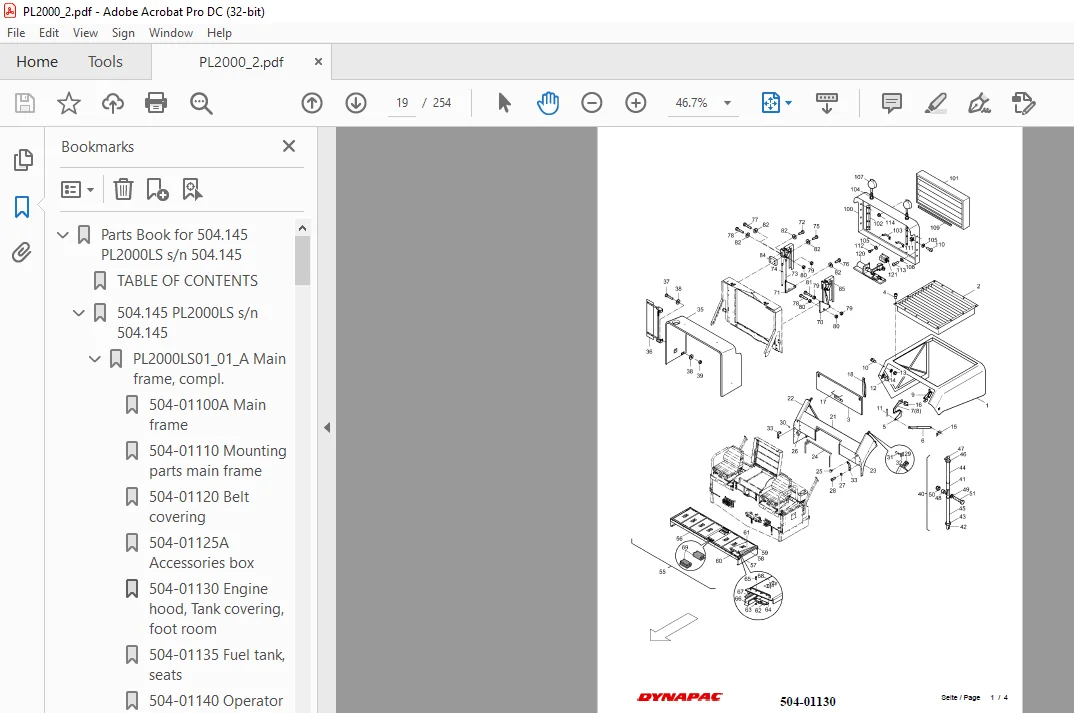

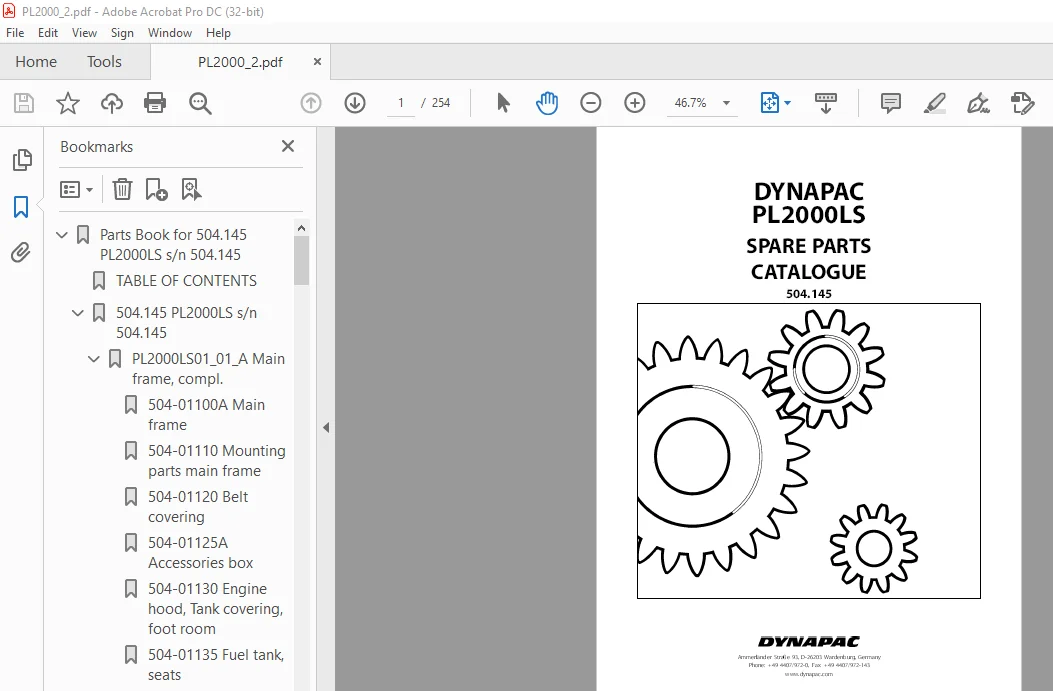

IMAGES PREVIEW OF THE MANUAL:
