Dynapac Pneumatic Roller CP275 (IIIAT3) Spare parts list Manual – PDF DOWNLOAD

Description

Dynapac Pneumatic Roller CP275 (IIIAT3) Spare parts list Manual – PDF DOWNLOAD

FILE DETAILS:

Dynapac Pneumatic Roller CP275 (IIIAT3) Spare parts list Manual – PDF DOWNLOAD

Language : English
Pages :429
Downloadable : Yes
File Type : PDF

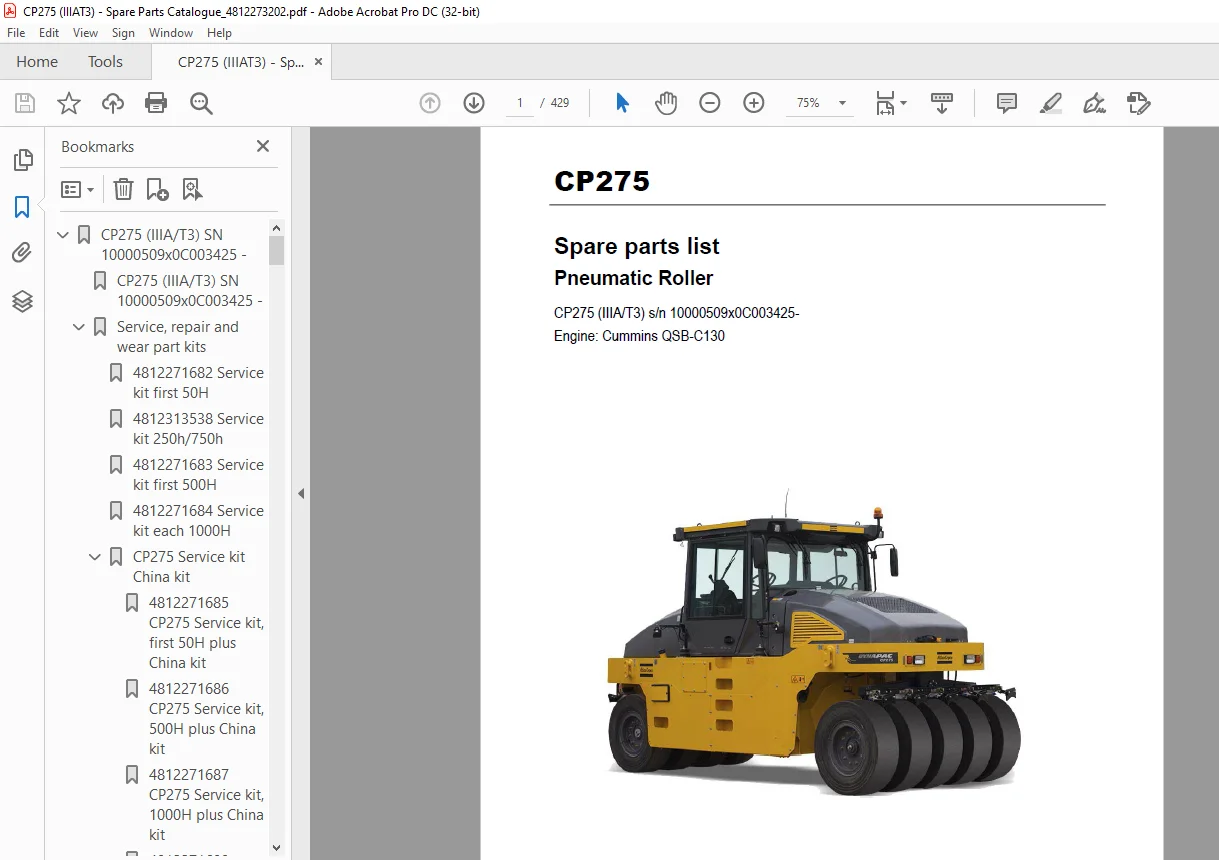

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Dynapac Pneumatic Roller CP275 (IIIAT3) Spare parts list Manual – PDF DOWNLOAD

s/n 10000509x0C003425-
Engine: Cummins QSB-C130

CP275 (IIIA/T3) SN 10000509x0C003425 –
CP275 (IIIA/T3) SN 10000509x0C003425 – 1
Service, repair and wear part kits
4812271682 Service kit first 50H 3
4812313538 Service kit 250h/750h 5
4812271683 Service kit first 500H 7
4812271684 Service kit each 1000H 9
CP275 Service kit China kit
4812271685 CP275 Service kit, first 50H plus China kit 11
4812271686 CP275 Service kit, 500H plus China kit 13
4812271687 CP275 Service kit, 1000H plus China kit 15
4812271688 CP275 Service kit, 2000H plus China kit 17
4812271689 CP275 First 1000H startup kit China kit
4812271685 CP275 Service kit, first 50H plus China kit See page 11
4812271686 CP275 Service kit, 500H plus China kit See page 13
4812271690 CP275 Second 1000H startup kit China kit
4812271686 CP275 Service kit, 500H plus China kit See page 13
4812271687 CP275 Service kit, 1000H plus China kit See page 15
4812271688 CP275 Service kit, 2000H plus China kit See page 17
4812155698 Sprinkler kit 19
4812270212 Scraper kit 21
4812269097 Suspension kit 23
CP275 Service kit Except China market
4812271691 CP275 Service kit, 50H plus Except China market 25
4812271692 CP275 Service kit, 500H plus Except China market 27
4812271693 CP275 Service kit, 1000H plus Except China market 29
4812271694 CP275 Service kit,2000H plus Except China market 31
4812271695 CP275 First 1000H startup kit Except China market
4812271691 CP275 Service kit, 50H plus Except China market See page 25
4812271692 CP275 Service kit, 500H plus Except China market See page 27
4812271693 CP275 Service kit, 1000H plus Except China market See page 29
4812271696 CP275 Second 1000H startup kit Except China market
4812271692 CP275 Service kit, 500H plus Except China market See page 27
4812271694 CP275 Service kit,2000H plus Except China market See page 31
4812269093 Brake kit 33
4812268159 Air on the run field kit 35
Mechanical
Frame 39
Rear cover assy 43
Sprinkling system
Sprinkling system 45
Sprinkler pipe module
Sprinkler pipe module 47
Sprinkler pipe mount 49
Sprinkler pipe module
Sprinkler pipe module 51
Sprinkler pipe mount 53
Sprinkler tank module 55
Sprinkler pipe module
Sprinkler pipe module 58
Sprinkler pipe mount 61
Sprinkling pump module
Sprinkling pump module 63
Sprinkling pump mount 65
Sprinkler pipe module
Sprinkler pipe module 69
Sprinkler pipe mount 71
Water hoses assy 73
Operator platform
Drivers platform 75
Cab module
Cab installation 77
Cab assembly 79
Windshield plate 83
Rear view mirror, fire extinguisher support, plates 85
Cab electric 87
Electrical cpl. 89
Screens, locks, lights 91
Lock assy, right door 93
Side working light 95
Rotating beacon 97
4812265355 Lock assy, left door 99
Canopy option
Canopy option 101
Canopy assy 103
Bracket 105
Instrumentbox module
4812268200 Instrumentbox module 107
4812268147 Control shaft 109
4812313277 F/R transfer shaft assy 111
4812268201 Instrumentbox 113
Armrest component 115
Instrument panel cpl 117
Electrical cpl 121
Driver platform assy
Driver platform assy 123
Electrical cpl. See page 89
Switch panel assy 125
Engine
Engine 127
Engine system
Engine system 129
4812269786 Engine assy.
4812269786 Engine assy. 131
4812269784 Diesel engine
4812269784 Diesel engine 133
Aid, air heater starting 139
Block, cylinder 141
Plumbing, cpr coolant 143
Arrangement, cpr air 145
Air compressor 147
Thermostat 149
Alternator 151
Location, fuel filter 153
Housing, flywheel 155
Fuel pump 157
Accessories, fuel system 159
Plumbing, fuel 161
Cover, front gear 163
Plumbing, cabin heater 165
Connection, air intake 167
Connection, air tansfter 169
Cooler, engine oil 171
Filter, full flow oil 173
Guage, oil level 175
Pump, lubrication oil 177
Oil pan 179
Pulley, accessory drive 181
Module, engine control 183
Turbocharger 185
Preformance parts 187
Lever, rocker 191
Motor,starting 193
Arrangement, cover 195
Connection, water inlet 197
Water pump 199
Drive, water pump 201
Belt tensioner 203
Harness 205
Exhaust system 207
Air intake system 209
4812269789 Fuel system 211
4812269788 Cooling system 213
4812268790 Radiator 215
Engine hood assembly
Engine hood assy 217
Engine hood 219
Locking device 221
Drive
Front suspension
Front suspension
Front suspension 223
4812266314 Brake 225
Hub 227
Sub-assembly 229
Wheel 231
Hub-cap assy 233
Front suspension From 0C002472 To 0C003219
Front suspension From 0C002472 235
4812266314 Brake See page 225
Hub See page 227
Sub-assembly See page 229
Wheel See page 231
Hub-cap assy See page 233
Front suspension From 0C003220
Front suspension From 0C003220 237
4812266314 Brake See page 225
Hub See page 227
Sub-assembly See page 229
Wheel See page 231
4812266327 Tire 239
Hub-cap assy See page 233
Front scraper assy
Front scraper assy 241
Scraper bracket module To 0C003219
Scraper bracket module To 0C003219 243
Bracket assy 245
Scraper mount To 0C002471 247
Scraper mount From 0C002472 249
Rear suspension
Rear suspension 251
Rear suspension
Rear suspension 253
4812266314 Brake See page 225
Wheel See page 231
4812266327 Tire See page 239
Inside Wheel 255
Rear scraper assy
Rear scraper assy 257
Scraper bracket module To 0C003219
Scraper bracket module To 0C003219 See page 243
Bracket assy See page 245
Scraper bracket module From 0C003220
Scraper bracket module From 0C003220 259
Bracket assy See page 245
Scraper mount Since From 0C002472
Scraper mount From 0C002472 See page 249
Rear chain cover
Rear chain cover 261
Left cover 263
Right cover 265
Adjusting mechanism
Adjusting mechanism 267
4812272838 Rear axle, From 0C004418
4812272838 Rear axle 269
4812313047 Planetary assembly 271
4812313059 Central reducer assembly 273
4812313060 Brake assembly 275
4812313061 Carrier assembly 277
4812313087 Diff. assembly 279
Cover 281
Hydraulic system
Hydraulic system
Hydraulic system 283
Oil tank 285
Steering system
Steering system 287
Steering Valve Assy 289
Steering cylinder assy 291
Fan drive system
Fan drive system 293
Fan drive motor assy 295
Fan drive motor assy 297
Return block assy 299
Fan drive control valve 301
Hydraulic system
Hydraulic system 303
Pump assy
Pump assy 306
4812266042 Pump 309
Flange 314
Propulsion motor assy
Propulsion motor assy 317
4812266043 Hydraulic motor 319
Flange 321
Brake relief valve 323
Brake system
Brake system 325
Connection block 329
Air tank assy 331
Air cylinder assy 333
Brake valve assy 335
Brake valve assy 337
Brake valve assy 339
Shuttle valve assy 341
Holder assy 343
Electric system
Electrical equipment 345
Bulb 21W 347
ECU module 349
Options / Accessories
Decals 351
4812265895 Ballast assy, 27T 353
4812265932 Ballast assy, 30T 355
4812265855 Hollow ballast assy 357
4812266670 Air on the run 359
Oil spray system
Oil spray system 363
Oil tank Assy 365
Oil pump assembly 367
Cover assembly 371
Front support assembly 373
Rear support assembly 375
Bracket assembly 377
Bracket assembly 379
Oil spray unit 381
Oil spray electric system (Kit) 383
4812266597 Air condition system
4812266597 Air condition system 385
Evaporator module 387
4812266545 Hose kit for CP275 T3 389
Condensor module 391
Heater module 393
4812266552 Compressor module 395
Protective cover assy
Protective cover assy 397
Front Cover Assy 399
Bracket assy 401
Rear cover assy 403
Bracket assy 405
Appendix B:Parts Index 407
