Operation Manual for Dynapac CP1200 Pneumatic Tire Roller PDF

Description

DYNAPAC Pneumatic Tire Roller CP1200 Operation & Maintenance Instruction Manual PDF DOWNLOAD

FILE DETAILS:

DYNAPAC Pneumatic Tire Roller CP1200 Operation & Maintenance Instruction Manual PDF DOWNLOAD

Language : English
Pages :82
Downloadable : Yes
File Type : PDF

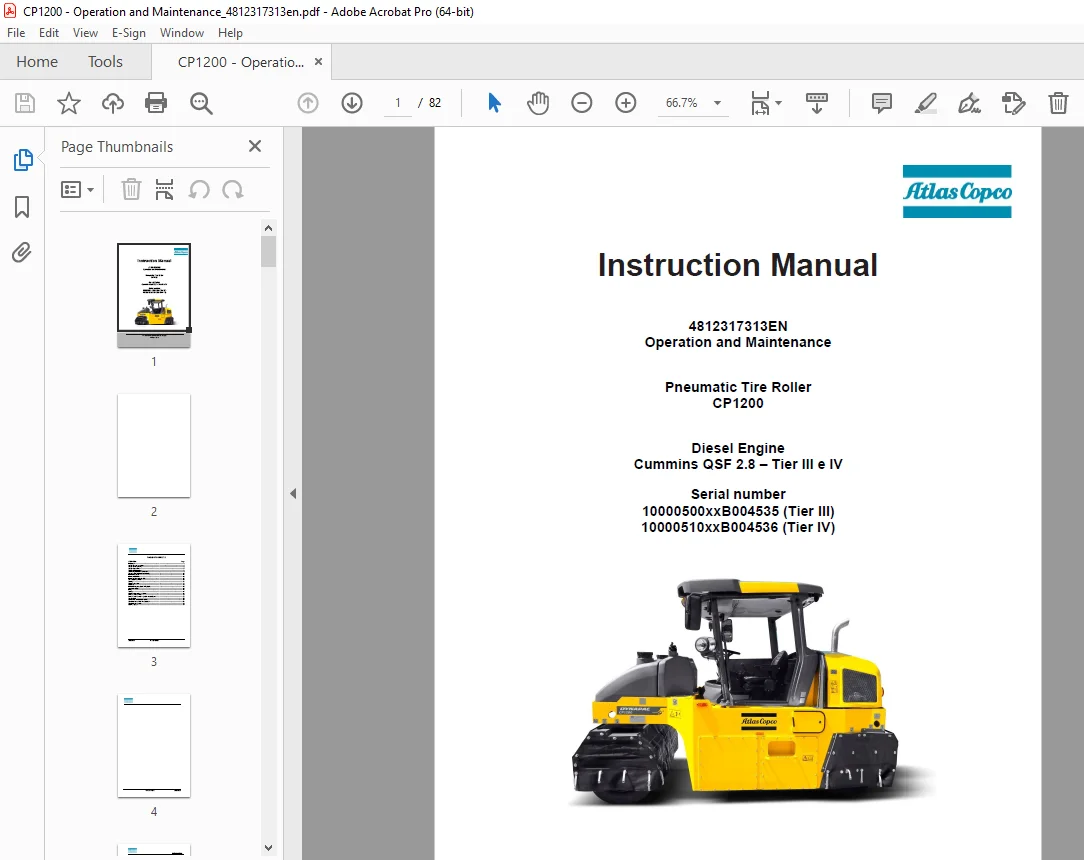

IMAGES PREVIEW OF THE MANUAL:

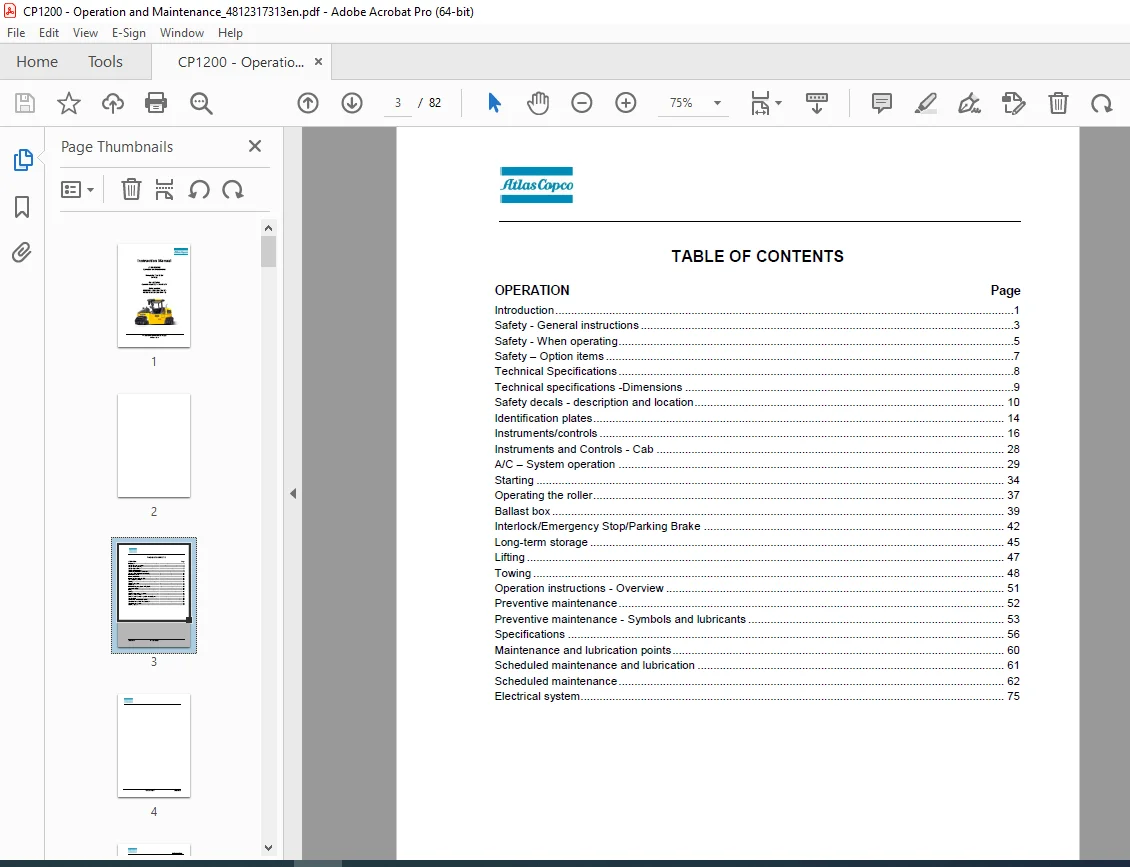

TABLE OF CONTENTS:

DYNAPAC Pneumatic Tire Roller CP1200 Operation & Maintenance Instruction Manual PDF DOWNLOAD

4812317313EN
Operation and Maintenance
Pneumatic Tire Roller CP1200
Diesel Engine Cummins QSF 2.8 – Tier III e IV
Serial number 10000500xxB004535 (Tier III)
Serial number 10000510xxB004536 (Tier IV)

Introduction 1
Safety – General instructions 3
Safety – When operating 5
Safety – Option items 7
Technical Specifications 8
Technical specifications -Dimensions 9
Safety decals – description and location 10
Identification plates 14
Instruments/controls 16
Instruments and Controls – Cab 28
A/C – System operation 29
Starting 34
Operating the roller 37
Ballast box 39
Interlock/Emergency Stop/Parking Brake 42
Long-term storage 45
Lifting 47
Towing 48
Operation instructions – Overview 51
Preventive maintenance 52
Preventive maintenance – Symbols and lubricants 53
Specifications 56
Maintenance and lubrication points 60
Scheduled maintenance and lubrication 61
Scheduled maintenance 62
Electrical system 75
