Dynapac SD2500W Wheeled paver parts Manual PDF DOWNLOAD

Description

Dynapac SD2500W Wheeled paver parts Manual PDF DOWNLOAD

FILE DETAILS:

Dynapac SD2500W Wheeled paver parts Manual PDF DOWNLOAD

Language : English
Pages : 1292
Downloadable : Yes
File Type : PDF

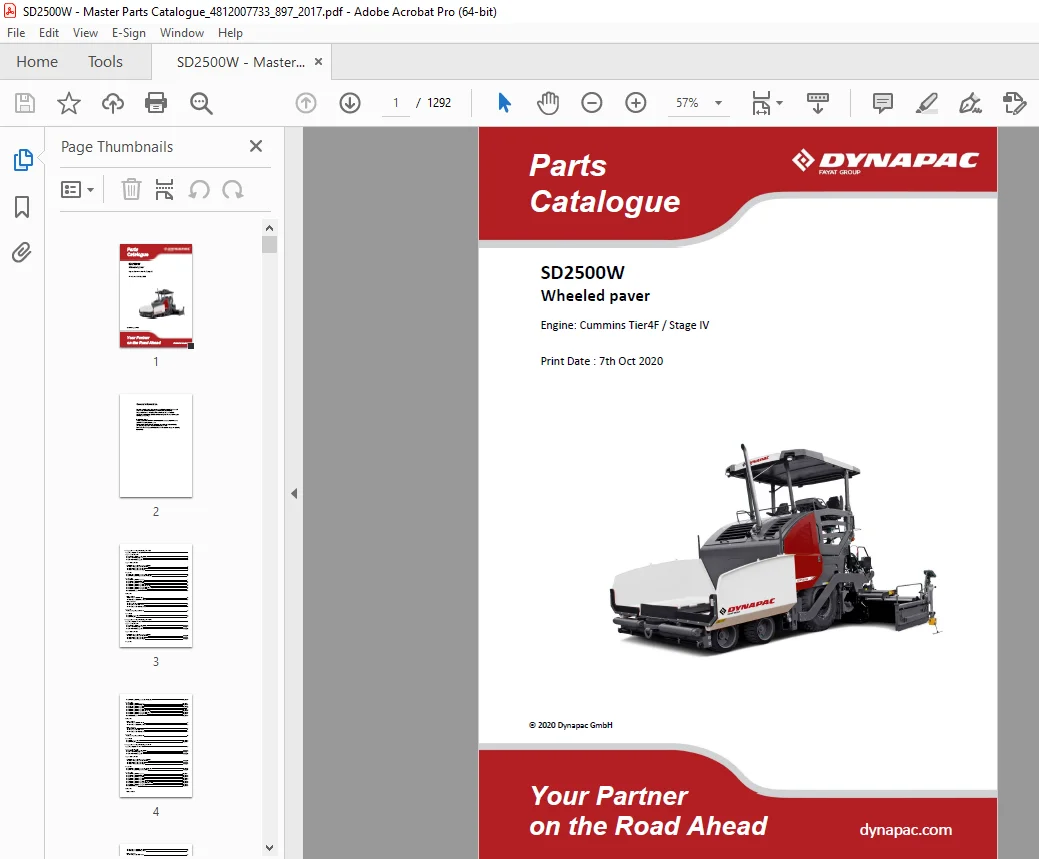

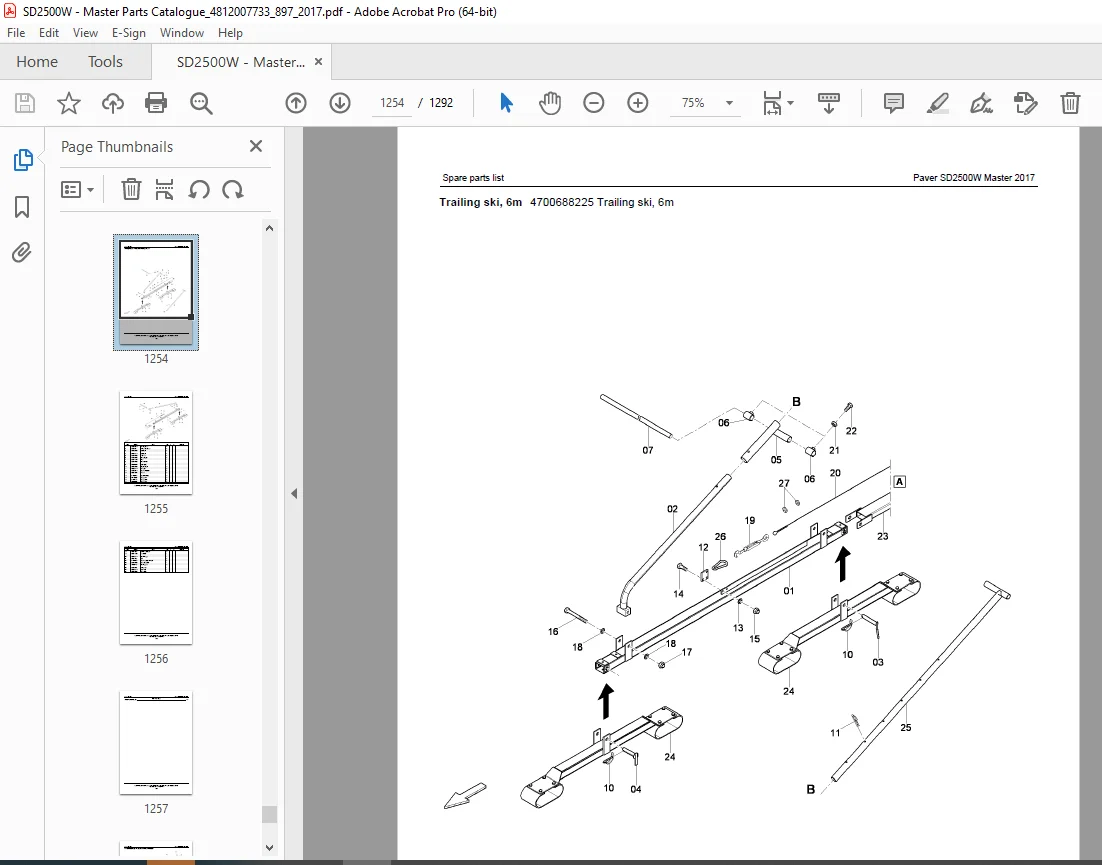

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Dynapac SD2500W Wheeled paver parts Manual PDF DOWNLOAD

Service, repair and wear part kits, Stage IIIa / Tier3
Wear part and Inspection kits TIER 3 1
Auger – Center drive kits
4812027478 Wear part kit auger wings Ø380mm 3
4812075191 Renewal kit I, auger drive 4
4812075192 Renewal kit II, auger drive 5
Auger – Outer drive kits
4812040657 Wear part kit auger wings Ø380mm
4812040657 Wear part kit auger wings Ø380mm 6
4812040685 Wear part kit auger wing, l.h. 7
4812040687 Wear part kit auger wing, r.h. 8
Hopper kits
4812018441 Wear part kit hopper rubber, standard 9
4812018438 Wear part kit hopper rubber, front hopper flap 10
Conveyor kits
4812035552 Wear part kit conveyor drive 11
4812035553 Wear part kit reversing roller 12
4812029821 Wear part kit conveyor chain 13
4812016662 Wear part kit conveyor plates 14
4812216984 Wear part kit conveyor plates, Hardox 400 15
4812237575 Wear part kit conveyor guide plates, Hardox 400 16
4812235936 Wear part kit conveyor guide plates 17
D635060800A Chain guide 18
Service kits
Service kit 500 h
4700691229 Service kit 500 h TIER 3 19
4812043983 Service kit 500 h Plus TIER 3 20
Service kit 1000 h
4812217141 Filter kit 1000h 21
4812217432 Service kit 1000h TIER 3 22
4812217433 Service kit 1000h Plus TIER 3 24
Lubricants
Lubricants and operating substances T3 26
General kits
4812077016 Fuse and relay kit 29
4812064473 Plug kits 30
Service, repair and wear part kits, Stage IIIb / Tier4i
Wear part and Inspection kits TIER 4i 31
Auger – Center drive kits
4812027478 Wear part kit auger wings Ø380mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812075192 Renewal kit II, auger drive See page 5
Auger – Outer drive kits
4812040657 Wear part kit auger wings Ø380mm
4812040657 Wear part kit auger wings Ø380mm See page 6
4812040685 Wear part kit auger wing, l.h. See page 7
4812040687 Wear part kit auger wing, r.h. See page 8
Hopper kits
4812018438 Wear part kit hopper rubber, front hopper flap See page 10
Conveyor kits
4812035552 Wear part kit conveyor drive See page 11
4812035553 Wear part kit reversing roller See page 12
4812029821 Wear part kit conveyor chain See page 13
4812029822 Wear part kit conveyor chain 36
4812016662 Wear part kit conveyor plates See page 14
4812216984 Wear part kit conveyor plates, Hardox 400 See page 15
4812237575 Wear part kit conveyor guide plates, Hardox 400 See page 16
4812235936 Wear part kit conveyor guide plates See page 17
D635060800A Chain guide See page 18
Service kits
Service kit 500 h
4812012378 Service kit 500 h TIER 4i 38
4812012382 Service kit 500 h Plus TIER 4i 39
Service kit 1000 h
4812217306 filter kit 1000h 40
4812217431 Service kit 1000h TIER 4i 41
4812217430 Service kit 1000h Plus TIER 4i 42
Lubricants
Lubricants and operating substances T4i 44
General kits
4812077016 Fuse and relay kit See page 29
4812064473 Plug kits See page 30
Service, repair and wear part kits, Stage IV / Tier4F
Wear part and Inspection kits TIER 4f 48
Auger – Center drive kits
4812027478 Wear part kit auger wings Ø380mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812075192 Renewal kit II, auger drive See page 5
Auger – Outer drive kits
4812040657 Wear part kit auger wings Ø380mm
4812040657 Wear part kit auger wings Ø380mm See page 6
4812040685 Wear part kit auger wing, l.h. See page 7
4812040687 Wear part kit auger wing, r.h. See page 8
Hopper kits
4812018438 Wear part kit hopper rubber, front hopper flap See page 10
4812018441 Wear part kit hopper rubber, standard See page 9
Conveyor kits
4812035552 Wear part kit conveyor drive See page 11
4812035553 Wear part kit reversing roller See page 12
4812029821 Wear part kit conveyor chain See page 13
4812029822 Wear part kit conveyor chain See page 36
4812016662 Wear part kit conveyor plates See page 14
4812216984 Wear part kit conveyor plates, Hardox 400 See page 15
4812237575 Wear part kit conveyor guide plates, Hardox 400 See page 16
4812235936 Wear part kit conveyor guide plates See page 17
D635060800A Chain guide See page 18
Service kits
Service kit 500 h
4812012939 Service kit 500 h TIER 4F 54
4812019963 Service kit 500 h Plus TIER 4F 55
Service kit 1000 h
4812217414 Service kit 1000h TIER 4F 56
4812217415 Service kit 1000h Plus TIER 4F 58
4812217307 Filter kit 1000h 60
Service kit 2000 h
4812075281 Service kit 2000 h TIER 4F 61
4812075282 Service kit 2000 h Plus, TIER 4F 63
4812075236 Service kit 2000 h TIER 4F 65
4812075237 Service kit 2000 h Plus, TIER 4F 67
Lubricants
Lubricants and operating substances T4f 69
General kits
4812077016 Fuse and relay kit See page 29
4812064473 Plug kits See page 30
Mechanical, Stage IIIa, IIIb / Tier3, 4i
4812013356 Main frame
4812013356 Main frame 73
Splash guard
4812231640 Splash guard 75
Steering guide
4812036083 Steering guide 76
Stripper
4812232119 Stripper 77
Battery bracket
4812030969 Battery bracket 78
Extension
4812232117 Extension 79
4812234752 Side arms, locking hyd.
4812234752 Side arms, hyd. 80
Levelling arm, l. h.
4812233561 Levelling arm, l. h. 81
Side bar guiding
4812232214 Side arm guiding 83
Levelling arm, r. h.
4812233564 Levelling arm, r. h. 84
Side bar guiding
4812232214 Side arm guiding See page 83
Locking, hyd.
4812201925 Locking, hyd. 87
4812019603 Lock pin, hyd. 88
4812234753 Side arms, locking mechanical- Trailer axle
4812234753 Side arms, locking mechanical 89
Levelling arm, l. h.
4812234750 Levelling arm, l. h. 90
Side bar guiding
4812232214 Side arm guiding See page 83
Levelling arm, r. h.
4812234756 Levelling arm, r. h. 93
Side bar guiding
4812232214 Side arm guiding See page 83
Locking, mechanical
4812029222 Locking, mechanical 96
4812234754 Side arms, locking hyd., – Trailer axle
4812234754 Side arms, hyd. 97
Levelling arm, l. h.
4812234750 Levelling arm, l. h. See page 90
4812073526 Adjusting screw 98
Side bar guiding
4812232214 Side arm guiding See page 83
Levelling arm, r. h.
4812234756 Levelling arm, r. h. See page 93
Side bar guiding
4812232214 Side arm guiding See page 83
Locking, hyd.
4812201925 Locking, hyd. See page 87
4812019603 Lock pin, hyd. See page 88
4812202017 Side arms, hydr. locked, adjustable tow-point
4812202017 Side arms 102
Side screed arm, r.h.
4812029197 Side screed arm, r.h. 103
Side screed arm, l.h.
4812029165 Side screed arm, l.h. 105
Locking, hyd.
4812201925 Locking, hyd. See page 87
4812044879A Side Screed arms, mech. locked – Trailer axle, adjustable tow-point
4812044879A Side Screed arms, mech. locked 108
Locking mechanical
4812029222 Locking, mechanical See page 96
Side screed arm, l.h.
4812044874 Side screed arm, l.h. 111
Side bar guiding
4812232214 Side arm guiding See page 83
4720000097 Side arm guiding 113
Side screed arm, r.h.
4812044873 Side screed arm, r.h. 115
Side bar guiding
4812232214 Side arm guiding See page 83
4720000097 Side arm guiding See page 113
4812202020 Side arms, hydr. locked -Trailer axle, adjustable tow-point
4812202020 Side arms 118
Side screed arm, r.h.
4812044873 Side screed arm, r.h. See page 115
Side screed arm, l.h.
4812044874 Side screed arm, l.h. See page 111
Locking, hyd.
4812201925 Locking, hyd. See page 87
4812043369A Push roller, damped
4812043369A Push roller 122
4812075204 Renewal kt, push roller 124
Pillow block
4812046568 Pillow block 125
Mounting parts
4812043389 Mounting parts 126
Shock absorber, cpl.
4812016639 Shock absorber 127
Shock absorber
4812016640 Shock absorber 128
4812016638 Shock absorber 129
4812238606 Covering, isolated
4812238606 Covering 130
Engine covering
4812013961 Engine covering 132
Hood fastener
4812226900 Hood support 133
Hood support
4812225685 Hood support 134
Intermediate section
4812226906 Intermediate section 135
Intermediate section
4812225631 Intermediate section 136
Wheel cover
4812031407A Wheel cover 137
Chain protection
4812035374A Chain protection 138
Side plate
4812031660 Side plate, cpl. 139
Plate
4812031731 Plate 140
4812031627 Plate 141
Door, l.h.
4812225708 Door, l.h. 142
Door, l.h.
4812226336 Door, l.h. 143
Support rod
4812041407 Support rod 144
Door, r.h.
4812225725 Door, r.h. 145
Support rod
4812041407 Support rod See page 144
Iso- hood, r.h.
4812226905 Iso- hood, r.h. 147
Hood, r.h.
4812225715 Hood, r.h. 148
Iso- hood, l.h.
4812226907 Iso- hood, l.h. 150
Hood, l.h.
4812225717 Hood, l.h. 151
Retainer, l.h.
4812226380 Retainer, l.h. 153
Retainer, r.h.
4812226135 Retainer, r.h. 154
Disc frame
4812042907 Disc frame 155
4812229214 Hopper, Bulk material flap
4812229214 Hopper with bulk mat. flap 156
Hopper, r.h.
4812229130 Hopper, r.h. 157
Hopper, l.h.
4812229135 Hopper, l.h. 158
Bulk material flap
4812018985 Bulk material flap 159
Mounting parts
4812033328 Mounting parts 160
4812201918 Hopper with front flap
4812201918 Hopper with front flap 161
Hydraulic, Hopper with front flap
4812019598 Hydraulic, Hopper with front flap 162
Control block
4812019399 Control block 163
Hopper, r.h.
4812229143 Hopper, r.h. 164
Hopper, l.h.
4812229142 Hopper, l.h. 165
Front hopper, l.h.
4812226004 Front hopper, l.h. 166
Front hopper, r.h.
4812226018 Front hopper, r.h. 167
Front hopper, middle
4812229136 Front hopper, middle 168
Mounting parts
4812033328 Mounting parts See page 160
4812201924 Thermo hopper with weight and front hopper
4812201924 Thermo hopper with weight and hydr. front flap 170
Hydraulic, Hopper with front flap
4812019598 Hydraulic, Hopper with front flap See page 162
Control block
4812019399 Control block See page 163
Hopper, r.h.
4812229112 Hopper, r.h. 172
Hopper, l.h.
4812229133 Hopper, l.h. 173
Front hopper, l.h.
4812226004 Front hopper, l.h. See page 166
Front hopper, r.h.
4812226018 Front hopper, r.h. See page 167
Front hopper, middle
4812229136 Front hopper, middle See page 168
Mounting parts
4812033328 Mounting parts See page 160
4812201922 Hopper with front flap
4812201922 Hopper with front flap 178
Front hopper, middle
4812229209 Front hopper, middle 179
Front hopper, r.h.
4812229147 Front hopper, r.h. 180
Front hopper, l.h.
4812229204 Front hopper, l.h. 181
Mounting parts
4812033328 Mounting parts See page 160
Hydraulic, Hopper with front flap
4812019601 Hydraulic, Hopper with front flap 183
Control block
4812019399 Control block See page 163
Hopper, l.h.
4812229142 Hopper, l.h. See page 165
Hopper, r.h.
4812229143 Hopper, r.h. See page 164
Mechanical, Stage IV / Tier4f
4812013356 Main frame
4812013356 Main frame See page 73
Splash guard
4812231640 Splash guard See page 75
Steering guide
4812036083 Steering guide See page 76
Stripper
4812232119 Stripper See page 77
Battery bracket
4812030969 Battery bracket See page 78
Extension
4812232117 Extension See page 79
4812044879A Side Screed arms, mech. locked – Trailer axle
4812044879A Side Screed arms, mech. locked See page 108
Locking mechanical
4812029222 Locking, mechanical See page 96
Side screed arm, l.h.
4812044874 Side screed arm, l.h. See page 111
Side bar guiding
4812232214 Side arm guiding See page 83
4720000097 Side arm guiding See page 113
Side screed arm, r.h.
4812044873 Side screed arm, r.h. See page 115
Side bar guiding
4812232214 Side arm guiding See page 83
4720000097 Side arm guiding See page 113
4812234752 Side arms, locking hyd.
4812234752 Side arms, hyd. See page 80
Levelling arm, l. h.
4812233561 Levelling arm, l. h. See page 81
Side bar guiding
4812232214 Side arm guiding See page 83
Levelling arm, r. h.
4812233564 Levelling arm, r. h. See page 84
Side bar guiding
4812232214 Side arm guiding See page 83
Locking, hyd.
4812201925 Locking, hyd. See page 87
Lock pin, hyd.
4812019603 Lock pin, hyd. See page 88
4812234753 Side arms, locking mechanical- Trailer axle
4812234753 Side arms, locking mechanical See page 89
Levelling arm, l. h.
4812234750 Levelling arm, l. h. See page 90
Side bar guiding
4812232214 Side arm guiding See page 83
Levelling arm, r. h.
4812234756 Levelling arm, r. h. See page 93
Side bar guiding
4812232214 Side arm guiding See page 83
Locking, mechanical
4812029222 Locking, mechanical See page 96
4812234754 Side arms, locking hyd., – Trailer axle
4812234754 Side arms, hyd. See page 97
Levelling arm, l. h.
4812234750 Levelling arm, l. h. See page 90
Side bar guiding
4812232214 Side arm guiding See page 83
Levelling arm, r. h.
4812234756 Levelling arm, r. h. See page 93
Side bar guiding
4812232214 Side arm guiding See page 83
Locking, hyd.
4812201925 Locking, hyd. See page 87
Lock pin, hydr.
4812019603 Lock pin, hyd. See page 88
4812202017 Side arms, hydr. locked, adjustable tow-point
4812202017 Side arms See page 102
Side screed arm, r.h.
4812029197 Side screed arm, r.h. See page 103
Side screed arm, l.h.
4812029165 Side screed arm, l.h. See page 105
Locking, hyd.
4812201925 Locking, hyd. See page 87
4812202020 Side arms, hydr. locked -Trailer axle, adjustable tow-point
4812202020 Side arms See page 118
Side screed arm, r.h.
4812044873 Side screed arm, r.h. See page 115
Side screed arm, l.h.
4812044874 Side screed arm, l.h. See page 111
Locking, hyd.
4812201925 Locking, hyd. See page 87
4812043369A Push roller, damped
4812043369A Push roller See page 122
4812075204 Renewal kt, push roller See page 124
Pillow block
4812046568 Pillow block See page 125
Mounting parts
4812043389 Mounting parts See page 126
Shock absorber, cpl.
4812016639 Shock absorber See page 127
Stoßdämpfer, kpl.
4812016640 Shock absorber See page 128
4812016638 Shock absorber See page 129
4812230072 Covering
4812230072 Covering 218
Engine covering
4812013961 Engine covering See page 132
Hood support
4812228154 Hood support 221
Wheel cover
4812230073 Wheel cover 222
Chain protection
4812035374A Chain protection See page 138
Side plate
4812031660 Side plate, cpl. See page 139
Plate
4812031731 Plate See page 140
4812031627 Plate See page 141
Door, l.h.
4812225708 Door, l.h. See page 142
Door, l.h.
4812226336 Door, l.h. See page 143
Support rod
4812041407 Support rod See page 144
Door, r.h.
4812225725 Door, r.h. See page 145
Support rod
4812041407 Support rod See page 144
Intermediate section T4F
4812227092 Intermediate section 228
Intermediate section
4812227091 Intermediate section 229
Engine hood r.h. T4F
4812227095 Engine hood, r.h. T4F 230
Engine hood r.h.
4812227094 Engine hood r.h. 231
Engine hood l.h. T4F
4812227088 Engine hood, l.h. T4F 233
Engine hood l.h. T4F
4812227087 Hood T4F 234
Carrier
4812008405 Carrier 236
Retainer, l.h.
4812226380 Retainer, l.h. See page 153
Retainer, r.h.
4812226135 Retainer, r.h. See page 154
4812201918 Hopper with front flap
4812201918 Hopper with front flap See page 161
Hydraulic, Hopper with front flap
4812019598 Hydraulic, Hopper with front flap See page 162
Control block
4812019399 Control block See page 163
Hopper, r.h.
4812229143 Hopper, r.h. See page 164
Hopper, l.h.
4812229142 Hopper, l.h. See page 165
Front hopper, l.h.
4812226004 Front hopper, l.h. See page 166
Front hopper, r.h.
4812226018 Front hopper, r.h. See page 167
Front hopper, middle
4812229136 Front hopper, middle See page 168
Mounting parts
4812033328 Mounting parts See page 160
4812201924 Thermo hopper with weight and front flap
4812201924 Thermo hopper with weight and hydr. front flap See page 170
Hydraulic, Hopper with front flap
4812019598 Hydraulic, Hopper with front flap See page 162
Control block
4812019399 Control block See page 163
Hopper, r.h.
4812229112 Hopper, r.h. See page 172
Hopper, l.h.
4812229133 Hopper, l.h. See page 173
Front hopper, l.h.
4812226004 Front hopper, l.h. See page 166
Front hopper, r.h.
4812226018 Front hopper, r.h. See page 167
Front hopper, middle
4812229136 Front hopper, middle See page 168
Mounting parts
4812033328 Mounting parts See page 160
4812201922 Hopper with front flap
4812201922 Hopper with front flap See page 178
Front hopper, middle
4812229209 Front hopper, middle See page 179
Front hopper, r.h.
4812229147 Front hopper, r.h. See page 180
Front hopper, l.h.
4812229204 Front hopper, l.h. See page 181
Mounting parts
4812033328 Mounting parts See page 160
Hydraulic, Hopper with front flap
4812019601 Hydraulic, Hopper with front flap See page 183
Control block
4812019399 Control block See page 163
Hopper, l.h.
4812229142 Hopper, l.h. See page 165
Hopper, r.h.
4812229143 Hopper, r.h. See page 164
4812229214 Hopper, Bulk material flap
4812229214 Hopper with bulk mat. flap See page 156
Hopper, r.h.
4812229130 Hopper, r.h. See page 157
Hopper, l.h.
4812229135 Hopper, l.h. See page 158
Bulk material flap
4812018985 Bulk material flap See page 159
Mounting parts
4812033328 Mounting parts See page 160
Operator platform
4812201929 Platform V5.1, movable, roof
Platform V5.1, movable, roof 264
Platform
4812201940 Platform 266
Platform
4812201939 Platform 267
Bottom plate, middle
4812227769 Bottom plate, middle 269
Base plate
4812005148 Base plate 270
Crash protection
4812225524 Crash protection, r.h. 271
4812225523 Crash protection, l.h. 272
Sheet tub
4812006340 Sheet tub 273
Steering displaceable
4812005105 Steering displaceable 274
Cover
4812037190B Cover 275
Cover
4812227787 Cover, l.h. 276
4812227784 Cover, r.h. 277
Guide platform
4812008979 Guide platform 278
Retainer
4812008980 Retainer 279
Guide, front
4812008045 Guide, front 280
Guide tube
4812008054 Guide tube 281
Guide profile, l.h.
4812008046 Guide profile l.h. 282
Guide profile, r.h.
4812008047 Guide profile r.h. 283
Guide, back
4812006436 Guide, back 284
Security rail
4812047665 Security rail 285
Roof
4812202036 Roof 286
Roofs frame front
4812225474 Roof frame front 287
Roof frame rear
4812225528 Roof frame rear 288
GRP – roof frame
4812225624 GRP – roof frame 289
Roof hydraulik
4812201954 Roof hydraulic 291
Crash protection
4812005850 Crash protection 292
Crash protection, front
4812226856 Crash protection front 293
Locking
4812229224 Locking 294
Hydraulic, operation platform
4812019605 Hydraulic, operation platform 295
Control block
4812216951 Control block 296
Operator board
4812017300 Operator board 297
Clamping lever
4812227100 Clamping lever 299
Telescopic set
4812228437 Telescopic pipe set 301
Console
4812005193 Console 302
Stop bolt
4812007259 Stop bolt 304
Brake pedal
4812017803 Pedal 305
Fold away step, r.h.
4812007101 Fold away step r.h. 306
Fold away step, r.h.
4812007102 Fold away step l.h. 308
Plate
4812005994 Plate 310
4812201931 Platform V5.1, movable, house
Platform V5.1, movable, house 311
Platform
4812201940 Platform See page 266
Platform
4812201939 Platform See page 267
Bottom plate, middle
4812227769 Bottom plate, middle See page 269
Base plate
4812005148 Base plate See page 270
Crash protection
4812225524 Crash protection, r.h. See page 271
4812225523 Crash protection, l.h. See page 272
Sheet tub
4812006340 Sheet tub See page 273
Steering displaceable
4812005105 Steering displaceable See page 274
Cover
4812037190B Cover See page 275
Cover
4812227787 Cover, l.h. See page 276
4812227784 Cover, r.h. See page 277
Guide platform
4812008979 Guide platform See page 278
Retainer
4812008980 Retainer See page 279
Guide, front
4812008045 Guide, front See page 280
Guide tube
4812008054 Guide tube See page 281
Guide profile, l.h.
4812008046 Guide profile l.h. See page 282
Guide profile, r.h.
4812008047 Guide profile r.h. See page 283
Guide, back
4812006436 Guide, back See page 284
Security rail
4812047665 Security rail See page 285
Weather protection house
4812202034 Weather protection house 326
Roof
4812202036 Roof See page 286
Roofs frame front
4812225474 Roof frame front See page 287
Roof frame rear
4812225528 Roof frame rear See page 288
GRP – roof frame
4812225624 GRP – roof frame See page 289
Roof hydraulik
4812201954 Roof hydraulic See page 291
Crash protection
4812005850 Crash protection See page 292
Crash protection, front
4812226856 Crash protection front See page 293
Locking
4812229224 Locking See page 294
Weather protection house
4812225610 Weather protecting shed 334
Safety lock
4812007166 Safety lock 335
Wiper system
4812229165 Wiper system 336
Water tank
4812006426 Water tank 337
Side windows
4812226117 Side window 338
Windows, l.h.
4812225607 Windows, r.h. 339
Windows, l.h.
4812225606 Windows, l.h. 341
Front pane
4812225592 Front pane 343
Pane frame
4812225443 Pane frame 344
Hydraulic, operation platform
4812019605 Hydraulic, operation platform See page 295
Control block
4812216951 Control block See page 296
Operator board
4812017300 Operator board See page 297
Clamping lever
4812227100 Clamping lever See page 299
Telescopic set
4812228437 Telescopic pipe set See page 301
Console
4812005193 Console See page 302
Stop bolt
4812007259 Stop bolt See page 304
Brake pedal
4812017803 Pedal See page 305
Fold away step, r.h.
4812007101 Fold away step r.h. See page 306
Fold away step, r.h.
4812007102 Fold away step l.h. See page 308
Plate
4812005994 Plate See page 310
4812201930 Platform, V5.1, moveable, house – Noise protection
Platform V5.1, movable, house 354
Cover
4812037190B Cover See page 275
Cover
4812227787 Cover, l.h. See page 276
4812227784 Cover, r.h. See page 277
Platform
4812201940 Platform See page 266
Platform
4812201939 Platform See page 267
Bottom plate, middle
4812227769 Bottom plate, middle See page 269
Base plate
4812005148 Base plate See page 270
Crash protection
4812225524 Crash protection, r.h. See page 271
4812225523 Crash protection, l.h. See page 272
Sheet tub
4812006340 Sheet tub See page 273
Steering displaceable
4812005105 Steering displaceable See page 274
Cover
4812227787 Cover, l.h. See page 276
4812227784 Cover, r.h. See page 277
Guide platform
4812008979 Guide platform See page 278
Retainer
4812008980 Retainer See page 279
Guide, front
4812008045 Guide, front See page 280
Guide tube
4812008054 Guide tube See page 281
Guide profile, l.h.
4812008046 Guide profile l.h. See page 282
Guide profile, r.h.
4812008047 Guide profile r.h. See page 283
Guide, back
4812006436 Guide, back See page 284
Security rail
4812047665 Security rail See page 285
Weather protection house
4812202032 Weather protection house 370
Roof
4812202033 Roof 371
Roofs frame front
4812225474 Roof frame front See page 287
Roof frame rear
4812225528 Roof frame rear See page 288
GRP – roof frame
4812225624 GRP – roof frame See page 289
Roof hydraulik
4812201954 Roof hydraulic See page 291
Crash protection
4812005850 Crash protection See page 292
Crash protection, front
4812226856 Crash protection front See page 293
Locking
4812229224 Locking See page 294
Weather protection house
4812225610 Weather protecting shed See page 334
Safety lock
4812007166 Safety lock See page 335
Wiper system
4812229165 Wiper system See page 336
Water tank
4812006426 Water tank See page 337
Side windows
4812226117 Side window See page 338
Windows, l.h.
4812225607 Windows, r.h. See page 339
Windows, l.h.
4812225606 Windows, l.h. See page 341
Front pane
4812225592 Front pane See page 343
Pane frame
4812225443 Pane frame See page 344
Hydraulic, operation platform
4812019605 Hydraulic, operation platform See page 295
Control block
4812216951 Control block See page 296
Operator board
4812017300 Operator board See page 297
Clamping lever
4812227100 Clamping lever See page 299
Telescopic set
4812228437 Telescopic pipe set See page 301
Console
4812005193 Console See page 302
Stop bolt
4812007259 Stop bolt See page 304
Brake pedal
4812017803 Pedal See page 305
Fold away step, r.h.
4812007101 Fold away step r.h. See page 306
Fold away step, r.h.
4812007102 Fold away step l.h. See page 308
Plate
4812005994 Plate See page 310
4812225922 Ascension f. Varioscreed, for s/n 0G001606, 1621, ff
4812225922 Ascent VB cpl. 395
Ascent, middle
4812225923 Ascent, middle 396
Ascent, l.h.
4812225926 Ascent, l.h. 398
Ascent, r.h.
4812225928 Ascent r. h. 400
4812061360 Ascension f. Vario screed
4812061360 Ascent VB 402
Ascent, middle
4812225923 Ascent, middle See page 396
Ascent, l.h.
4812217871 Ascent, l.h. 404
Ascent, r.h.
4812061359 Ascent, r.h. 406
4812230390 Ascension f. Varioscreed Tier4 f, for s/n 0G001606, 1621, ff
4812230390 Ascent 408
Ascent, l.h.
4812225926 Ascent, l.h. See page 398
Ascent, middle
4812225923 Ascent, middle See page 396
Ascent, r.h.
4812230307 Ascent r.h. 411
4812061365 Ascension f. Varioscreed T4F
4812061365 Ascent VB T4F 413
Ascent, middle
4812225923 Ascent, middle See page 396
Ascent, l.h.
4812217871 Ascent, l.h. See page 404
Ascent, r.h.
4812061366 Ascent, r.h. 416
Engine Stage IIIa / Tier3
4812202002 Drive TIER 3
Drive TIER 3 418
Engine
4812061690 Engine 419
Combined cooler
4812233187 Combined cooler 420
Expansion tank
4812019655 Expansion tank 425
Combined cooler
4812042138 Combined cooler 426
Fuel tank
4812225759 Fuel tank 428
Attaching parts
4812030294 Attaching parts 430
Muffler
4812031634 Muffler 433
Fuel system
4812202277 Fuel system 434
Air guide, from s/n FG001594, ff
4812031409B Air guide 435
Plate, out
4812044679 Plate, out 436
Engine support
4812046937A Engine support 437
End pipe / rotary feedthrough
4812037845 End pipe / rotary feedthrough 438
Join rod
4812037585 Joint rod 439
Oil drain
4812023352 Oil drain 440
Harness
4812201981 Harness W12 441
Service parts
Service parts 445
Split gear
4812039759 Split gear 447
Split gear
4812071339 Split gear 448
4812009405 Split gear 450
Engine clutch
4812009002 Engine clutch 452
Gear oil drain
4812037689 Gear oil drain 453
Split gear box
4812019575 Pump distributor gear 454
Pump
4812030503 Pump 456
4812030504 Pump 457
4812018529 Pump 458
4812030505 Pump 459
Engine Stage IIIb / Tier4i
4812202003 Drive TIER 4i
Drive TIER 4i 460
Engine
4812007652 Engine 461
Combined cooler
4812233189 Combined cooler 462
Retainer, air filter
4812018770 Retainer, air filter 467
Cover
4812233891 Cover 468
Combined cooler
4812010941 Combined cooler 469
Combined cooler
4812010943 Combined cooler 470
Hydraulic motor
4812008386 Hydraulic motor 472
Fuel tank
4812225759 Fuel tank See page 428
Attaching parts
4812008985 Attaching parts 474
Connecting tube
4812042884 Connecting tube 475
Fuel system
4812202254 Fuel system 476
Air guide, from s/n FG001594, ff
4812031409B Air guide See page 435
Plate, out
4812044679 Plate, out See page 436
Engine support
4812046937A Engine support See page 437
End pipe / rotary feedthrough
4812037845 End pipe / rotary feedthrough See page 438
Join rod
4812037585 Joint rod See page 439
Oil drain
4812023352 Oil drain See page 440
Electric TIER 4
Electric 481
4812046340 Electric / heating
4812046340 Electric / heating 482
Cable
4812009670 Cable W50 483
Harness
4812201984 Harness W60 484
Service parts
Service parts 488
4812041871 Particle filter 490
Split gear
4812039759 Split gear See page 447
Split gear
4812071339 Split gear See page 448
4812009405 Split gear See page 450
Engine clutch
4812009002 Engine clutch See page 452
Gear oil drain
4812037689 Gear oil drain See page 453
Split gear box
4812019575 Pump distributor gear See page 454
Pump
4812030503 Pump See page 456
4812030504 Pump See page 457
4812018529 Pump See page 458
4812030505 Pump See page 459
Engine, Stage IV / Tier4f
4812202004 Drive, Stage IV / Tier 4f
4812202004 Drive TIER 4f 495
Engine
4812071736 Engine 496
Combined cooler, T4f
4812017132 Combined cooler, T4f 497
Combined cooler
4812017106 Combined cooler 501
Cover
4812230068 Cover 502
Air filter cpl.
4812012430 Air filter cpl. 503
Expansion tank
4812012121 Expansion tank 504
Fuel tank
4812013355 Fuel tank 505
Attaching parts
4812008985 Attaching parts See page 474
Exhaust system
4812013353 Exhaust system 509
Aftertreatment kit
4812230063 Aftertreatment kit 511
Fuel system
4812202254 Fuel system See page 476
Air guide
4812017023 Air guide 513
Side plate
4812201324 Side plate 514
Sheet metal
4812017050 Sheet metal 515
Engine support
4812046937A Engine support See page 437
DEF System
4812013354 DEF System 517
4812201263 DEF System 519
4812073327 Conversion kit 521
DEF tank
4812011244 DEF Tank 522
4812201236 Tank, from G003056 ff. 523
Supply module
4812018047 Supply module 524
Cooler hose
4812016749 Cooler hose 525
4812016748 Cooler hose 526
Exhaust pipe, T4f
4812013884 Exhaust pipe 527
Join rod
4812037585 Joint rod See page 439
Oil drain
4812023352 Oil drain See page 440
Electric, TIER 4f
Electric 530
Cable
4812009408 Cable W61 531
4812023318 Cable W82 533
4812024084 Cable W62 534
4812046340 Electric / heating
4812046340 Electric / heating See page 482
4812009670 Cable W50 See page 483
Service parts
4812019475 Service Parts 541
Split gear
4812039759 Split gear See page 447
Split gear
4812071339 Split gear See page 448
4812009405 Split gear See page 450
Engine clutch
4812009002 Engine clutch See page 452
Gear oil drain
4812037689 Gear oil drain See page 453
Split gear box
4812019575 Pump distributor gear See page 454
Pump
4812030503 Pump See page 456
4812030504 Pump See page 457
4812018529 Pump See page 458
4812030505 Pump See page 459
Drive
Rear wheel Techking
4812030400 Gr.02 rear wheel 547
Rear wheel drive
4812030112 Rear wheel drive 548
Drive gear box, cpl.
4812030577 Drive gear box 549
Drive gear box
4812030384 Drive gear box 550
Rear wheel, cpl.
4812030375 Rear wheel 551
Rear wheel
4812030376 Rear wheel 552
Rear wheel, Snowking
4812018314 Rear wheel 553
Rear wheel drive
4812030112 Rear wheel drive See page 548
Drive gear box
4812030577 Drive gear box See page 549
4812030384 Drive gear box See page 550
Rear wheel
4812018313 Rear wheel 555
4812233512 Rear wheel 556
Steering, 2 wheel drive
4812236527 Steering 557
Steering
4812028270 Steering 558
4812215702 Steering 561
Lateral wheel suspension bar
4812028271 Lateral wheel suspension bar 564
Front wheel
4812236452 Front wheel 565
Front wheel, l.h.
4812234425 Front wheel, l.h. 566
4812030025 Front wheel unit 567
Front wheel, r.h.
4812234426 Front wheel, r.h. 568
4812030026 Front wheel unit, r.h. 569
Front wheel
4812233793 Front wheel 570
Front wheel unit
4812235505 Front wheel unit 571
Steering angle control
4812030925 Steering angle control 572
Conveyor
4812016258 Conveyor, single no. of bars, rev. PLC 573
4812016258 Conveyor, single no. of bars, rev. PLC
Conveyor drive
4812201316 Conveyor drive 574
4812029366A Conveyor drive 576
4812031623 Conveyor motor
4812031623 Conveyor motor 578
4812030542 Hydraulic 579
4812007901 Directional spool valve 580
4812029684 Conveyor turn
4812029684 Conveyor turn 581
4812026815 Tensioner
4812026815 Tensioner 583
4812016245 Conveyor limit switch PLC cpl.
4812016245 Conveyor limit switch PLC cpl. 584
Conveyor limit switch, l.h.
4812014298 Conveyor limit switch PLC, l.h. 585
4812024837 Conveyor limit switch PLC, l.h. 587
Conveyor limit switch, r.h.
4812014299 Conveyor limit switch PLC, r.h. 589
4812024838 Conveyor limit switch PLC, r.h. 591
4812029821 Wear part kit conveyor chain
4812029821 Wear part kit conveyor chain See page 13
D635060800A Chain guide
D635060800A Chain guide See page 18
4812016259 Conveyor, double no. of bars, rev. PLC 594
4812016259 Conveyor, double no. of bars, rev. PLC
Conveyor drive
4812201316 Conveyor drive See page 574
4812029366A Conveyor drive See page 576
4812031623 Conveyor motor
4812031623 Conveyor motor See page 578
4812030542 Hydraulic See page 579
4812007901 Directional spool valve See page 580
4812029684 Conveyor turn
4812029684 Conveyor turn See page 581
4812026815 Tensioner
4812026815 Tensioner See page 583
4812016245 Conveyor limit switch PLC cpl.
4812016245 Conveyor limit switch PLC cpl. See page 584
Conveyor limit switch, l.h.
4812014298 Conveyor limit switch PLC, l.h. See page 585
4812024837 Conveyor limit switch PLC, l.h. See page 587
Conveyor limit switch, r.h.
4812014299 Conveyor limit switch PLC, r.h. See page 589
4812024838 Conveyor limit switch PLC, r.h. See page 591
4812029822 Wear part kit conveyot chain
4812029822 Wear part kit conveyor chain See page 36
D635060800A Chain guide
D635060800A Chain guide See page 18
Auger – Center drive
4812233025 Auger Ø380mm, 2,50m
4812233025 Auger Ø380mm, 2,50m 603
4812233020 Auger Ø380mm, basic width
4812233020 Auger, basic width 380 604
4812027478 Wear part kit auger wings Ø380mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812075192 Renewal kit II, auger drive See page 5
4812232097 Mounting parts 605
4812045075 Auger gear 606
4812232996 Auger box
4812232996 Auger box 607
4812026736 Outer support 609
4812016497 Auger support 611
4812233029 Auger Ø380mm, 3,14m
4812233029 Auger Ø380mm, 3,14m 614
4812233020 Auger Ø380mm, basic width
4812233020 Auger, basic width 380 See page 604
4812027478 Wear part kit auger wings Ø380mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812075192 Renewal kit II, auger drive See page 5
4812232097 Mounting parts See page 605
4812045075 Auger gear See page 606
4812232996 Auger box
4812232996 Auger box See page 607
4812026736 Outer support See page 609
4812016497 Auger support See page 611
4812047161 Extension part f. auger Ø380mm
4812047161 Extension part f. auger Ø380mm 616
4812031788 Auger Ø380mm, 3,14m
4812031788 Auger Ø380mm, 3,14m 617
4720000140 Auger extension, l.h. L:320mm 618
4812028794 Material tunnel, cpl. L:320mm 619
4720000816 Auger extension, r.h. L:320mm 620
4812233033 Auger Ø380mm, 3.78m
4812233033 Auger Ø380mm, 3.78m 621
4812233020 Auger Ø380mm, basic width
4812233020 Auger, basic width 380 See page 604
4812027478 Wear part kit auger wings Ø380mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812075192 Renewal kit II, auger drive See page 5
4812232097 Mounting parts See page 605
4812045075 Auger gear See page 606
4812232996 Auger box
4812232996 Auger box See page 607
4812026736 Outer support See page 609
4812016497 Auger support See page 611
4812047189 Extension part f. auger Ø380mm
4812047189 Extension part f. auger Ø380mm 623
4812032182 Auger Ø380mm, 3,78m
4812032182 Auger Ø380mm, 3,78m 624
4812028792 Material tunnel, cpl. L:640mm 625
4720000137 Auger extension, r.h. L:640mm 626
4720000818 Auger shaft extension assy. 640 mm l.h./lks. 627
4812031805 End support, cpl.
4812031805 End support, cpl. 628
D439082200 Screw conveyor, end bearing 629
4812030868 additional Extension parts
4812030868 Additional Extension parts 631
4812028794 Material tunnel, cpl. L:320mm See page 619
4720000816 Auger shaft extension assy. 320 mm r.h./rts. 632
4720000140 Auger shaft extension assy. 320 mm l.h./lks. 633
4812233037 Auger Ø380mm, 4.42m
4812233037 Auger Ø380mm, 4.42m 635
4812233020 Auger Ø380mm, basic width
4812233020 Auger, basic width 380 See page 604
4812027478 Wear part kit auger wings Ø380mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812075192 Renewal kit II, auger drive See page 5
4812232097 Mounting parts See page 605
4812045075 Auger gear See page 606
4812232996 Auger box
4812232996 Auger box See page 607
4812026736 Outer support See page 609
4812016497 Auger support See page 611
4812047192 Extension part f. auger Ø380mm
4812047192 Extension part f. auger Ø380mm 637
4812032184 Auger Ø380mm, 4,42m
4812032184 Auger Ø380mm, 4,42m 638
4812028792 Material tunnel, cpl. L:640mm See page 625
4720000137 Auger extension, r.h. L:640mm See page 626
4720000818 Auger shaft extension assy. 640 mm l.h./lks. See page 627
4812028794 Material tunnel, cpl. L:320mm See page 619
4720000140 Auger shaft extension assy. 320 mm l.h./lks. See page 633
4720000816 Auger shaft extension assy. 320 mm r.h./rts. See page 632
4812031805 End support, cpl.
4812031805 End support, cpl. See page 628
D439082200 Screw conveyor, end bearing See page 629
4812233041 Auger Ø380mm, 5.06m
4812233041 Auger Ø380mm, 5.06m 640
4812233020 Auger Ø380mm, basic width
4812233020 Auger, basic width 380 See page 604
4812027478 Wear part kit auger wings Ø380mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812075192 Renewal kit II, auger drive See page 5
4812232097 Mounting parts See page 605
4812045075 Auger gear See page 606
4812232996 Auger box
4812232996 Auger box See page 607
4812026736 Outer support See page 609
4812016497 Auger support See page 611
4812047195 Extension part f. auger Ø380mm
4812047195 Extension part f. auger Ø380mm 642
4812032187 Auger Ø380mm, 5,06m
4812032187 Auger Ø380mm, 5,06m 643
4812030927 Material tunnel, cpl. L:960mm 644
4812028794 Material tunnel, cpl. L:320mm See page 619
4720000140 Auger extension, l.h. L:320mm See page 618
4812031805 End support, cpl.
4812031805 End support, cpl. See page 628
D439082200 End support 645
4720000138 Auger shaft extension assy. 960 mm l.h./lks. 648
4720000139 Auger extension, r.h. L:960mm 649
4720000816 Auger extension, r.h. L:320mm See page 620
4812030869 additional Extension parts
4812030869 Additional Extension parts 651
4812028792 Material tunnel, cpl. L:640mm See page 625
4720000137 Auger extension, r.h. L:640mm See page 626
4720000818 Auger extension, l.h. L:640mm 652
4812233045 Auger Ø380mm, 5.70m
4812233045 Auger Ø380mm, 5.70m 654
4812233020 Auger Ø380mm, basic width
4812233020 Auger, basic width 380 See page 604
4812027478 Wear part kit auger wings Ø380mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812075192 Renewal kit II, auger drive See page 5
4812232097 Mounting parts See page 605
4812045075 Auger gear See page 606
4812232996 Auger box
4812232996 Auger box See page 607
4812026736 Outer support See page 609
4812016497 Auger support See page 611
4812047198 Extension part f. auger Ø380mm
4812047198 Extension part f. auger Ø380mm 656
4812032190 Auger Ø380mm, 5,70m
4812032190 Auger Ø380mm, 5,70m 657
4812030927 Material tunnel, cpl. L:960mm See page 644
4812028792 Material tunnel, cpl. L:640mm See page 625
4720000138 Auger shaft extension assy. 960 mm l.h./lks. See page 648
4812031805 End support, cpl.
4812031805 End support, cpl. See page 628
D439082200 End support See page 645
4720000139 Auger extension, r.h. L:960mm See page 649
4720000818 Auger extension, l.h. L:640mm See page 652
4720000137 Auger extension, r.h. L:640mm See page 626
4812030868 additional Extension parts
4812030868 Additional Extension parts See page 631
4812028794 Material tunnel, cpl. L:320mm See page 619
4720000816 Auger extension, r.h. L:320mm See page 620
4720000140 Auger extension, l.h. L:320mm See page 618
4812233051 Auger Ø380mm, 6.34m
4812233051 Auger Ø380mm, 6.34m 660
4812233020 Auger Ø380mm, basic width
4812233020 Auger, basic width 380 See page 604
4812027478 Wear part kit auger wings Ø380mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812075192 Renewal kit II, auger drive See page 5
4812232097 Mounting parts See page 605
4812045075 Auger gear See page 606
4812232996 Auger box
4812232996 Auger box See page 607
4812026736 Outer support See page 609
4812016497 Auger support See page 611
4812047203 Extension part f. auger Ø380mm
4812047203 Extension part f. auger Ø380mm 662
4812032230 Auger Ø380mm, 6,34m
4812032230 Auger Ø380mm, 6,34m 663
4720000138 Auger shaft extension assy. 960 mm l.h./lks. See page 648
4720000139 Auger extension, r.h. L:960mm See page 649
4720000818 Auger extension, l.h. L:640mm See page 652
4720000137 Auger extension, r.h. L:640mm See page 626
4812028782 Strut material duct, l.h. L:960mm 664
4812028787 Strut material duct, r.h. L:960mm 665
4812032195 Auger wing Ø380mm, l.h. 666
4812032196 Auger wing Ø380mm, r.h. 667
4812028789 Strut material duct L:960mm 668
4812031125 Brace
4812031125 Brace 669
Cross struts
4812028882 Cross struts 672
4812201937 Cross struts 673
4812036614 Retainer, r.h. 674
4812030499 Retainer, l.h. 675
4812031804 Outer support
4812031804 Outer support 676
D438081200 End support 677
4812030870 additional Extension parts
4812030870 Additional Extension parts 680
4812028792 Material tunnel, cpl. L:640mm See page 625
4720000140 Auger extension, l.h. L:320mm See page 618
4812031805 End support, cpl.
4812031805 End support, cpl. See page 628
D439082200 End support See page 645
4720000816 Auger extension, r.h. L:320mm See page 620
4812028794 Material tunnel, cpl. L:320mm See page 619
4812233056 Auger Ø380mm, 6.98m
4812233056 Auger Ø380mm, 6.98m 682
4812233020 Auger Ø380mm, basic width
4812233020 Auger, basic width 380 See page 604
4812027478 Wear part kit auger wings Ø380mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812075192 Renewal kit II, auger drive See page 5
4812232097 Mounting parts See page 605
4812045075 Auger gear See page 606
4812232996 Auger box
4812232996 Auger box See page 607
4812026736 Outer support See page 609
4812016497 Auger support See page 611
4812047207 Extension part f. auger Ø380mm
4812047207 Extension part f. auger Ø380mm 684
4812032232 Auger Ø380mm, 6,98m
4812032232 Auger Ø380mm, 6,98m 685
4720000138 Auger shaft extension assy. 960 mm l.h./lks. See page 648
4720000139 Auger extension, r.h. L:960mm See page 649
4720000818 Auger extension, l.h. L:640mm See page 652
4720000137 Auger extension, r.h. L:640mm See page 626
4812028782 Strut material duct, l.h. L:960mm See page 664
4812028787 Strut material duct, r.h. L:960mm See page 665
4812032195 Auger wing Ø380mm, l.h. See page 666
4812032196 Auger wing Ø380mm, r.h. See page 667
4720000140 Auger extension, l.h. L:320mm See page 618
4812031125 Brace
4812031125 Brace See page 669
Cross struts
4812028882 Cross struts See page 672
4812201937 Cross struts See page 673
4812036614 Retainer, r.h. See page 674
4812030499 Retainer, l.h. See page 675
4720000816 Auger extension, r.h. L:320mm See page 620
4812028794 Material tunnel, cpl. L:320mm See page 619
4812031804 Outer support
4812031804 Outer support See page 676
D438081200 End support See page 677
4812028789 Strut material duct L:960mm See page 668
4812032496 additional Extension parts
4812032496 Additional Extension parts 688
4812028792 Material tunnel, cpl. L:640mm See page 625
4812031805 End support, cpl.
4812031805 End support, cpl. See page 628
D439082200 End support See page 645
Auger – Outer drive
4812233081 Auger Ø380mm AA, ab 2.48m
4812233081 Auger Ø380mm AA, ab 2.48m 690
4812233024 Auger, basic width 380mm
4812233024 Auger, basic width 380mm 691
4812232097 Mounting parts See page 605
4812039992 Spreader drive
4812039992 Spreader drive 693
4812040794 Lubricating oil 694
4812041548 Auger gear
4812041548 Auger gear 695
4812041422 Wheel set 697
4812233014 Auger holder 698
4812040199 Auger shaft 699
4812040524 Stripper 702
4812043000 Stop 703
4812043000A Stop 704
4812040657 Wear part kit auger wings Ø380mm
4812040657 Wear part kit auger wings Ø380mm See page 6
4812040685 Wear part kit auger wing, l.h. See page 7
4812040687 Wear part kit auger wing, r.h. See page 8
4812044532 Adapter, l.h. 705
4812044531 Adapter, r.h. 707
4812233082 Auger Ø380mm AA, ab 3.06m
4812233082 Auger Ø380mm AA, ab 3.06m 709
4812233024 Auger, basic width 380mm
4812233024 Auger, basic width 380mm See page 691
4812232097 Mounting parts See page 605
4812039992 Spreader drive
4812039992 Spreader drive See page 693
4812040794 Lubricating oil See page 694
4812041548 Auger gear
4812041548 Auger gear See page 695
4812041422 Wheel set See page 697
4812233014 Auger holder See page 698
4812040199 Auger shaft See page 699
4812040524 Stripper See page 702
4812043000 Stop See page 703
4812043000A Stop See page 704
4812040657 Wear part kit auger wings Ø380mm
4812040657 Wear part kit auger wings Ø380mm See page 6
4812040685 Wear part kit auger wing, l.h. See page 7
4812040687 Wear part kit auger wing, r.h. See page 8
4812044532 Adapter, l.h. See page 705
4812044531 Adapter, r.h. See page 707
4812047125 Extension part f. auger Ø380mm
4812047125 Extension part f. auger Ø380mm 712
4812042815 Auger Ø380mm 3,06m
4812042815 Auger Ø380mm 3,06m 713
4812042521 Auger extension, r.h. L:290mm
4812042521 Auger extension, r.h. L:290mm 714
4812040687 Wear part kit auger wing, r.h. See page 8
4812042523 Auger extension, l.h. L:290mm
4812042523 Auger extension, l.h. L:290mm 716
4812040685 Wear part kit auger wing, l.h. See page 7
4812233083 Auger Ø380mm AA, ab 3.35m
4812233083 Auger Ø380mm AA, ab 3.35m 718
4812233024 Auger, basic width 380mm
4812233024 Auger, basic width 380mm See page 691
4812232097 Mounting parts See page 605
4812039992 Spreader drive
4812039992 Spreader drive See page 693
4812040794 Lubricating oil See page 694
4812041548 Auger gear
4812041548 Auger gear See page 695
4812041422 Wheel set See page 697
4812233014 Auger holder See page 698
4812040199 Auger shaft See page 699
4812040524 Stripper See page 702
4812043000 Stop See page 703
4812043000A Stop See page 704
4812040657 Wear part kit auger wings Ø380mm
4812040657 Wear part kit auger wings Ø380mm See page 6
4812040685 Wear part kit auger wing, l.h. See page 7
4812040687 Wear part kit auger wing, r.h. See page 8
4812044532 Adapter, l.h. See page 705
4812044531 Adapter, r.h. See page 707
4812047126 Extension part f. auger Ø380mm
4812047126 Extension part f. auger Ø380mm 721
4812042816 Auger Ø380mm 3,35m
4812042816 Auger Ø380mm 3,35m 722
4812042527 Auger extension, l.h. L:434mm
4812042527 Auger extension, l.h. L:434mm 723
4812040685 Wear part kit auger wing, l.h. See page 7
4812042525 Auger extension, r.h. L:434mm
4812042525 Auger extension, r.h. L:434mm 725
4812040687 Wear part kit auger wing, r.h. See page 8
4812042935 additional Extension parts
4812042935 additional Extension parts 727
4812042521 Auger extension, r.h. L:290mm
4812042521 Auger extension, r.h. L:290mm See page 714
4812040687 Wear part kit auger wing, r.h. See page 8
4812042523 Auger extension, l.h. L:290mm
4812042523 Auger extension, l.h. L:290mm See page 716
4812040685 Wear part kit auger wing, l.h. See page 7
4812233084 Auger Ø380mm AA, ab 3.93m
4812233084 Auger Ø380mm AA, ab 3.93m 730
4812233024 Auger, basic width 380mm
4812233024 Auger, basic width 380mm See page 691
4812232097 Mounting parts See page 605
4812039992 Spreader drive
4812039992 Spreader drive See page 693
4812040794 Lubricating oil See page 694
4812041548 Auger gear
4812041548 Auger gear See page 695
4812041422 Wheel set See page 697
4812233014 Auger holder See page 698
4812040199 Auger shaft See page 699
4812040524 Stripper See page 702
4812043000 Stop See page 703
4812043000A Stop See page 704
4812040657 Wear part kit auger wings Ø380mm
4812040657 Wear part kit auger wings Ø380mm See page 6
4812040685 Wear part kit auger wing, l.h. See page 7
4812040687 Wear part kit auger wing, r.h. See page 8
4812044532 Adapter, l.h. See page 705
4812044531 Adapter, r.h. See page 707
4812047127 Extension part f. auger Ø380mm
4812047127 Extension part f. auger Ø380mm 733
4812042817 Auger Ø380mm 3,93m
4812042817 Auger Ø380mm 3,93m 734
4812042527 Auger extension, l.h. L:434mm
4812042527 Auger extension, l.h. L:434mm See page 723
4812040685 Wear part kit auger wing, l.h. See page 7
4812042525 Auger extension, r.h. L:434mm
4812042525 Auger extension, r.h. L:434mm See page 725
4812040687 Wear part kit auger wing, r.h. See page 8
4812042521 Auger extension, r.h. L:290mm
4812042521 Auger extension, r.h. L:290mm See page 714
4812040687 Wear part kit auger wing, r.h. See page 8
4812042523 Auger extension, l.h. L:290mm
4812042523 Auger extension, l.h. L:290mm See page 716
4812040685 Wear part kit auger wing, l.h. See page 7
4812233085 Auger Ø380mm AA, ab 4.22m
4812233085 Auger Ø380mm AA, ab 4.22m 741
4812233024 Auger, basic width 380mm
4812233024 Auger, basic width 380mm See page 691
4812232097 Mounting parts See page 605
4812039992 Spreader drive
4812039992 Spreader drive See page 693
4812040794 Lubricating oil See page 694
4812041548 Auger gear
4812041548 Auger gear See page 695
4812041422 Wheel set See page 697
4812233014 Auger holder See page 698
4812040199 Auger shaft See page 699
4812040524 Stripper See page 702
4812043000 Stop See page 703
4812043000A Stop See page 704
4812040657 Wear part kit auger wings Ø380mm
4812040657 Wear part kit auger wings Ø380mm See page 6
4812040685 Wear part kit auger wing, l.h. See page 7
4812040687 Wear part kit auger wing, r.h. See page 8
4812044532 Adapter, l.h. See page 705
4812044531 Adapter, r.h. See page 707
4812047128 Extension part f. auger Ø380mm
4812047128 Extension part f. auger Ø380mm 744
4812042818 Auger Ø380mm 4,22m
4812042818 Auger Ø380mm 4,22m 745
4812042531 Auger extension, l.h. L:868mm
4812042531 Auger extension, l.h. L:868mm 748
4812040685 Wear part kit auger wing, l.h. See page 7
4812042529 Auger extension, r.h. L:868mm
4812042529 Auger extension, r.h. L:868mm 750
4812040687 Wear part kit auger wing, r.h. See page 8
4812042936 Additional extension parts
4812042936 Additional extension parts 752
4812042525 Auger extension, r.h. L:434mm
4812042525 Auger extension, r.h. L:434mm See page 725
4812040687 Wear part kit auger wing, r.h. See page 8
4812042527 Auger extension, l.h. L:434mm
4812042527 Auger extension, l.h. L:434mm See page 723
4812040685 Wear part kit auger wing, l.h. See page 7
4812042521 Auger extension, r.h. L:290mm
4812042521 Auger extension, r.h. L:290mm See page 714
4812040687 Wear part kit auger wing, r.h. See page 8
4812042523 Auger extension, l.h. L:290mm
4812042523 Auger extension, l.h. L:290mm See page 716
4812040685 Wear part kit auger wing, l.h. See page 7
4812233086 Auger Ø380mm AA, ab 5.08m
4812233086 Auger Ø380mm AA, ab 5.08m 757
4812233024 Auger, basic width 380mm
4812233024 Auger, basic width 380mm See page 691
4812232097 Mounting parts See page 605
4812039992 Spreader drive
4812039992 Spreader drive See page 693
4812040794 Lubricating oil See page 694
4812041548 Auger gear
4812041548 Auger gear See page 695
4812041422 Wheel set See page 697
4812233014 Auger holder See page 698
4812040199 Auger shaft See page 699
4812040524 Stripper See page 702
4812043000 Stop See page 703
4812043000A Stop See page 704
4812040657 Wear part kit auger wings Ø380mm
4812040657 Wear part kit auger wings Ø380mm See page 6
4812040685 Wear part kit auger wing, l.h. See page 7
4812040687 Wear part kit auger wing, r.h. See page 8
4812044532 Adapter, l.h. See page 705
4812044531 Adapter, r.h. See page 707
4812047129 Extension part f. auger Ø380mm
4812047129 Extension part f. auger Ø380mm 760
4812042819 Auger Ø380mm 5,08m
4812042819 Auger Ø380mm 5,08m 761
4812042529 Auger extension, r.h. L:868mm
4812042529 Auger extension, r.h. L:868mm See page 750
4812040687 Wear part kit auger wing, r.h. See page 8
4812042531 Auger extension, l.h. L:868mm
4812042531 Auger extension, l.h. L:868mm See page 748
4812040685 Wear part kit auger wing, l.h. See page 7
4812042527 Auger extension, l.h. L:434mm
4812042527 Auger extension, l.h. L:434mm See page 723
4812040685 Wear part kit auger wing, l.h. See page 7
4812042525 Auger extension, r.h. L:434mm
4812042525 Auger extension, r.h. L:434mm See page 725
4812040687 Wear part kit auger wing, r.h. See page 8
4812042937 Additional extension parts
4812042937 Additional extension parts 768
4812042521 Auger extension, r.h. L:290mm
4812042521 Auger extension, r.h. L:290mm See page 714
4812040687 Wear part kit auger wing, r.h. See page 8
4812042523 Auger extension, l.h. L:290mm
4812042523 Auger extension, l.h. L:290mm See page 716
4812040685 Wear part kit auger wing, l.h. See page 7
4812233087 Auger Ø380mm AA, ab 5.66m
4812233087 Auger Ø380mm AA, ab 5.66m 771
4812233024 Auger, basic width 380mm
4812233024 Auger, basic width 380mm See page 691
4812232097 Mounting parts See page 605
4812039992 Spreader drive
4812039992 Spreader drive See page 693
4812040794 Lubricating oil See page 694
4812041548 Auger gear
4812041548 Auger gear See page 695
4812041422 Wheel set See page 697
4812233014 Auger holder See page 698
4812040199 Auger shaft See page 699
4812040524 Stripper See page 702
4812043000 Stop See page 703
4812043000A Stop See page 704
4812040657 Wear part kit auger wings Ø380mm
4812040657 Wear part kit auger wings Ø380mm See page 6
4812040685 Wear part kit auger wing, l.h. See page 7
4812040687 Wear part kit auger wing, r.h. See page 8
4812044532 Adapter, l.h. See page 705
4812044531 Adapter, r.h. See page 707
4812047130 Extension part f. auger Ø380mm
4812047130 Extension part f. auger Ø380mm 774
4812042820 Auger Ø380mm 5,66m
4812042820 Auger Ø380mm 5,66m 775
4812042529 Auger extension, r.h. L:868mm
4812042529 Auger extension, r.h. L:868mm See page 750
4812040687 Wear part kit auger wing, r.h. See page 8
4812042531 Auger extension, l.h. L:868mm
4812042531 Auger extension, l.h. L:868mm See page 748
4812040685 Wear part kit auger wing, l.h. See page 7
4812042527 Auger extension, l.h. L:434mm
4812042527 Auger extension, l.h. L:434mm See page 723
4812040685 Wear part kit auger wing, l.h. See page 7
4812042525 Auger extension, r.h. L:434mm
4812042525 Auger extension, r.h. L:434mm See page 725
4812040687 Wear part kit auger wing, r.h. See page 8
4812042521 Auger extension, r.h. L:290mm
4812042521 Auger extension, r.h. L:290mm See page 714
4812040687 Wear part kit auger wing, r.h. See page 8
4812042523 Auger extension, l.h. L:290mm
4812042523 Auger extension, l.h. L:290mm See page 716
4812040685 Wear part kit auger wing, l.h. See page 7
4812233088 Auger Ø380mm AA, ab 6.53m
4812233088 Auger Ø380mm AA, ab 6.53m 784
4812233024 Auger, basic width 380mm
4812233024 Auger, basic width 380mm See page 691
4812232097 Mounting parts See page 605
4812039992 Spreader drive
4812039992 Spreader drive See page 693
4812040794 Lubricating oil See page 694
4812041548 Auger gear
4812041548 Auger gear See page 695
4812041422 Wheel set See page 697
4812233014 Auger holder See page 698
4812040199 Auger shaft See page 699
4812040524 Stripper See page 702
4812043000 Stop See page 703
4812043000A Stop See page 704
4812040657 Wear part kit auger wings Ø380mm
4812040657 Wear part kit auger wings Ø380mm See page 6
4812040685 Wear part kit auger wing, l.h. See page 7
4812040687 Wear part kit auger wing, r.h. See page 8
4812044532 Adapter, l.h. See page 705
4812044531 Adapter, r.h. See page 707
4812047131 Extension part f. auger Ø380mm
4812047131 Extension part f. auger Ø380mm 787
4812042821 Auger Ø380mm 6,53m
4812042821 Auger Ø380mm 6,53m 788
4812042623 Extension pipe, l.h. 792
4812032481 Brace 6,5m – 8,1m
4812032481 Brace 6,5m – 8,1m 793
Brace
4812202038 Brace 796
4812032487 Brace 797
4812030499 Retainer, l.h. See page 675
4812036614 Retainer, r.h. See page 674
4812042624 Extension pipe, r.h. 799
4812042529 Auger extension, r.h. L:868mm
4812042529 Auger extension, r.h. L:868mm See page 750
4812040687 Wear part kit auger wing, r.h. See page 8
4812042531 Auger extension, l.h. L:868mm
4812042531 Auger extension, l.h. L:868mm See page 748
4812040685 Wear part kit auger wing, l.h. See page 7
4812042523 Auger extension, l.h. L:290mm
4812042523 Auger extension, l.h. L:290mm See page 716
4812040685 Wear part kit auger wing, l.h. See page 7
4812042521 Auger extension, r.h. L:290mm
4812042521 Auger extension, r.h. L:290mm See page 714
4812040687 Wear part kit auger wing, r.h. See page 8
4812042938 Additional extension parts
4812042938 Additional extension parts 804
4812042525 Auger extension, r.h. L:434mm
4812042525 Auger extension, r.h. L:434mm See page 725
4812040687 Wear part kit auger wing, r.h. See page 8
4812042527 Auger extension, l.h. L:434mm
4812042527 Auger extension, l.h. L:434mm See page 723
4812040685 Wear part kit auger wing, l.h. See page 7
Hydraulic system
4812019571 Hydraulic 807
4812019571 Hydraulic
Hydraulic, drive system
4812024489 Hydraulic, drive system 809
4812024489A Hydraulic, drive system 814
Pump
4812030503 Pump See page 456
4812030504 Pump See page 457
Hydraulic, auger
4812201811 Hydraulic, auger 820
Pump
4812018529 Pump See page 458
Hydraulic, conveyor
4812201814 Hydraulic, conveyor 823
Flow control valve
4812010000 Flow control valve 825
Connecting plate
4812033907 Connecting plate 826
4812033908 Connecting plate 827
Hydraulic, tamper/vibration
4812201816 Hydraulic, tamper/vibration 828
Flow control valve
4812010000 Flow control valve See page 825
Hydraulic, tamper/vibration
4812024486 Hydraulic, tamper/vibration 831
Pump
4812009370 Pump 833
Work hydraulic
4812019579 Work hydraulic 834
Control block
4812017059 Control block 842
4812019414 Control block 844
Filter
4812018069 Filter 846
Hydraulic steering
4812019580 Hydraulic, steering 847
4812019580A Hydraulic, steering 850
Hydraulic fan TIER4
4812201818 Hydl. fan, TIER4 853
Filter
4812044338 Filter 855
Hydraulic fan TIER3
4812071368 Hydrl. fan, TIER3 856
4812071368A Hydrl. fan, TIER3 858
Filter
4812044338 Filter See page 855
Hydraulic tank, collector
4812019647 Hydraulic tank, collector 861
4812019647A Hydraulic tank, collector 863
4812225758 Hydraulic tank 865
Hydraulic front wheel drive
4812201820 Hydraulic front wheel drive 867
Pump
4812030505 Pump See page 459
Control block
4812216090 Control block 873
4812030681A Control block 874
Hydraulic, roof adjustment
4812024743 Hydraulic, roof adjustment 875
Ganged valve support
Ganged valve support, l.h.
4812217652 Ganged valve support, l.h. 877
Ganged valve support, r.h.
4812217653 Ganged valve support, r.h. 878
Hose paket
4812201894 INTERFACE HOSEPACK
4812201894 Hose packet 879
Screed movement
4812201900 Screed movement, Hydraulic 880
Tamper vibration
4812201901 Tamper vibration, Hydraulic 881
4812201895 INTERFACE HOSEPACK
Screed movement
4812201900 Screed movement, Hydraulic See page 880
Tamper vibration
4812201902 Tamper vibration CC, Hydraulic 883
4812201907 Profile adjustment, hydraulic
4812201907 Profile adjustment, Hydraulic 884
4812201908 Endplate, hydraulic
4812201908 End plate, Hydraulic 885
Electric system
Electric
4812023840 Electro equipment 886
Electro equipment
4812023842 Electro equipment 887
Spotlight for auger
4812201881 Spotlight for auger 895
Junction box
4812024881 Junction box 896
Junction box
4812024641 Junction box 897
Junction box
4812024858 Junction box 906
Cable
4812201547 Cable W37 907
4812024737 Cable W20 908
4812024744 Cable W75 913
4812024764 Cable W31 914
Mounting parts
4812024831 Mounting parts 915
Control unit
4812024640 Control unit 916
Control unit
4812024635 Control unit 917
Cable
4812201084 Cable W66 923
4812024778 Harness W11 924
Mounting parts
4812038652 Mounting parts 927
Wiring
4812024642 Wiring 928
4812023310 Cable W81 930
Wiring
4812201348 Cable W2.1 931
4812023308 Cable W3 932
4812023307 Cable W4 933
4812031391 Cable W5 934
4812034065 Cable W6 935
4812031393 Cable W9 936
4812023322 Cable W82 937
4812201349 Cable W2.2 938
D977436121 Ground strap 939
4812033920 Cable W34 940
4812039182 Mounting parts 941
4812016480 Cable W71 942
4812016478 Cable W70 943
4812024698 Harness W19 944
4812024645 Cable W28 948
4812024723 Harness W15 951
4812024724 Harness W16 953
4812024734 Harness W13 954
4812023318 Cable W82 See page 533
4812024348 Cable W52 955
4812024354 Cable W69 956
4812024803 Cable W51 957
Remote control
4812015926 Remote control, PLC 959
Remote control
4812024563 Remote control 960
Housing
4812017990 Housing 961
Vandalism protection, DYNAPAC, wheeled
4812019168 Vandalism protection 962
Options
Miscellaneous
4812019971 USB Technical documentation 963
4812216584 TruckAssist-Brief instruction 964
Available options
4812202591 Fume control system
4812202591 Fume control system 965
Blower
4812073893 Exhaust fan 968
Hydraulik, fume control
4812019607 Hydraulic, fume control 969
Pressure reduction valve
4812215477 Pressure relief valve 971
4812044916 Pressure reduction valve 972
4812011191A Without fume absorbing system
4812011191A Without fume absorbing system 973
Maintenance lid
4812011195 Maintenance lid 974
Cover
4812007088 Cover 975
4812039147 Cover 976
4812227678 whitout road certification
4812227678 whitout road certification 977
Side arm guiding
4812028721 Side arm guiding 978
4812007323 Road certification Nachläufer
4812007323 Road certification Nachläufer 979
Reflector
4812044891 Reflector 980
Wedge
4812044892 Wedge 981
Side arm guiding
4812035102 Side arm guiding 982
Trailer axle MASTER
4812042414 Trailer axle MASTER 983
Retainer
4812044839 Retainer 984
Receptacle
4812044329 Receptacle 985
Hydraulic trailer axle
4812044021 Hydraulic trailer axle 986
Trailer axle
4812040648 Trailer axle 987
Support
4812040346 Support 989
Shaft
4812042835 Shaft 990
Wheel storage, l.h.
4812040277 Wheel storage, l.h. 991
Support block
4812040140 Support block 992
Wheel, cpl.
4812043204 Wheel, cpl. 993
Wheel storage, r.h.
4812040297 Wheel storage, r.h. 994
Support block
4812040140 Support block See page 992
Wheel, cpl.
4812043204 Wheel, cpl. See page 993
Electric trailer axle
4812042194 Electric trailer axle 997
Cable
4812041924 Cable W45 998
Electric trailer axle
4812042410 Electric trailer axle 999
Electric
4812042411 Electric trailer axle 1000
Cabble harness
4812042412 Cable harness W46 1001
4812007322 Road certification Liftachse
4812007322 Road certification Liftachse 1002
Locking
4812046490 Locking 1003
Reflector
4812044891 Reflector See page 980
Wedge
4812044892 Wedge See page 981
Side arm guiding
4812035102 Side arm guiding See page 982
4812232096 Indicator thickness, bottom
4812232096 Indicator 1007
Pointer
4812238919 Pointer 1008
4812226413 Indicator thickness, top
4812226413A Indicator thickness, top 1009
4812009465 Drivers seat Standard
4812009465 Drivers seat Standard 1010
Driver seat, cpl.
4812009466 Drivers seat, cpl. 1011
4812035452 Drivers seat Grammer, beheizbar
4812035452 Drivers seat Grammer, beheizbar 1012
Seat heater
4812030001 Seat heater 1013
4812201933 Hydraulic auger lift
4812201933 Hydraulic auger lift 1014
4812201936 Hydraulic auger lift, SETASSIST
4812201936 Hydraulic auger lift, SETASSIST 1015
4812019659 Hydraulic, height adjustable auger
4812019659 Hydraulic, height adjustable auger 1016
4812019660 Hydraulic, height adjustable auger
4812019660 Hydraulic, height adjustable auger 1017
4812201857 Hydraulic, partial flow filter
4812201857 Hydraulic, partial flow filter 1018
4812201857A Hydraulic, partial flow filter 1019
Partial flow filter
D964013553 Partial flow filter 1020
4812201859 Hydraulic, conveyor reversable
4812201859 Hydraulic, conveyor reversable 1021
4812201862 Hydraulic, conveyor
4812201862 Hydraulic, conveyor 1022
4812201864 Hydraulic, retarder
4812201864 Hydraulic, retarder 1023
4812019610 Hydraulic, trailer axle
4812019610 Hydraulic, trailer axle 1024
4812228342 Bottle holder
4812228342 Bottle holder 1025
4812041024 Material chute
4812041024 Material chute 1026
4812061631 Bio Hydraulic oil
4812061631 Bio Hydraulic oil 1028
Hydraulic, partial flow filter
4812201857 Hydraulic, partial flow filter See page 1018
4812201857A Hydraulic, partial flow filter See page 1019
Partial flow filter
D964013553 Partial flow filter See page 1020
4812201853 Hydraulic, auger AA
4812201853 Hydraulic, auger 1030
4812201855 Hydraulic, auger MA
4812201855 Hydraulic, auger 1031
4812045427 Material tunnel installation kit
4812045427 Material tunnel installation kit 1032
Material tunnel 230
4812045416 Material tunnel, 230mm 1033
Protection cover
4812045421 Protection cover 1034
4812201880 Spot light
4812201880 Spot light 1035
4812201881 Spotlight for auger
4812201881 Spotlight for auger See page 895
4812201891 Engine room lighting
4812201891 Engine room lighting 1037
Engine room lighting
4812032889 Engine room lighting 1038
EL- Engine room lighting
4812201892 EL- Engine room lighting 1039
4812201882 Spot light
4812201882 Spot light 1040
4812201883 Spot light
4812201883 Spot light 1041
4812201884 Spot light
4812201884 Spot light 1042
Lighting equipment
4812201957 Lighting equipment 1044
Lighting, side plate
4812018966 Lighting side plate 1045
Harness
4812018684 Harness W16.5 1046
4812018676 Harness W15.5 1047
4812201825 Shining balloon
4812201825 Shining balloon 1048
4812012447 Rotaflare light, PLC
4812012447 Rotaflare light 1049
4812012457 Electric rotaflare light
4812012457 Rotaflare light 1050
4812012450 Slip-on pipe
4812012450 Slip-on pipe 1051
4812011482 Holder for rotaflare light 1052
4812201886 Central lubrication
4812201886 Central lubrication 1053
Central lubrication pump
4812019137 Central lubrication pump 1054
Pump
4812037777 Pump 1055
Kit central lubrication f. auger
4812040289 Kit central lubrication f. auger 1058
Electrical, central lubrication
4812201887 Electrical, central lubrication 1060
4812024348 Cable W52 See page 955
4812024354 Cable W69 See page 956
4812024803 Cable W51 See page 957
4812040056 Fire extinguisher
4812040056 Fire extinguisher 1062
4812061346 Fire extinguisher
4812061346 Fire extinguisher 1063
4812035407 Refueling equipment
4812035407 Diesel pump 1064
4812029968 Electric diesel pump 1065
4812227323 Emulsion spray system
4812227323 Emulsion spray system 1066
4812071797 El. emulsion spray 1067
4812071650 Adapter cable W74 1068
4812071798 Cable W36 1069
Tank with pump
4812227321 Emulsion tank 1070
El. option
4812010335 El. emulsion spray 1072
Hose package
4812227350 Hose package 1074
4812217384 Spray arm 1075
4812227324 Emulsion spray system
4812227324 Emulsion spray system 1076
Hose reel
4812227339 Hose reel 1077
Schlauch
4812227347 Hose 1078
4812232523 Hose reel 1079
Tank with pump
4812227321 Emulsion tank See page 1070
El. option
4812010335 El. emulsion spray See page 1072
4812034869 Gloria spraving device
4812034869 Gloria spraying device 1082
4812030652 Hydr. retarder
4812030652 Hydr. retarder 1083
Directional spool valve
4812008319 Directional spool valve 1084
4812029934 Back-up alarm
4812029934 Back-up alarm 1085
4812024046 El. option, socket 230V
4812024046 Socket 230V 50HZ 1086
4812201910 12V installation
4812201910 12V installation 1087
Cable W23
4812024317 Cable W23 1088
4812007784 First-aid kit
4812007784 First-aid kit 1089
4812002731 First-aid kit
4812002731 First-aid kit 1090
4812019602 Profile adjustment, hydraulic
4812019602 Hydraulic, profile adjustment 1091
4812017406 Camera system
4812017406 Camera system 1092
Retainer
4812006748 Retainer 1093
Electrical, camera system
4812017407 El. option 1094
Mounting parts
4812007883 Mounting parts 1095
4812201912 TruckAssist Advansed
4812201912 TruckAssist Advanced 1096
Housing
4812018226 Housing 1097
Housing
4812018218 Housing 1098
El. TruckAssist Advansed
4812201913 El. TruckAssist Advanced 1099
Cable
4812024784 Cable W67 1101
4812216118 Kit, mat-manager
4812216118 Kit, mat-manager 1102
4812033026 Cap
4812033026 Cover 1106
4812017420 Cap, T4f
4812017420 Cover, T4f 1107
4812215054 Generator set, 19/27 KVA
4812215054 Generator set, 19/27 KVA 1108
El. heating
4812202821 El. heating 1111
4812217887 Control box 1112
Control box
4812024003 Control box 1121
Vandalism protection
4812238815 Vandalism protection 1134
Universal joint protection
4812036529 Universal joint protection 1135
4812215044 Generator set, 19/27 KVA
4812215044 Generator set, 19/27 KVA 1136
Air guide
4812042967 Air guide 1139
El. heating
4812202821 El. heating See page 1111
4812217887 Control box See page 1112
Control box
4812024003 Control box See page 1121
Vandalism protection
4812238815 Vandalism protection See page 1134
Universal joint protection
4812036529 Universal joint protection See page 1135
4812045790 Warning plate
4812045790 Warning plate 1143
4812007491 Oil drain hydr tank
4812007491 Oil drain hydr. tank 1144
4812201917 El. option England
4812201917 El. option England 1145
4812024803 Cable W51 See page 957
4812009244 Tools and accessories
4812009244 Tools and accessories 1147
Tar spattle 1149
4812201921 GPS installation advanced
4812201921 GPS installation advanced 1150
4812201919 GPS installation pro
4812201919 GPS installation pro 1151
4812217946 Hardlock Advanced
4812217946 Hardlock pro / Pavemanager 2 1152
4812201826 Temperature sensor
4812201826 Temperature sensor 1153
4812024591 Side shield, Hydraulic
4812024591 Hydraulic, side shield 1154
Control block
4812071404 Control block 1155
4812076414 Control block 1156
4812010752 Back up alarm flasher
4812010752 Back up alarm flasher 1157
4812010793 El. option 1158
4812014275 Mirror
4812014275 Mirror 1159
El. option
4812217813 Sprayer
4812217813 Sprayer 1160
Emulsion tank
4812217815 Emulsion tank 1161
4812227321 Emulsion tank See page 1070
Hose reel
4812217867 Hose reel 1164
Spray arm
4812217384 Spray arm See page 1075
Hose reel
4812216609 Hose reel 1166
Electric emulsion spray system
4812010335 El. emulsion spray See page 1072
El. emulsion spray
4812071797 El. emulsion spray See page 1067
Cable
4812071798 Cable W36 See page 1069
4812071650 Adapter cable W74 See page 1068
Leveling, PLC
4812038489A Leveling 1169
CAN-sensor kit 1+1 red
4812074116 CAN-sensor kit 1+1 red 1170
Box
4812011781 Box MOBA-Matic 1171
CAN-sensor kit 2+1 red
4812074117 CAN-sensor kit 2+1 red 1172
Box
4812011781 Box MOBA-Matic See page 1171
Big Ski 13m PLC red
4812074118 Big Ski 13M PLC red 1174
Electro installation Big Ski
4812074125 Electro installation Big Ski 1175
Box MOBA-Matic
4812011781 Box MOBA-Matic See page 1171
Big Ski 13 m cpl.
4812041925 Big Ski 13 m 1177
Side arm support
4812004304 Side arm support 1179
Big Ski 9m PLC red
4812074119 Big Ski 9m PLC red 1180
Electro installation Big Ski
4812074125 Electro installation Big Ski See page 1175
Box MOBA-Matic
4812011781 Box MOBA-Matic See page 1171
Big Ski 9 m cpl.
4812042035 Big Ski 9 m 1182
Side arm support
4812004304 Side arm support See page 1179
Big Ski 13m + add on kit, red
4812074120 Big Ski 13m + add on kit, red 1185
Electric parts big ski
4812074129 Electro installation Big Ski 1186
Box MOBA-Matic
4812011781 Box MOBA-Matic See page 1171
Big Ski 13 m cpl.
4812041925 Big Ski 13 m See page 1177
Side arm support
4812004304 Side arm support See page 1179
Big Ski 9m + add on kit, red
4812074121 Big Ski 9m + add on kit, red 1190
Electric parts big ski
4812074129 Electro installation Big Ski See page 1186
Box MOBA-Matic
4812011781 Box MOBA-Matic See page 1171
Big Ski 9 m cpl.
4812042035 Big Ski 9 m See page 1182
Side arm support
4812004304 Side arm support See page 1179
Add-on kit red
4812074081 Add-on kit red 1194
Trailing ski, 9m
D830031400 Trailing ski, 9m 1195
Trailing ski, 9m
4700688226 Trailing ski, 9m 1196
Mounting parts
4700691720 Mounting parts 1199
Trailing ski, 6m
D830031300 Trailing ski, 6m 1200
Trailing ski, 6m
4700688225 Trailing ski, 6m 1201
Mounting parts
4700691720 Mounting parts See page 1199
Wire tensioner cpl.
4720000701 Wire tensioner cpl. 1205
Ultrasonic sensor
4812038616 Ultrasonic sensor 1206
Sensor
4812038602 Sensor 1207
Digirotary Kit
4812038617 Digirotary Kit 1208
Accessories
Spare key
Key 1209
Tools and accessories
4812035048 Tools and accessories 1210
4812009821 Tools and accessories 1211
Decals
Sticker, roof-high
4812202687 Sticker, roof-high 1213
Decals
4812011164 Decals wheeled paver 1214
4812011165 Decals wheeled paver I 1216
4812011167 Decals wheeled paver F 1218
Symbol
4812237882 Symbol SD2500W 1220
4812237887 Symbol SD2500W, THERMO 1221
Special color
4812215062 Symbol SD2500W 1222
4812215063 Symbol SD2500W, THERMO 1223
Special tool
Ultrasonic thickness guage 1224
Tension tester 1225
Frequency tension tester 1226
Infrared thermometer 1227
Test adapter 1228
Welding protection 1229
Color Dynapac 1230
Dismantling tool (big pins) 1232
Dismantling tool (smal pins) 1233
Service tool bodas 1234
Magnet tester 1235
Digital pressure gauge kit 1236
Frequency and amplitude meter 1237

PLEASE NOTE:

•  This is the same manual used by the dealers to diagnose and troubleshoot your vehicle

• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.S
