Dynapac Tracked paver Engine Cummins QSB 6.7 – C173 T4f Spare parts list Manual SN100021HFC005498 – PFD DOWNLOAD

Description

Dynapac Tracked paver Engine Cummins QSB 6.7 – C173 T4f Spare parts list Manual SN100021HFC005498 – PFD DOWNLOAD

FILE DETAILS:

Dynapac Tracked paver Engine Cummins QSB 6.7 – C173 T4f Spare parts list Manual SN100021HFC005498 – PFD DOWNLOAD

Language : English
Pages : 538
Downloadable : Yes
File Type : PDF
Size:47.0 MB

TABLE OF CONTENTS:

Dynapac Tracked paver Engine Cummins QSB 6.7 – C173 T4f Spare parts list Manual SN100021HFC005498 – PFD DOWNLOAD

F800T (IV/T4) s/n 10002133HFC005498 (serial production #5) 9
Service, repair and wear part kits 9
Kit, startup, 100hr 9
Kit, Maintenance, 500hr 11
Kit, Maintenance, 1000hr 13
Kit, Maintenance, 2000hr 15
Kit, Hopper skirt 17
4812313293 Kit, hopper skirt-low version 19
4812313532 Kit, Hopper Skirt , Hyd Powered STD Size 21
4812313533 Kit, Hopper Skirt, Hyd Powered Short Size 23
Kit, Chain, conveyor drive 25
Kit, Guide, conveyor 27
Conveyor chain, assembly 29
Kit, Conveyor plate 31
Kit, Sprocket, conveyor 33
Kit, Conveyor bearing 35
Kit, Rear plate 37
Hydraulic extension auger kit 39
Extend auger, 15FT KIT 41
Extend auger, 1FT KIT 43
Extend auger, 2FT KIT 45
Basic auger blade 47
Kit, key replacement 50
Screed dis-connect kit 53
D717955090 Uptime kit 55
4812313204 Bogie wheel kit 57
4812313162 Service cable tool 59
Mechanical 61
Frame assembly 61
4812245853 Frame assembly 61
4812244687 Assembly, fume extractor 68
D717012501 Blower, Fume extractor 71
Cover assembly 73
Cover assembly 73
4812246964 Left door assembly 75
4812246991 Right door assembly 78
Engine cover 81
Engine Cover 81
Engine cover right front 84
Engine cover, middle front 87
Engine cover, left front 89
Engine cover, left rear 91
Engine cover middle rear 93
4812245166 Engine cover right rear 95
Screed arm assembly 97
Screed arm assembly 97
Front guide wheel100
4812245559 Assembly, slope arm103
4812248631 F800 scaleplate assembly105
Left indicator scale assembly107
Right indicator scale assembly109
Hopper assembly111
4812245131 Hopper assembly, with hopper dump111
Hopper hydraulic cylinder assembly113
4812203839 Support115
Footwell117
Footwell117
Footwell, left119
Footwell middle121
Footwell right123
Conveyor drive assembly, 8′ paver125
4812243888 Conveyor drive assy125
Tensioner, assembly127
Conveyor chain, assembly 29
4812247991 Lubrication system129
Conveyor drive complete assembly131
4812247994 Conveyor drive compl131
4812247995 Assembly, drive conveyor133
Motor and gearbox135
Push roller137
Push roller assembly, STD137
Push roller assembly137
Push roller upper139
4812223943 Roller assembly141
Push roller assembly, safe impact hydraulic143
Push roller paver hydraulic143
Push roller upper hydraulic145
4812223943 Roller assembly141
Cylinder push roller assembly147
Push roller option hydraulic kit149
Truck hitch & push roller151
Truck hitch & push roller151
4812244646 Flow control valve153
Hopper skirt155
Hopper assembly, powerd apron (USA)155
Hopper assembly, powerd apron155
Front plate option Hydrl kit157
Front plate option Hydrl kit157
Front plate hic option159
4812244646 Flow control valve153
Connector plate161
Swinging arm RH163
Swinging arm LH165
Dam board hydro-cylinder assembly167
Front hopper LH169
Front hopper RH171
Hopper assembly with powered apron (AUS)173
4812249456 Hopper assembly with powered apron (AUS)173
4812204628 Front hopper, RH175
Swinging arm RH163
Dam board hydro-cylinder assembly167
Swinging arm LH165
4812204629 Front hopper, LH177
Front plate option hydrl kit179
Front plate option Hydrl kit157
Front plate hic option159
4812244646 Flow control valve153
Connector plate161
Hopper assembly skirt rubber179
Hopper assembly short rubber181
4812243302 Auger assembly, 8′ paver183
Auger assembly183
Auger drive assembly187
Gear box189
4812246513 Basic auger blade191
Main auger bearing193
Lubracation oil195
Prevent segregation device197
Base backplate assembly199
Left main support assembly201
Right main support assembly203
4812203041 Right extend auger205
4812203040 Left extend auger 430-154207
Conveyor plate assembly209
Staircase assembly212
Operator platform215
Turning seat215
Tool box, assembly218
Engine221
F800 Engine system221
Engine assembly223
4812245485 F800 engine assembly223
F800 Engine assembly230
4812243136 DEF Tank233
F800 Engine after treatment235
4812222043 Air cleaner237
Hose, engine oil drain239
Exhaust stack assembly241
4812245324 Exhaust stack assembly243
4812248665 F800 cooling system245
4812244732 Auxiliary water tank250
4812248664 F800T cooler253
Drive255
Track group assembly, 8′ track paver255
Track group paver RH257
4812243279 Track group paver RH257
Drive sub-assembly262
D717170600 Gearbox, track drive265
Arm bracket assembly269
Bogie assembly271
Hub, idler wheel assembly273
Hopper bracket, RH275
Track group paver LH277
4812243586 Track group paver LH277
Hopper bracket, LH282
Hydraulic system285
Fuel tank assembly285
Hydraulic component assembly289
4812243309 Hydraulic component assembly289
Motor and gearbox291
Pump drive complete293
4812244034 Pump drive complete293
4812200078 Gear box, splitter296
D717191000 Pump, propel front, assembly301
D717191500 Pump, propel rear, assembly312
4812222519 Gear pump, fan drive324
D717193500 Pump, generator, assembly327
Fittings assembly336
4812244656 F800 auger motor assembly339
F800 drive motor assembly341
F800 drive motor assembly341
4812243622 Motor propel assembly343
Fan motor assembly345
Generator motor assembly347
Hydraulic tank assembly349
4812243959 Hydraulic tank assembly349
4812220770 Assembly, hydraulic filter tier IV353
4812204470 F800T hydraulic accessories355
Accumulator assembly357
Case drain assembly359
4812244900 Case drain block assembly361
Return manifold assembly363
Connector plate assembly365
Drive motor adapter367
4812248090 Hose kit, hydraulic F800369
Filter assembly375
F800 front main valve377
F800 front main valve377
4812247011 F800 front main valve379
F800 rear hic standard381
F800 rear hic standard381
4812247008 F800 rear hic standard383
Hic propel gearbox & pump385
Hic propel gearbox & pump385
4812247012 Hic, propel gearbox & pump387
Hic, Vibration & fan assembly389
HIC, Vibration & fan assembly389
4812247014 Hic, vibration & fan391
Support plate assembly393
Electric system395
Electrical system assembly395
Electrical system assembly395
DC control panel assembly399
Generator drive assembly403
Generator drive assemby403
D717100501 Generator405
Kit, lovejoy coupling407
4812248146 Battery box assembly409
D717104500 Assembly, AC main panel411
4812245728 F800 Control box left413
4812245737 F800 control box right417
4812245944 Bracket sonic sensor421
F800 DC cables423
4812204449 F800 Electrical component kit425
Beacon assembly427
Roading lights assembly429
Options431
Add or reduce pressure hydraulic kit431
Add or reduce pressure hydraulic kit431
4812247009 Add or reduce pressure hyd kit433
4812248266 Gauge support assembly435
Centralization lubrication437
4812245484 Carlson screed EZIV 8-15440
Leveling440
Kit, P-32 Dynapac paver440
D717901501 Kit, Non-connectiong SAS443
D717904500 Umbrella445
Auger extension447
Auger for 15 paving width447
Auger for 15 paving width447
4812247107 Extend auger 380-2 left449
Extend auger 380-1 left451
4812247103 Left bearing retainer assembly453
4812247102 Bearing retainer assembly455
4812248911 Chute plate457
4812248909 Chute plate459
4812247104 Right bearing retainer assembly461
Extend auger 380-1 right463
4812247108 Extend auger 380-2 right465
4812248906 Chute plate467
4812244510 Hydraulic extension tunnel469
Hydraulic extension tunnel469
4812246713 Left main extension plate471
4812246714 Right main extension plate473
4812203745 Oil tube protect plate assembly475
Tunnel option hydraulic kit477
Tunnel option hydraulic kit477
4812246417 Tunnel option hydrl Hic479
Extension auger 1ft kit481
4812248779 Extension auger 1 FT kit481
4812248823 Left extension auger 1FT kit483
4812247107 Extend auger 380-2 left449
4812204563 Left extend auger485
4812248825 Right extension auger 1FT kit487
4812247108 Extend auger 380-2 right465
4812204580 Right extend auger489
Extension auger 2ft kit491
4812248780 Extension auger 2FT kit491
4812248826 Left extension auger 2FT kit493
4812204563 Left extend auger485
4812247107 Extend auger 380-2 left449
4812248829 Right extension auger 2FT kit495
4812247108 Extend auger 380-2 right465
4812204580 Right extend auger489
AUS kit, option497
4812204545 AUS kit option497
4812204432 Auger sensor mount assembly499
4720006041 Retainer501
4812244624 AUS cable post assembly503
4812204518 Level sensor mount assembly505
Accessories507
F800 Decals507
Wash down system511
4812243212 Manual kit514
Appendix B:Parts Index517

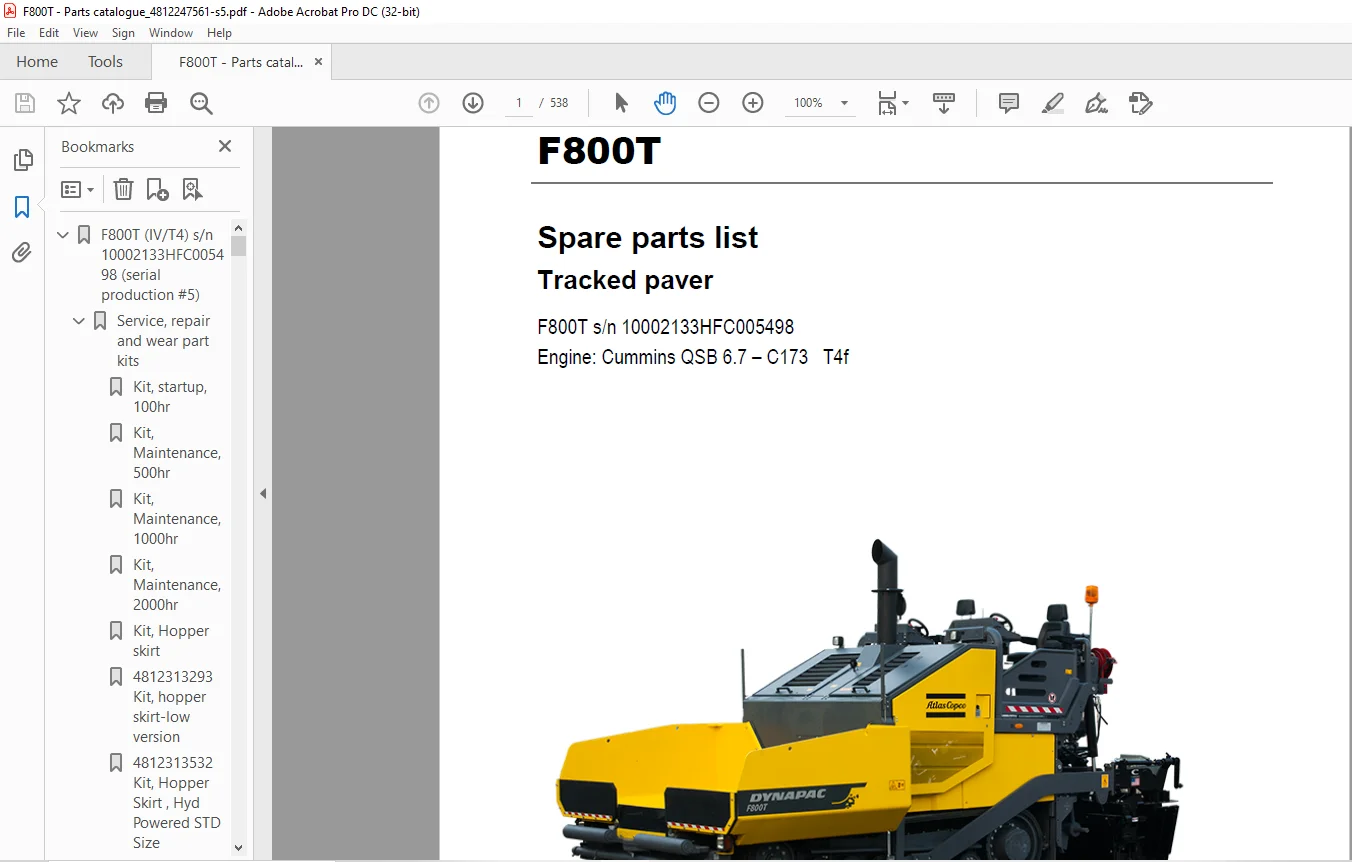

IMAGES PREVIEW OF THE MANUAL:
