Dynapac Tracked paver SD2550C Parts Manual PDF DOWNLOAD

Description

Dynapac Tracked paver SD2550C Parts Manual PDF DOWNLOAD

FILE DETAILS:

Dynapac Tracked paver SD2550C Parts Manual PDF DOWNLOAD

Language : English
Pages : 1056
Downloadable : Yes
File Type : PDF

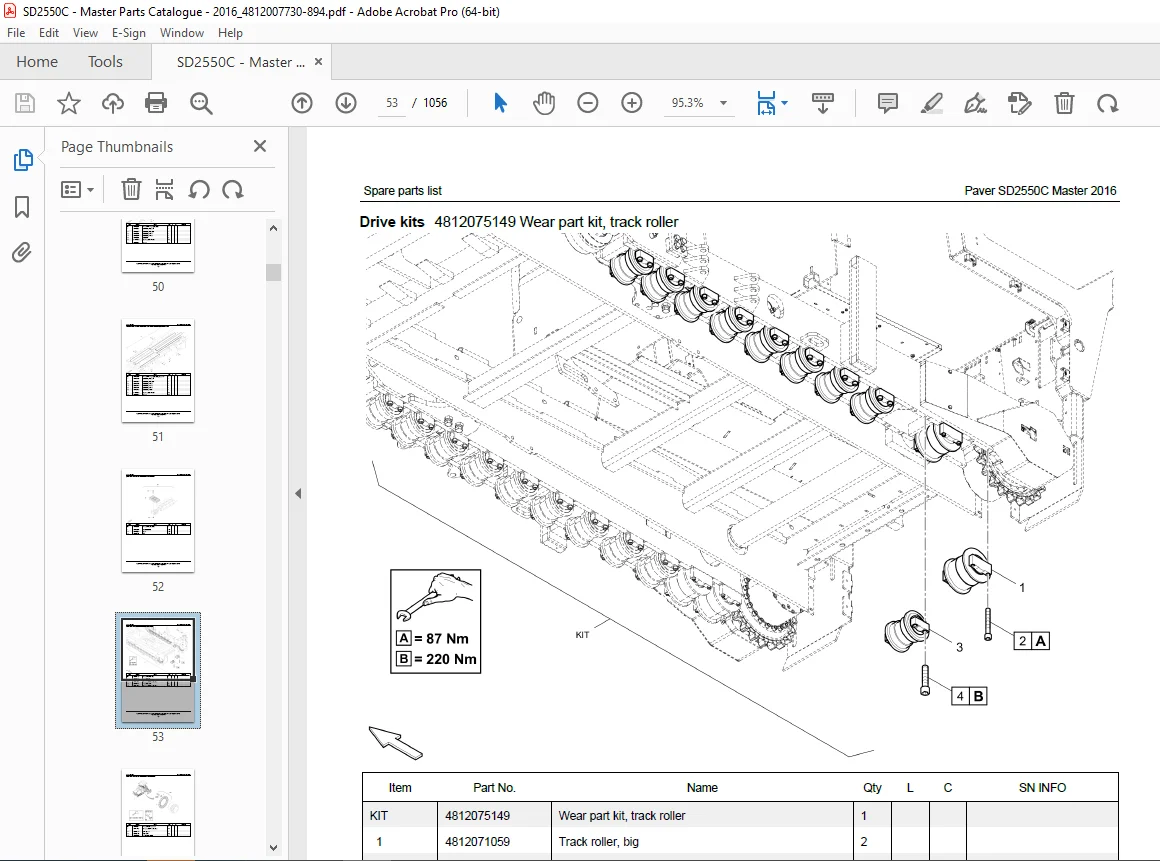

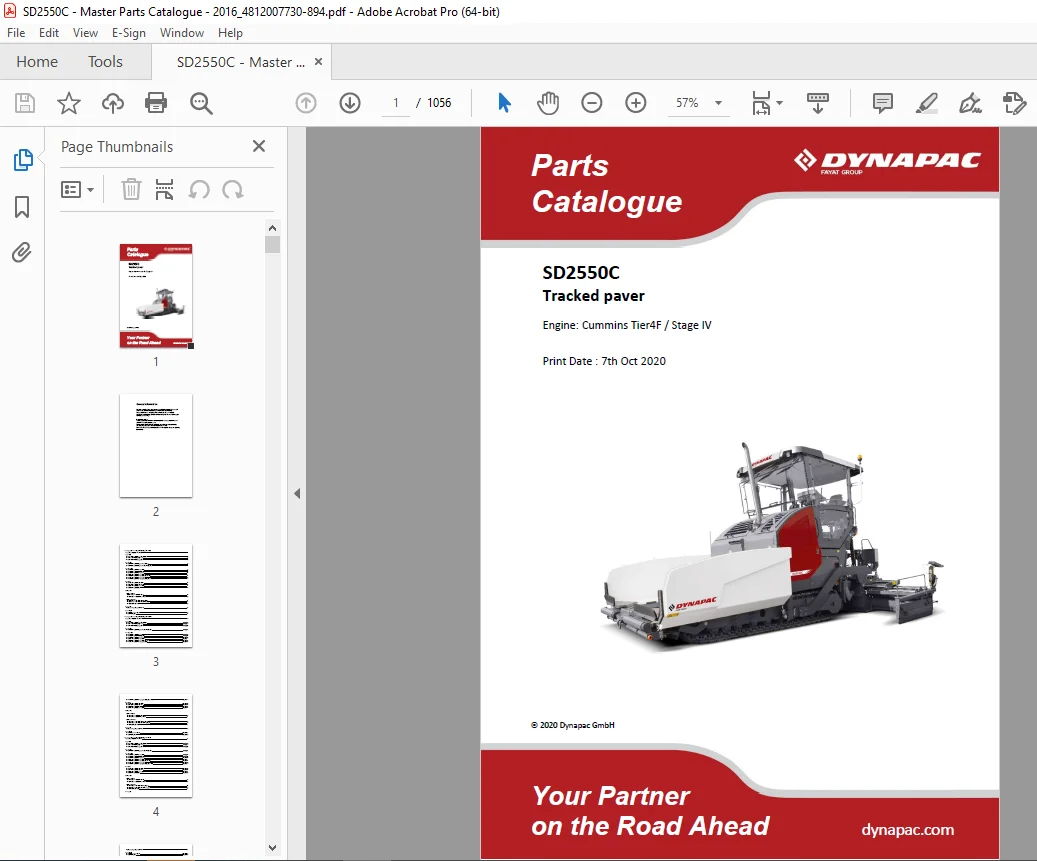

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Dynapac Tracked paver SD2550C Parts Manual PDF DOWNLOAD

Engine: Cummins Tier4F / Stage IV

Service, repair and wear part kits, Stage IIIa / Tier3
Wear part and Inspection kits TIER 3 1
Auger kits
4812027733 Wear part kit auger wing Ø430mm 3
4812075191 Renewal kit I, auger drive 4
4812075192 Renewal kit II, auger drive 5
Hopper kits
4812018439 Wear part kit hopper rubber, standard 6
4812018438 Wear part kit hopper rubber, front hopper flap 7
Conveyor kits
4812028516 Wear part kit conveyor chain 8
4812035553 Wear part kit reversing roller 9
4812035552 Wear part kit conveyor drive 10
4812016661 Wear part kit conveyor plates 11
4812216982 Wear part kit conveyor plates, Hardox 400 12
4812235981 Wear part kit conveyor guide plates 13
4812237610 Wear part kit conveyor guide plates, Hardox 400 14
Drive kits
4812035551 Wear part kit rubber plates 15
4812075149 Wear part kit, track roller 16
4812076571 Wear part kit, drive sprocket 17
4812076628 Wear part kit, idler 18
Service kits
Service kit 500 h
4700691229 Service kit 500 h TIER 3 19
4812043983 Service kit 500 h Plus TIER 3 20
Service kit 1000 h
4812046969 Service kit 1000 h TIER 3, stage 2 21
4812023851 Service kit 1000 h Plus TIER 3, stage 2 23
4812023923 Filter kit 1000h 25
Lubricants
Lubricants and operating substances T3 26
General kits
4812077016 Fuse and relay kit 28
4812064469 Plug kits 29
Service, repair and wear part kits, Stage IIIb / Tier4i
Wear part and Inspection kits TIER 4i 30
Auger kits
4812027733 Wear part kit auger wing Ø430mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812075192 Renewal kit II, auger drive See page 5
Hopper kits
4812018438 Wear part kit hopper rubber, front hopper flap See page 7
Conveyor kits
4812028516 Wear part kit conveyor chain See page 8
4812035553 Wear part kit reversing roller See page 9
4812035552 Wear part kit conveyor drive See page 10
4812016661 Wear part kit conveyor plates See page 11
4812216982 Wear part kit conveyor plates, Hardox 400 See page 12
4812235981 Wear part kit conveyor guide plates See page 13
4812237610 Wear part kit conveyor guide plates, Hardox 400 See page 14
Drive kits
4812035551 Wear part kit rubber plates See page 15
4812075149 Wear part kit, track roller See page 16
4812076628 Wear part kit, idler See page 18
4812076571 Wear part kit, drive sprocket See page 17
Service kits
Service kit 500 h
4812012378 Service kit 500 h TIER 4i 36
4812012382 Service kit 500 h Plus TIER 4i 37
Service kit 1000 h
4812012384 Service kit 1000 h TIER 4i, stage 2 38
4812023886 Service kit 1000 h Plus TIER 4i, stage 2 40
4812023925 Filter kit 1000h 42
Lubricants
Lubricants and operating substances T4i 43
General kits
4812077016 Fuse and relay kit See page 28
4812064469 Plug kits See page 29
Service, repair and wear part kits, Stage IV / Tier4f
Wear part and Inspection kits TIER 4f 46
Auger kits
4812027733 Wear part kit auger wing Ø430mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812075192 Renewal kit II, auger drive See page 5
Hopper kits
4812018438 Wear part kit hopper rubber, front hopper flap See page 7
Conveyor kits
4812028516 Wear part kit conveyor chain See page 8
4812035553 Wear part kit reversing roller See page 9
4812035552 Wear part kit conveyor drive See page 10
4812016661 Wear part kit conveyor plates See page 11
4812216982 Wear part kit conveyor plates, Hardox 400 See page 12
4812235981 Wear part kit conveyor guide plates See page 13
4812237610 Wear part kit conveyor guide plates, Hardox 400 See page 14
Drive kits
4812035551 Wear part kit rubber plates See page 15
4812075149 Wear part kit, track roller See page 16
4812076571 Wear part kit, drive sprocket See page 17
4812076628 Wear part kit, idler See page 18
Service kits
Service kit 500 h
4812012939 Service kit 500 h TIER 4F 52
4812019963 Service kit 500 h Plus TIER 4F 53
Service kit 1000 h
4812012936 Service kit 1000 h TIER 4F, stage 2 54
4812023864 Service kit 1000 h Plus TIER 4F, stage 2 55
4812023926 Filter kit 1000h 56
Lubricants
Lubricants and operating substances T4f 57
General kits
4812077016 Fuse and relay kit See page 28
4812064469 Plug kits See page 29
Mechanical, Stage IIIa, IIIb / Tier3, 4i
4812016238 Main frame
4812016238 Main frame 60
4812028721 Side arm guiding 61
4812231639 Splash guard 62
4812036083 Steering guide 63
4812232118 Extension 64
4812027553A Side screed arms, hydr. locked
4812027553A Gr.06 Side screed arms, hydr. locked 65
4812029165 Side screed arm, l.h.
4812029165 Side screed arm, l.h. 67
4812073526 Adjusting screw 69
Side bar guiding
4812232214 Side arm guiding 70
4720000097 Side arm guiding 71
4812029197 Side screed arm, r.h.
4812029197 Side screed arm, r.h. 72
Side bar guiding
4812232214 Side arm guiding See page 70
4720000097 Side arm guiding See page 71
4812029191 Locking, hydraulic
4812029191 Locking, hydraulic 75
4812027609 Hydraulic
4812027609 Hydraulic 76
4812033247 Control block 77
4812030492A Push roller, hydraulic
4812030492A Gr.03 Push roller, hydraulic 78
4812075204 Renewal kt, push roller 80
4812046568 Pillow block 81
4812027642 Hydraulic, push roller
4812027642 Hydraulic, push roller 82
4812215454 Valve block 84
4812029125 Valve block 85
4812033247 Control block See page 77
4812004491C Covering, isolated
4812004491C Covering, isolated 87
4812225668 Bulk head 91
4812225657 Air guide, rear 92
4812225681 Support plate 93
4812225682 Retainer 94
4812225689 Cover 95
4812233556 Covering center part, r.h. 96
4812009008 Isolation 97
4812226380 Retainer, l.h. 98
4812226135 Retainer, r.h. 99
4812226900 Hood support
4812226900 Hood support 100
4812225685 Hood support 101
4812226906 Intermediate section
4812226906 Intermediate section 102
4812225631 Intermediate section 103
4812226899 Air guide, r.h.
4812226899 Air guide, r.h., cpl. 104
4812034771 Air guide, r.h. 105
4812226902 Air guide, l.h.
4812226902 Air guide, l.h., cpl. 106
4812225640 Air guide, l.h. 107
4812225708 Door, l.h.
4812225708 Door, l.h. 108
4812226336 Door, l.h.
4812226336 Door, l.h. 109
4812041407 Support rod 110
4812225725 Door, r. h.
4812225725 Door, r.h. 111
4812041407 Support rod See page 110
4812226905 Iso- hood r.h.
4812226905 Iso- hood, r.h. 113
4812225715 Iso- hood r.h.
4812225715 Hood, r.h. 114
4812226907 Iso- hood l.h.
4812226907 Iso- hood, l.h. 116
4812225717 Iso- hood l.h.
4812225717 Hood, l.h. 117
4812226901 Covering center part, l.h.
4812226901 Covering center part, l.h. kpl. 119
4812225667 Covering center part, l.h. 120
4812226463 Disc frame
4812226463 Disc frame, cpl. 121
4812044596 Disc frame 122
4812229124 Thermo hopper, with dump plate
4812229124 Thermo hopper with bulk mat. flap 123
4812229110 Hopper, l.h.
4812229110 Hopper, l.h. 124
4812231436 Locking 125
4812229127 Hopper, r.h.
4812229127 Hopper, r.h. 126
4812231436 Locking See page 125
4812028563 Bulk material flap 128
4812229081 Thermo hopper, front hopper flap
4812229081 Hopper 129
4812229119 Hopper, l.h.
4812229119 Hopper, l.h. 130
4812231436 Locking See page 125
4812229126 Hopper, r.h.
4812229126 Hopper, r.h. 132
4812231436 Locking See page 125
4812226029 Front hopper, middle 134
4812226004 Front hopper, l.h. 135
4812226018 Front hopper, r.h. 136
4812027636 Hydraulic, front flap 137
Mechanical, Stage IV / Tier4f
4812016238 Main frame
4812016238 Main frame See page 60
4812028721 Side arm guiding See page 61
4812231639 Splash guard See page 62
4812036083 Steering guide See page 63
4812232118 Extension See page 64
4812027553A Side screed arms, hydr. locked
4812027553A Gr.06 Side screed arms, hydr. locked See page 65
4812029165 Side screed arm, l.h.
4812029165 Side screed arm, l.h. See page 67
Side bar guiding
4812232214 Side arm guiding See page 70
4720000097 Side arm guiding See page 71
4812029197 Side screed arm, r.h.
4812029197 Side screed arm, r.h. See page 72
Side bar guiding
4812232214 Side arm guiding See page 70
4720000097 Side arm guiding See page 71
4812029191 Locking, hydraulic
4812029191 Locking, hydraulic See page 75
4812027609 Hydraulic
4812027609 Hydraulic See page 76
4812033247 Control block See page 77
4812030492A Push roller, hydraulic
4812030492A Gr.03 Push roller, hydraulic See page 78
4812075204 Renewal kt, push roller See page 80
4812046568 Pillow block See page 81
4812027642 Hydraulic, push roller
4812027642 Hydraulic, push roller See page 82
4812215454 Valve block See page 84
4812029125 Valve block See page 85
4812033247 Control block See page 77
4812008403 Covering, isolated T4F
4812008403 Covering, isolated T4F (2016) 145
4812227088 Engine hood, l.h. T4F 149
4812227087 Hood T4F 150
4812227095 Engine hood, r.h. T4F 152
4812227094 Engine hood r.h. 153
4812227092 Intermediate section 155
4812227091 Intermediate section 156
4812200656 Bulk head 157
4812228154 Hood support 158
4812225657 Air guide, rear See page 92
4812225682 Retainer See page 94
4812225689 Cover See page 95
4812233556 Covering center part, r.h. See page 96
4812008405 Carrier 159
4812009008 Isolation See page 97
4812226380 Retainer, l.h. See page 98
4812226135 Retainer, r.h. See page 99
4812225681 Support plate See page 93
4812226904 Cover, r.h., cpl. 160
4812226903 Cover, l.h., cpl. 161
4812226899 Air guide, r.h.
4812226899 Air guide, r.h., cpl. See page 104
4812034771 Air guide, r.h. See page 105
4812226902 Air guide, l.h.
4812226902 Air guide, l.h., cpl. See page 106
4812225640 Air guide, l.h. See page 107
4812225708 Door, l.h.
4812225708 Door, l.h. See page 108
4812226336 Door, l.h.
4812226336 Door, l.h. See page 109
4812041407 Support rod See page 110
4812225725 Door, r. h.
4812225725 Door, r.h. See page 111
4812041407 Support rod See page 110
4812226901 Covering center part, l.h.
4812226901 Covering center part, l.h. kpl. See page 119
4812225667 Covering center part, l.h. See page 120
4812226463 Disc frame
4812226463 Disc frame, cpl. See page 121
4812044596 Disc frame See page 122
4812229081 Thermo hopper, front hopper flap
4812229081 Hopper See page 129
4812229119 Hopper, l.h.
4812229119 Hopper, l.h. See page 130
4812231436 Locking See page 125
4812229126 Hopper, r.h.
4812229126 Hopper, r.h. See page 132
4812231436 Locking See page 125
4812226029 Front hopper, middle See page 134
4812226004 Front hopper, l.h. See page 135
4812226018 Front hopper, r.h. See page 136
4812027636 Hydraulic, front flap See page 137
Operator platform
4812017477 Platform V5.1, movable, roof
4812017477 Platform V5.1, movable, roof 170
4812017298 Platform
4812017298 Platform 172
4812017444 Platform
4812017444 Platform 173
4812011095 Harness W14 175
4812227769 Bottom plate, middle 179
4812005148 Base plate 180
4812225524 Crash protection, r.h. 181
4812225523 Crash protection, l.h. 182
4812006340 Sheet tub 183
4812009877 Cover 184
4812007101 Fold away step r.h. 185
4812009765A Cover
4812009765A Cover 187
4812226903 Cover, l.h.
4812226903 Cover, l.h., cpl. See page 161
4812226815 Cover, l.h. 188
4812226904 Cover, r.h.
4812226904 Cover, r.h., cpl. See page 160
4812225707 Cover, r.h. 190
4812007102 Fold away step l.h. 192
4812008979 Guide platform
4812008979 Guide platform 194
4812008980 Retainer 195
4812008045 Guide
4812008045 Guide, front 196
4812008054 Guide tube 197
4812008046 Guide profile l.h. 198
4812008047 Guide profile r.h. 199
4812006436 Guide
4812006436 Guide, back 200
4812047665 Security rail 201
4812226122 Roof
4812226122 Roof 202
4812225528 Roof frame rear 203
4812225474 Roof frame front 204
4812225624 GRP – roof frame 205
4812005850 Crash protection 207
4812226856 Crash protection front 208
4812227773 Roof hydraulic
4812227773 Roof hydraulic 209
4812043525 Hydr. roof adjustment 210
4812027610 Hydraulic, operation platform
4812027610 Hydraulic, operation platform 211
4812033247 Control block See page 77
4812017300 Operator board
4812017300 Operator board 213
4812227100 Clamping lever
4812227100 Clamping lever 215
4812228437 Telescopic pipe set 217
4812005193 Console 218
4812007259 Stop bolt 220
4812017478 Platform V5.1, movable, house
4812017478 Platform V5.1, movable, house 221
4812017298 Platform
4812017298 Platform See page 172
4812017444 Platform
4812017444 Platform See page 173
4812227769 Bottom plate, middle See page 179
4812005148 Base plate See page 180
4812225524 Crash protection, r.h. See page 181
4812225523 Crash protection, l.h. See page 182
4812006340 Sheet tub See page 183
4812009877 Cover See page 184
4812007101 Fold away step r.h. See page 185
4812009765A Cover
4812009765A Cover See page 187
4812226903 Cover, l.h.
4812226903 Cover, l.h., cpl. See page 161
4812226815 Cover, l.h. See page 188
4812226904 Cover, r.h.
4812226904 Cover, r.h., cpl. See page 160
4812225707 Cover, r.h. See page 190
4812007102 Fold away step l.h. See page 192
4812008979 Guide platform
4812008979 Guide platform See page 194
4812008980 Retainer See page 195
4812008045 Guide
4812008045 Guide, front See page 196
4812008054 Guide tube See page 197
4812008046 Guide profile l.h. See page 198
4812008047 Guide profile r.h. See page 199
4812006436 Guide
4812006436 Guide, back See page 200
4812047665 Security rail See page 201
4812009800 Weather protection house cpl.
4812009800 Weather protection house cpl. 228
4812225610 Weather protection house
4812225610 Weather protecting shed 229
4812007166 Safety lock 230
4812225443 Pane frame 231
4812225592 Front pane 233
4812225606 Windows, l.h. 234
4812225607 Windows, r.h. 236
4812226117 Side window 238
4812227724 Safety lock 239
4812006426 Water tank 240
4812229165 Wiper system 241
4812226122 Roof
4812226122 Roof See page 202
4812225528 Roof frame rear See page 203
4812225474 Roof frame front See page 204
4812225624 GRP – roof frame See page 205
4812005850 Crash protection See page 207
4812226856 Crash protection front See page 208
4812227773 Roof hydraulic
4812227773 Roof hydraulic See page 209
4812043525 Hydr. roof adjustment See page 210
4812027610 Hydraulic, operation platform
4812027610 Hydraulic, operation platform See page 211
4812033247 Control block See page 77
4812017300 Operator board
4812017300 Operator board See page 213
4812227100 Clamping lever
4812227100 Clamping lever See page 215
4812228437 Telescopic pipe set See page 217
4812005193 Console See page 218
4812007259 Stop bolt See page 220
4812019276 Platform, V5.1, moveable, house – Noise protection
4812019276 Platform, V5.1, moveable, house 246
4812017298 Platform
4812017298 Platform See page 172
4812017444 Platform
4812017444 Platform See page 173
4812227769 Bottom plate, middle See page 179
4812005148 Base plate See page 180
4812225524 Crash protection, r.h. See page 181
4812225523 Crash protection, l.h. See page 182
4812006340 Sheet tub See page 183
4812009765A Cover
4812009765A Cover See page 187
4812226903 Cover, l.h.
4812226903 Cover, l.h., cpl. See page 161
4812226815 Cover, l.h. See page 188
4812226904 Cover, r.h.
4812226904 Cover, r.h., cpl. See page 160
4812225707 Cover, r.h. See page 190
4812008979 Guide platform
4812008979 Guide platform See page 194
4812008980 Retainer See page 195
4812008045 Guide
4812008045 Guide, front See page 196
4812008054 Guide tube See page 197
4812008046 Guide profile l.h. See page 198
4812008047 Guide profile r.h. See page 199
4812006436 Guide
4812006436 Guide, back See page 200
4812047665 Security rail See page 201
4812018369 Weather protection house cpl.
4812018369 Weather protection house cpl. 253
4812018363 Umbrella roof
4812018363 Umbrella roof 254
4812225528 Roof frame rear See page 203
4812225474 Roof frame front See page 204
4812018364 GFK-roof frame
4812018364 GFK-roof frame 255
4812017852 Weather roof 256
4812227773 Roof hydraulic
4812227773 Roof hydraulic See page 209
4812043525 Hydr. roof adjustment See page 210
4812005850 Crash protection See page 207
4812226856 Crash protection front See page 208
4812229224 Locking 258
4812225610 Weather protection house
4812225610 Weather protecting shed See page 229
4812007166 Safety lock See page 230
4812225443 Pane frame See page 231
4812225592 Front pane See page 233
4812225606 Windows, l.h. See page 234
4812225607 Windows, r.h. See page 236
4812226117 Side window See page 238
4812006426 Water tank See page 240
4812229165 Wiper system See page 241
4812027610 Hydraulic, operation platform
4812027610 Hydraulic, operation platform See page 211
4812033247 Control block See page 77
4812017300 Operator board
4812017300 Operator board See page 213
4812227100 Clamping lever
4812227100 Clamping lever See page 215
4812228437 Telescopic pipe set See page 217
4812005193 Console See page 218
4812007259 Stop bolt See page 220
4812009877 Cover See page 184
4812007101 Fold away step r.h. See page 185
4812007102 Fold away step l.h. See page 192
4812225922 Ascension f. Varioscreed, for s/n 0G001606, 1621, ff
4812225922 Ascent VB cpl. 265
4812225923 Ascent, middle 266
4812225926 Ascent, l.h. 268
4812225928 Ascent r. h. 270
4812230390 Ascension f. Varioscreed Tier4 f, for s/n 0G001606, 1621, ff
4812230390 Ascent 272
4812225923 Ascent, middle See page 266
4812225926 Ascent, l.h. See page 268
4812230307 Ascent r.h. 273
4812226942 Ascension f. R-Screed, for s/n GG001931, ff
4812226942 Ascension f. R-Screed 276
4812226950 Ascent, middle 277
4812225926 Ascent, l.h. See page 268
4812225928 Ascent r. h. See page 270
4812230383 Ascension f. R-Screed Tier4 f
4812230383 Ascent 279
4812230307 Ascent r.h. See page 273
4812225926 Ascent, l.h. See page 268
4812226950 Ascent, middle See page 277
Engine Stage IIIa / Tier3
4812013345 Drive Stage IIIa / TIER 3
4812013345 Drive TIER 3 281
4812236353 Engine 282
4812010983 Combined cooler / air filter
4812010983 Combined cooler / air filter 283
4812019655 Expansion tank 288
4812010984 Combined cooler
4812010984 Combined cooler 289
4812008735 Combined cooler 290
4812028928A Fuel tank
4812028928A Fuel tank 291
4812237353 Fuel tank 293
4812225145 Fuel tank 294
D977436121 Ground strap 295
4812030294 Attaching parts 296
4812030230 Muffler 299
4812030290 Fuel system 300
4812046937A Engine support 301
4812037845 End pipe / rotary feedthrough
4812037845 End pipe / rotary feedthrough 302
4812037585 Joint rod 303
4812009667 Cable W12 304
Service parts 307
4812023352 Oil drain 309
4812039759 Split gear
4812039759 Gr.08 Split gear 310
4812038966 Split gear 311
4812009405 Split gear 313
4812009002 Engine clutch 315
4812037689 Gear oil drain 316
Split gear box
Gr.08 Split gear box 317
4812026128 Pump 320
4812031533 Adjustable pump 321
4812026146 Pump 322
4812026131 Pump 323
4812018516 Pump 324
Engine Stage IIIb / Tier4i
4812032787A Drive Stage IIIb / TIER 4i (2016)
4812032787A Drive TIER 4i (2016) 325
4812026135 Engine 326
4812046061 Combined cooler / air filter
4812046061 Combined cooler / air filter 327
4812018770 Retainer, air filter 332
4812233891 Cover 333
4812038352 Combined cooler 334
4812028928A Fuel tank
4812028928A Fuel tank See page 291
4812237353 Fuel tank See page 293
4812225145 Fuel tank See page 294
D977436121 Ground strap See page 295
4812008985 Attaching parts 336
4812030356 Muffler
4812030356 Muffler 338
4812041871 Particle filter 339
4812032010 Fuel system 340
4812046937 Engine support 341
4812037845 End pipe / rotary feedthrough
4812037845 End pipe / rotary feedthrough See page 302
4812037585 Joint rod See page 303
4812033156 Electric parts Tier 4
4812033156 Electric parts Tier 4 343
4812005953 Cable W12 344
4812009668 Cable W12 347
4812046340 Electric / heating
4812046340 Electric / heating 351
4812009670 Cable W50 352
Service parts
Service parts 353
4812041871 Particle filter See page 339
4812023352 Oil drain See page 309
4812039759 Split gear
4812039759 Gr.08 Split gear See page 310
4812038966 Split gear See page 311
4812009405 Split gear See page 313
4812009002 Engine clutch See page 315
4812037689 Gear oil drain See page 316
Split gear box
Gr.08 Split gear box See page 317
4812026128 Pump See page 320
4812031533 Adjustable pump See page 321
4812026146 Pump See page 322
4812026131 Pump See page 323
4812018516 Pump See page 324
Engine Stage IV / Tier4f
4812011981 Drive Stage IV / Tier 4f
4812011981 Gr.07 Drive TIER 4f 359
4812201254 DEF system 361
4812012388 Engine 363
4812007376 Combined cooler / air filter
4812007376 Combined cooler / air filter 364
4812012121 Expansion tank 368
4812012430 Air filter cpl. 369
4812010984 Combined cooler
4812010984 Combined cooler See page 289
4812008735 Combined cooler See page 290
4812028928A Fuel tank
4812028928A Fuel tank See page 291
4812237353 Fuel tank See page 293
4812225145 Fuel tank See page 294
D977436121 Ground strap See page 295
4812008985 Attaching parts See page 336
4812227713 Exhaust system
4812227713 Exhaust system 372
4812012859 Aftertreatment kit 374
4812037585 Joint rod See page 303
4812032010 Fuel system See page 340
4812046937A Engine support See page 301
4812228134 DEF- System
4812228134 DEF System 376
4812073327 Conversion kit 378
4812018047 Supply module 379
4812011244 DEF Tank 380
4812201236 Tank, from G003056 ff. 381
4812231234 Cooler hose 382
4812231235 Cooler hose 383
4812013884 Exhaust pipe 384
4812008627 Electric parts Tier 4F
4812008627 Electric parts Tier 4F 385
4812009408 Cable W61 386
4812009398 Terminal box 388
4812009476 Terminal box 389
4812008626 Cable W62 390
4812046340 Electric / heating
4812046340 Electric / heating See page 351
4812009670 Cable W50 See page 352
Service parts
4812012397 Service Parts 398
4812023352 Oil drain See page 309
4812039759 Split gear
4812039759 Gr.08 Split gear See page 310
4812038966 Split gear See page 311
4812009405 Split gear See page 313
4812009002 Engine clutch See page 315
4812037689 Gear oil drain See page 316
Split gear box
Gr.08 Split gear box See page 317
4812018516 Pump See page 324
4812026128 Pump See page 320
4812031533 Adjustable pump See page 321
4812026146 Pump See page 322
4812026131 Pump See page 323
Drive
4812043031A Track group
4812043031A Track group 403
4812043024A Track group, long, r.h.
4812043024A Track group, long, r.h. 404
4812071800 Pressure gauge Kit 406
4812043052 Track roller, big 407
Track roller, small 408
4812043886 Track drive
4812043886 Track drive 409
4812027194 Drive gear box
4812027194 Drive gear box 410
4812035017 Drive gear box 411
4812043901 Track chain
4812043901 Track chain 412
4812238821 Track chain 413
4812035551 Wear part kit rubber plates See page 15
4812075149 Wear part kit, track roller See page 16
4812043025A Track group, long, l.h.
4812043025A Track group, long, l.h. 415
4812071800 Pressure gauge Kit See page 406
4812043052 Track roller, big See page 407
Track roller, small See page 408
4812043886 Track drive
4812043886 Track drive See page 409
4812027194 Drive gear box
4812027194 Drive gear box See page 410
4812035017 Drive gear box See page 411
4812043901 Track chain
4812043901 Track chain See page 412
4812238821 Track chain See page 413
4812035551 Wear part kit rubber plates See page 15
4812075149 Wear part kit, track roller See page 16
4812044050 Track group support 419
4812043329 Track cleaner, cpl.
4812043329 Track cleaner, cpl. 421
4812043340 Track cleaner 422
4812043349 Locking laver 423
Conveyor
4812229373 Conveyor 424
4812229373 Conveyor long, double bars, PLC
Conveyor drive
4812201317 Conveyor drive 425
4812027438A Conveyor drive 427
4812031231 Conveyor motor
4812031231 Conveyor motor 429
4812026817 Conveyor turn
4812026817 Conveyor turn 430
4812026815 Tensioner
4812026815 Tensioner 432
4812016245 Conveyor limit switch PLC cpl.
4812016245 Conveyor limit switch PLC cpl. 433
Conveyor limit switch, l.h.
4812014298 Conveyor limit switch PLC, l.h. 434
4812024837 Conveyor limit switch PLC, l.h. 436
Conveyor limit switch, r.h.
4812014299 Conveyor limit switch PLC, r.h. 438
4812024838 Conveyor limit switch PLC, r.h. 440
4812028516 Wear part kit conveyor chain
4812028516 Wear part kit conveyor chain See page 8
D635060800A Chain guide
D635060800A Chain guide 443
Auger
4812233027 Auger Ø430mm, 2.50m
4812233027 Auger Ø430mm, 2.50m 444
4812233022 Auger, basic width 430
4812233022 Auger, basic width 430 445
4812232996 Auger box
4812232996 Auger box 446
4812026736 Outer support 448
4812016497 Auger support 450
4812232097 Mounting parts 452
4812027733 Wear part kit auger wing Ø430mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812032831 Protection cover 453
4812075192 Renewal kit II, auger drive See page 5
4812045075 Auger gear 454
4812233031 Auger Ø430mm, 3.14m
4812233031 Auger Ø430mm, 3.14m 456
4812233022 Auger, basic width 430
4812233022 Auger, basic width 430 See page 445
4812232996 Auger box
4812232996 Auger box See page 446
4812026736 Outer support See page 448
4812016497 Auger support See page 450
4812232097 Mounting parts See page 452
4812027733 Wear part kit auger wing Ø430mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812032831 Protection cover See page 453
4812075192 Renewal kit II, auger drive See page 5
4812045075 Auger gear See page 454
4812047162 Extension part f. auger Ø430mm
4812047162 Extension part f. auger Ø430mm 458
4812031953 Auger Ø430mm, 3,14m
4812031953 Auger Ø430mm, 3,14m 459
4812030995 Auger extension, l.h. L: 320mm 460
4812028794 Material tunnel, cpl. L:320mm 461
4812030997 Auger extension, r.h. L: 320mm 462
4812032804 Protection cover L:320 mm 463
4812233035 Auger Ø430mm, 3.78m
4812233035 Auger Ø430mm, 3.78m 464
4812233022 Auger, basic width 430
4812233022 Auger, basic width 430 See page 445
4812232996 Auger box
4812232996 Auger box See page 446
4812026736 Outer support See page 448
4812016497 Auger support See page 450
4812232097 Mounting parts See page 452
4812027733 Wear part kit auger wing Ø430mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812032831 Protection cover See page 453
4812075192 Renewal kit II, auger drive See page 5
4812045075 Auger gear See page 454
4812047190 Extension part f. auger Ø430mm
4812047190 Extension part f. auger Ø430mm 466
4812032281 Auger Ø430mm, 3,78m
4812032281 Auger Ø430mm, 3,78m 467
4812028792 Material tunnel, cpl. L:640mm 468
4812030998 Auger extension, l.h. L: 640mm 469
4812031000 Auger extension, r.h. L: 640mm 470
4812032289 End support, plate
4812032289 End support, plate 471
D439082200 End support 472
4812032803 Protection cover L:640mm 474
4812032499 additional Extension parts
4812032499 additional Extension parts 475
4812028794 Material tunnel, cpl. L:320mm See page 461
4812030997 Auger extension, r.h. L: 320mm See page 462
4812030995 Auger extension, l.h. L: 320mm See page 460
4812032804 Protection cover L:320 mm See page 463
4812233039 Auger Ø430mm, 4.42m
4812233039 Auger Ø430mm, 4.42m 477
4812233022 Auger, basic width 430
4812233022 Auger, basic width 430 See page 445
4812232996 Auger box
4812232996 Auger box See page 446
4812026736 Outer support See page 448
4812016497 Auger support See page 450
4812232097 Mounting parts See page 452
4812027733 Wear part kit auger wing Ø430mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812032831 Protection cover See page 453
4812075192 Renewal kit II, auger drive See page 5
4812045075 Auger gear See page 454
4812047193 Extension part f. auger Ø430mm
4812047193 Extension part f. auger Ø430mm 479
4812032357 Auger Ø430mm, 4,42m
4812032357 Auger Ø430mm, 4,42m 480
4812030995 Auger extension, l.h. L: 320mm See page 460
4812028794 Material tunnel, cpl. L:320mm See page 461
4812030997 Auger extension, r.h. L: 320mm See page 462
4812028792 Material tunnel, cpl. L:640mm See page 468
4812030998 Auger extension, l.h. L: 640mm See page 469
4812031000 Auger extension, r.h. L: 640mm See page 470
4812032289 End support, plate
4812032289 End support, plate See page 471
D439082200 End support See page 472
4812032803 Protection cover L:640mm See page 474
4812032804 Protection cover L:320 mm See page 463
4812233043 Auger Ø430mm, 5.06m
4812233043 Auger Ø430mm, 5.06m 482
4812233022 Auger, basic width 430
4812233022 Auger, basic width 430 See page 445
4812232996 Auger box
4812232996 Auger box See page 446
4812026736 Outer support See page 448
4812016497 Auger support See page 450
4812232097 Mounting parts See page 452
4812027733 Wear part kit auger wing Ø430mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812032831 Protection cover See page 453
4812075192 Renewal kit II, auger drive See page 5
4812045075 Auger gear See page 454
4812047196 Extension part f. auger Ø430mm
4812047196 Extension part f. auger Ø430mm 484
4812032363 Auger Ø430mm, 5,06m
4812032363 Auger Ø430mm, 5,06m 485
4812030995 Auger extension, l.h. L: 320mm See page 460
4812028794 Material tunnel, cpl. L:320mm See page 461
4812030997 Auger extension, r.h. L: 320mm See page 462
4812032289 End support, plate
4812032289 End support, plate See page 471
D439082200 End support See page 472
4812030927 Material tunnel, cpl. L:960mm 486
4812031011 Auger extension, r.h. L: 960mm 488
4812031010 Auger extension, l.h. L: 960mm 489
4812032802 Protection cover L:960 mm 490
4812032804 Protection cover L:320 mm See page 463
4812032500 additional Extension parts
4812032500 additional Extension parts 492
4812028792 Material tunnel, cpl. L:640mm See page 468
4812031000 Auger extension, r.h. L: 640mm See page 470
4812030998 Auger extension, l.h. L: 640mm See page 469
4812032803 Protection cover L:640mm See page 474
4812233047 Auger Ø430mm, 5.70m
4812233047 Auger Ø430mm, 5.70m 494
4812233022 Auger, basic width 430
4812233022 Auger, basic width 430 See page 445
4812232996 Auger box
4812232996 Auger box See page 446
4812026736 Outer support See page 448
4812016497 Auger support See page 450
4812232097 Mounting parts See page 452
4812027733 Wear part kit auger wing Ø430mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812032831 Protection cover See page 453
4812075192 Renewal kit II, auger drive See page 5
4812045075 Auger gear See page 454
4812047199 Extension part f. auger Ø430mm
4812047199 Extension part f. auger Ø430mm 496
4812032383 Auger Ø430mm, 5,70m
4812032383 Auger Ø430mm, 5,70m 497
4812028792 Material tunnel, cpl. L:640mm See page 468
4812032289 End support, plate
4812032289 End support, plate See page 471
D439082200 End support See page 472
4812030927 Material tunnel, cpl. L:960mm See page 486
4812031010 Auger extension, l.h. L: 960mm See page 489
4812030998 Auger extension, l.h. L: 640mm See page 469
4812031000 Auger extension, r.h. L: 640mm See page 470
4812031011 Auger extension, r.h. L: 960mm See page 488
4812032802 Protection cover L:960 mm See page 490
4812032803 Protection cover L:640mm See page 474
4812032499 additional Extension parts
4812032499 additional Extension parts See page 475
4812028794 Material tunnel, cpl. L:320mm See page 461
4812030997 Auger extension, r.h. L: 320mm See page 462
4812030995 Auger extension, l.h. L: 320mm See page 460
4812032804 Protection cover L:320 mm See page 463
4812233052 Auger Ø430mm, 6.34m
4812233052 Auger Ø430mm, 6.34m 500
4812233022 Auger, basic width 430
4812233022 Auger, basic width 430 See page 445
4812232996 Auger box
4812232996 Auger box See page 446
4812026736 Outer support See page 448
4812016497 Auger support See page 450
4812232097 Mounting parts See page 452
4812027733 Wear part kit auger wing Ø430mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812032831 Protection cover See page 453
4812075192 Renewal kit II, auger drive See page 5
4812045075 Auger gear See page 454
4812047204 Extension part f. auger Ø430mm
4812047204 Extension part f. auger Ø430mm 502
4812032399 Auger Ø430mm, 6,34m
4812032399 Auger Ø430mm, 6,34m 503
4812031010 Auger extension, l.h. L: 960mm See page 489
4812031011 Auger extension, r.h. L: 960mm See page 488
4812030998 Auger extension, l.h. L: 640mm See page 469
4812031000 Auger extension, r.h. L: 640mm See page 470
4812028782 Strut material duct, l.h. L:960mm 504
4812028787 Strut material duct, r.h. L:960mm 505
4812031804 Outer support
4812031804 Outer support 506
D438081200 End support 507
4812028789 Strut material duct L:960mm 509
4812032393 Auger wing Ø430mm, l.h. 510
4812032395 Auger wing Ø430mm, r.h. 511
4812032802 Protection cover L:960 mm See page 490
4812029259 Brace
4812029259 Brace 512
Cross struts
4812028882 Cross struts 515
4812201937 Cross struts 516
4812032504 additional Extension parts
4812032504 additional Extension parts 518
4812028792 Material tunnel, cpl. L:640mm See page 468
4812030995 Auger extension, l.h. L: 320mm See page 460
4812028794 Material tunnel, cpl. L:320mm See page 461
4812032289 End support, plate
4812032289 End support, plate See page 471
D439082200 End support See page 472
4812030997 Auger extension, r.h. L: 320mm See page 462
4812032803 Protection cover L:640mm See page 474
4812032804 Protection cover L:320 mm See page 463
4812233057 Auger Ø430mm, 6.98m
4812233057 Auger Ø430mm, 6.98m 520
4812233022 Auger, basic width 430
4812233022 Auger, basic width 430 See page 445
4812232996 Auger box
4812232996 Auger box See page 446
4812026736 Outer support See page 448
4812016497 Auger support See page 450
4812232097 Mounting parts See page 452
4812027733 Wear part kit auger wing Ø430mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812032831 Protection cover See page 453
4812075192 Renewal kit II, auger drive See page 5
4812045075 Auger gear See page 454
4812047208 Extension part f. auger Ø430mm
4812047208 Extension part f. auger Ø430mm 522
4812032410 Auger Ø430mm, 6,98m
4812032410 Auger Ø430mm, 6,98m 523
4812031010 Auger extension, l.h. L: 960mm See page 489
4812031011 Auger extension, r.h. L: 960mm See page 488
4812030998 Auger extension, l.h. L: 640mm See page 469
4812031000 Auger extension, r.h. L: 640mm See page 470
4812028782 Strut material duct, l.h. L:960mm See page 504
4812028787 Strut material duct, r.h. L:960mm See page 505
4812031804 Outer support
4812031804 Outer support See page 506
D438081200 End support See page 507
4812028789 Strut material duct L:960mm See page 509
4812032393 Auger wing Ø430mm, l.h. See page 510
4812032395 Auger wing Ø430mm, r.h. See page 511
4812028794 Material tunnel, cpl. L:320mm See page 461
4812030995 Auger extension, l.h. L: 320mm See page 460
4812030997 Auger extension, r.h. L: 320mm See page 462
4812032804 Protection cover L:320 mm See page 463
4812032802 Protection cover L:960 mm See page 490
4812029259 Brace
4812029259 Brace See page 512
Cross struts
4812028882 Cross struts See page 515
4812201937 Cross struts See page 516
4812032502 additional Extension parts
4812032502 additional Extension parts 528
4812028792 Material tunnel, cpl. L:640mm See page 468
4812032289 End support, plate
4812032289 End support, plate See page 471
D439082200 End support See page 472
4812032803 Protection cover L:640mm See page 474
4812233062 Auger Ø430mm, 7.62m
4812233062 Auger Ø430mm, 7.62m 530
4812233022 Auger, basic width 430
4812233022 Auger, basic width 430 See page 445
4812232996 Auger box
4812232996 Auger box See page 446
4812026736 Outer support See page 448
4812016497 Auger support See page 450
4812232097 Mounting parts See page 452
4812027733 Wear part kit auger wing Ø430mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812032831 Protection cover See page 453
4812075192 Renewal kit II, auger drive See page 5
4812045075 Auger gear See page 454
4812047212 Extension part f. auger Ø430mm
4812047212 Extension part f. auger Ø430mm 532
4812032413 Auger Ø430mm, 7,62m
4812032413 Auger Ø430mm, 7,62m 533
4812031010 Auger extension, l.h. L: 960mm See page 489
4812031011 Auger extension, r.h. L: 960mm See page 488
4812030998 Auger extension, l.h. L: 640mm See page 469
4812031000 Auger extension, r.h. L: 640mm See page 470
4812028782 Strut material duct, l.h. L:960mm See page 504
4812028787 Strut material duct, r.h. L:960mm See page 505
4812031804 Outer support
4812031804 Outer support See page 506
D438081200 End support See page 507
4812028789 Strut material duct L:960mm See page 509
4812032393 Auger wing Ø430mm, l.h. See page 510
4812032395 Auger wing Ø430mm, r.h. See page 511
4812028792 Material tunnel, cpl. L:640mm See page 468
4812032289 End support, plate
4812032289 End support, plate See page 471
D439082200 End support See page 472
4812032802 Protection cover L:960 mm See page 490
4812032803 Protection cover L:640mm See page 474
4812032499 additional Extension parts
4812032499 additional Extension parts See page 475
4812028794 Material tunnel, cpl. L:320mm See page 461
4812030997 Auger extension, r.h. L: 320mm See page 462
4812030995 Auger extension, l.h. L: 320mm See page 460
4812032804 Protection cover L:320 mm See page 463
4812233067 Auger Ø430mm, 8.26m
4812233067 Auger Ø430mm, 8.26m 538
4812233022 Auger, basic width 430
4812233022 Auger, basic width 430 See page 445
4812232996 Auger box
4812232996 Auger box See page 446
4812026736 Outer support See page 448
4812016497 Auger support See page 450
4812232097 Mounting parts See page 452
4812027733 Wear part kit auger wing Ø430mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812032831 Protection cover See page 453
4812075192 Renewal kit II, auger drive See page 5
4812045075 Auger gear See page 454
4812047215 Extension part f. auger Ø430mm
4812047215 Extension part f. auger Ø430mm 540
4812032419 Auger Ø430mm, 8,26m
4812032419 Auger Ø430mm, 8,26m 541
4812031010 Auger extension, l.h. L: 960mm See page 489
4812031011 Auger extension, r.h. L: 960mm See page 488
4812030998 Auger extension, l.h. L: 640mm See page 469
4812031000 Auger extension, r.h. L: 640mm See page 470
4812028782 Strut material duct, l.h. L:960mm See page 504
4812028787 Strut material duct, r.h. L:960mm See page 505
4812031804 Outer support
4812031804 Outer support See page 506
D438081200 End support See page 507
4812028789 Strut material duct L:960mm See page 509
4812032393 Auger wing Ø430mm, l.h. See page 510
4812032395 Auger wing Ø430mm, r.h. See page 511
4812028792 Material tunnel, cpl. L:640mm See page 468
4812032289 End support, plate
4812032289 End support, plate See page 471
D439082200 End support See page 472
4812028794 Material tunnel, cpl. L:320mm See page 461
4812030997 Auger extension, r.h. L: 320mm See page 462
4812030995 Auger extension, l.h. L: 320mm See page 460
4812032802 Protection cover L:960 mm See page 490
4812032803 Protection cover L:640mm See page 474
4812032804 Protection cover L:320 mm See page 463
4812029259 Brace
4812029259 Brace See page 512
Cross struts
4812028882 Cross struts See page 515
4812201937 Cross struts See page 516
4812233070 Auger Ø430mm, 8.90m
4812233070 Auger Ø430mm, 8.90m 547
4812233022 Auger, basic width 430
4812233022 Auger, basic width 430 See page 445
4812232996 Auger box
4812232996 Auger box See page 446
4812026736 Outer support See page 448
4812016497 Auger support See page 450
4812232097 Mounting parts See page 452
4812027733 Wear part kit auger wing Ø430mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812032831 Protection cover See page 453
4812075192 Renewal kit II, auger drive See page 5
4812045075 Auger gear See page 454
4812047218 Extension part f. auger Ø430mm
4812047218 Extension part f. auger Ø430mm 549
4812032430 Auger Ø430mm, 8,90m
4812032430 Auger Ø430mm, 8,90m 550
4812031010 Auger extension, l.h. L: 960mm See page 489
4812031011 Auger extension, r.h. L: 960mm See page 488
4812030998 Auger extension, l.h. L: 640mm See page 469
4812031000 Auger extension, r.h. L: 640mm See page 470
4812028782 Strut material duct, l.h. L:960mm See page 504
4812028787 Strut material duct, r.h. L:960mm See page 505
4812031804 Outer support
4812031804 Outer support See page 506
D438081200 End support See page 507
4812028789 Strut material duct L:960mm See page 509
4812032393 Auger wing Ø430mm, l.h. See page 510
4812032395 Auger wing Ø430mm, r.h. See page 511
4812028792 Material tunnel, cpl. L:640mm See page 468
4812032289 End support, plate
4812032289 End support, plate See page 471
D439082200 End support See page 472
4812032803 Protection cover L:640mm See page 474
4812032802 Protection cover L:960 mm See page 490
4812029259 Brace
4812029259 Brace See page 512
Cross struts
4812028882 Cross struts See page 515
4812201937 Cross struts See page 516
4812032499 additional Extension parts
4812032499 additional Extension parts See page 475
4812028794 Material tunnel, cpl. L:320mm See page 461
4812030997 Auger extension, r.h. L: 320mm See page 462
4812030995 Auger extension, l.h. L: 320mm See page 460
4812032804 Protection cover L:320 mm See page 463
4812233072 Auger Ø430mm, 9.54m
4812233072 Auger Ø430mm, 9.54m 557
4812233022 Auger, basic width 430
4812233022 Auger, basic width 430 See page 445
4812232996 Auger box
4812232996 Auger box See page 446
4812026736 Outer support See page 448
4812016497 Auger support See page 450
4812232097 Mounting parts See page 452
4812027733 Wear part kit auger wing Ø430mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812032831 Protection cover See page 453
4812075192 Renewal kit II, auger drive See page 5
4812045075 Auger gear See page 454
4812047220 Extension part f. auger Ø430mm
4812047220 Extension part f. auger Ø430mm 559
4812032435 Auger Ø430mm, 9,54m
4812032435 Auger Ø430mm, 9,54m 560
4812031010 Auger extension, l.h. L: 960mm See page 489
4812031011 Auger extension, r.h. L: 960mm See page 488
4812030998 Auger extension, l.h. L: 640mm See page 469
4812031000 Auger extension, r.h. L: 640mm See page 470
4812028782 Strut material duct, l.h. L:960mm See page 504
4812028787 Strut material duct, r.h. L:960mm See page 505
4812031804 Outer support
4812031804 Outer support See page 506
D438081200 End support See page 507
4812028789 Strut material duct L:960mm See page 509
4812032393 Auger wing Ø430mm, l.h. See page 510
4812032395 Auger wing Ø430mm, r.h. See page 511
4812028792 Material tunnel, cpl. L:640mm See page 468
4812032289 End support, plate
4812032289 End support, plate See page 471
D439082200 End support See page 472
4812030927 Material tunnel, cpl. L:960mm See page 486
4812032803 Protection cover L:640mm See page 474
4812032802 Protection cover L:960 mm See page 490
4812029259 Brace
4812029259 Brace See page 512
Cross struts
4812028882 Cross struts See page 515
4812201937 Cross struts See page 516
4812032499 additional Extension parts
4812032499 additional Extension parts See page 475
4812028794 Material tunnel, cpl. L:320mm See page 461
4812030997 Auger extension, r.h. L: 320mm See page 462
4812030995 Auger extension, l.h. L: 320mm See page 460
4812032804 Protection cover L:320 mm See page 463
4812233074 Auger Ø430mm, 10.18m
4812233074 Auger Ø430mm, 10.18m 567
4812233022 Auger, basic width 430
4812233022 Auger, basic width 430 See page 445
4812232996 Auger box
4812232996 Auger box See page 446
4812026736 Outer support See page 448
4812016497 Auger support See page 450
4812232097 Mounting parts See page 452
4812027733 Wear part kit auger wing Ø430mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812032831 Protection cover See page 453
4812075192 Renewal kit II, auger drive See page 5
4812045075 Auger gear See page 454
4812047222 Extension part f. auger Ø430mm
4812047222 Extension part f. auger Ø430mm 569
4812032437 Auger Ø430mm, 10,18m
4812032437 Auger Ø430mm, 10,18m 570
4812031010 Auger extension, l.h. L: 960mm See page 489
4812031011 Auger extension, r.h. L: 960mm See page 488
4812030998 Auger extension, l.h. L: 640mm See page 469
4812031000 Auger extension, r.h. L: 640mm See page 470
4812028782 Strut material duct, l.h. L:960mm See page 504
4812028787 Strut material duct, r.h. L:960mm See page 505
4812031804 Outer support
4812031804 Outer support See page 506
D438081200 End support See page 507
4812032472 Brace package wide
4812032472 Brace package wide 572
Cross struts
4812028882 Cross struts See page 515
4812201937 Cross struts See page 516
4812028789 Strut material duct L:960mm See page 509
4812032393 Auger wing Ø430mm, l.h. See page 510
4812032395 Auger wing Ø430mm, r.h. See page 511
4812030927 Material tunnel, cpl. L:960mm See page 486
4812032802 Protection cover L:960 mm See page 490
4812032504 additional Extension parts
4812032504 additional Extension parts See page 518
4812028792 Material tunnel, cpl. L:640mm See page 468
4812030995 Auger extension, l.h. L: 320mm See page 460
4812028794 Material tunnel, cpl. L:320mm See page 461
4812032289 End support, plate
4812032289 End support, plate See page 471
D439082200 End support See page 472
4812030997 Auger extension, r.h. L: 320mm See page 462
4812032803 Protection cover L:640mm See page 474
4812032804 Protection cover L:320 mm See page 463
4812233076 Auger Ø430mm, 10.82m
4812233076 Auger Ø430mm, 10.82m 579
4812233022 Auger, basic width 430
4812233022 Auger, basic width 430 See page 445
4812232996 Auger box
4812232996 Auger box See page 446
4812026736 Outer support See page 448
4812016497 Auger support See page 450
4812232097 Mounting parts See page 452
4812027733 Wear part kit auger wing Ø430mm See page 3
4812075191 Renewal kit I, auger drive See page 4
4812032831 Protection cover See page 453
4812075192 Renewal kit II, auger drive See page 5
4812045075 Auger gear See page 454
4812047224 Extension part f. auger Ø430mm
4812047224 Extension part f. auger Ø430mm 581
4812032439 Auger Ø430mm, 10,82m
4812032439 Auger Ø430mm, 10,82m 582
4812031010 Auger extension, l.h. L: 960mm See page 489
4812031011 Auger extension, r.h. L: 960mm See page 488
4812030998 Auger extension, l.h. L: 640mm See page 469
4812031000 Auger extension, r.h. L: 640mm See page 470
4812028782 Strut material duct, l.h. L:960mm See page 504
4812028787 Strut material duct, r.h. L:960mm See page 505
4812031804 Outer support
4812031804 Outer support See page 506
D438081200 End support See page 507
4812028789 Strut material duct L:960mm See page 509
4812032393 Auger wing Ø430mm, l.h. See page 510
4812032395 Auger wing Ø430mm, r.h. See page 511
4812030927 Material tunnel, cpl. L:960mm See page 486
4812028794 Material tunnel, cpl. L:320mm See page 461
4812030997 Auger extension, r.h. L: 320mm See page 462
4812030995 Auger extension, l.h. L: 320mm See page 460
4812032802 Protection cover L:960 mm See page 490
4812032804 Protection cover L:320 mm See page 463
4812032472 Brace package wide
4812032472 Brace package wide See page 572
Cross struts
4812028882 Cross struts See page 515
4812201937 Cross struts See page 516
4812032502 additional Extension parts
4812032502 additional Extension parts See page 528
4812028792 Material tunnel, cpl. L:640mm See page 468
4812032289 End support, plate
4812032289 End support, plate See page 471
D439082200 End support See page 472
4812032803 Protection cover L:640mm See page 474
Hydraulic system
4812007685 Hydraulic 588
4812007685 Hydraulic
4812027654 Hydraulic, drive system
4812027654 Hydraulic, drive system 590
4812026146 Pump See page 322
4812026522 Manual pump 593
4812026131 Pump See page 323
4812027654A Hydraulic, drive system
4812027654A Hydraulic, drive system 595
4812215465 Brakevalve 598
4812026146 Pump See page 322
4812026131 Pump See page 323
4812024410 Brakevalve 599
4812015999 Brakevalve 600
4812007687 Hydraulic, auger
4812007687 Hydraulic, auger 602
4812026128 Pump See page 320
4812007687A Hydraulic, auger
4812007687A Hydraulic, auger 605
4812018516 Pump See page 324
4812027656A Hydraulic, conveyor
4812027656A Hydraulic, conveyor 608
4812010974 Connecting plate, l.h. 611
4812010925 Connecting plate, r.h. 612
4812031533 Adjustable pump See page 321
4812007012 Control block 613
4812009815 Hydraulic, tamper/vibration – variable pump
4812009815 Hydraulic, tamper/vibration Verstell Pumpe/variable pump 615
4812009370 Pump 617
4812012393 Work hydraulic
4812012393 Hydrl. work hydraulic 618
4812044338 Filter 625
4812009368 Control block 626
4812041949 Control block 627
4812010621 Control block 628
4812010617 Control block 629
4812010615 Control block 630
4812010592 Control block 631
4812010588 Control block 632
4812044676 Add on kit 633
4812027659A Hydraulic, fan
4812027659A Hydraulic, fan 634
4812044338 Filter See page 625
4812007710 Hydraulic, fan
4812007710 Hydraulic, fan 637
4812044338 Filter See page 625
4812007692 Hydraulic tank, collector
4812007692 Hydraulic tank, collector 640
4812028192 Hydraulic tank, cpl.
4812028135 Return suction filter 642
4812028192 Hydraulic tank, cpl. 643
4812028192A Hydraulic tank, cpl. – from 0G001000, 1002, 1015 ff.
4812028192A Hydraulic tank, cpl. 645
4812028135 Return suction filter See page 642
4812225757 Hydraulic tank, cpl. – from 0G001278, 1279, 1282, 1284, 1285 ff.
4812225757 Hydraulic tank, cpl. 648
4812225231 Hydraulic tank 650
4812009435 Return suction filter 651
4812035052 Ganged valve support
4812035052 Ganged valve support 652
4812035032A Hose package screed 616 / 617
4812035032A Hose package screed 616 / 617 653
4812036460 Screed in / out 654
4812035034A Tamper / Vibration 655
4812037363A Hose package screed 616 / 617
4812037363A Hose package screed 616 / 617 657
4812036460 Screed in / out See page 654
4812037372 Hose package roof profile 616/617
4812037372 Hose package roof profile 616/617 659
4812007695 Hose package hydr. end plate 616/617
4812007695 Hose package hydr. end plate 616/617 660
4812007545 Hose package screed R300 Konstant / constant
4812007545 Hose package screed R300 Konstant / constant 661
4812036353A Screed in / out 662
4812007542 Tamper / Vibration Konstant / constant 663
4812007541 Hose package screed R300 Konstant / constant
4812007541 Hose package screed R300 Konstant / constant 665
4812007509 Screed in / out R300 VT 666
4812007542 Tamper / Vibration Konstant / constant See page 663
4812036309 Hose package screed R300 Verstell / variable
4812036309 Hose package screed R300 Verstell / variable 668
4812036353A Screed in / out See page 662
4812036364 Tamper / Vibration 669
4812007508 Hose package screed R300 Verstell / variable
4812007508 Hose package screed R300 Verstell / variable 672
4812007509 Screed in / out R300 VT See page 666
4812036364 Tamper / Vibration See page 669
Electric system
Electric
4812016488A Electronic installation 674
4812016192 Junction box
4812016192 Junction box 675
4812030191 Junction box 686
4812031400 Cable W23 687
4812016531 Harness W20 688
4812016219 Electric
4812016219 Electric 692
Control unit
4812016477A Control unit 699
4812016161 Control unit 700
4812016437 Harness W11 703
4812016676 Cable W73 708
4812012510 Add on kit hardlock 709
4812009474 Mounting set 710
4812012518 Add on kit hardlock 711
4812016489 Wiring
4812016489 Wiring 712
4812201348 Cable W2.1 714
4812201349 Cable W2.2 715
4812023316 Cable W80 716
4812023317 Cable W81 717
4812023318 Cable W82 718
4812201356 Cable W1.2 719
4812201355 Cable W1.1 720
4812029580 Cable W1 721
4812009669 Cable W2 722
4812011121 Cable W3 723
4812023314 Cable W3 724
4812011127 Cable W4 725
4812023315 Cable W4 726
4812029590 Cable W5 727
4812011128 Cable W6 728
4812011129 Cable W7 729
4812029594 Cable W8 730
4812029595 Cable W9 731
4812029596 Cable W10 732
4812029858 Cable harness W13 733
4812005977 Cable harness W14 735
4812029862 Cable harness W17 737
D977436121 Ground strap See page 295
4812009184 Cable harness W19 738
4812029971 Cable harness W23 741
4812009667 Cable W12 See page 304
4812007165 Cable W27 742
4812005976 Cable W25 743
4812005974 Cable W26 744
4812009668 Cable W12 See page 347
4812030003 Cable W24 745
4812009670 Cable W50 See page 352
4812016467 Cable W67 746
4812016472 Cable W68 747
4812016440 Cable W63 748
4812016490 Harness W15 749
4812016491 Harness W16 754
4812016478 Cable W70 758
4812016480 Cable W71 759
4812016459 Cable W66 760
4812014593 Steering unit
4812014593 Steering unit 762
Remote control
4812015926 Remote control, PLC 764
Remote control
4812024563 Remote control 765
Housing
4812017990 Housing 766
Vandalism protection, DYNAPAC, tracked
4812019165 Vandalism protection 767
Options
Data storage device
4812019971 USB Technical documentation 768
4812216584 TruckAssist-Brief instruction 769
Available options
4812038654 without fume absorbing system
4812038654 without fume absorbing system 770
4812038583 Without fume absorbing system
4812038583 without fume absorbing system 771
4812028730 Maintenance lid
4812028730 Maintenance lid 772
4812011195 Maintenance lid
4812011195 Maintenance lid 773
4812028733 Cover
4812028733 Cover 774
4812006037 Fume control
4812006037 Fume control 775
4812073904 Exhaust fan 778
4812006393 Hydr. fume control 779
4812006393A Hydr. fume control 781
4812044916 Pressure reduction valve 783
4812232096 Indicator thickness, bottom
4812232096 Indicator 784
4812238919 Pointer 785
4812226413 Indicator thickness, top
4812226413A Indicator thickness, top 786
4812009465 Drivers seat Standard
4812009465 Drivers seat Standard 787
4812009466 Drivers seat, cpl. 788
4812035452 Drivers seat Grammer, beheizbar
4812035452 Drivers seat Grammer, beheizbar 789
4812030001 Seat heater 790
4812232939 Hydraulic auger lift
4812232939 Hydraulic auger lift 791
4812232962 Hydraulic auger lift 792
4812017374 Hydraulic auger lift, SETASSIST
4812017374 Hydraulic auger lift, SETASSIST 793
4812232956 Hydraulic auger lift 794
4812031793 Auger limit switch ultrasonic
4812031793 Auger limit switch ultrasonic 795
4812228334 Retainer 796
4812032431 Sonic Sensor Auger 797
4812228342 Bottle holder
4812228342 Bottle holder 798
4812041024 Material chute
4812041024 Material chute 799
4812015735 Bio hydraulic oil / Panolin – from GG001785
4812015735 Bio- Hydr. oil 801
4812015722 Hydrl. partial flow filter 802
D964013553 Partial flow filter 803
4812045427 Material tunnel installation kit
4812045427 Material tunnel installation kit 804
4812045416 Material tunnel, 230mm 805
4812045421 Protection cover 806
4812006381 Spot light LED
4812006381 Spot light LED 807
4812006383 Spot light 808
4812006382 Mounting parts
4812006382 Mounting parts 809
4812006378 Lamp holder 810
4812035023 Spot light for auger
4812035023 Spot light for auger 811
4812028823 Spot light 812
4812033051 Option engine room lighting
4812033051 Option engine room lighting 813
4812029937 Engine room lighting, electric
4812029937 Engine room lighting, electric 814
4812019225 Cable W24 815
4812032841 Lamp interior 816
4812030003 Cable W24 See page 745
4812032889 Engine room lighting 818
4812023396 Option engine room lighting, Tier4f
4812023396 Option engine room lighting 819
4812032889 Engine room lighting
4812032889 Engine room lighting See page 818
4812023397 Engine room lighting, electric
4812023397 Engine room lighting, electric 821
4812023391 Cable W24 823
4812016484 Spot light
4812016484 Spot light 824
4812043272 Option LED working light
4812043272 Option LED working light 825
4812006942 Halogen spot light
4812006942 Halogen spot light 826
4812006904 Halogen spot light 827
4812006905 Halogen spot light 828
4812036596 cable cpl. 829
4812006986 Lamp holder 830
Shining balloon
4812201825 Shining balloon 831
4812012447 Rotaflare light, PLC
4812012447 Rotaflare light 832
4812012457 Electric rotaflare light
4812012457 Rotaflare light 833
4812012450 Slip-on pipe
4812012450 Slip-on pipe 834
4812011482 Holder for rotaflare light 835
4812037881 Central lubrication
4812037881 Central lubrication 836
4812037776 Pump
4812037776 Pump 837
4812037777 Pump 838
4812037782 Kit central lubrication f. auger 841
4812030073 El. option central lubrication 842
4812040056 Fire extinguisher
4812040056 Fire extinguisher 843
4812015638 Diesel pump – from FG001749
4812015638 Diesel pump 844
4812029968 Electric diesel pump 845
4812227323 Emulsion spray system
4812227323 Emulsion spray system 846
4812217815 Emulsion tank 847
4812071797 El. emulsion spray 849
4812071650 Adapter cable W74 850
4812071798 Cable W36 851
4812227321 Emulsion tank 852
4812227350 Hose package 854
4812217384 Spray arm 855
4812010335 El. emulsion spray 856
4812227324 Emulsion spray system
4812227324 Emulsion spray system 858
4812232523 Hose reel 859
4812227321 Emulsion tank See page 852
4812227339 Hose reel 860
4812227347 Hose 861
4812010335 El. emulsion spray See page 856
4812034869 Gloria spraving device
4812034869 Gloria spraying device 863
4812029934 Back-up alarm
4812029934 Back-up alarm 864
4812044828 Bucket, long
4812044828 Bucket, long 865
4812202867 Decals, MH2550 866
4812231291 Decals 867
4812029932 Emergency stop 868
4812032974 Socket, 230V
4812032974 Socket, 230V 869
4812008671 12V installation
4812008671 12V installation 870
4812029971 Cable harness W23 See page 741
4812007784 First-aid kit
4812007784 First-aid kit 872
4812002731 First-aid kit
4812002731 First-aid kit 873
4812030771 Auxiliary weight
4812030771 Auxiliary weight 874
4812027605 Hydr. crown adjustment
4812027605 Crown adjustment 875
4812033247 Control block See page 77
4812046393 Control block 876
4812017406 Camera system
4812017406 Camera system 878
4812017407 El. option 879
4812006748 Retainer 880
4812007883 Mounting parts 881
4812017018 Truck Assist Advanced
4812017018 TruckAssist Advansed 882
4812016485 Electric 883
4812018218 Housing 885
4812018226 Housing 886
4812016467 Cable W67 See page 746
4812016472 Cable W68 See page 747
4812228144 Cover
4812228144 Cover 888
4812042814 Gravel field kit
4812042814 Gravel field kit 889
4812042762 Conveyor chain, long 890
4812042830 Gusset plate 891
4812042848 Bulk material flap 892
4812007491 Oil drain hydr tank
4812007491 Oil drain hydr. tank 893
4812009244 Tools and accessories
4812009244 Tools and accessories 894
Tar spattle 896
4812007686 Hydraulic, Hydr. end plate
4812007686 Hydraulic Hydr. end plate 897
4812010449 Control block 898
4812017027 Hardlock Advanced
4812017027 Hardlock pro / Pavemanager 2 899
4812016440 Cable W63 See page 748
4812018637 Steering control 14m
4812018637 Steering control 14m 901
4812043252 Retainer 903
4812018638 Steering sensor
4812018638 Steering sensor 904
4812009163 Cable W53 905
4812018600 Mounting parts 906
4812017032 GPS installation advanced
4812017032 GPS installation advanced 907
4812013040 GPS module, V2 908
4812016459 Cable W66 See page 760
4812018942 Tropical kit
4812018942 Tropical kit 910
4812234614 Engine clutch 911
4812226655 Door, l.h.
4812226655 Door, l.h. 912
4812041407 Support rod See page 110
4812010209 Insulating board 914
4812009263 Diesel cooler cpl.
4812009263 Diesel cooler cpl. 915
4812009222 Diesel cooler 916
4812225725 Door, r. h.
4812225725 Door, r.h. See page 111
4812041407 Support rod See page 110
4812018948 Option pave IR ready
4812018948 Option pave ir ready 918
4812018734 Harness W76 919
4812200833 Temperature sensor, auger
4812200833 Temperature sensor 920
Generator set 35 KVA
4812237432 Generator set 35KVA 922
Universal joint protection
4812015882 Universal joint protection 925
Electric, heating
4812202401 Electric, heating 926
4812071020 Control box 33 KVA 927
4812238815 Vandalism protection 937
Control box
4812202381 Control box 938
Vandalism protection
4812229618 Vandalism protection 951
Bucket, long
4812237945 Bucket, long 952
Sensor holder
4812238462 Sensor holder 954
4812230340 Support holder 955
Door
4812238439 Door 956
Rubber covering
4812238460 Rubber covering 957
Connecting plate
4812236149 Connecting plate 958
Decal
4812202867 Decals, MH2550 See page 866
Levelling
4812004015 MOBA MATIC 2+1 960
4812004016 MOBA MATIC 1+1 961
4812038489 Leveling
4812011781 Box MOBA-Matic 962
4812038489 Leveling 963
D900626011 Slope sensor 964
4812038541 Sonic-Ski 965
4812038617 Digirotary Kit 966
4720000701 Wire tensioner cpl. 967
4812038616 Ultrasonic sensor
4812038616 Ultrasonic sensor 968
4812038602 Sensor 969
4812041999 Big Ski 13 m cpl.
4812041999 Big Ski 13 m cpl. 970
4812041925 Big Ski 13 m 972
4812038560 Side arm support 974
4812004304 Side arm support 975
4812038564 Electric parts big ski
4812038564 Electric parts big ski 976
4812011781 Box MOBA-Matic See page 962
4812042045 Big Ski 9 m cpl.
4812042045 Big Ski 9 m cpl. 978
4812042035 Big Ski 9 m 980
4812038560 Side arm support See page 974
4812004304 Side arm support See page 975
4812038564 Electric parts big ski
4812038564 Electric parts big ski See page 976
4812011781 Box MOBA-Matic See page 962
D830031300 Trailing ski, 6m
D830031300 Trailing ski, 6m 983
4700688225 Trailing ski, 6m
4700688225 Trailing ski, 6m 984
4700691720 Mounting parts 987
D830031400 Trailing ski, 9m
D830031400 Trailing ski, 9m 988
4700688226 Trailing ski, 9m
4700688226 Trailing ski, 9m 989
4700691720 Mounting parts See page 987
Accessories
Spare key
Key 993
Tools and accessories
4812035048 Tools and accessories 994
4812009821 Tools and accessories 995
Decals
Symbol
4812237878 Symbol SD2550C,THERMO 997
Special color
4812215060 Symbol SD2550C, THERMO 998
Decals
4812011160 Decals tracked paver 999
4812011161 Decals tracked paver F 1001
Sticker, roof-high
4812202687 Sticker, roof-high 1003
Special tool
Ultrasonic thickness guage 1004
Tension tester 1005
Frequency tension tester 1006
Infrared thermometer 1007
Test adapter 1008
Welding protection 1009
Color Dynapac 1010
Dismantling tool (big pins) 1012
Dismantling tool (smal pins) 1013
Service tool bodas 1014
Magnet tester 1015
Digital pressure gauge kit 1016
Frequency and amplitude meter 1017

DESCRIPTION:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle

• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.S
