Dynapac V5100TVE Screed Screed Parts Manual PDF DOWNLOAD

Description

Dynapac V5100TVE Screed Screed Parts Manual PDF DOWNLOAD

FILE DETAILS:

Dynapac V5100TVE Screed Screed Parts Manual PDF DOWNLOAD

Language : English
Pages : 844
Downloadable : Yes
File Type : PDF

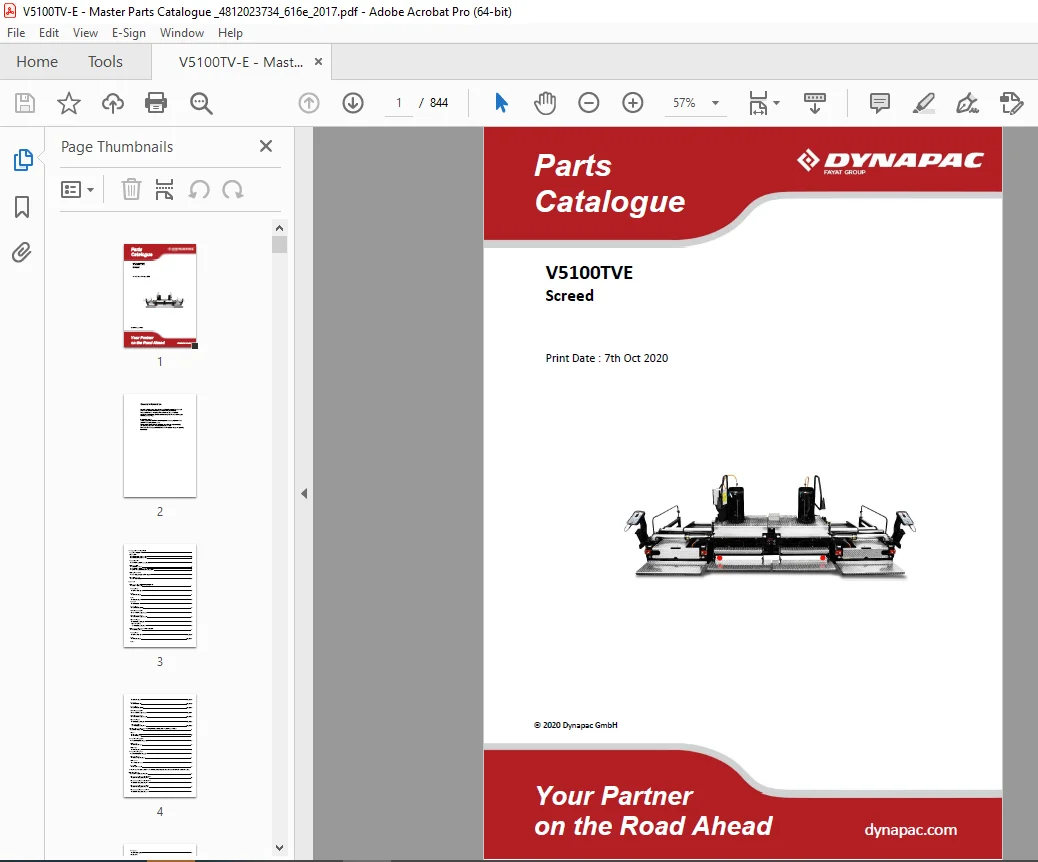

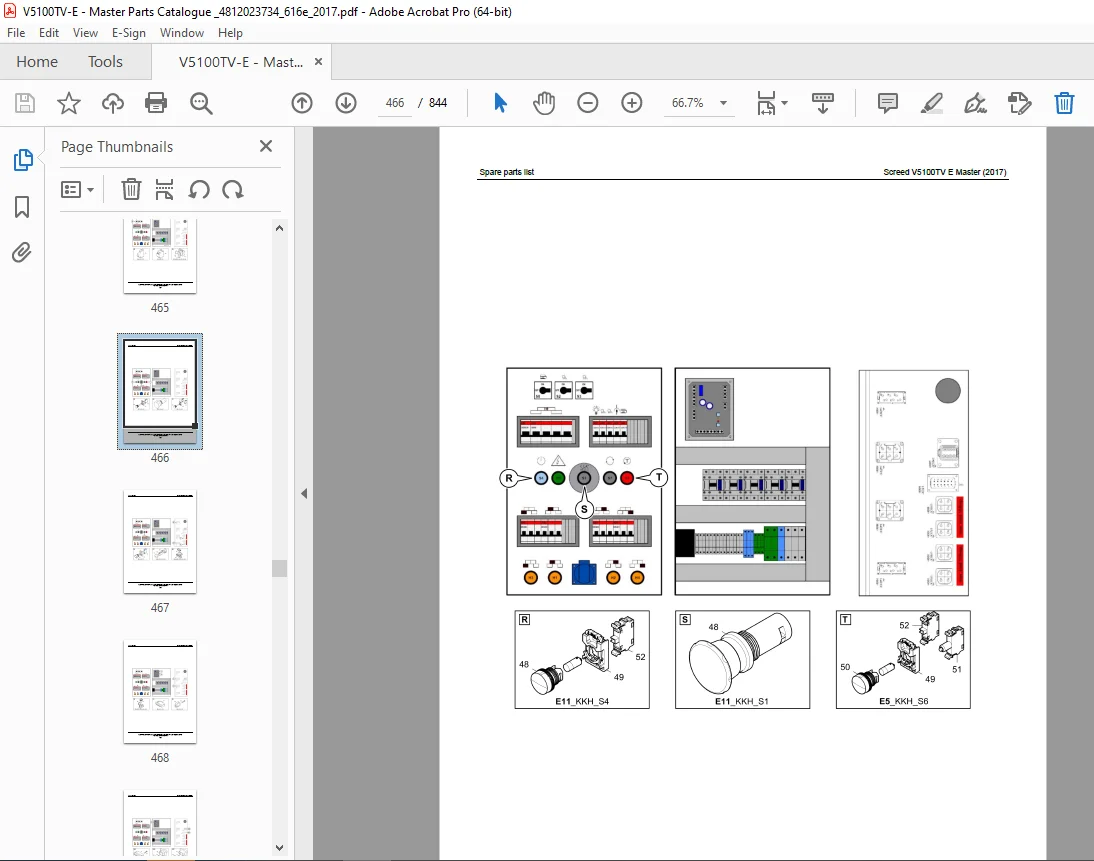

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Dynapac V5100TVE Screed Screed Parts Manual PDF DOWNLOAD

Service, repair and wear part kits
Wear part and Inspection kits 1
Bearing KITS
D299000249 Bearing kit, tamper drive 2
D299000250 Bearing kit, tamper wing 3
Guide plate KITS
4812035289 Wear part kit tamper guide plates 4
Plate / bars KITS
4812016383 Screed plates 5
4812038826 Wear part kit tamper bars 6
4812018801 Wear part kit bottom plates/tamper cutter 7
Heating Element KITS
4812202743 Kit, heating element with plug, cpl. 9
Reconditioning, cpl.
4812216102 Renewal kit 10
Mechanical
Basic screed – from S/N 3102043,2056,2061 ff.
4812016321A Basic screed 11
Guide cylinder
4812027851 Guide cylinder 16
Scale
4812028486 Scale, l.h. 17
Scale
4812028494 Scale, r.h. 18
Guide unit
4812044786 Guide unit 19
Guide cylinder
D614012700 Guide cylinder 20
Vertical adjustment, l.h.
D614014900 Vertical adjustment, l.h. 21
Vertical adjustment, r.h.
D614015000 Vertical adjustment, r.h. 23
Hydraulic diagram
4812033315 Hydraulic diagram 25
Hydraulic cylinder
D614400300 Hydraulic cylinder 26
Basic screed, valid from s/n 3102913, 2925, ff
4812239894 Basic screed 27
Guide cylinder
4812027851 Guide cylinder See page 16
Scale
4812028486 Scale, l.h. See page 17
Scale
4812028494 Scale, r.h. See page 18
Guide unit
4812044786 Guide unit See page 19
Guide cylinder
D614012700 Guide cylinder See page 20
Vertical adjustment, l.h.
D614014900 Vertical adjustment, l.h. See page 21
Vertical adjustment, r.h.
D614015000 Vertical adjustment, r.h. See page 23
Hydraulic diagram
4812033315 Hydraulic diagram See page 25
Hydraulic cylinder
D614400300 Hydraulic cylinder See page 26
Electric heating – Valid from s/n 3102418, 3102420, 3102428, 3102441, 3102445, 3102453, ff
4812016370B Electric heating 41
Ascent
4812011406 Ascent 46
4812217242 Kit, ascent 47
Roof profile setting, mech.
4812232659 Roof profile setting, mech. 48
Retainer, r.h.
4812072509 Retainer, r.h. 50
Retainer, l.h.
4812072508 Retainer, l.h. 51
Roof profile setting, hydr.
4812012620 Roof profile setting, hydr. 52
Hydraulic diagram
4812033320A Hydraulic diagram 57
Cable sensor
4812118180 Cable sensor 58
Drive shaft
4812011624 Drive shaft 59
Protection and trim plates, valid from s/n 3102484, 2484, 2486, 2487, 2597, 2601, 2603, 2604, 2607, 2609, 2611, 2618,
2619, 2622, 2623, ff
4812232217A Protection and trim plates 60
Tamper guide plate central part, MT l.h.
4812028002 Tamper guide plate, MT l.h. 64
Tamper guide plate central part, MT r.h.
4812028040 Tamper guide plate, MT r.h. 65
Tamper guide plate ext. part, VT l.h.
4812028033 Tamper guide plate, VT l.h. 66
Tamper guide plate ext. part, VT r.h.
4812028042 Tamper guide plate, VT r.h. 67
Hose guide
4812027950 Hose guide 68
Overlap plate
4812028304 Overlap plate 69
Adjusting screw
D614134600 Adjusting screw 70
Protecting hood, MT l.h.
4812238132 Protecting hood, MT l.h. 71
Protecting hood, MT r.h.
4812238133 Protecting hood, MT r.h. 72
Protecting hood, VT l.h.
4812238126 Protecting hood, VT l.h. 73
Protecting hood, VT r.h.
4812238129 Protecting hood, VT r.h. 74
Cover
4812238121 Cover 75
Protection and trim plates, valid from s/n 3102913, 2925, ff
4812239212 Protection and trim plates 76
Tamper guide plate central part, MT l.h.
4812028002 Tamper guide plate, MT l.h. See page 64
Tamper guide plate central part, MT r.h.
4812028040 Tamper guide plate, MT r.h. See page 65
Tamper guide plate ext. part, VT l.h.
4812028033 Tamper guide plate, VT l.h. See page 66
Tamper guide plate ext. part, VT r.h.
4812028042 Tamper guide plate, VT r.h. See page 67
Hose guide
4812027950 Hose guide See page 68
Overlap plate
4812028304 Overlap plate See page 69
Adjusting screw
D614134600 Adjusting screw See page 70
Protecting hood, MT l.h.
4812238132 Protecting hood, MT l.h. See page 71
Protecting hood, MT r.h.
4812238133 Protecting hood, MT r.h. See page 72
Protecting hood, VT l.h.
4812239197 Protecting hood, VT l.h. 89
Protecting hood, VT r.h.
4812239200 Protecting hood, VT r.h. 90
Cover
4812238121 Cover See page 75
Operation width, E
Basic operation width 5,10m
4812033916 Basic operation width 5,10m 92
Operation width 5.8m, electric
4812232787 Operation width 5.8m, electric 93
Extension mount, AT350, electric, l.h.
4812232159 Extension mount, AT350, electric, l.h. 94
El. heating
4812232157 El. heating 97
Tamper drive ext. part 350mm, l.h.
4812029716 Tamper drive ext. part 350mm, l.h. 100
Vibration ext. part 350mm, l.h.
4812029876 Vibration ext. part 350mm, l.h. 103
Tamper guide plate ext. part 350mm, l.h.
4812029847 Tamper guide plate ext. part 350mm, l.h. 105
Footboard
4812075063 Footboard 106
Footboard
4812075064 Footboard 107
Protecting hood
4812233007 Protecting hood 108
Adjusting screw
D614134600 Adjusting screw See page 70
Coupling
4720004332 Coupling 110
Coupling
4812035437 Coupling 111
Electric l.h. 350
4812033694 Electric l.h. 350 112
Electric
4812033698 Electric 113
Cable
4812033702 Cable harness W22 AT 350 114
Electric AT l.h. 350
4812017894 Electric 115
Electric
4812017905 Electric 116
Cable
4812033702 Cable harness W22 AT 350 See page 114
Extension mount, AT350, electric, r.h.
4812232160 Extension mount, AT350, electric, r.h. 119
El. heating, r.h.
4812232158 El. heating, r.h. 122
Tamper drive ext. part 350mm, r.h.
4812029768 Tamper drive ext. part 350mm, r.h. 125
Vibration ext. part 350mm, r.h.
4812029882 Vibration ext. part 350mm, r.h. 128
Tamper guide plate ext. part 350mm, r.h.
4812029852 Tamper guide plate ext. part 350mm, r.h. 130
Protecting hood
4812233007 Protecting hood See page 108
Footboard
4812075063 Footboard See page 106
Footboard
4812075064 Footboard See page 107
Adjusting screw
D614134600 Adjusting screw See page 70
Coupling
4720004332 Coupling See page 110
Coupling
4812035437 Coupling See page 111
Electric r.h. 350
4812033696 Electric r.h. 350 136
Electric
4812033700 Electric 137
Cable
4812033704 Cable harness W23 AT 350 138
Electric AT350 r.h.
4812017898 Electric 139
Electric
4812017906 Electric 140
Cable
4812033704 Cable harness W23 AT 350 See page 138
Material duct, adj., 1000mm, l.h.
4812027937 Material duct, adj., 1000mm, l.h. 143
Material duct, adj., 1000mm, r.h.
4812027938 Material duct, adj., 1000mm, r.h. 144
Socket pin
4812028407 Socket pin 145
Brace pipe
4812026950 Brace pipe 146
Operation width 6.6m, electric
4812232800 Operation width 6.6m, electric 147
Extension mount, AT750, electric, l.h.
4812232801 Extension mount, AT750, electric, l.h. 148
El. Heating, AT750, l.h.
4812232788 El. Heating, AT750, l.h. 151
Tamper drive ext. part 750mm
4812028555 Tamper drive ext. part 750mm 154
Vibration ext. part 750mm
4812218140 Vibration ext. part 750mm 157
Tamper guide plate ext. part 750mm, l.h.
4812028745 Tamper guide plate ext. part 750mm, l.h. 159
Footboard
4812075065 Footboard 160
Footboard
4812075066 Footboard 161
Protecting hood
4812232538 Protecting hood 162
Adjusting screw
D614134600 Adjusting screw See page 70
Electric AT l.h. 750
4812017899 Electric AT l.h. 750 164
Electric
4812017907 Electric 165
Cable
4812033701 Cable harness W20 AT750 167
Electric l.h. 750
4812033693 Electric l.h. 750 168
Electric
4812033697 Electric 169
Cable
4812033701 Cable harness W20 AT750 See page 167
Extension mount, AT750, electric, r.h.
4812232812 Extension mount, AT750, electric, r.h. 171
Vibration ext. part 750mm
4812233616 Vibration ext. part 750mm 174
El. Heating, AT750, r.h.
4812232813 El. Heating, AT750, r.h. 176
Tamper drive ext. part 750mm
4812028555 Tamper drive ext. part 750mm See page 154
Vibration ext. part 750mm
4812218140 Vibration ext. part 750mm See page 157
Tamper guide plate ext. part 750mm, r.h.
4812028757 Tamper guide plate ext. part 750mm, r.h. 181
Footboard
4812075065 Footboard See page 160
Footboard
4812075066 Footboard See page 161
Protecting hood
4812232538 Protecting hood See page 162
Adjusting screw
D614134600 Adjusting screw See page 70
Electric
4812017900 Electric 185
Electric
4812017908 Electric 186
Cable
4812033703 Cable harness W21 AT750 188
Electric r.h. 750
4812033695 Electric r.h. 750 189
Electric
4812033699 Electric 190
Cable
4812033703 Cable harness W21 AT750 See page 188
Material duct, adj., 1000mm, l.h.
4812027937 Material duct, adj., 1000mm, l.h. See page 143
Material duct, adj., 1000mm, r.h.
4812027938 Material duct, adj., 1000mm, r.h. See page 144
Socket pin
4812028407 Socket pin See page 145
Brace pipe
4812026950 Brace pipe See page 146
Operation width 7.3m, electric
4812233097 Operation width 7.3m, electric 196
Extension mount, AT750, electric, l.h.
4812232801 Extension mount, AT750, electric, l.h. See page 148
El. Heating, AT750, l.h.
4812232788 El. Heating, AT750, l.h. See page 151
Tamper drive ext. part 750mm
4812028555 Tamper drive ext. part 750mm See page 154
Vibration ext. part 750mm
4812218140 Vibration ext. part 750mm See page 157
Tamper guide plate ext. part 750mm, l.h.
4812028745 Tamper guide plate ext. part 750mm, l.h. See page 159
Footboard
4812075065 Footboard See page 160
Footboard
4812075066 Footboard See page 161
Protecting hood
4812232538 Protecting hood See page 162
Adjusting screw
D614134600 Adjusting screw See page 70
Electric AT l.h. 750
4812017899 Electric AT l.h. 750 See page 164
Electric
4812017907 Electric See page 165
Cable
4812033701 Cable harness W20 AT750 See page 167
Electric l.h. 750
4812033693 Electric l.h. 750 See page 168
Electric
4812033697 Electric See page 169
Cable
4812033701 Cable harness W20 AT750 See page 167
Extension mount, AT750, electric, r.h.
4812232812 Extension mount, AT750, electric, r.h. See page 171
Vibration ext. part 750mm
4812233616 Vibration ext. part 750mm See page 174
El. Heating, AT750, r.h.
4812232813 El. Heating, AT750, r.h. See page 176
Tamper drive ext. part 750mm
4812028555 Tamper drive ext. part 750mm See page 154
Vibration ext. part 750mm
4812218140 Vibration ext. part 750mm See page 157
Tamper guide plate ext. part 750mm, r.h.
4812028757 Tamper guide plate ext. part 750mm, r.h. See page 181
Footboard
4812075065 Footboard See page 160
Footboard
4812075066 Footboard See page 161
Protecting hood
4812232538 Protecting hood See page 162
Adjusting screw
D614134600 Adjusting screw See page 70
Electric
4812017900 Electric See page 185
Electric
4812017908 Electric See page 186
Cable
4812033703 Cable harness W21 AT750 See page 188
Electric r.h. 750
4812033695 Electric r.h. 750 See page 189
Electric
4812033699 Electric See page 190
Cable
4812033703 Cable harness W21 AT750 See page 188
Extension mount, AT350, electric, l.h.
4812232159 Extension mount, AT350, electric, l.h. See page 94
El. heating
4812232157 El. heating See page 97
Tamper drive ext. part 350mm, l.h.
4812029716 Tamper drive ext. part 350mm, l.h. See page 100
Vibration ext. part 350mm, l.h.
4812029876 Vibration ext. part 350mm, l.h. See page 103
Tamper guide plate ext. part 350mm, l.h.
4812029847 Tamper guide plate ext. part 350mm, l.h. See page 105
Footboard
4812075063 Footboard See page 106
Footboard
4812075064 Footboard See page 107
Protecting hood
4812233007 Protecting hood See page 108
Adjusting screw
D614134600 Adjusting screw See page 70
Coupling
4720004332 Coupling See page 110
Coupling
4812035437 Coupling See page 111
Electric l.h. 350
4812033694 Electric l.h. 350 See page 112
Electric
4812033698 Electric See page 113
Cable
4812033702 Cable harness W22 AT 350 See page 114
Electric AT l.h. 350
4812017894 Electric See page 115
Electric
4812017905 Electric See page 116
Cable
4812033702 Cable harness W22 AT 350 See page 114
Extension mount, AT350, electric, r.h.
4812232160 Extension mount, AT350, electric, r.h. See page 119
El. heating, r.h.
4812232158 El. heating, r.h. See page 122
Tamper drive ext. part 350mm, r.h.
4812029768 Tamper drive ext. part 350mm, r.h. See page 125
Vibration ext. part 350mm, r.h.
4812029882 Vibration ext. part 350mm, r.h. See page 128
Tamper guide plate ext. part 350mm, r.h.
4812029852 Tamper guide plate ext. part 350mm, r.h. See page 130
Protecting hood
4812233007 Protecting hood See page 108
Footboard
4812075063 Footboard See page 106
Footboard
4812075064 Footboard See page 107
Adjusting screw
D614134600 Adjusting screw See page 70
Coupling
4720004332 Coupling See page 110
Coupling
4812035437 Coupling See page 111
Electric r.h. 350
4812033696 Electric r.h. 350 See page 136
Electric
4812033698 Electric See page 113
Cable
4812033702 Cable harness W22 AT 350 See page 114
Electric AT r.h. 350
4812017898 Electric See page 139
Electric
4812017906 Electric See page 140
Cable
4812033704 Cable harness W23 AT 350 See page 138
Material duct, adj., 1000mm, l.h.
4812027937 Material duct, adj., 1000mm, l.h. See page 143
Material duct, adj., 1000mm, r.h.
4812027938 Material duct, adj., 1000mm, r.h. See page 144
Socket pin
4812028407 Socket pin See page 145
Brace pipe
4812026950 Brace pipe See page 146
Operation width 8.1m, electric
4812233101 Operation width 8.1m, electric 257
Extension mount, AT750, electric, l.h.
4812232801 Extension mount, AT750, electric, l.h. See page 148
El. Heating, AT750, l.h.
4812232788 El. Heating, AT750, l.h. See page 151
Tamper drive ext. part 750mm
4812028555 Tamper drive ext. part 750mm See page 154
Vibration ext. part 750mm
4812218140 Vibration ext. part 750mm See page 157
Tamper guide plate ext. part 750mm, l.h.
4812028745 Tamper guide plate ext. part 750mm, l.h. See page 159
Footboard
4812075065 Footboard See page 160
Footboard
4812075066 Footboard See page 161
Protecting hood
4812232538 Protecting hood See page 162
Adjusting screw
D614134600 Adjusting screw See page 70
Electric AT l.h. 750
4812017899 Electric AT l.h. 750 See page 164
Electric
4812017907 Electric See page 165
Cable
4812033701 Cable harness W20 AT750 See page 167
Electric l.h. 750
4812033693 Electric l.h. 750 See page 168
Electric
4812033697 Electric See page 169
Cable
4812033701 Cable harness W20 AT750 See page 167
Extension mount, AT750, electric, r.h.
4812232812 Extension mount, AT750, electric, r.h. See page 171
Vibration ext. part 750mm
4812233616 Vibration ext. part 750mm See page 174
El. Heating, AT750, r.h.
4812232813 El. Heating, AT750, r.h. See page 176
Tamper drive ext. part 750mm
4812028555 Tamper drive ext. part 750mm See page 154
Vibration ext. part 750mm
4812218140 Vibration ext. part 750mm See page 157
Tamper guide plate ext. part 750mm, r.h.
4812028757 Tamper guide plate ext. part 750mm, r.h. See page 181
Footboard
4812075065 Footboard See page 160
Footboard
4812075066 Footboard See page 161
Protecting hood
4812232538 Protecting hood See page 162
Adjusting screw
D614134600 Adjusting screw See page 70
Electric
4812017900 Electric See page 185
Electric
4812017908 Electric See page 186
Cable
4812033703 Cable harness W21 AT750 See page 188
Electric r.h. 750
4812033695 Electric r.h. 750 See page 189
Electric
4812033699 Electric See page 190
Cable
4812033703 Cable harness W21 AT750 See page 188
Material duct, adj., 1000mm, l.h.
4812027937 Material duct, adj., 1000mm, l.h. See page 143
Material duct, adj., 1000mm, r.h.
4812027938 Material duct, adj., 1000mm, r.h. See page 144
Socket pin
4812028407 Socket pin See page 145
Brace pipe
4812026950 Brace pipe See page 146
Operation width 8.8m, electric
4812233102 Operation width 8.8m, electric 288
Extension mount, AT750, electric, l.h.
4812232801 Extension mount, AT750, electric, l.h. See page 148
El. Heating, AT750, l.h.
4812232788 El. Heating, AT750, l.h. See page 151
Tamper drive ext. part 750mm
4812028555 Tamper drive ext. part 750mm See page 154
Vibration ext. part 750mm
4812218140 Vibration ext. part 750mm See page 157
Tamper guide plate ext. part 750mm, l.h.
4812028745 Tamper guide plate ext. part 750mm, l.h. See page 159
Footboard
4812075065 Footboard See page 160
Footboard
4812075066 Footboard See page 161
Protecting hood
4812232538 Protecting hood See page 162
Adjusting screw
D614134600 Adjusting screw See page 70
Electric AT l.h. 750
4812017899 Electric AT l.h. 750 See page 164
Electric
4812017907 Electric See page 165
Cable
4812033701 Cable harness W20 AT750 See page 167
Electric l.h. 750
4812033693 Electric l.h. 750 See page 168
Electric
4812033697 Electric See page 169
Cable
4812033701 Cable harness W20 AT750 See page 167
Extension mount, AT750, electric, r.h.
4812232812 Extension mount, AT750, electric, r.h. See page 171
Vibration ext. part 750mm
4812233616 Vibration ext. part 750mm See page 174
El. Heating, AT750, r.h.
4812232813 El. Heating, AT750, r.h. See page 176
Tamper drive ext. part 750mm
4812028555 Tamper drive ext. part 750mm See page 154
Vibration ext. part 750mm
4812218140 Vibration ext. part 750mm See page 157
Tamper guide plate ext. part 750mm, r.h.
4812028757 Tamper guide plate ext. part 750mm, r.h. See page 181
Footboard
4812075065 Footboard See page 160
Footboard
4812075066 Footboard See page 161
Protecting hood
4812232538 Protecting hood See page 162
Adjusting screw
D614134600 Adjusting screw See page 70
Electric
4812017900 Electric See page 185
Electric
4812017908 Electric See page 186
Cable
4812033703 Cable harness W21 AT750 See page 188
Electric r.h. 750
4812033695 Electric r.h. 750 See page 189
Electric
4812033699 Electric See page 190
Cable
4812033703 Cable harness W21 AT750 See page 188
Extension mount, AT350, electric, l.h.
4812232159 Extension mount, AT350, electric, l.h. See page 94
El. heating
4812232157 El. heating See page 97
Tamper drive ext. part 350mm, l.h.
4812029716 Tamper drive ext. part 350mm, l.h. See page 100
Vibration ext. part 350mm, l.h.
4812029876 Vibration ext. part 350mm, l.h. See page 103
Tamper guide plate ext. part 350mm, l.h.
4812029847 Tamper guide plate ext. part 350mm, l.h. See page 105
Footboard
4812075063 Footboard See page 106
Footboard
4812075064 Footboard See page 107
Protecting hood
4812233007 Protecting hood See page 108
Adjusting screw
D614134600 Adjusting screw See page 70
Coupling
4720004332 Coupling See page 110
Coupling
4812035437 Coupling See page 111
Electric l.h. 350
4812033694 Electric l.h. 350 See page 112
Electric
4812033698 Electric See page 113
Cable
4812033702 Cable harness W22 AT 350 See page 114
Electric AT l.h. 350
4812017894 Electric See page 115
Electric
4812017905 Electric See page 116
Cable
4812033702 Cable harness W22 AT 350 See page 114
Extension mount, AT350, electric, r.h.
4812232160 Extension mount, AT350, electric, r.h. See page 119
El. heating, r.h.
4812232158 El. heating, r.h. See page 122
Tamper drive ext. part 350mm, r.h.
4812029768 Tamper drive ext. part 350mm, r.h. See page 125
Vibration ext. part 350mm, r.h.
4812029882 Vibration ext. part 350mm, r.h. See page 128
Tamper guide plate ext. part 350mm, r.h.
4812029852 Tamper guide plate ext. part 350mm, r.h. See page 130
Protecting hood
4812233007 Protecting hood See page 108
Footboard
4812075063 Footboard See page 106
Footboard
4812075064 Footboard See page 107
Adjusting screw
D614134600 Adjusting screw See page 70
Coupling
4720004332 Coupling See page 110
Coupling
4812035437 Coupling See page 111
Electric r.h. 350
4812033696 Electric r.h. 350 See page 136
Electric
4812033698 Electric See page 113
Cable
4812033702 Cable harness W22 AT 350 See page 114
Electric AT r.h. 350
4812017898 Electric See page 139
Electric
4812017906 Electric See page 140
Cable
4812033704 Cable harness W23 AT 350 See page 138
Material duct, adj., 1000mm, l.h.
4812027937 Material duct, adj., 1000mm, l.h. See page 143
Material duct, adj., 1000mm, r.h.
4812027938 Material duct, adj., 1000mm, r.h. See page 144
Socket pin
4812028407 Socket pin See page 145
Brace pipe
4812026950 Brace pipe See page 146
Footboard, cpl.
4812074793 Footboard 350
Footboard
4812074798 Kit, footboard 351
Footboard, middle screed, l.h.
4812074812 Footboard, MT l.h. 352
Footboard, middle screed, r.h.
4812074813 Footboard, MT r.h. 354
Footboard, side screed, l.h.
4812074814 Footboard, VT l.h. 356
Footboard, side screed, r.h.
4812074815 Footboard, VT r.h. 357
Tamper
Tamper drive
4812227176A Tamper drive 358
Stampferantrieb
Tamper drive centr. part, l.h.
4812227160 Tamper drive centr. part, l.h. 359
4812011890 Hydr. motor 363
Tamper drive centr. part, r.h.
4812227159 Tamper drive centr. part, r.h. 364
Tamper drive ext. part, l.h.
4812227161 Tamper drive ext. part, l.h. 368
Tamper drive ext. part, r.h.
4812227158 Tamper drive ext. part, r.h. 372
Hydraulic tamper
4812033313C Hydraulic, Tamper 376
Central lubrication
4812033865 Central lubrication 379
Grease hose
4812033876 Grease hose 381
4812033913 Grease hose 382
4812033915 Grease hose 383
4812007911 Grease hose 384
Vibration
Vibration
4812233153 Vibration 385
Vibration
4812233158 Vibration VTL 386
4812233159 Vibration MTL 388
4812233160 Vibration MTR 390
4812233157 Vibration VTR 392
Hydr. vibration
4812033314A Hydraulic, vibration 394
Central lubrication
4812033864 Central lubrication 398
Grease hose
4812033872 Grease hose 400
4812033881 Grease hose 401
4812037323 Grease hose 402
Guard plate for vibration
4812234260 Guard plate for vibration 403
Electric system, PLC
Electric system, E-PLC
4812023955 Electric system, E-PLC 404
Electric
4812023992 Electric 405
Terminal box
4812023995 Terminal box 408
Harness
4812023983 Harness W1 412
4812023987 Harness W2 414
4812201103 Harness W3 416
4812023990 Harness W4 417
Control box
4812217887 Control box 418
4812024003 Control box 427
Housing
4812017774 Housing MTL 440
4812017755 Housing MTR 441
4812017797 Housing VTL 442
4812017796 Housing VTR 444
Wiring
4812023994 Wiring 446
Harness
4812023983 Harness W1 See page 412
4812023987 Harness W2 See page 414
4812201103 Harness W3 See page 416
4812023990 Harness W4 See page 417
4812006760 Harness W5 448
4812009373 Harness W6 449
4812018688 Harness W7 451
4812018689 Harness W8 452
4812013628 Harness W9 453
4812019454 Harness W10 454
4812018671 Harness W15 455
4812018672 Harness W15.1 456
4812018673 Harness W15.2 457
4812018674 Harness W15.3 458
4812018675 Harness W15.4 459
4812018676 Harness W15.5 460
4812018678 Harness W15.8 461
4812018679 Harness W16 462
4812018680 Harness W16.1 463
4812018681 Harness W16.2 464
4812018682 Harness W16.3 465
4812018683 Harness W16.4 466
4812018684 Harness W16.5 467
4812018686 Harness W16.8 468
Remote con / Leveling
4812015918 Remote con / Leveling 470
Remote control
4812015926 Remote control, PLC 471
Remote control
4812024563 Remote control 472
Housing
4812017990 Housing 473
Mounting parts
4812036694 Mounting parts 474
Electric side shield, PLC
4812018711 Electric side shield 475
Electric side shield
4812216291 Electric side shield 476
Harness
4812018671 Harness W15 See page 455
4812018672 Harness W15.1 See page 456
4812018673 Harness W15.2 See page 457
4812018674 Harness W15.3 See page 458
4812018675 Harness W15.4 See page 459
4812018676 Harness W15.5 See page 460
4812018678 Harness W15.8 See page 461
4812018679 Harness W16 See page 462
4812018680 Harness W16.1 See page 463
4812018681 Harness W16.2 See page 464
4812018682 Harness W16.3 See page 465
4812018683 Harness W16.4 See page 466
4812018684 Harness W16.5 See page 467
4812018686 Harness W16.8 See page 468
Mounting parts
4812216025 Mounting parts 480
Connecting cable, PLC
4812215755 Cable W17 481
Electric system, conv.
Electric system, E-conv.
4812023953 Electric system, E-conv. 482
Electric
4812215867 Electric 483
Junction box
4812215871 Junction box 486
Harness
4812215873 Harness W1 490
4812015939 Harness W2 492
4812016819 Harness W3 493
4812015943 Harness W4 494
Control box
4812202381 Control box 496
4812071020 Control box 33 KVA 509
Electric side plate
4812016776 Electric side plate 519
Terminal box, l.h.
4812016089 Terminal box, l.h. 522
Terminal box, r.h.
4812016090 Terminal box, r.h. 523
Harness
4812016094 Harness W15 524
4812016096 Harness W15.1 525
4812016097 Harness W15.2 526
4812016101 Harness W15.3 527
4812015917 Harness W15.4 528
4812016107 Harness W16 529
4812016108 Harness W16.1 530
4812016109 Harness W16.2 531
4812016111 Harness W16.3 532
4812015925 Harness W16.4 533
Electric side plate
4812072489 Electric side plate 534
Electric side shield
4812072450 El. Side shield 535
Dummy plug
4812217456 Dummy plug 536
Harness W15
4812072455 Harness W15 537
Harness W15.1
4812071304 Harness W15.1 538
Harness W15.2
4812071307 Harness W15.2 539
Harness W15.3
4812071316 Harness W15.3 540
Harness W15.4
4812072494 Harness W15.4 541
Harness W16
4812072496 Harness W16 542
Harness W16.1
4812071329 Harness W16.1 543
Harness W16.2
4812071330 Harness W16.2 544
Harness W16.3
4812071331 Harness W16.3 545
Harness W16.4
4812072500 Harness W16.4 546
Mounting parts side shield
4812071334 Mounting parts side shield 547
Housing MTL
4812017774 Housing MTL See page 440
Housing MTR
4812017755 Housing MTR See page 441
Housing VTL
4812017797 Housing VTL See page 442
Housing VTR
4812017796 Housing VTR See page 444
Wiring
4812215869 Wiring 552
Harness
4812215873 Harness W1 See page 490
4812015939 Harness W2 See page 492
4812016819 Harness W3 See page 493
4812015943 Harness W4 See page 494
4812013628 Harness W9 See page 453
4812016094 Harness W15 See page 524
4812016096 Harness W15.1 See page 525
4812016097 Harness W15.2 See page 526
4812016101 Harness W15.3 See page 527
4812016107 Harness W16 See page 529
4812016108 Harness W16.1 See page 530
4812016109 Harness W16.2 See page 531
4812016111 Harness W16.3 See page 532
Wiring
4812215869A Wiring 554
Harness
4812215873 Harness W1 See page 490
4812015939 Harness W2 See page 492
4812016819 Harness W3 See page 493
4812015943 Harness W4 See page 494
4812013628 Harness W9 See page 453
4812072455 Harness W15 See page 537
4812071304 Harness W15.1 See page 538
4812071307 Harness W15.2 See page 539
4812071316 Harness W15.3 See page 540
4812072494 Harness W15.4 See page 541
4812072496 Harness W16 See page 542
4812071329 Harness W16.1 See page 543
4812071330 Harness W16.2 See page 544
4812071331 Harness W16.3 See page 545
4812072500 Harness W16.4 See page 546
Remote control
4812016227 Remote control 556
Remote control
4812018043 Remote control 557
El. Remote control
4812016231 El. Remote control 558
Housing
4812016220 Housing 560
Remote control
4812072647 Remote control con. cpl. DYN 561
Remote control
4812072652 Remote control cpl. 562
El. remote control
4812016231 El. Remote control See page 558
Housing
4812072178 Housing 564
Leveling
4812035002 Leveling 565
Tool box
D900624870 Tool box 566
Connecting cable, con.
4812017559 Harness W18 567
Options
Available options
Central lubrication
4812032137 Central lubrication 568
Cut off shoe for endplate unheated / top heating
4720002020 Cut off shoe 360mm 569
Cut off shoe for endplate
D614169600 Cut off shoe 360mm 570
Height tracing
D241519100 Height tracing 571
Holding device
4720003277 Holding device 572
4720005797 Retainer 573
Leveling
4812075697 Levelling bar 574
Level
4720006020 Level 576
End plate, unheated
4812238700 End plate, unheated 577
End plate, l.h. & r.h.
4812238583 End plate, l.h. & r.h. 578
End plate, l.h.
4812238570 End plate, l.h. 579
4720003740 Safety lock 583
End plate, r.h.
4812238571 End plate, r.h. 584
4720003740 Safety lock See page 583
E- upper Heating, l.h. & r.h.
4812238752 E- upper Heating, l.h. & r.h. 589
End plate, l.h. & r.h.
4812238583 End plate, l.h. & r.h. See page 578
End plate, l.h.
4812238570 End plate, l.h. See page 579
4720003740 Safety lock See page 583
End plate, r.h.
4812238571 End plate, r.h. See page 584
4720003740 Safety lock See page 583
E-upper heating
4812238750 E-upper heating 592
E- Lower Heating, l.h. & r.h.
4812238751 E- Lower Heating, l.h. & r.h. 593
End plate, l.h. & r.h.
4812238583 End plate, l.h. & r.h. See page 578
End plate, r.h.
4812238571 End plate, r.h. See page 584
4720003740 Safety lock See page 583
End plate, l.h.
4812238570 End plate, l.h. See page 579
4720003740 Safety lock See page 583
E-lower heating
4812238749 E-lower heating 596
End plate heating with skid, l.h. & r.h.
4812238861 End plate heating with skid, l.h. & r.h. 597
End plate, unheated l.h. & r.h.
4812238583 End plate, l.h. & r.h. See page 578
End plate, r.h.
4812238571 End plate, r.h. See page 584
4720003740 Safety lock See page 583
End plate, l.h.
4812238570 End plate, l.h. See page 579
4720003740 Safety lock See page 583
El. heating, end plate with skid l.h. & r.h.
4812238857 El. heating, end plate with skid l.h. & r.h. 601
4812075621 El. heating, end plate with skid l.h. & r.h. 602
End plate unheated, l.h. & r.h.
4812238743 End plate unheated, l.h. & r.h. 603
End plate, l.h. & r.h.
4812238742 End plate, l.h. & r.h. 605
End plate, l.h.
4812238740 End plate, l.h. 606
Safety lock
4720003740 Safety lock See page 583
Hinge, l.h.
4812234689 Hinge, l.h. 611
End plate, r.h.
4812238741 End plate, r.h. 612
Safety lock
4720003740 Safety lock See page 583
Hinge, r.h.
4812234680 Hinge, r.h. 617
End plate above heating, l.h. & r.h.
4812238754 End plate above heating, l.h. & r.h. 618
End plate, l.h. & r.h.
4812238742 End plate, l.h. & r.h. See page 605
End plate, l.h.
4812238740 End plate, l.h. See page 606
Safety lock
4720003740 Safety lock See page 583
Hinge, l.h.
4812234689 Hinge, l.h. See page 611
End plate, r.h.
4812238741 End plate, r.h. See page 612
Safety lock
4720003740 Safety lock See page 583
Hinge, r.h.
4812234680 Hinge, r.h. See page 617
El. end plate above heating, l.h. & r.h.
4812238825 El. end plate above heating, l.h. & r.h. 625
End plate below heating, l.h. & r.h.
4812238753 End plate below heating, l.h. & r.h. 626
End plate, l.h. & r.h.
4812238742 End plate, l.h. & r.h. See page 605
End plate, l.h.
4812238740 End plate, l.h. See page 606
Safety lock
4720003740 Safety lock See page 583
Hinge, l.h.
4812234689 Hinge, l.h. See page 611
End plate, r.h.
4812238741 End plate, r.h. See page 612
Safety lock
4720003740 Safety lock See page 583
Hinge, r.h.
4812234680 Hinge, r.h. See page 617
El. end plate below heating, l.h. & r.h.
4812238824 El. end plate below heating, l.h. & r.h. 633
Hydr. end plate below heating, l.h. & r.h.
4812238809 Hydr. End plate below heating, l.h. & r.h. 634
Hydr. end plate unheated, l.h. & r.h.
4812238806 Hydr. end plate unheated, l.h. & r.h. 636
Hydr. end plate unheated, l.h.
4812238803 Hydr. end plate unheated, l.h. 637
Hydr. end plate unheated, r.h.
4812238804 Hydr. end plate unheated, r.h. 641
El. heating below heated
4812238749 E-lower heating See page 596
Stiffening plate, l.h.
4812010358 Plate, l.h. 646
Stiffening plate, r.h.
4812010359 Plate, r.h. 647
Valve support
4812010431 Valve support 648
Electric, side shield
4812018721 Electric, hyd. side plate 649
Harness
4812009373 Harness W6 See page 449
4812018688 Harness W7 See page 451
4812018689 Harness W8 See page 452
4812018676 Harness W15.5 See page 460
4812018684 Harness W16.5 See page 467
Hydr. end plate
4812019242 Hydraulic, end plate 651
4812010450 Control block 654
Hose clamp
4812010756 Hose clamp 655
Suppression
4812010929 Suppression 656
Hydr. end plate unheated, l.h. & r.h.
4812238807 Hydr. end plate unheated, l.h. & r.h. 657
Hydr. end plate unheated, l.h. & r.h.
4812238806 Hydr. end plate unheated, l.h. & r.h. See page 636
Hydr. end plate unheated, l.h.
4812238803 Hydr. end plate unheated, l.h. See page 637
Hydr. end plate unheated, r.h.
4812238804 Hydr. end plate unheated, r.h. See page 641
Stiffening plate, l.h.
4812010358 Plate, l.h. See page 646
Stiffening plate, r.h.
4812010359 Plate, r.h. See page 647
Valve support
4812010431 Valve support See page 648
Electric, side shield
4812018721 Electric, hyd. side plate See page 649
Harness
4812009373 Harness W6 See page 449
4812018688 Harness W7 See page 451
4812018689 Harness W8 See page 452
4812018676 Harness W15.5 See page 460
4812018684 Harness W16.5 See page 467
Hydr. end plate
4812019242 Hydraulic, end plate See page 651
4812010450 Control block See page 654
Hose clamp
4812010756 Hose clamp See page 655
Suppression
4812010929 Suppression See page 656
Endplates, standard, without heating
End plate, cpl., without heating
4812231392 End plate, cpl., without heating 668
End plate
4812231391 End plate 669
End plate, l.h.
4812231388 End plate, l.h. 670
Safety lock
4720003740 Safety lock See page 583
Kit, for the front pin
4812201086 Kit, for the front pin 675
End plate, r.h.
4812231389 End plate, r.h. 676
Safety lock
4720003740 Safety lock See page 583
Kit, for the front pin
4812201086 Kit, for the front pin See page 675
Endplates, standard, w. el. heating
End pl., upper part e-heated
4812231566 End pl., upper part e-heated 682
End plate
4812231565 End plate 683
End plate, l.h.
4812231540 End plate, l.h. 684
Safety lock
4720003740 Safety lock See page 583
Kit, for the front pin
4812201086 Kit, for the front pin See page 675
End plate, r.h.
4812231541 End plate, r.h. 690
Safety lock
4720003740 Safety lock See page 583
Kit, for the front pin
4812201086 Kit, for the front pin See page 675
El. heating
4812232196 El. heating 696
End pl., lower part e-heated
4812231385 End pl., lower part e-heated 697
End plate
4812231383 End plate 698
End plate, l.h.
4812231381 End plate, l.h. 699
Safety lock
4720003740 Safety lock See page 583
Kit, for the front pin
4812201086 Kit, for the front pin See page 675
End plate, r.h.
4812231382 End plate, r.h. 705
Safety lock
4720003740 Safety lock See page 583
Kit, for the front pin
4812201086 Kit, for the front pin See page 675
El. heating
4812232196 El. heating See page 696
End pl., with base, lower e-heated
4812231662 End pl. with base, lower e-heated 712
End plate
4812231655 End plate, l.h. / r.h. 713
End plate, l.h.
4812231652 End plate, l.h. 714
Safety lock
4720003740 Safety lock See page 583
Kit, for the front pin
4812201086 Kit, for the front pin See page 675
End plate, r.h.
4812231653 End plate, r.h. 720
Safety lock
4720003740 Safety lock See page 583
Kit, for the front pin
4812201086 Kit, for the front pin See page 675
El. heating
4812232196 El. heating See page 696
Endplates, foldable, without heating
End plate, l.h. & r.h.
4812234693 End plate, l.h. & r.h. 727
End plate, l.h. & r.h.
4812234692 End plate, l.h. & r.h. 730
End plate, l.h.
4812234690 End plate, l.h. 731
Hinge, l.h.
4812234689 Hinge, l.h. See page 611
Safety lock
4720003740 Safety lock See page 583
End plate, r.h.
4812234691 End plate, r.h. 737
Hinge, r.h.
4812234680 Hinge, r.h. See page 617
Safety lock
4720003740 Safety lock See page 583
Endplates, foldable, w. el. heating
End plate, l.h. & r.h. heated, upper part e heated
4812235453 End plate, l.h. & r.h. heated 743
End plate, l.h. & r.h. heated
4812235446 End plate, l.h. & r.h. heated 745
End plate, l.h.
4812235444 End plate, l.h. 746
Hinge, l.h.
4812234689 Hinge, l.h. See page 611
Safety lock
4720003740 Safety lock See page 583
End plate, r.h.
4812235443 End plate, r.h. 752
Hinge, r.h.
4812234680 Hinge, r.h. See page 617
Safety lock
4720003740 Safety lock See page 583
El. heating
4812235445 El. heating 758
End plate, l.h. & r.h. heated, lower part e-heated
4812235447 End plate, l.h. & r.h. heated 759
End plate, l.h. & r.h. heated
4812235452 End plate, l.h. & r.h. heated 761
End plate, l.h.
4812235451 End plate, l.h. 762
Hinge, l.h.
4812234689 Hinge, l.h. See page 611
Safety lock
4720003740 Safety lock See page 583
End plate, r.h.
4812235450 End plate, r.h. 768
Hinge, r.h.
4812234680 Hinge, r.h. See page 617
Safety lock
4720003740 Safety lock See page 583
El. heating
4812235445 El. heating See page 758
End pl. hydr.., accessories
4812232180 End pl. hydr.., accessories 775
Drum
4812232055 Drum 776
Loading hose
4812010948 Loading hose 777
Hyd. end plate AB 616/617
4812010743 Hyd. end plate AB 616/617 778
Conversion kit ex. operating unit
4812012671 Conversion kit ex. operation 779
Conversion kit ex. operation, l.h.
4812032140 Conversion kit ex. operation, l.h. 780
Conversion kit ex. operation, r.h.
4812032141 Conversion kit ex. operation, r.h. 781
Sonic sensor con, auger
4812230327 Sonic sensor, auger 782
Retainer
4812228334 Retainer 783
Electric sonic sensor
4812230370 Electric sonic sensor, conv. 784
Lighting side plate
4812013640 Electric, lighting side plate 785
Spot light, LED
4812006791 Spot light, LED 786
Harness
4812013628 Harness W9 See page 453
Measuring device
4812012241A Measuring Dvice 788
Electric
4812007511 Electric, metering element 789
Harness
4812006760 Harness W5 See page 448
Pave TM ready
4812018594 Pave TM ready 791
Harness
4812019454 Harness W10 See page 454
Hydr. end plate heating, l.h. & r.h.
4812238859 Hydr. End plate heating, l.h. & r.h. 793
Hydr. end plate unheated, l.h. & r.h.
4812238806 Hydr. end plate unheated, l.h. & r.h. See page 636
Hydr. end plate unheated, l.h.
4812238803 Hydr. end plate unheated, l.h. See page 637
Hydr. end plate unheated, r.h.
4812238804 Hydr. end plate unheated, r.h. See page 641
El. heating, end plate with skid l.h. & r.h.
4812238857 El. heating, end plate with skid l.h. & r.h. See page 601
4812075621 El. heating, end plate with skid l.h. & r.h. See page 602
Stiffening plate, l.h.
4812010358 Plate, l.h. See page 646
Stiffening plate, r.h.
4812010359 Plate, r.h. See page 647
Valve support
4812010431 Valve support See page 648
Electric, side shield
4812018721 Electric, hyd. side plate See page 649
Harness
4812009373 Harness W6 See page 449
4812018688 Harness W7 See page 451
4812018689 Harness W8 See page 452
4812018676 Harness W15.5 See page 460
4812018684 Harness W16.5 See page 467
Hydr. end plate
4812019242 Hydraulic, end plate See page 651
Control block
4812010450 Control block See page 654
Hose clamp
4812010756 Hose clamp See page 655
Suppression
4812010929 Suppression See page 656
Auger limit switch ultrasonic
4812031793 Auger limit switch ultrasonic 805
Retainer
4812228334 Retainer See page 783
Sonic Sensor Auger
4812032431 Sonic Sensor Auger 807
Accessories
Decals (E)
4812035402 Decals Screed 808

PLEASE NOTE:

•  This is the same manual used by the dealers to diagnose and troubleshoot your vehicle

• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.S
