Dynapac Vibratory roller CA4000 Engine Cummins QSB 4.5 (IIIA/T3) Spare parts list Manual – PDF DOWNLOAD

Description

Dynapac Vibratory roller CA4000 Engine Cummins QSB 4.5 (IIIA/T3) Spare parts list Manual – PDF DOWNLOAD

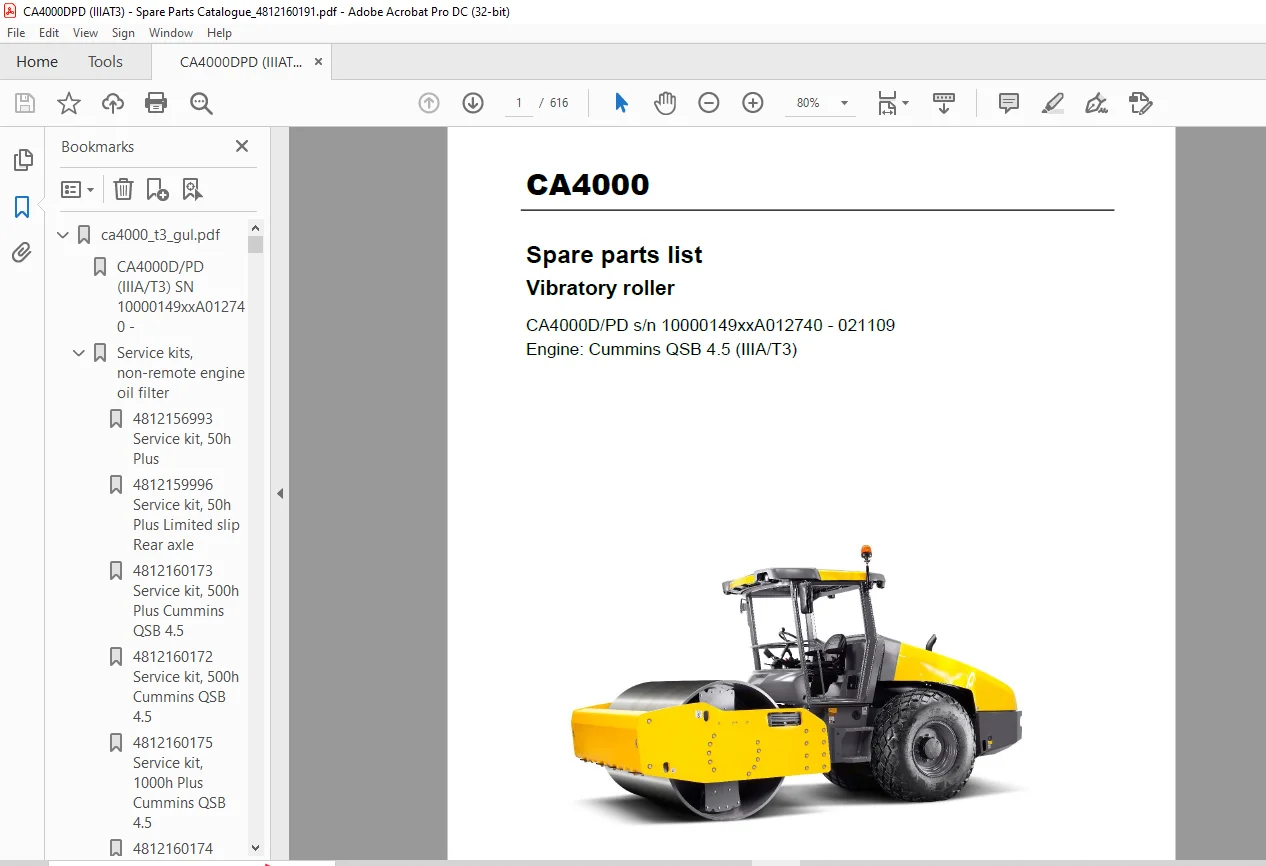

FILE DETAILS:

Dynapac Vibratory roller CA4000 Engine Cummins QSB 4.5 (IIIA/T3) Spare parts list Manual – PDF DOWNLOAD

Language : English
Pages :616
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Dynapac Vibratory roller CA4000 Engine Cummins QSB 4.5 (IIIA/T3) Spare parts list Manual – PDF DOWNLOAD

CA4000D/PD (IIIA/T3) SN 10000149xxA012740 – 1
Service kits, non-remote engine oil filter
4812156993 Service kit, 50h Plus 3
4812159996 Service kit, 50h Plus Limited slip Rear axle 5
4812160173 Service kit, 500h Plus Cummins QSB 4.5 7
4812160172 Service kit, 500h Cummins QSB 4.5 9
4812160175 Service kit, 1000h Plus Cummins QSB 4.5 11
4812160174 Service kit, 1000h Cummins QSB 4.5 13
4812160178 Start up kit Cummins QSB 4.5 15
4812160177 Service kit, 2000h Plus Cummins QSB 4.5 17
4812160176 Service kit, 2000h Cummins QSB 4.5 19
Service kits, remote engine oil filter
4812156993 Service kit, 50h Plus See page 3
4812159996 Service kit, 50h Plus Limited slip Rear axle See page 5
4812158281 Service kit, 500h Plus Cummins QSB 4.5 21
4812158369 Service kit, 500h Cummins QSB 4.5 23
4812158282 Service kit, 1000h Plus Cummins QSB 4.5 25
4812158283 Service kit, 1000h Cummins QSB 4.5 27
4812158370 Start up kit Cummins QSB 4.5 29
4812158582 Service kit, 2000h Plus Cummins QSB 4.5 31
4812158583 Service kit, 2000h Cummins QSB 4.5 33
Repair kits
Eccentric shaft kit 35
4812157275 Drum rotation kit 37
4812158578 Shock absorber kit, drum 39
General – Keys and others
Fuses 41
Keys 43
Frame
Frame, front 45
4812117507 Steering hitch, cpl 47
Scrapers, option
Scrapers, option 49
Scraper module Steel 51
Scraper module Rubber 53
Scraper assy 55
Scraper module PD 57
Scraper module PD Heavy duty 59
Scraper mount 61
Frame, rear 63
Frame, rear 65
Cover assembly 67
Step module 69
Step assy 71
Tool box module, Option 73
Engine structure 75
Engine hood 77
4812120749 Engine hood, cpl 79
4812118994 Lock handle, cpl 81
Fender module 83
Hinge module 85
Lock handle assy 87
Gas spring module 89
Safety link module 91
Drum
Drum, cpl 93
4812113266 Drum gear 97
Drum cartridges, (D version)
4812158092 Drum cartridge, vibration side (D version) 99
4812158097 Drum cartridge with shaft nut, vibration side (D verison) 101
4812158087 Drum cartridge, drive side (D version) 103
Drum cartridges (PD version)
4812158093 Drum cartridge, vibration side (PD version) 105
4812158098 Drum cartridge with shaft nut, vibration side (PD version) 107
4812158088 Drum cartridge, drive side (PD version) 109
Pad shell, option 111
Engine
Engine 113
Diesel engine 117
Belt guard module 119
Bracket module 121
Cooling system 123
Cooler stand module To A015844
Cooler stand module 125
Cooler stand module From A015845
Cooler stand module 128
Hose assy kit 131
Air cleaner 133
Air cleaner module 135
Fuel system
Fuel system 137
Fuel tank module 139
Fuel tank 141
Brackets assy 143
Fuel hoses 145
Draining module 147
Exhaust system 149
Expansion tank assembly 151
Transmission
Rear axle and wheels 153
4812113344 Rear axle, limited slip
4812113344 Rear axle, limited slip 155
Differential & Bevel gear 157
Brakes 159
Hub reduction 161
4812113341 Rear axle No spin
4812113341 Rear axle No spin 163
Differential 165
Central housing and brakes 167
Hub reduction 169
Hydraulic system
Hydraulic system, drum Traction control
Hydraulic system, drum Traction control 171
Hydraulic motor module, vibration 173
4812112216 Hydraulic motor, vibration
4812112216 Hydraulic motor, vibration 175
Rotary group 177
Flush & boost pressure valve with orifice 179
Cover 181
Hydraulic motor 183
4812112200 Hydraulic motor
4812112200 Hydraulic motor 185
Loop flushing 189
Hydraulic system, drum Anti-spin system
Hydraulic system, drum Anti-spin system 191
Hydraulic motor module, vibration See page 173
4812112216 Hydraulic motor, vibration
4812112216 Hydraulic motor, vibration See page 175
Rotary group See page 177
Flush & boost pressure valve with orifice See page 179
Cover See page 181
Hydraulic motor 193
4812112202 Drum motor
4812112202 Drum motor 195
Drum motor. Front section 197
Loop flushing 199
Drum motor. Rear section 201
Hydraulic system, drum Traction control, static linear load high
Hydraulic system, drum Traction control, static linear load high 203
Hydraulic motor module, vibration See page 173
4812112216 Hydraulic motor, vibration
4812112216 Hydraulic motor, vibration See page 175
Rotary group See page 177
Flush & boost pressure valve with orifice See page 179
Cover See page 181
Hydraulic motor See page 183
4812112200 Hydraulic motor
4812112200 Hydraulic motor See page 185
Loop flushing See page 189
Hydraulic system, drum Anti spin system, static linear load high
Hydraulic system, drum Anti spin system, static linear load high 205
Hydraulic motor module, vibration See page 173
4812112216 Hydraulic motor, vibration
4812112216 Hydraulic motor, vibration See page 175
Rotary group See page 177
Flush & boost pressure valve with orifice See page 179
Cover See page 181
Hydraulic motor See page 193
4812112202 Drum motor
4812112202 Drum motor See page 195
Drum motor. Front section See page 197
Loop flushing See page 199
Drum motor. Rear section See page 201
Hydraulic system, rear axle Traction control, limited slip
Hydraulic system, rear axle Traction control, limited slip 207
Hydraulic motor 209
4812112208 Rear axle motor
4812112208 Rear axle motor 211
Front section 213
Rear section 215
Hose holder 217
Hydraulic system, rear axle Traction control, no slip
Hydraulic system, rear axle Traction control, no slip 219
Hydraulic motor 221
4812112211 Rear axle motor
4812112211 Rear axle motor 223
Loop flusing 227
4812122932 Hydraulic motor 229
Hose holder See page 217
Hydraulic system, rear axle Anti-spin system
Hydraulic system, rear axle Anti-spin system 233
Hydraulic motor 235
4812112210 Rear axle motor
4812112210 Rear axle motor 237
Front section 239
Rear section 243
Hose holder See page 217
Hydraulic system, rear axle Dual speed
Hydraulic system, rear axle Dual speed 245
Hydraulic motor 247
4812112207 Axle motor 249
Hose holder See page 217
Hydraulic system, oil tank
Hydraulic system, oil tank 253
Hydraulic oil tank assembly 255
Hydraulic valve module 259
4812120840 Hydraulic valve 261
4812112238 Hydraulic valve 263
Connector assy 265
Fan module 267
4812117796 Hydraulic motor 269
Hydraulic system, engine room
Hydraulic system, engine room 271
Hydraulic pump module 273
4812112170 Hydraulic pump, propul pump
4812112170 Hydraulic pump, propul pump 275
Front section 277
Rear section 279
Hydraulic pump module 283
Hydraulic oil filter assy 285
Hydraulic pump module 287
4812118150 Hydraulic pump, steering 289
Hydraulic system, engine room Adjustable frequency, eco opti
Hydraulic system, engine room Adjustable frequency, eco opti 291
Hydraulic pump module See page 273
4812112170 Hydraulic pump, propul pump
4812112170 Hydraulic pump, propul pump See page 275
Front section See page 277
Rear section See page 279
Hydraulic pump 293
4812112180 Hydraulic pump 295
Hydraulic oil filter assy See page 285
Hydraulic pump module See page 287
4812118150 Hydraulic pump, steering See page 289
Hydraulic pump module, Eco 297
4812118151 Hydraulic pump 299
Hydraulic system, frame rear
Hydraulic system, frame rear 301
Connector kit 303
Connector kit 305
Hydraulic system, steering
Hydraulic system, steering 307
Hydraulic cylinder 309
4812113826 Hydraulic cylinder 311
Hydraulic cylinder 313
4812121946 Hydraulic cylinder 315
Steering valve module 317
Hydraulic hoses, steering 319
Hydraulic system, emergency steering
Hydraulic system, emergency steering 321
4812112188 Hydraulic pump Emergency steering unit 323
4812112236 Hydraulic valve 325
Electric equipment
Electric cables, power supply, 1-pole
Electric cables, power supply, 1-pole 327
Battery module 329
Battery disconnector module 331
Electric cables, power supply, 2-pole, option
Electric cables, power supply, 2-pole, option 333
Battery module See page 329
Battery disconnector, 2-pole 335
Electrical cables, engine – ECU Horn, back-up alarm
Electrical cables, engine – ECU Horn, back-up alarm 337
Standard ECU assembly 340
Power converter module 343
Inclination sensor module 345
Inclination sensor module 347
Back-up alarm module 349
Back-up alarm module, Quacker 351
Horn module 353
Bracket module 355
Cable harness kit Power supply cab
Cable harness kit Power supply cab 357
Driving & side direction lights, number plate light, option
Driving & side direction lights, number plate light, option 359
Steering column switch module 361
Cable harness kit 363
Registration plate light module 365
Registration plate light 367
Holder, Registration plate light 369
Reversing light, option
Reversing light module 371
DCA/GPS equipment module, option
DCA/GPS equipment module, option 373
Holder 375
GPS equipment module 377
GPS equipment assy 379
Computer 381
Tachograph, option
Tachograph, option 383
Holder assy 385
Power supply module 387
Speed sensor, frequency sensor, option
Speed sensor, frequency sensor, option 389
Pulse sensor module (6-pol) 391
Pre-heater installation, option
Pre-heater installation, option 393
Heater 395
Rotating beacon, working light, option
Rotating beacon, working light, option 397
Rotating beacon module 399
Bracket, Rotating beacon 401
Working light module H3 403
Cable harness, emergency steering, option
Cable harness, emergency steering, option 405
Displacement shift
Displacement shift 407
Compaction meter, option
Compaction meter, option 409
Power supply 411
External emergency stop, option
External emergency stop, option 413
Drivers platform
Platform, rops
Platform, rops 415
4812120544 Platform with 4-post ROPS
4812120544 Platform with 4-post ROPS 417
Basic kit Rops, roof, front handrail 419
Rear cover 421
Handrail 423
Cab, basic kit 425
Decals basic kit 427
Manual box 429
Cab symmetric module
Cab symmetric module 431
4812119364 Cab, cpl Comfort
4812119364 Cab, cpl Comfort 433
Screens 435
4812115202 Cab door, cpl 437
4812115200 Sliding screen, left hand 439
Windshield wiper 441
Roof 443
Heater assy 445
Hose kit heater 447
Cab cable harness 449
Cab Interior 451
Heater controls 453
Cab, electrical equipment 455
Emergency hammer, hook 457
Cab, rear cover 459
Cab, front cover 461
Floor mat 463
Step light, front wiper switches 465
Cab, basic kit See page 425
Air channel 467
Sun-blind, inner light 469
4812119365 Cab, cpl Basic
4812119365 Cab, cpl Basic 471
Screens See page 435
4812115202 Cab door, cpl See page 437
4812115200 Sliding screen, left hand See page 439
Windshield wiper See page 441
Hose kit heater See page 447
Roof See page 443
Heater assy See page 445
Cab cable harness See page 449
Cab, electrical equipment See page 455
Cab Interior See page 451
Heater controls See page 453
Emergency hammer, hook See page 457
Cab, rear cover 473
Cab, front cover 475
Wiper switch, front 477
Cab, basic kit See page 425
Manual box See page 429
Decals basic kit See page 427
Drivers seat
Drivers seat 479
Seat frame structure 481
4700391163 Steering column 483
Seat frame adapter module, rotating 485
Seat frame adapter module, fixed 487
Seat comfort, fabric suspensioned 489
Seat, galon suspensioned 491
Floor cassette module 493
Seat belts
Seat belt 2″ 495
Seat belt 3″ 497
Seat belt 2″ with reminder 499
Seat belt 3″ with reminder 501
Control module 503
Forward reverse control module 505
Display unit 509
Reading light 511
Control panel cover 513
Car stereo module, option 515
Rear view mirror 517
Rear view mirror module 519
Heater hoses 521
Decals
Decals 523
Decals 527
Plain Dynapac decals, kit 529
Optional equipment
Air conditioning
Air conditioning 531
Drying filter module 533
4812114257 Drying filter assy 535
Condensor assembly 537
ACC module 539
4812113624 ACC kit 541
AC module 543
4812113623 Evaporator, cpl 545
Hose kit AC 547
Compressor module 549
Hose assy kit for AC 551
Strike off blade kit
Strike of blade kit 553
Hydraulic and Electrical kit 555
4812113498 Hydraulic valve, Strike-off blade 557
4812121948 Hydraulic cylinder 559
Strike off blade, mount 561
Locking device, module 563
Indicator, module 565
Fire extinguisher/First Aid Cushion
Fire extinguisher/First Aid Cushion 567
Fire extinguisher 569
Level sensor module, option
Level sensor module, option 571
SMV-sign
SMV-sign 573
Cooling box module
Cooling box module 575
Lunch box
Lunch box 577
Dyn@Link module 579
4812013038 GPS module 581
Compaction meter (DCM) 583
Dyn@lyzer 585
Appendix B:Parts Index 587

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

V.S
