DYNAPAC Vibratory Roller CC1250 Parts Manual 4812108515 PDF DOWNLOAD

Description

DYNAPAC Vibratory Roller CC1250 Parts Manual 4812108515 PDF DOWNLOAD

FILE DETAILS:

DYNAPAC Vibratory Roller CC1250 Parts Manual 4812108515 PDF DOWNLOAD

Language : English
Pages : 193
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

DYNAPAC Vibratory Roller CC1250 Parts Manual 4812108515 PDF DOWNLOAD

CC1250 s/n 10100379PHE004781
Engine: 1703M

CC1250 S/N 10000379X0E004781-
Service Kit
Service Kit 1.1-1
Service Kit 50Hrs
Service kit 50Hrs 1.1.2-1
Service kit 50Hrs Including oil
Service kit-50Hrs Plus 1.1.3-1
Service kit 200/600Hrs
Service kit 200/600Hrs 1.1.4-1
Service kit 200/600 Including oil
Service kit 200/600Hrs Plus 1.1.5-1
Service kit 400/800hrs
Service kit 400/800Hrs 1.1.6-1
Service kit 400/800Hrs Including oil
Service kit 400/800Hrs Plus 1.1.7-1
Service kit 1000Hrs
Service kit 1000Hrs 1.1.8-1
Service kit 1000Hrs Including oil
Service kit 1000Hrs Plus 1.1.9-1
Start up kit
Start Up Kit 1.1.10-1
Repair Kit
Repair kit 1.2-1
Eccentric shaft kit
4700938908 Eccentric shaft kit 1.2.2-1
Scapper kit
Scapper kit 1.2.3-1
Drum Rotation kit
4700938892 Drum rotation kit 1.2.4-1
Shock absorber kit
Shock absorber kit 1.2.5-1
Steering hitch kit
4812120871 Steering hitch kit 1.2.6-1
Uptime kits
4812108323 O-ring kit
4812108323 O-ring kit 1.3.1-1
4812108588 Fuses and relays kit
Fuses and relays kit 1.3.2-1
4812108592 Switches kit
Switches kit 1.3.3-1
Lubricants
Lubricants 1.4-1
Frame
Frame 1.5-1
Frame
Frame 1.5.2-1
Steering hitch
4812120871 Steering hitch 1.5.2.2-1
Scraper
Scraper 1.5.3-1
Sprinkler system
Sprinkler system 1.5.4-1
Drum
Drum 1.6-1
Engine room
Engine room 1.7-1
Engine room
Engine Module
Engine Module 1.7.2.1-1
Diesel engine
Diesel Engine 1.7.2.1.2-1
Exhaust system
Exhaust system 1.7.2.2-1
Fan
Fan 1.7.2.3-1
Air Filter model
Air filter 1.7.2.4-1
water cooler
water cooler 1.7.2.5-1
Engine Hood
Engine hood 1.7.2.6-1
casing
Casing 1.7.2.7-1
Fuel System
Fuel assembly Before E003418
Fuel system 1.7.2.8.1-1
Fuel assembly After E003419
Fuel assembly 1.7.2.8.2-1
Fuel hoses
Fuel hoses 1.7.2.9-1
Hydraulic system
Propulsion system
Hydraulic propulsion 1.8.1-1
Hydraulic pump-Propulsion
Input shaft & control 1.8.1.2-1
Control Oriffice and Housing 1.8.1.2-2
Charge pump & Special drive 1.8.1.2-3
Auxiliary mounting,pressure relief valve, loop bypass & Displacement limitter 1.8.1.2-4
Seal kit 1.8.1.2-5
Hydraulic motor-Propulsion
Other sub assembly 1.8.1.3-1
Brake sub assembly 1.8.1.3-2
Cylinder Block 1.8.1.3-3
Cover assembly 1.8.1.3-4
Seal kit-Propulsion motor 1.8.1.3-5
Vibration system
Vibration system 1.8.2-1
Vibration block
Vibration block 1.8.2.2-1
Steering system
Steering system 1.8.3-1
Brake system
Hydraulic brake 1.8.4-1
Hydraulic filter
Hydraulic filter 1.8.5-1
Electrical equipment
Electrical Equipment 1.9-1
Battery module
Battery module 1.9.2-1
Battery Diconnector
Battery disconnector 1.9.3-1
Wiring harness kit
Wiring harness kit 1.9.4-1
Horn module
Horn module 1.9.5-1
Control module
Control module 1.9.6-1
Instrument panel module Upto E003840
Instrument Panel Module 1.9.7-1
Instrument panel module From E003841
Instrument Panel Module 1.9.8-1
ECU module
ECU module 1.9.9-1
Driving light mount
Driving light mount 1.9.10-1
Driving light front Upto E004305
Driving light front 1.9.11-1
Driving light front From E004306
Driving light front 1.9.12-1
Driving light rear Upto E004305
Driving light rear 1.9.13-1
Driving light rear From E004306
Driving light rear 1.9.14-1
Working light
Working Light 1.9.15-1
Back up alarm
Back-up alarm 1.9.16-1
Rotating becon
Rotating beacon for ROPS (option) 1.9.17-1
Drivers platform
Platform module
Platform module 1.10.1-1
Drivers compartment
Drivers compartment 1.10.2-1
Forward & reverse lever
Forward & reverse lever 1.10.2.2-1
Throttle lever
Throttle lever 1.10.3-1
Decals
Decals – 1 1.11-1
Decal – 2 1.11-2
Optional equipment
Mirror assembly
Mirror assembly 1.12.1-1
ROPS foldale(Option)
ROPS, foldable (Option) 1.12.2-1
Tool equipment
Tool Equipment 1.12.3-1
Brake released kit
Brake release, propulsion motor Poclain 1.12.4-1
Appendix A:Pages Index A
Appendix B:Parts Index B

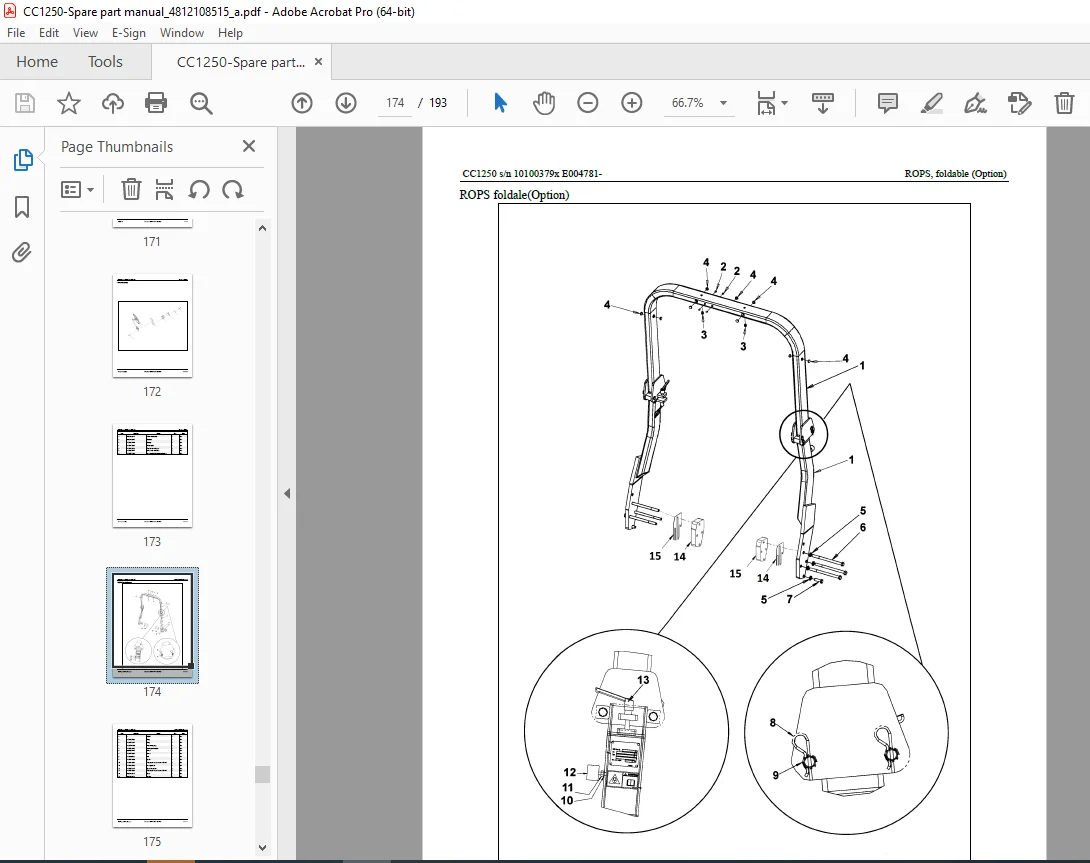

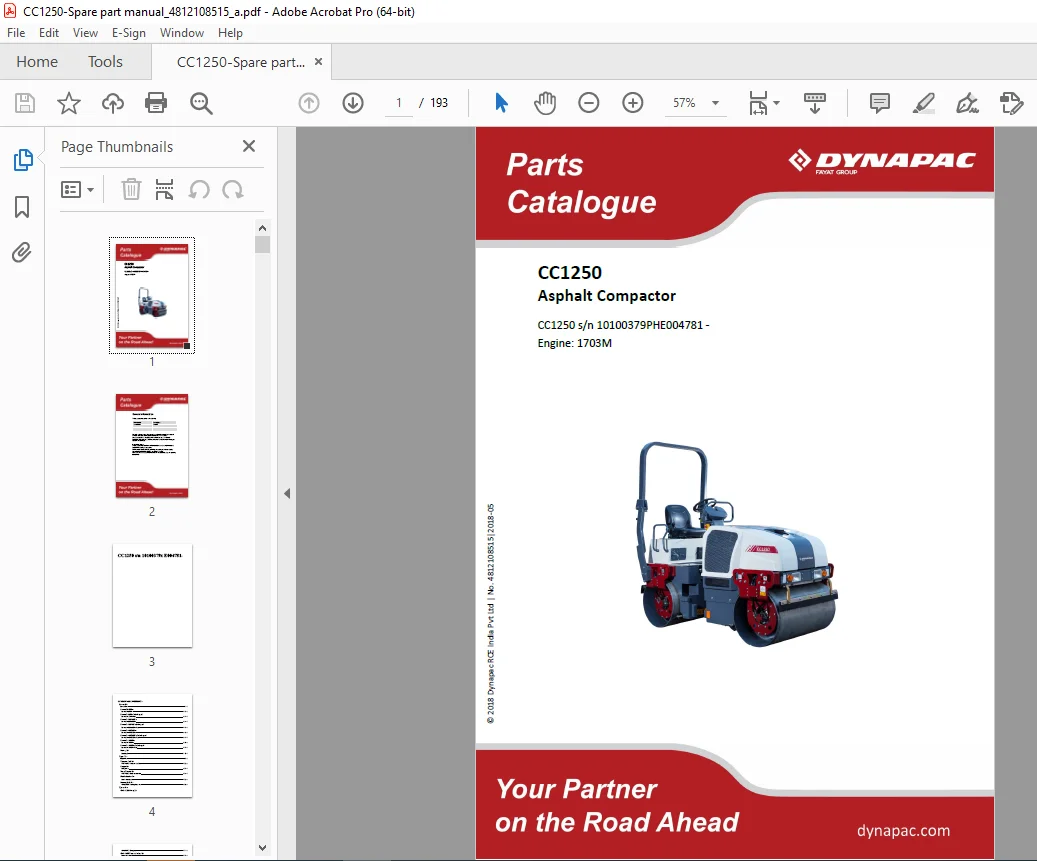

IMAGES PREVIEW OF THE MANUAL:
