DYNAPAC Vibratory Roller CC1300C Parts Manual SCC1300C-1EN3 PDF DOWNLOAD

Description

DYNAPAC Vibratory Roller CC1300C Parts Manual SCC1300C-1EN3 PDF DOWNLOAD

FILE DETAILS:

DYNAPAC Vibratory Roller CC1300C Parts Manual SCC1300C-1EN3 PDF DOWNLOAD

Language : English
Pages : 260
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

DYNAPAC Vibratory Roller CC1300C Parts Manual SCC1300C-1EN3 PDF DOWNLOAD

Valid from roller serial number 10000335x0A000001- 0A012585
 Diesel Engines : Kubota V2203

CC1300C S/N 10000335x 0A000001 – 0A012585 2
Service kits 4
4812156265 Service kit 50h 6
4812159563 Service kit 50h Plus 8
4812156288 Service kit 250 / 750 h 10
4812159564 Service kit 250/750h Plus 12
4812156266 Service kit 500h 14
4812159565 Service kit 500h Plus 16
4812156268 Service kit 1000 h 18
4812159567 Service kit 1000h Plus 20
4812159572 Start-up kit 22
4812159563 Service kit 50h Plus 8
4812159565 Service kit 500h Plus 16
4812159567 Service kit 1000h Plus 20
Repair kits 24
4700938909 Eccentric shaft kit 26
4700938893 Drum rotation kit 28
4700938915 Scraper kit (12 mm) 30
4700938887 Shock absorber kit, drum 32
Steering hitch kit 34
Frame 36
Frame, front 38
Steering hitch 40
Frame, rear 42
Steering hitch 40
Scrapers, STD 44
Scrapers, wheels, std 46
Scrapers, spring loaded option 48
Sprinkler system Up to 0A011344 50
Sprinkler system From 0A011345 56
Towing device (option) 62
Drum / Wheels 64
Drum Up to 0A012561 66
Drum From 0A012562 68
Wheels Std 70
Engine room 72
Engine module 74
4812110882 Diesel engine Kubota V2203 -34 kW 76
Exhaust system 78
TC 2
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
Fan 80
Air filter 82
Expansion tank Up to 0A011344 84
Expansion tank From 0A011345 86
Water cooler From 0A009071 88
Water cooler From 0A009072 90
Water cooler From 0A009073 Up to 0A009077 88
Water cooler From 0A009078 Up to 0A012542 90
Water cooler From 0A012543 92
Engine hood Up to 0A007894 94
4812115507 Engine hood, cpl From 0A007895 Up to 0A011344 96
4812118164 Engine hood, cpl From 0A011345 98
Casing Up to 0A007894 100
4812115561 Casing From 0A007895 102
Fuel system 104
Cooler hoses Up to 0A012542 106
Cooler hoses From 0A012543 108
Air hoses Up to 0A011344 110
Air hoses From 0A011345 112
Fuel hoses 114
Hydraulic system 116
Propulsion system 118
4812110281 Junction block 122
Vibration system 124
4700391271 Vibration motor 126
Steering system 128
4700374603 Steering cylinder 130
Brake system 132
Flow divider (option) 134
Electrical equipment 136
Horn module 138
Battery module 140
Battery disconnector 142
Cable harness 144
Working lights 146
Working lights front 148
Working light rear 150
Working light (option) rear 152
Casing rear 154
Cover plate rear 156
Rotating beacon for ROPS (option) 158
TC 3
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
Rotating beacon for ROPS ignition controlled (option) 160
Rotating beacon, without rops (option) 162
Driving lights Front RH (option) 164
Driving lights Front 166
Driving lights Rear (option) 168
Driving lights Front LH (option) 170
Driving lights Front 172
Driving lights Rear (option) 168
Driving lights Rear (option) 168
Direction indicator (option) 174
Back-up alarm 176
Sprinkler Wheels (option) 178
Drivers platform 180
Platform module 182
Platform mount 184
Instrument panel module Up to 0A0010967 186
Instrument panel module From 0A0010968 188
Steering wheel 190
Control module 192
Standard ECU module 194
Forward-Reverse control module 196
4812113676 Forward and reverse control handle 198
Forward-reverse control left (option) 200
Cover plate, Dual F&R-control left side 202
Throttle control, cpl 204
Arm rests, seat belt, laterally adjusting 206
Step (option) 208
Driver seat, Std 210
Driver seat, Std with armrests (option) 212
Driver seat, Luxury (option) 214
Driver’s seat, without armrests (option) 216
Seat belt module 3″ 218
Seat belt module 2″ 220
Rear view mirror (option) 222
ROPS, foldable (option) 224
Rops (option) 226
Canopy (option) 228
Decals 230
Decals 232
Optional equipment 234
TC 4
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
Fire extinguisher 236
Tool equipment 238
SMV-sign and Licence plate 240
Brake release, “high torque” drum drive 242
Brake release, propulsion motor 244

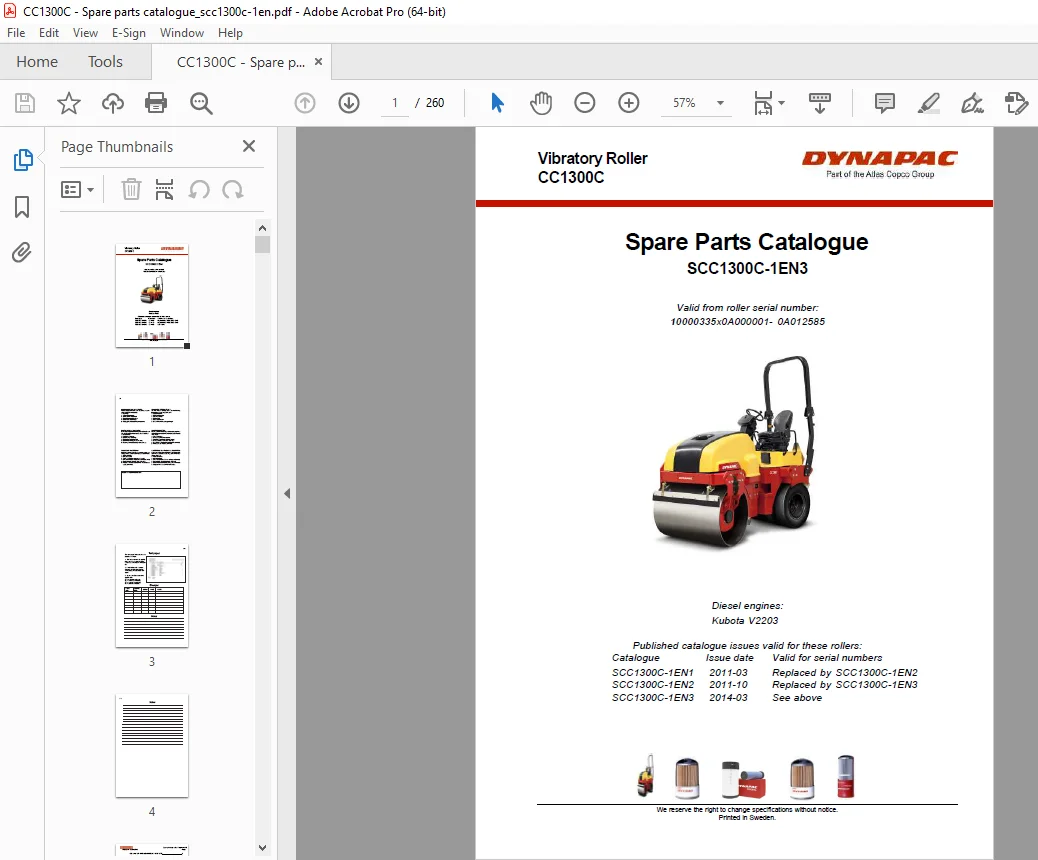

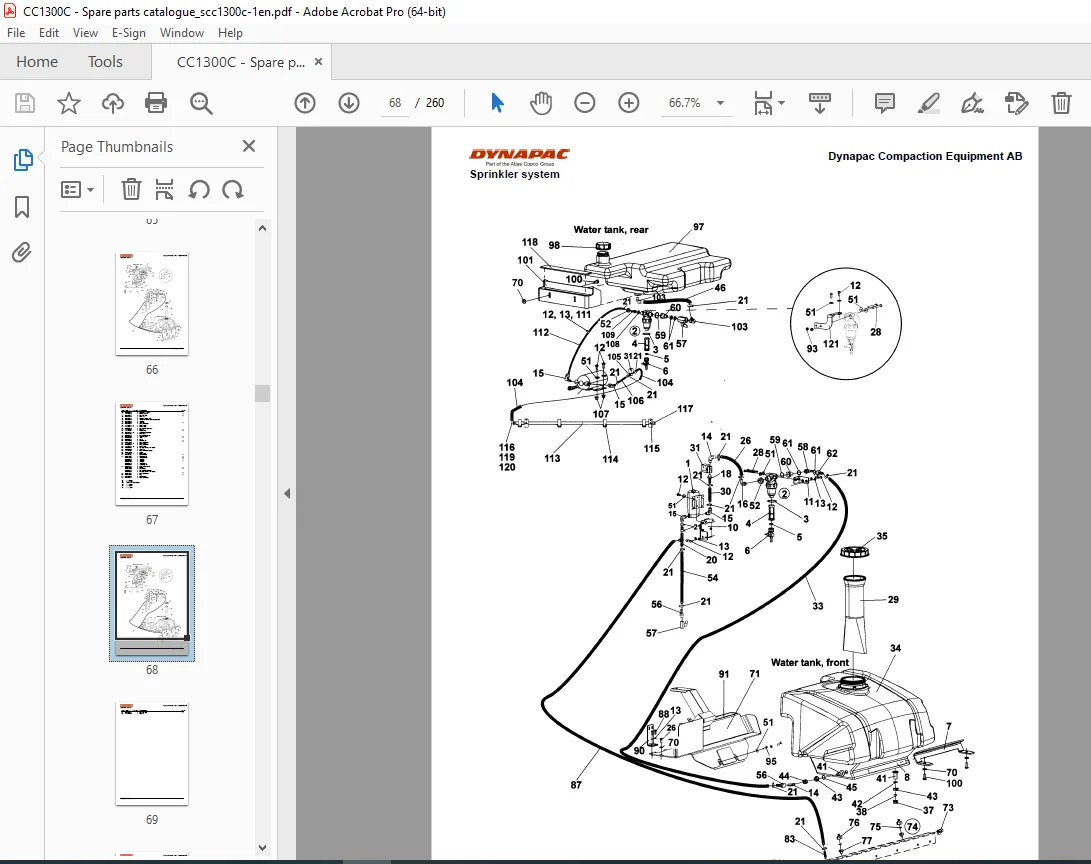

IMAGES PREVIEW OF THE MANUAL:
