DYNAPAC Vibratory Roller CC2200C Parts Manual 4812162287 PDF DOWNLOAD

Description

DYNAPAC Vibratory Roller CC2200C Parts Manual 4812162287 PDF DOWNLOAD

FILE DETAILS:

DYNAPAC Vibratory Roller CC2200C Parts Manual 4812162287 PDF DOWNLOAD

Language : English
Pages : 538
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

DYNAPAC Vibratory Roller CC2200C Parts Manual 4812162287 PDF DOWNLOAD

CC2200C s/n 10000312xxA021293
Deutz TCD3.6 L04 IIIA/T3

CC2200C SN 10000312xxA021293 – 1
Service kits
4812159352 Service kit, 50h Plus 3
4700939076 Service kit 250 / 750 h 5
4700950175 Service kit 500h, Cummins QSB 3.3 7
4812160287 Service kit 1000h, Cummins QSB 3.3 9
Repair kits
4812155792 Eccentric shaft kit 11
4700938891 Drum rotation kit 13
4812155791 Scraper kit 15
4812155158 Shock absorber kit, drum 17
4812155698 Sprinkler kit 19
General – Keys and others
Keys 21
Fuses 23
Frame
Front frame
Front frame 25
Front frame module 27
4700391023 Steering cylinder 29
Tank structure module 31
Sprinkler tank structure mount 33
4700391307 Cover 37
Hose support 39
Hitch module 41
4812119139 Steering hitch 43
Filling pipe 45
Locking device module 47
Grab handle module 49
Rear frame
Rear frame 51
Rear frame 53
Cover 57
Engine structure, module 59
Engine structure 61
4812128229 Engine cover, left 65
4812128231 Engine cover, right 67
Hose support See page 39
4700396638 Noise suppression kit, covers 69
Noise suppression plates 71
Sprinkler system
Sprinkler system 73
Sprinkler pump module 75
Sprinkler pump 77
Filling pipe See page 45
Locking device module See page 47
Water hoses 79
Emulsion tank module 81
Emulsion tank mount 83
Sprinkler pump module, emulsion 85
Sprinkler pump mounted 87
Sprinkler box cpl 89
Sprinkler pipe module, wheel 91
Sprinkler pipe 93
Sprinkler pump, backup 95
End frame, front
End frame, front 97
End frame, front 99
Frame assy 101
Fork, vibration side 103
Fork, propulsion side 105
Cover plate 107
Hose clamp, propulsion side 109
Hose clamp, vibration side 111
Step, vibration side 113
Scraper module, without nozzles 115
Scraper assy 117
Scraper module, with nozzles 119
Scraper assy with nozzles 121
4700394340 Scraper bracket, cpl 123
Grab handle, release 125
Grab handle, lift 127
Grab handle, lift offset/cocoa mat 129
Eyelet module 131
Process mirrors 133
End frame, rear
End frame, rear 135
End frame, rear 137
Frame assy 139
Combi unit, basic kit 141
4700394922 Gear
4700394922 Gear 143
Hydraulic motor 146
Connection block 149
Micro switch 151
Wheel module 153
Wheel 155
Wheel spacer module 157
Scraper bracket 159
Scraper module 161
Scraper assy 163
Step assy 165
Cover plate See page 107
SMV-sign 167
Protecting covers 169
Drum
Drum 171
Drum bearing 173
Drive unit 175
4700392453 Drum gear 177
Vibrating suspension 179
Vibration motor, mount 181
4700395915 Hydraulic motor Vibration 183
Engine
Engine 187
Engine 189
Engine module 191
Air cooler hoses 195
Water cooler hoses 197
Air cleaner module 199
Air cleaner hose module 201
Muffler 203
Exhaust pipe module 205
Fuel hose module 207
Charge air cooler 209
Water cooler 211
Expansion tank assembly 213
Coolant hoses 215
Hydraulic system
Hydraulic system, front drum
Hydraulic system, front drum 217
Hydraulic system, frame
Hydraulic system, frame 219
Hydraulic hoses, rear ending
Hydraulic hoses, rear ending 222
4700394922 Gear
4700394922 Gear See page 143
Hydraulic motor See page 146
Hydraulic pump module 225
Hydraulic pump 227
Hydraulic valve module, offset/combi
Hydraulic valve module, offset/combi 229
Hydraulic valve 231
4700391017 Hydraulic valve 233
Connection block See page 149
Hydraulic system, engine room
Hydraulic system, engine room 235
Fan assembly 239
Hydraulic valve module
Hydraulic valve module 241
Hydraulic valve 243
4700395924 Hydraulic valve 245
Hydraulic pump module See page 225
Hydraulic pump See page 227
Radiator assembly 247
Hydraulic system, steering Std
Hydraulic system, steering Std 249
Hydraulic valve module See page 241
Hydraulic valve See page 243
4700395924 Hydraulic valve See page 245
4700391023 Steering cylinder See page 29
Hose bracket 251
Hydraulic steering, sliding seat
Hydraulic steering, sliding seat 253
Carrier 255
Steering, slideable 257
Electrical equipment
Electric cables, power supply
Electric cables, power supply 259
Battery disconnector 261
Battery disconnector 263
Holder module, battery 265
Electric cables, power supply cab
Electric cables, power supply cab 267
Electric cables, engine ECU
Electric cables, engine – ECU 269
Standard ECU module 271
Standard ECU assembly 273
Electric cables, sensors/ horn/ back-up alarm
Electric cables, sensors/ horn/ back-up alarm 275
Horn module 277
Horn 279
Back-up alarm module 281
Back-up alarm 283
Driving & side direction lights
Driving & side direction lights 285
Driving lights, front RH 287
Driving lights, front LH 289
Steering column switch module 291
Cable harness and switch module 293
Registration plate light module 295
Registration plate light 297
Driving lights, rear 299
Turn signals 301
Rotating beacon, working light
Rotating beacon, working light 303
Rotating beacon module 305
Working light module H3 307
Drum edge lights
Drum edge lights 309
Bracket 311
Working light module H3 See page 307
Bracket 313
Asphalt temp meter
Asphalt temp meter 315
Temp sensor module 317
Drivers platform
Platform, no cab
Platform, no cab 319
Platform with 4-post ROPS 321
4812119368 Platform with 4-post ROPS
4812119368 Platform with 4-post ROPS 323
Roof 325
ROPS interior 327
Decals basic kit 329
Manual box 331
Hand rail, left 333
Hand rail 335
Hand rail, right 337
Hand rail 339
Hand rail 341
Lunch box module 343
Cab, asymmetric
Cab, asymmetric 345
4812119359 Cab, cpl
4812119359 Cab, cpl 347
Screen front and rear 349
Corner screens left and AC hood 351
24V socket and air nozzels 353
Wipers front/rear and front ceiling 355
Cab frame harness 359
Heating installation 361
Heater cover plate 364
AC-kit 367
Switch kit 369
Door sliding screens 371
Door complete 373
Screens asymmetric right 375
Lower screen and water system, left 377
Lower screens and water system, right 379
4812119358 Cab comfort, cpl
4812119358 Cab comfort, cpl 381
Screen front and rear See page 349
Corner screens left and AC hood See page 351
24V socket and air nozzels See page 353
Wipers front/rear and front ceiling See page 355
Cab frame harness See page 359
Interior Cab 383
Heating installation See page 361
Evaporator AC-ACC 385
4812113623 Evaporator, cpl 387
Screens asymmetric right See page 375
ACC kit 389
4812113624 ACC kit 391
Door sliding screens See page 371
Door complete See page 373
Lower screen and water system, left See page 377
Lower screens and water system, right See page 379
Manual box See page 331
Decals basic kit 393
Cab noise cover 395
Rear view mirror 397
Drivers seat
Drivers seat 399
Seat frame structure 401
4700391163 Steering column 403
Seat, galon suspensioned 405
Seat comfort, galon suspensioned 407
Seat comfort, fabric suspensioned 409
Seat belts
Seat belt 2″ 411
Seat belt 2″ with reminder 413
Seat belt 3″ 415
Seat belt 3″ with reminder 417
Controls, slidable and turning 419
Cross sliding 421
Carrier See page 255
Steering, slideable See page 257
Hose bracket See page 251
Drive control module 423
Drive control 425
Control handle 427
Display unit 429
Control panel cover 431
Steering column switch module See page 291
Seat frame adapter module, rotating 433
Decals
Decals 435
Optional equipment
Air conditioning
Air conditioning 439
Compressor module 441
Compressor complete 443
Condensor module 445
Condensor 447
AC-ACC, Hose kit 449
Hose kit 451
Hose kit Compressor 453
Hose kit Compressor 455
Tachograph, Car stereo
Tachograph, Car stereo 457
Tachograph with holder 459
Car stereo module 12V 461
Fire extinguisher/First Aid Cushion
Fire extinguisher/First Aid Cushion 463
Fire extinguisher assembly 465
Edge cutter
Edge cutter 467
Edge cutter, module 469
4700390998 Edge cutter, cpl
4700390998 Edge cutter, cpl 471
4700390999 Holder 473
4700391009 Bearing unit 475
4700387275 Hydraulic cylinder 477
Cutting disc module 479
Pressing roller, module 481
Disc/Roller holder 483
Hydraulic valve module 485
Hydraulic valve 487
4700391018 Hydraulic valve 489
Chip spreader
Chip spreader 491
Chip spreader 493
Bracket module 496
Hydraulic valve module 499
Hydraulic hoses 501
Hydraulic hoses 503
Driving lights
Dyn@Link module 507
4812013038 GPS module 509
Dyn@lyzer 511
Appendix B:Parts Index 513

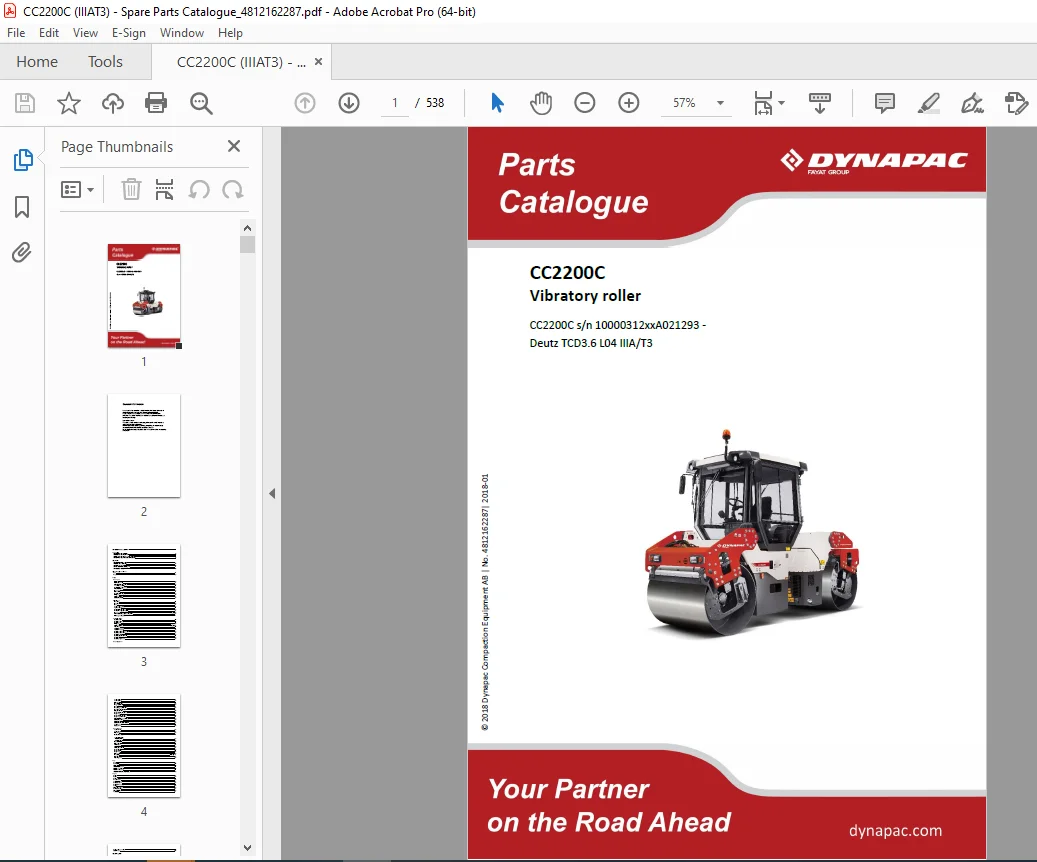

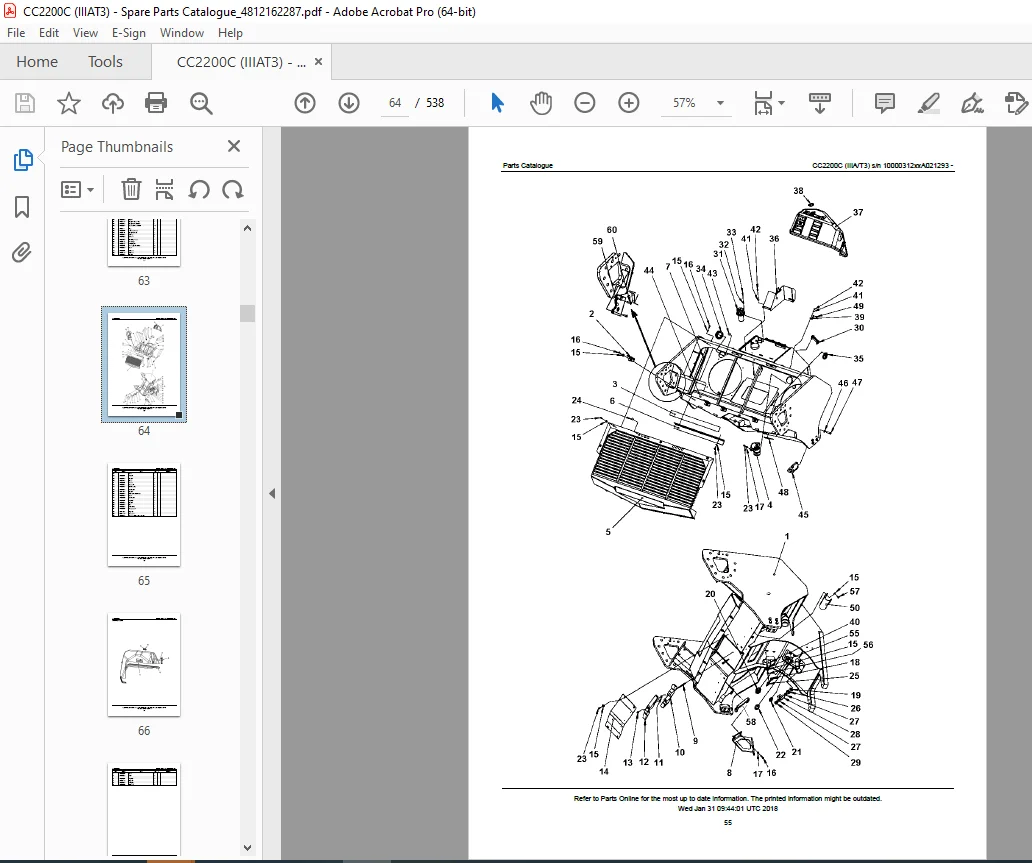

IMAGES PREVIEW OF THE MANUAL:\
