DYNAPAC Vibratory Roller CC4200 Parts Manual 4812159895_C PDF DOWNLOAD

Description

DYNAPAC Vibratory Roller CC4200 Parts Manual 4812159895_C PDF DOWNLOAD

FILE DETAILS:

DYNAPAC Vibratory Roller CC4200 Parts Manual 4812159895_C PDF DOWNLOAD

Language : English
Pages : 658
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

DYNAPAC Vibratory Roller CC4200 Parts Manual 4812159895_C PDF DOWNLOAD

CC4200 s/n 10000320xxA012714  019994
Engine  Cummins QSB4.5 IIIA/T3

CC4200 (IIIA/T3) SN 10000320xxA012714 – 019994 1
Service kits, To SN A012958
4700945805 Service kit 50 h, Cummins QSB 4.5 T3 3
4700945806 Service kit 500 h, Cummins QSB 4.5 T3 5
4700945807 Service kit 1000 h, Cummins QSB 4.5 T3 7
Service kits, From SN A012959
4812160580 Service kit, 50h Plus 9
4700945806 Service kit 500 h, Cummins QSB 4.5 T3 See page 5
4812160269 Service kit 1000 h, Cummins QSB 4.5 T3 11
Repair kits
4700945903 Eccentric shaft kit 13
4700938891 Drum rotation kit 15
4700945908 Scraper kit 17
4700945904 Shock absorber kit, drum 19
General – Keys and others
Keys 21
Fuses 23
Frame
Front frame
Front frame 25
Front frame 27
4700391023 Steering cylinder 29
Tank structure module 31
Tank structure module 33
4700391307 Cover 37
Hose support 39
Hitch module To A016642
Hitch module 41
4812117737 Articulated joint 43
Hitch module From A016643
Hitch module 45
4812119139 Steering hitch 47
Filling pipe 49
Locking device module 51
Grab handle module 53
Rear frame
Rear frame 55
Rear frame, Up to SN A012958
Rear frame 57
Cover, cpl 61
Rear frame, From SN A012959
Frame, rear 63
Cover, cpl See page 61
Engine structure, module, Up to SN A012958
Engine structure, module 67
Engine structure 69
Engine cover, left 73
Engine cover, right 75
Hose support See page 39
Engine structure, module, From SN A012959
Engine structure, module 77
Engine structure 79
4812121583 Cover right, cpl 83
4812121586 Cover left, cpl 85
Hose support See page 39
Noise suppression plates 8
Noise suppression, covers 89
Grab handle module See page 53
Sprinkler system
Sprinkler system 91
Sprinkler pump module, To SN A013069
Sprinkler pump module 93
Sprinkler pump 95
Sprinkler pump module, From SN A013070
Sprinkler pump module 97
Sprinkler pump 99
Filling pipe See page 49
Locking device module See page 51
Water hoses 101
Sprinkler pump, additonal sprinkler/cocoa mat, To SN A013069
Sprinkler pump, additonal sprinkler/cocoa mat 103
Sprinkler pumps 105
Sprinkler pump, additonal sprinkler/cocoa mat, From SN A013070
Sprinkler pump module (2 pumps) 108
Sprinkler pump mounted (2 pumps) 111
Sprinkler pump, backup, To SN A013069
Sprinkler pump, backup 115
Sprinkler pump, backup, From SN A013070
Sprinkler pump, backup 117
End frame, front
End frame, front 119
End frame, front 121
Frame 123
Fork, vibration side 125
Fork, propulsion side 127
Cover plate 129
Hose clamp, propulsion side 131
Hose clamp, vibration side 133
Step, vibration side 135
Step, propulsion side 137
Scraper module, without nozzles 139
Scraper assy 141
Scraper module, with nozzles 143
Scraper assy with nozzles 145
Scraper assy 147
4700394340 Scraper bracket, cpl 149
Grab handle, release 151
Grab handle, release 153
Grab handle, lift 155
Grab handle, lift offset/cocoa mat 157
Cocoa mat
Cocoa mat module 159
Cocoa mat assembly 161
Cocoa mat bracket module 163
Cocoa mat bracket 165
Process mirrors
Process mirrors 167
End frame, rear
End frame, rear 169
End frame, rear
End frame, rear 171
Frame See page 123
End frame, rear offset
End frame, rear offset 173
Frame 175
Connection block 177
Micro switch 179
4700391024 Steering cylinder 181
Fork, vibration side See page 125
Fork, propulsion side See page 127
Step, vibration side See page 135
Step, propulsion side See page 137
Hose clamp, propulsion side See page 131
Hose clamp, vibration side See page 133
4700394340 Scraper bracket, cpl See page 149
Scraper module, without nozzles See page 139
Scraper assy See page 141
Scraper module, with nozzles See page 143
Scraper assy with nozzles See page 145
Scraper assy See page 147
Cover plate See page 129
Eyelet module 183
SMV-sign 185
Grab handle, release See page 151
Grab handle, release See page 153
Grab handle, lift See page 155
Grab handle, lift offset/cocoa mat See page 157
Cocoa mat
Cocoa mat module See page 159
Cocoa mat assembly See page 161
Cocoa mat bracket module See page 163
Cocoa mat bracket See page 165
Drum
Drum 187
Drum bearing 189
Drive unit, To A014206
Drive unit 191
4700390604 Drum gear 193
4700390603 Hydraulic motor
4700390603 Hydraulic motor 197
Engine hydraulic part 199
End plate 201
Drive unit, From A014207
Drive unit 203
4812269526 Gear 205
4812120567 Hydraulic motor
4812120567 Hydraulic motor 209
Housing, cpl 211
Rotary group 213
Connection plate, cpl 215
Sensor 217
4812120568 Hydraulic motor
4812120568 Hydraulic motor 219
Housing, cpl 221
Rotary group 223
Connection plate, cpl 225
Vibration unit To A016644
Vibrating unit Sauer 227
4700395915 Hydraulic motor Vibration 229
Vibration unit From A016645
Vibrating unit Sauer 233
4700395915 Hydraulic motor Vibration See page 229
Engine
Engine room 235
Engine 237
Engine module 239
Diesel engine Cummins QSB4.5 T3 – 93kW 241
Air cooler hoses 243
Air cleaner module 245
Air cleaner hose module 247
Muffler 249
Exhaust pipe module 251
Fuel hose module 253
Charge air cooler 255
Water cooler, To A014202
Water cooler 257
Water cooler hoses 259
Water cooler, From A014203
Water cooler 261
Water cooler hoses 263
Expansion tank assembly 265
Coolant hoses 267
Hydraulic system
Hydraulic system, front drum
Hydraulic system, front drum 269
Hydraulic system, rear drum std
Hydraulic system, rear drum std 271
Hydraulic system, rear drum offset
Hydraulic system, rear drum offset 273
Connection block See page 177
4700391024 Steering cylinder See page 181
Hydraulic valve module, offset/combi 275
Hydraulic valve 277
4700391017 Hydraulic valve 279
Hydraulic hoses, frame
Hydraulic hoses, frame 281
Hydraulic hoses, engine room, To SN A012958
Hydraulic hoses, engine room 284
Fan 287
Oil cooler 289
Hydraulic valve module 291
Hydraulic valve 293
4700395924 Hydraulic valve 295
Pump bracket 297
Hydraulic pump module 299
Hydraulic pump 301
4700390602 Hydraulic pump
4700390602 Hydraulic pump 303
4812155785 Hydraulic pump
4812155785 Hydraulic pump 305
Rotating group, cpl 308
Valve block, cpl 311
Control module 313
Flushing valve 315
4812155786 Hydraulic pump
4812155786 Hydraulic pump 317
Rotary group, cpl 321
Valve block, cpl 323
4812155787 Hydraulic pump
4812155787 Hydraulic pump 325
Rotary group, cpl 329
Valve block, cpl 331
Hydraulic hoses, engine room, From SN A012959
Hydraulic hoses, engine room 333
Fan module 337
Hydraulic pump module 339
Oil cooler See page 289
Hydraulic valve module See page 291
Hydraulic valve See page 293
4700395924 Hydraulic valve See page 295
Hydraulic pump module See page 299
Hydraulic pump See page 301
4700390602 Hydraulic pump
4700390602 Hydraulic pump See page 303
4812155785 Hydraulic pump
4812155785 Hydraulic pump See page 305
Rotating group, cpl See page 308
Valve block, cpl See page 311
Control module See page 313
Flushing valve See page 315
4812155786 Hydraulic pump
4812155786 Hydraulic pump See page 317
Rotary group, cpl See page 321
Valve block, cpl See page 323
4812155787 Hydraulic pump
4812155787 Hydraulic pump See page 325
Rotary group, cpl See page 329
Valve block, cpl See page 331
Hydraulic pump module, ECO 341
Pump bracket See page 297
Hydraulic system, steering Std
Hydraulic system, steering Std 343
Hydraulic valve module See page 291
Hydraulic valve See page 293
4700395924 Hydraulic valve See page 295
Hose bracket 345
Hydraulic steering, sliding seat
Hydraulic steering, sliding seat 347
Carrier 349
Steering, slideable 351
4700372424 Pilot valve, steering 353
Electrical equipment
Electric cables, power supply
Electric cables, power supply 355
Battery disconnector 357
Battery disconnector 359
Electric cables, power supply cab
Electric cables, power supply cab 361
Electric cables, engine – ECU – Version 1
Electric cables, engine – ECU 363
Standard ECU module 365
Standard ECU assembly 367
Electric cables, engine – ECU – Version 2
Electric cables, engine – ECU 369
Standard ECU module 371
Standard ECU assembly 373
Electric cables, sensors/ horn/ back-up alarm
Electric cables, sensors/ horn/ back-up alarm 375
Back-up alarm module 377
Back-up alarm 379
Horn module 381
Horn 383
Driving & side direction lights
Driving & side direction lights 385
Driving lights, front 387
Steering column switch module 389
Cable harness and switch module 391
Registration plate light module 393
Registration plate light 395
Driving lights, rear 397
Turn signals 399
Rotating beacon, working light
Rotating beacon, working light 401
Rotating beacon module 403
Working light module H3 405
Drum edge lights
Drum edge lights 407
Bracket 409
Working light module H3 See page 405
Bracket 411
GPS/DCA, Asphalt temp
GPS/DCA, Asphalt temp meter 413
Cable harness kit, GPS 415
Cable and Gateway 417
GPS/DCA equipment assy 419
Temp sensor module 421
Temp sensor module 423
Computer with holder 425
Drivers platform
Platform, no cab
Platform, no cab 427
Platform with 4-post ROPS 429
4812119369 Platform with 4-post ROPS
4812119369 Platform with 4-post ROPS 431
Roof 433
ROPS interior 435
Decals basic kit 437
Manual box 439
Hand rail, left 441
Hand rail 443
Hand rail, right 445
Hand rail 447
Hand rail 449
Lunch box module 451
Cab, asymmetric
Cab, asymmetric 453
4812119361 Cab, cpl
4812119361 Cab, cpl 455
Screens front/rear and ceiling 457
Corner screens left and AC hood 459
24V socket and air nozzels 461
Wipers front/rear and front ceiling 463
Cab frame harness 467
Heating installation 469
Heater cover plate 472
AC-kit 475
Switch kit 477
Door sliding screens 479
Door complete 481
Screens asymmetric right 483
Lower screens front/rear and rear cover 485
Lower screen and water system, left 487
Lower screens and water system, right 489
4812119360 Cab comfort, cpl
4812119360 Cab comfort, cpl 491
Screens front/rear and ceiling See page 457
Corner screens left and AC hood See page 459
24V socket and air nozzels See page 461
Wipers front/rear and front ceiling See page 463
Cab frame harness See page 467
Interior Cab 493
Heating installation See page 469
Evaporator kit 495
4812113623 Evaporator, cpl 497
ACC kit 499
4812113624 ACC kit 501
Door sliding screens See page 479
Door complete See page 481
Screens asymmetric right See page 483
Lower screens front/rear and rear cover See page 485
Lower screen and water system, left See page 487
Lower screens and water system, right See page 489
Manual box See page 439
Decals basic kit 503
Cab noise cover 505
Rear view mirror 507
Drivers seat
Drivers seat 509
Seat frame structure 511
4700391163 Steering column 513
Seat, galon suspensioned 515
Seat comfort, galon suspensioned 517
Seat comfort, fabric suspensioned 519
Seat belts
Seat belt 2″ 521
Seat belt 2″ with reminder 523
Seat belt 3″ 525
Seat belt 3″ with reminder 527
Controls, slidable and turning 529
Cross sliding 531
Carrier See page 349
Steering, slideable See page 351
Hose bracket See page 345
Drive control To A015623
Drive control, cpl 533
Drive control 535
Drive control From A015624
Drive control module 537
Drive control 539
Control handle 542
Display unit 545
Control panel cover 547
Steering column switch module See page 389
Seat frame adapter module, rotating 549
Decals
Decals 551
Plain Dynapac decals, kit 553
Optional equipment
Air conditioning
Air conditioning 555
Compressor module 557
Condensor module 559
Condensor 561
Evaporator kit See page 495
ACC kit See page 499
Hose kit Compressor 563
Hose kit AC 565
Radio and cd player
Radio and cd player 567
Radio and cd player module 569
Power supply module 571
Tachograph, Version 1
Tachograph 573
Tachograph holder module 575
Tachograph holder 577
Cable harness kit 579
Power supply module See page 571
Tachograph, Car stereo, Version 2
Tachograph, Car stereo 581
Tachograph with holder 583
Car stereo module 12V 585
Edge cutter
Edge cutter 587
Edge cutter, module 589
4700390998 Edge cutter, cpl
4700390998 Edge cutter, cpl 591
4700390999 Holder 593
4700391009 Bearing unit 595
4700387275 Hydraulic cylinder 597
Cutting disc module 599
Pressing roller, module 601
Disc/Roller holder 603
Hydraulic valve 605
Hydraulic valve module 607
4700391018 Hydraulic valve 609
Fire extinguisher/First Aid Cushion
Fire extinguisher/First Aid Cushion 611
Fire extinguisher assembly 613
Asphalt temperature meter
Asphalt temperature meter 615
Dyn@lyzer 617
Dyn@Link module 619
4812013038 GPS module 621
DCM Compaction meter with Evib 623
Appendix B:Parts Index 625
CC4200 (IIIA/T3) SN 10000320xxA012714 – 019994
Parts Catalogue CC4200 (IIIA/T3) s/n 10000320xxA012714 – 019994
Refer to Parts Online for the most up to date information. The printed information might be outdated.
Thu Oct 25 11:26:41 UTC 2018

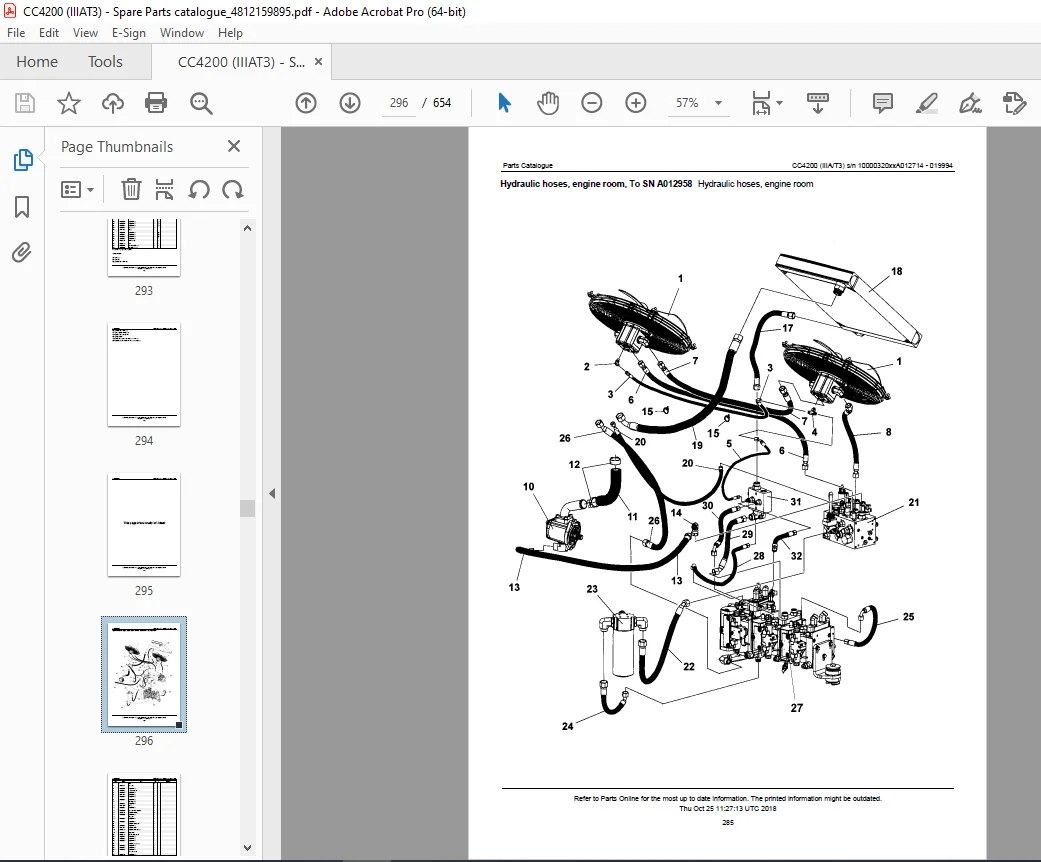

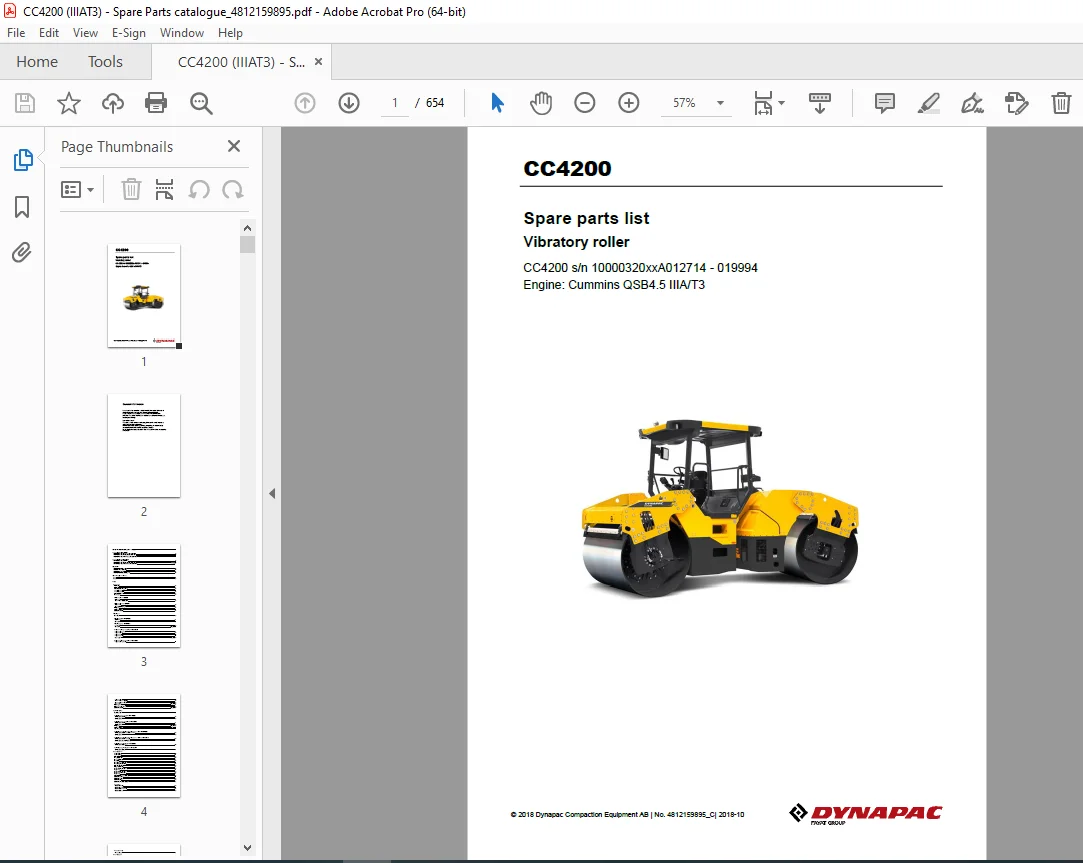

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle

• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.S
