Dynapac WEDA LINE Submersible Pumps WEDA 30 INSTRUCTIONS & SPARE PARTS CATALOGUE Manual 470W367053 – PDF DOWNLOAD

Description

Dynapac WEDA LINE Submersible Pumps WEDA 30 INSTRUCTIONS & SPARE PARTS CATALOGUE Manual 470W367053 – PDF DOWNLOAD

FILE DETAILS:

Dynapac WEDA LINE Submersible Pumps WEDA 30 INSTRUCTIONS & SPARE PARTS CATALOGUE Manual 470W367053 – PDF DOWNLOAD

Language : English
Pages :21
Downloadable : Yes
File Type : PDF

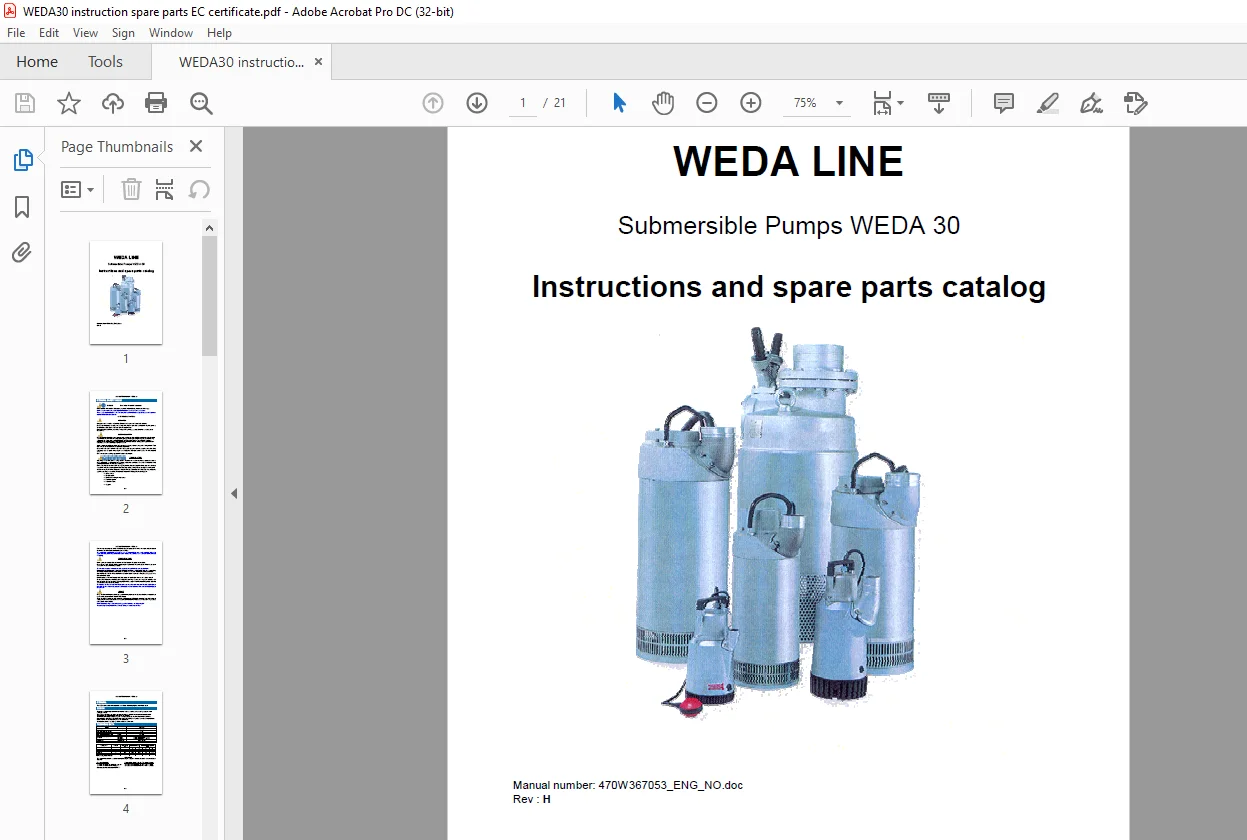

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Dynapac WEDA LINE Submersible Pumps WEDA 30 INSTRUCTIONS & SPARE PARTS CATALOGUE Manual 470W367053 – PDF DOWNLOAD

Ref Designation P/N Qty
Cable 3 x 2.5mm2 , 15 m 4700137306 1 –
Cable 4 x 1.5 mm2 , 15m 470W214847 – 1
Cable CSA SOW 3xAWG14, 20m 470W367176 1 –
Cable CSA SOW 4xAWG16, 20m 470W367175 – 1
3 Cable inlet cpl. (2, 4, 5) 470W214639 1 1
Cable sleeve 470W214394 1 –
Cable sleeve 470W214838 – 1
7 Blind plug 470W214828 1 1
8 Washer 470W214825 1 1
9 Rubber gasket 470W214829 1 1
10 Washer 470W214833 1 1
11 Nut 4700W84207 4 4
12 Contactor cover 470W212849 1 1
Contactor cover (high)1 For single phase 60Hz 470W724064 1 –
Wiring diagram 1 phase 470W214834 1 –
Wiring diagram 13 D 470W214836 – 1
Wiring diagram Y 470W214835 – 1
Discharge 3’’ for hose 470W203562 1 1
Discharge 3’’ BSP thread 470W203484 1 1
Discharge 3’’ NPT thread 470W203570 1 1
Discharge 4’’ for hose 470W203564 1 1
Discharge 4’’ BSP-thread 470W203482 1 1
Discharge 4’’ NPT thread 470W203572 1 1
15 Contactor See next pages – –
16 Screw 470W209902 5 4
17 Contactor holder 470W214871 1 1
18 Washer 4700W51163 2 2
19 Teflon washer 470W214622 2 2
Data plate (CE) 470W743583 1 1
Data plate (CSA) 470W743612 1 1
21 Rivet 4700W65431 4 4
22 Outer casing 470W241229 1 1
23 Washer 4700W51170 5 5
24 Discharge gasket 470W743466 1 1
25 Studbolt 4700W69642 2 2
26 Nut 4700W84210 2 2
27 Capacitor holder 470W214841 1 –
28 Capacitor compl. 50μF 470W743418 1 –
Capacitor 30μF1 For single phase 60Hz 470W740188 2 –
29 O ring 4700W65112 2 2
1 From S/N 1012273
INSTRUCTIONS MANUAL – WEDA 30
Ref Designation P/N Qty
33 Rubber plug 470W224880 1 1
34 Spring washer 4700W58956 1 1
36 Bearing bracket, upper 470W208138 1 1
37 O ring 4700W65021 1 1
38 O ring 4700W65115 1 1
39 Stator See next page – –
40 Stud bolt 4700W69617 2 2
41 Inner casing 470W724012 1 1
42 Stud bolt 470W224539 3 3
43 Ball bearing, upper 4700W61007 1 1
4812050226 1 –
From S/N : 1000000 4812050509 1 –
4812050227 – 1
From S/N : 1000000 4812050510 – 1
45 O ring 4700W65119 1 1
470W740198 1 1
46 Radial seal
4812050513 1 1
47 O ring 4700W65006 1 1
48 Oil plug 470W254042 1 1
470W720024 1 1
49 Bearing holder lower
4812050508 1 1
50 Radial ball bearing 4700W61021 1 1
51 Circlip 4700W50659 1 1
52 O ring 4700W65103 1 1
53 O ring 470W740293 1 1
54 Seal holder 470W740280 1 1
470W740199 1 1
55 Mechanical seal
4812050221 1 1
470W740279 1 1
56 Sealing cover
4812050512 1 1
57 Oil 4700W60015 0.2 L 0.2 L
58 O ring 4700W65101 1 1
59 O ring 4700W65102 1 1
60 Flange plate 470W224910 1 1
61 Screw 4700W76242 6 6
470W740281 1 1
62 Distance sleeve
4812050511 1 1
63 Wear plate 470W223522 1 1
64 Trimming spacer 470W224538 4 4
65 Impeller 60Hz low pressure 470W223610 1 1
66 Impeller 50 Hz low pressure 470W243237 1 1
Impeller 50 Hz medium pressure 470W223516 1 1
Impeller 60 Hz medium pressure 470W223601 1 1
68 Nut 470W604272 1 1
69 Diffusor low pressure 50Hz 470W242231 1 1
Diffusor low pressure 60Hz 470W222587 1 1
70 Diffusor med.pressure 60Hz 470W222523 1 1
INSTRUCTIONS MANUAL – WEDA 30
Ref Designation P/N Qty
71 Strainer low pressure 470W222527 1 1
Strainer medium pressure 470W222526 1 1
High steel strainer 470W714021 o o
73 Nut 4700W84209 12 12
74 Float switch 470W214842 1 1
75 Cable inlet cpl. (8, 76, 77) 470W743411 1 1
78 Cable sleeve 470W214826 1 1
79 Clamp 470W209900 1 1
80 Float holder clamp 470W213843 1 1
81 Seal holder upper 470W208048 1 1
82 Insulation cap lower 470W214387 – 1
83 O Ring 4700W65106 – 1
84 Terminal block 470W213202 – 1
85 Contactor See below – –
86 *Wearing sleeve 4812050228 1 1
87 *Oring 4700160314 1 1
