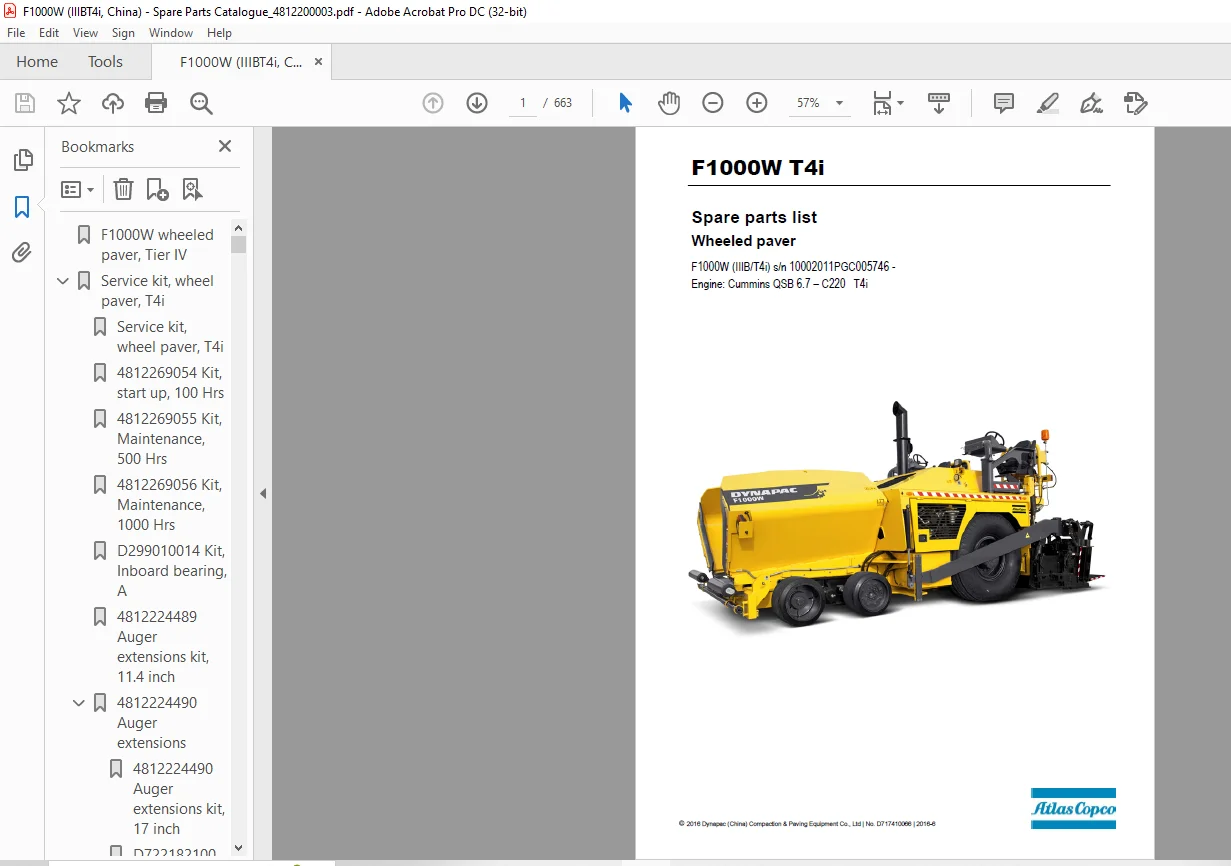

Dynapac Wheeled paver F1000W T4i Engine Cummins QSB 6.7 – C220 T4i Spare parts list Manual SN0002011PGC005746 – PDF DOWNLOAD

Description

Dynapac Wheeled paver F1000W T4i Engine Cummins QSB 6.7 – C220 T4i Spare parts list Manual SN0002011PGC005746 – PDF DOWNLOAD

FILE DETAILS:

Dynapac Wheeled paver F1000W T4i Engine Cummins QSB 6.7 – C220 T4i Spare parts list Manual SN0002011PGC005746 – PDF DOWNLOAD

Language : English
Pages : 663
Downloadable : Yes
File Type : PDF
Size: 36.6 MB

TABLE OF CONTENTS:

Dynapac Wheeled paver F1000W T4i Engine Cummins QSB 6.7 – C220 T4i Spare parts list Manual SN0002011PGC005746 – PDF DOWNLOAD

F1000W wheeled paver, Tier IV 11
Service kit, wheel paver, T4i 13
Service kit, wheel paver, T4i 13
4812269054 Kit, start up, 100 Hrs 15
4812269055 Kit, Maintenance, 500 Hrs 17
4812269056 Kit, Maintenance, 1000 Hrs 19
D299010014 Kit, Inboard bearing, A 21
4812224489 Auger extensions kit, 114 inch 23
4812224490 Auger extensions 25
4812224490 Auger extensions kit, 17 inch 25
D722182100 Extension, left, 17 inch 27
D722182200 Extension, right, 17 inch 29
4812224488 Auger extensions 31
4812224488 Auger extensions kit, 341 inch 31
D722182300 Extension, left, 341 inch 33
D722182400 Extension, right, 341 inch 35
4812269057 Kit, hopper skirt 37
4812244099 Kit, Hopper skirt – Low version 39
4812269058 Kit, Chain, conveyor drive, track paver 41
4812224107 Conveyor chain 43
4812269062 Kit, sprocket, conveyor 45
4812224504 Screed connecting parts 47
D717954677 Kit, outboard bearing 49
4812269064 Kit, conveyor bearing 51
4812269087 Kit, rear plate, track 53
Auger lubrication 55
D717955090 Uptime kit 57
4812222082 Key 59
4812269105 Kit, Auger reinforcement 61
4812313162 Service cable tool 63
4812313296 Conveyor guide kit 65
4812313297 Wear plate kit 67
Mechanical 69
Frame, assembly 69
Frame, assembly 69
Front conveyor cover, assembly 73
Guide pole, assembly 75
4812224049 Fume extractor, assembly 77
D717012501 Blower, Fume extractor 79
4812223634 Cover, air filter, assembly 81
4812223634 Cover, air filter, assembly 81
4812222080 Beading, air cover, rear 83
4812222079 Beading, air cover, front 85
4812222081 Beading, sealing plate 87
Basic auger 3000mm + 250 motor 89
4812249999 Basic auger 3000mm 89
4812249999 Basic auger 3000mm 89
4812248248 Auger height guard assembly 93
Auger gear 95
4812203022 Basic auger flight assembly 97
4812203040 Left extend auger 430-154 99
4812203017 Main auger bearing assembly101
4812203048 Base backplate assembly103
4812203048 Base backplate assembly103
4812203045 Left main support plate assy105
4812203050 Right main support plate assy107
4812203041 Right extend auger109
Prevent segregation device111
4812204590 F1000 Center auger hydrl kit 250 STD113
4812204590 F10 Center auger hydraulic kit113
4812204592 Central auger motor115
4812204591 Center auger hose kit117
Conveyor, assembly119
Conveyor, assembly119
4812243323 Conveyor drive complete121
Conveyor drive complete121
Assembly, Motor and gear box123
Assembly, Drive, conveyor125
Assembly, tension127
4812224107 Conveyor chain 43
4812224115 Conveyor lubrication assembly129
Screed arm assembly131
Screed arm assembly131
Assembly, slope arm134
4812223423 Hopper, assembly137
Hopper, assembly137
Hopper assembly, left side139
Hopper assembly, right side141
Operator platform143
Platform, assembly143
Platform, assembly143
4812223263 LH operator station, assembly147
4812223263 LH operator station, assembly147
4812223254 Chain assy, operator station150
4812223290 RH operator station, assembly153
4812223290 RH operator station, assembly153
4812223254 Chain assy, operator station150
4812224025 Side doors, platform assy155
4812223453 Door, assembly157
4812223453 Door, assembly157
4812222215 Beading, top door left161
4812222216 Beading, top door right163
4812222217 Beading, front door left165
4812222218 Beading, front door right167
4812222219 Beading, air intake door169
4812224015 Footwell, assy171
4812223360 Divider complete, assembly173
4812223360 Divider complete, assembly173
4812222341 Beading, divider plate, LH176
4812222089 Beading, divider plate, LH179
4812222090 Beading, divider plate, RH181
4812222340 Beading, divider plate, RH183
4812222093 Beading, divider plate, RH185
4812222332 Beading, divider plate, RH187
4812222347 Beading, divider plate, RH189
4812224000 Cooler shroud assy191
4812224000 Cooler shroud assy191
4812221425 Hard tubes beading194
4812222378 Top cooler shroud beading197
4812222380 Cooler top beading199
4812222376 Side cover plate beading201
4812222379 Side cooler plate beading203
4812224141 Anti-slip tape205
4812223861 Battery box storage, assembly207
4812222498 Foam assembly209
4812224116 Fender, platform assy212
Seat lock, assembly215
Drive217
Rear axle, assembly217
Rear axle, assembly217
D717170600 Gearbox, track drive220
D717171014 Motor, propel225
4812200107 Wheel assembly-rear230
Steering complete233
4812222849A Steering complete233
Suspension, wheel237
4812224156 Steering link240
4812224158 Steering link243
4812224160 Steering link, assembly245
Steering sensor, assembly247
Hydraulic system249
Assembly, hydraulic component249
Assembly, hydraulic component249
D717091001 Auger lift cylinder254
D717091503 Cylinder, screed level, front257
D717091501 Cylinder, hopper pivot259
4812241722 Valve bank, rear, work function261
Valve bank, rear, work function261
D717091507 Valve bank, rear work function263
D717091507 Valve bank, rear work function263
D717953711 HIC, rear valve265
4812241723 Front manifold267
Front manifold267
4812200104 Front manifold269
4812241711 HIC assy, propel gearbox & pump272
HIC assy, propel gearbox & pump272
D717090503 HIC,propel gearbox & pump275
4812241710 Valve assy, vibration277
Valve assy, vibration277
D717091508 Valve, vibration279
4812220876 Filter, auger charge oil281
4812224371 Assembly, hydraulic tank283
4812224371 Assembly, hydraulic tank283
4812220770 Assembly, hydraulic filter tier IV287
4812222496 Hydraulic hose kit289
Assembly, tow point indicator295
Pump drive297
Pump drive297
4812200078 Gear box, splitter302
D716191000 Pump, propel front307
D716191500 Pump, propel rear316
D717192500 Pump, auger tandem, assembly326
D717193001 Pump, vibration336
4812222519 Gear pump, fan drive339
D717193500 Pump, generator, assembly341
4812222520 Fitting, assembly350
Fuel tank, assembly353
Fuel tank, assembly353
4812222181 Hose, fuel supply357
4812222182 Hose, fuel return359
Electric system361
Assembly, electrical system361
Assembly, electrical system361
4812240639 Generator drive366
Generator drive366
D717100501 Generator369
Kit, lovejoy coupling371
4812220712 Assembly, DC control panel373
4812223611 Assembly, battery box377
Assembly, battery box377
4812220887 Battery switch mount379
4812221122 Operator console, left381
4812221122 Operator console, left381
D716103001 Dynamic steering valve385
D717101501 Controller, propel handle387
D717101501 Controller, propel handle387
4812270342 Maintained center389
4812221123 Operator console, right391
4812221123 Operator console, right391
D716103001 Dynamic steering valve385
D717101501 Controller, propel handle395
D717101501 Controller, propel handle387
4812270342 Maintained center389
D717104500 Assembly, AC main panel395
Lighting system Tier IV397
Auger & conveyor controls400
Engine403
4812222832 Drive complete, assembly403
4812222832 Drive complete, assembly403
4812223776 Cooler, assembly405
4812223776 Cooler, assembly405
4812222304 Combi cooler409
4812222303 Coolant surge tank411
4812223726 Exhaust stack, assembly413
4812223439 Engine, assembly415
4812223439 Engine, assembly415
4812200076 Engine418
4812200076 Engine418
4812222042 Engine block Tier IV421
4812222043 Air cleaner423
4812200154 Diesel particulate filter425
4812222044 Fuel filter427
4812222045 Fuel pre filter429
4812222064 Lube oil filter431
Hose, engine oil drain433
Accessories435
Decal installation435
Decal installation435
4812220077 Screed reflector strip tape440
4812220078 Screed reflector strip tape443
4812220079 Screed reflector strip tape445
4812220080 Screed reflector strip tape447
4812220082 Screed reflector strip tape449
4812220095 Screed reflector strip tape451
4812220081 Screed reflector strip tape453
Accessories455
4812247331 Kit manual, F1000W457
4812222082 Key 59
D717955090 Uptime kit 57
D717906000 Roading lights assembly459
D716906000 Roading light assembly, wheeled paver461
Beacon assembly463
4812224333 Wash down, assembly465
4812224333 Wash down, assembly465
D717909501 Tank, wash down467
D717909508 Hose, wash down suction469
D717909509 Hose, pump to hose reel471
D717905000 Auxiliary power panel473
4812224504 Screed connecting parts 47
4812223939 Push roller crosshead475
4812223939 Push roller crosshead475
4812223943 Roller assembly477
Options479
4812204811 Outboard auger479
4812222835 Auger, assembly479
4812222835 Auger, assembly479
4812246868 Auger assembly without flight483
4812246868 Auger assembly without flight483
D722180000 Auger485
D722180000 Auger485
D754111500 Pipeline, grease, auger487
D722181600 Auger489
D756183300 Auger gear491
D722183400 Engine support495
4812200217 Auger lubrication497
4812223798 Hose retention, assembly499
4812205216 Auger lubrication501
4812204760 Outboard auger503
4812204602 Center auger hydraulic kit505
4812204602 Center auger hydraulic kit505
4812204603 Central auger motor 200507
4812204591 Center auger hose kit117
4812204813 Hydraulic tunnel field kit509
4812204813 Hydraulic tunnel field kit509
4812204088 Hydraulic tunnel assembly511
4812204088 Hydraulic tunnel assy511
4812204089 Left hydraulic tunnel assy513
4812203745 Oil tube protect plate assembly516
4812204090 Right hydraulic tunnel assy519
4812204581 F1000 Tunnel option hydrl kit521
4812204582 F1000 Tunnel Option Hic Assy523
4812204588 F1000 Tunnel hose kit525
4812204088 Hydraulic tunnel assembly527
4812204088 Hydraulic tunnel assy511
4812204089 Left hydraulic tunnel assy513
4812203745 Oil tube protect plate assembly516
4812204090 Right hydraulic tunnel assy519
4812204581 F1000 Tunnel option hydrl kit521
4812204582 F1000 Tunnel Option Hic Assy523
4812204588 F1000 Tunnel hose kit525
4812248779 Extension auger 1ft kit527
4812248779 Extension auger 1 FT kit527
4812248823 Left extension auger 1FT kit529
4812248823 Left extension auger 1FT kit529
4812247107 Extend auger 380-2 left531
4812204563 Left extend auger533
4812248825 Right extension auger 1FT kit535
4812248825 Right extension auger 1FT kit535
4812247108 Extend auger 380-2 right537
4812204580 Right extend auger539
4812204104 Extension auger 2ft kit541
4812204104 Extend auger 2ft kit541
4812204465 Extend auger 380-4 left543
4812204467 Extend auger 380-4 right545
4812204768 Extension auger 3ft kit547
4812204768 Extend auger 3ft kit547
4812204766 Left extend auger 3ft kit549
4812204766 Left extend auger 3ft kit549
4812204465 Extend auger 380-4 left543
4812247103 Left bearing retainer assembly551
4812247103 Left bearing retainer assembly551
4812247102 Bearing retainer assembly553
4812204563 Left extend auger533
4812204767 Right extend auger 3ft kit555
4812204767 Right extend auger 3ft kit555
4812204467 Extend auger 380-4 right545
4812247104 Right bearing retainer assembly557
4812247104 Right bearing retainer assembly557
4812247102 Bearing retainer assembly553
4812204580 Right extend auger539
4812248808 Auger for 19ft paving width559
4812248808 Auger for 19 ft paving width559
4812204102 Striker plate width 320mm kit561
4812248779 Extension auger 1ft kit563
4812248779 Extension auger 1 FT kit527
4812248823 Left extension auger 1FT kit563
4812248823 Left extension auger 1FT kit529
4812247107 Extend auger 380-2 left531
4812204563 Left extend auger533
4812248825 Right extension auger 1FT kit563
4812248825 Right extension auger 1FT kit535
4812247108 Extend auger 380-2 right537
4812204580 Right extend auger539
4812204103 Bearing retainer kit563
4812204103 Bearing retainer kit563
4812247104 Right bearing retainer assembly557
4812247103 Left bearing retainer assembly551
4812247102 Bearing retainer assembly553
4812247107 Extend auger 380-2 left531
4812204467 Extend auger 380-4 right545
4812248828 Auger for 26ft paving width565
4812248828 Auger for 26ft paving width565
4812248780 Extension auger 2ft kit567
4812248780 Extension auger 2FT kit567
4812248826 Left extension auger 2FT kit569
4812248826 Left extension auger 2FT kit569
4812247107 Extend auger 380-2 left531
4812204563 Left extend auger533
4812248829 Right extension auger 2FT kit571
4812248829 Right extension auger 2FT kit571
4812247108 Extend auger 380-2 right537
4812204580 Right extend auger539
4812204102 Striker plate width 320mm kit561
4812204099 Support rods kit assembly573
4812204099 Support rods kit assembly573
4812204446 Pull rod 2000mm575
4812204468 Pull rod 3800mm577
4812204100 Striker plate width 960mm kit579
4812204101 Striker plate width 640mm kit581
4812204103 Bearing retainer kit583
4812204103 Bearing retainer kit563
4812247104 Right bearing retainer assembly557
4812247103 Left bearing retainer assembly551
4812247102 Bearing retainer assembly553
4812204104 Extension auger 2ft kit583
4812204104 Extend auger 2ft kit541
4812204465 Extend auger 380-4 left543
4812204467 Extend auger 380-4 right545
4812224489 Auger extensions kit, 114 inch 23
4812224490 Auger extensions kit, 17 inch583
4812224490 Auger extensions kit, 17 inch 25
D722182100 Extension, left, 17 inch 27
D722182200 Extension, right, 17 inch 29
4812224488 Auger extensions kit, 341 inch583
4812224488 Auger extensions kit, 341 inch 31
D722182300 Extension, left, 341 inch 33
D722182400 Extension, right, 341 inch 35
D717900500 Option, layton truck hitch583
D717904500 Umbrella585
D717102501 Leveling control587
4812222847 Kit, wide width paving589
4812222847 Kit, wide width paving589
4812222838 Option, Tunnel extensions kit592
4812224357 Kit, mounting components595
D722182300 Extension, left, 341 inch 33
D722182100 Extension, left, 17 inch 27
D722182400 Extension, right, 341 inch 35
D722182200 Extension, right, 17 inch 29
4812222838 Option, Tunnel extensions kit592
4812244902 AUS country package598
4812244902 AUS country package598
4812244624 AUS cable post assembly601
4812244517 Pedal assy for AUS603
4812244105 Tow point indicator AUS605
4812222846 Hand rail assembly607
4812205214 Auto lube system609
4812222848 Front wheel assist611
4812222848 Front wheel assist611
4812241708 HIC assy, front wheel assist614
4812241709 Valve assy, steering priori617
4812248888 Front wheel assist – with4 drive motors on steering wheels619
4812248888 Option, front wheel assist (four wheel front drive)619
4812205129 Steering complete621
4812205129 Steering complete621
Suspension, wheel237
4812224160 Steering link, assembly245
Steering sensor, assembly247
4812205109 Front drive wheel mount (rear)625
4812224158 Steering link243
4812224156 Steering link240
4812205906 Hose bracket, lh627
4812205907 Hose bracket, rh629
4812205905 F1000W full assist hydraulic system631
4812205905 F1000W full assist hydraulic system631
4812205747 F1000W front wheel assist – flow control valve633
4812205747 F1000W Front wheel assist (flow control valve)633
4812248446 Front wheel assist635
4812205762 Option, F1000W hose kit, for 6 x 6 drive637
Appendix B:Parts Index639

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.M
