Eaten Fuller Heavy Duty RT-9509 & RT9513 Series Transmissions Service Manual – PDF DOWNLOAD

Description

Eaten Fuller Heavy Duty RT-9509 & RT9513 Series Transmissions Service Manual – PDF DOWNLOAD

DESCRIPTION:

Eaten Fuller Heavy Duty RT-9509 & RT9513 Series Transmissions Service Manual – PDF DOWNLOAD

SAMPLE PAGES FROM THE MANUAL:

• It is important that the transmission operating tem- perature does not exceed 250° F. (120° C.) for an ex- tended period of time. Operating temperatures above 250° F. will cause breakdown of the oil and shorten transmission life. The following conditions in any combination can cause Operating temperatures of over 250° F: (1) Oper- ating consistently at roadspeeds under 20 MPH, (2) high engine RPM, (3) high ambient temperature, (4) restricted air flow around transmission, (5 ) exhaust sys- tem too close to transmission, (6) high horsepower, over- drive operation.
• High operating temperatures may re- quire more frequent oil changes. External cooler kits are available to keep the transmis- sion operating temperature under 2500 F. when the con- ditions described above are encountered. If the transmission operating angle is more than 12 degrees, improper lubrication can occur.
• The operating angle is the transmission mounting angle in the chassis plus the percent of upgrade (expressed in degrees). Anytime the transmission operating angle of 12 de- grees is exceeded for an extended period of time the transmission should be equipped with an oil pump or cooler kit to insure proper lubrication. Note the effect low oil levels can have on safe operat- ing angles. Allowing the oil level to fall 1/2” below the filler plug hole reduces the degree of grade by approxi- mately 3 degrees (5 .5 percent).

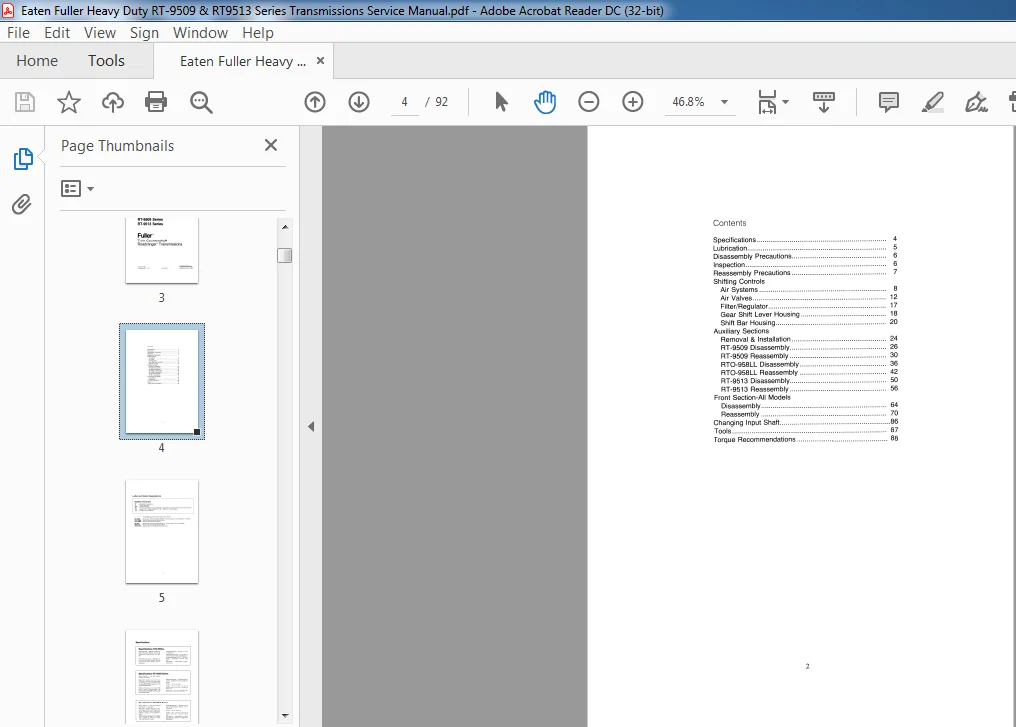

TABLE OF CONTENTS:

Eaten Fuller Heavy Duty RT-9509 & RT9513 Series Transmissions Service Manual – PDF DOWNLOAD

Specifications
Lubrication
Disassembly Precautions
Inspection
Reassembly Precautions
Shifting Controls
Air Systems
Air Valves
FiIter/Regulator
Gear Shift Lever Housing
Shift Bar Housing
Auxiliary Sections
Removal & Installation
RT-9509 Disassembly
RT-9509 Reassembly
RTO-958LL Disassembly
RTO-958LL Reassembly
RT-9513 Disassembly
RT-9513 Reassembly
Front Section-All Models
Disassembly
Reassembly
Changing Input Shaft
Tools
Torque Recommendations

EATEN FULLER HEAVY DUTY RT-9509 & RT9513 SERIES TRANSMISSIONS SERVICE MANUAL – PDF DOWNLOAD:

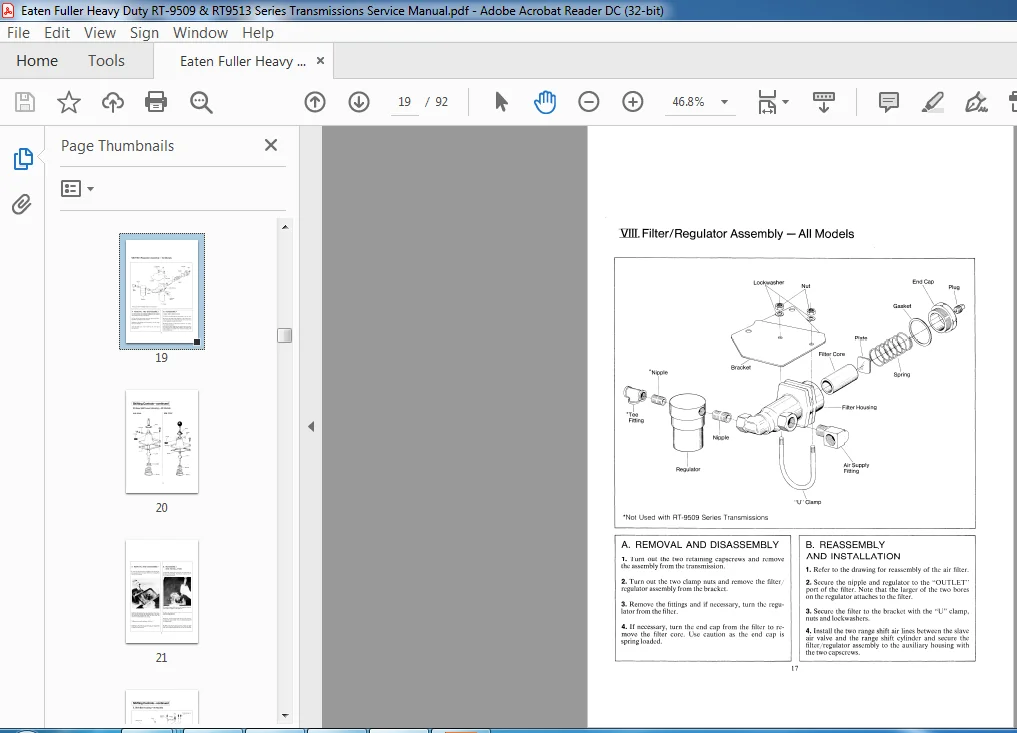

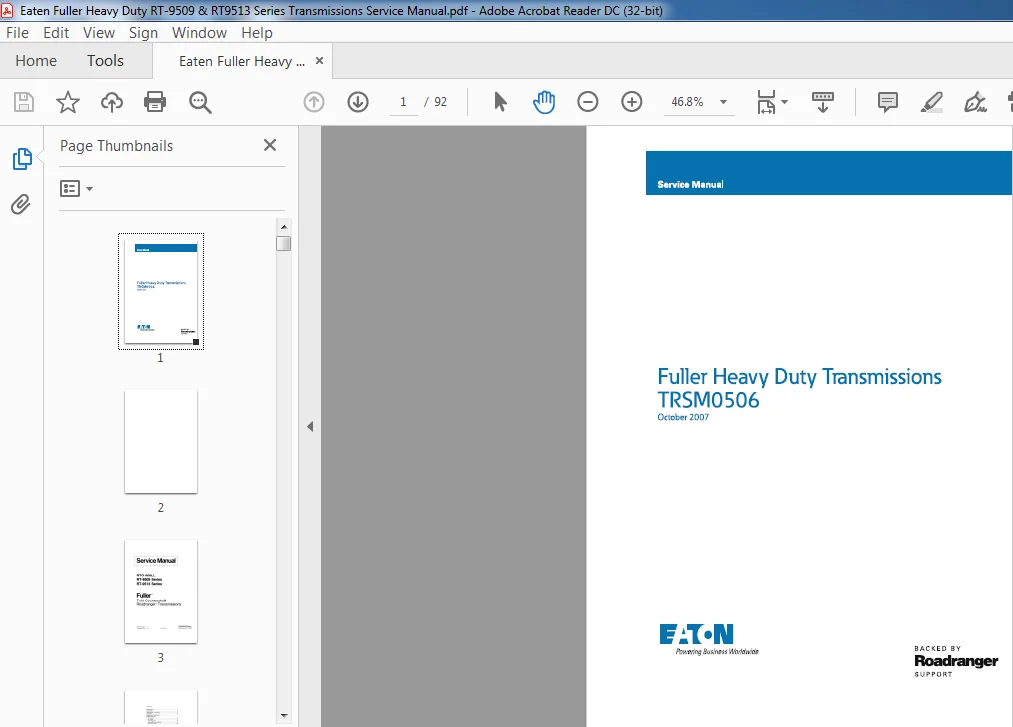

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
