Eaton 72400 BACK TO BACK PISTON PUMP REPAIR MANUAL(50940605) – PDF DOWNLOAD

Description

Eaton 72400 BACK TO BACK PISTON PUMP REPAIR MANUAL(50940605) – PDF DOWNLOAD

TABLE OF CONTENTS:

Eaton 72400 BACK TO BACK PISTON PUMP REPAIR MANUAL(50940605) – PDF DOWNLOAD

Introduction 3
Identification 4
Required Tools 5
Pump section identification 6
Exploded View Drawing 7
Parts List 10
Disassembly and Inspection 17
Reassembly 20
Appendix A: Charge Pump Adapter Assembly 27
Appendix B: Manual Servo Control Basic Assembly 28
Appendix C: Proportional Solenoid Control Basic Assembly with feedback sensor 33
Appendix D: Hydraulic Remote Control Basic Assembly 35
Appendix E: Rotating Kit Assembly 37
Start-up Procedure 39

DESCRIPTION:

Eaton 72400 BACK TO BACK PISTON PUMP REPAIR MANUAL(50940605) – PDF DOWNLOAD

Introduction
This manual provides service information for the Eaton Model 72400 Back to Back Servo Controlled Piston Pumps.
Step by step instructions for the complete disassembly, inspection, and reassembly of the pump are given. The following
recommendations should be followed to insure successful repairs.
• Remove the pump from the vehicle.
• Cleanliness is extremely important.
• Clean the port areas thoroughly before disconnecting the hydraulic lines.
• Plug the pump ports and cover the open hydraulic lines immediately after they’re disconnected.
• Drain the oil and clean the exterior of the pump before making repairs.
• Wash all metal parts in clean solvent.
• Use compressed air to dry the parts. Do not wipe them dry with paper towels or cloth.
• The compressed air should be filtered and moisture free.
• Always use new seals when reassembling hydraulic pumps.
• For replacement parts and ordering information refer to parts list E-PUPI-TP004-E.
• Lubricate the new rubber seals with a petroleum jelly (Vaseline) before installation.
• Torque all bolts over gasketed joints, then repeat the torqueing sequence to make-up for
gasket compression.
• Verifying the accuracy of pump repairs on an authorized test stand is essential

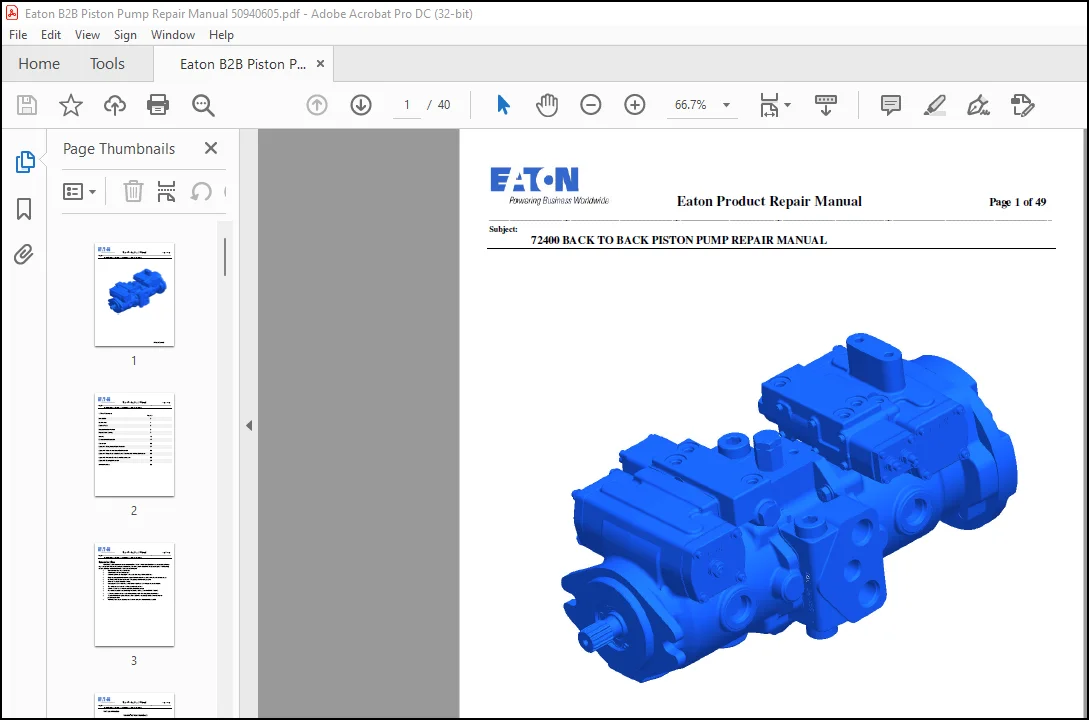

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.M
