Eaton Fuller HD FR/FRO 10-Speed Transmission Service Manual PDF (TRSM2400)
Original price was: $95.00.$18.95Current price is: $18.95.
Complete Eaton Fuller HD FR/FRO 10-speed service manual PDF (TRSM2400). Covers model identification & options, lubrication, required tools, torque specifications, power-flow diagrams, air system troubleshooting, timing procedures, in-vehicle service procedures (valves, fittings, switches, shift controls), and full bench overhaul procedures for disassembly, inspection, and reassembly.
Description
Eaton Fuller HD FR/FRO 10-Speed Transmission Service Manual (TRSM2400)PDF DOWNLOAD
Description
This Eaton Fuller HD FR/FRO Transmissions Service Manual (TRSM2400 EN-US, May 2016) is the technician-grade guide for servicing and rebuilding Eaton Roadranger 10-speed heavy-duty gearboxes. It’s organized into in-vehicle procedures (service while installed) and bench overhaul procedures (complete teardown and rebuild), with clear specs, torque values, and troubleshooting steps.
🔧 What this manual helps you do
Identify transmission model/serial tag and understand model nomenclature & options
Follow correct lubrication guidance and leak inspection process
Use proper tool specs (general + special tools) for safe service
Apply torque specifications for critical fasteners and assemblies
Understand power flow in each gear and range for troubleshooting
Diagnose and repair air system/range shift problems (leaks, slow/no shifts, in-gear shifts, pressurization)
Perform in-vehicle service: Roadranger valve service, shift lever/remote shift control, fittings, switches, shift bar housing, air module, oil cooler, auxiliary section R&R
Perform full bench overhaul: shift bar housing, range cylinder/yoke, input/output shaft work, countershafts, reverse idlers, oil pump, seals, auxiliary section assembly, shim procedures
🗂️ Models Covered (as listed in the manual)
FR series:
FR-11210B, FR-12210B, FR-13210B, FR-14210B, FR-15210B, FR-9210B
FRF-11210B, FRF-12210B, FRF-13210B, FRF-14210B, FRF-15210B, FRF-9210B
FRO series (incl. overdrive variants):
FRO-11210B/C, FRO-12210B/C, FRO-13210B/C, FRO-14210B/C, FRO-15210B/C
FRO-16210B/C, FRO-17210C, FRO-18210C
FROF-11210B/C, FROF-12210B/C, FROF-13210B/C, FROF-14210B/C, FROF-15210B/C, FROF-16210B/C
📄 File Details
| Item | Details |
|---|---|
| Manual name | Eaton Fuller HD FR/FRO Transmissions Service Manual (TRSM2400 EN-US) |
| Models covered | FR/FRF/FRO/FROF 10-speed models listed above |
| Year | May 2016 |

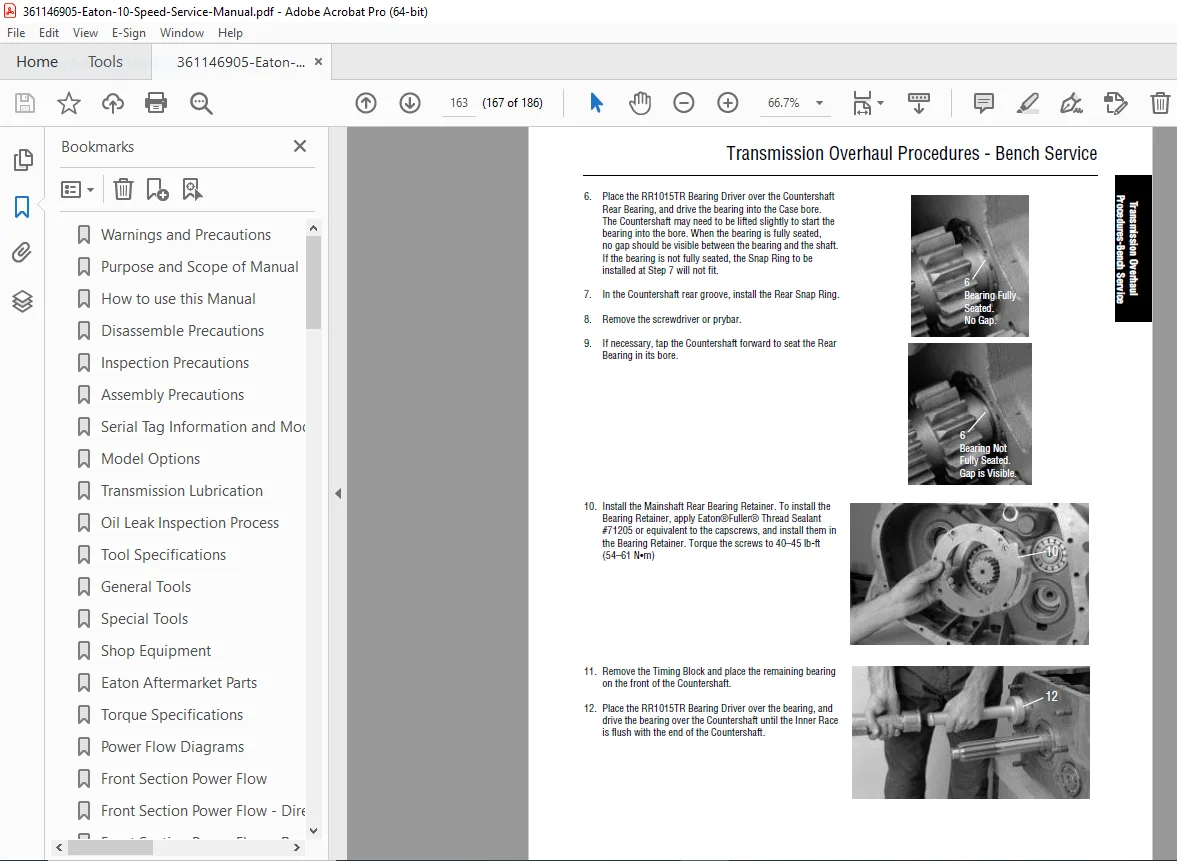

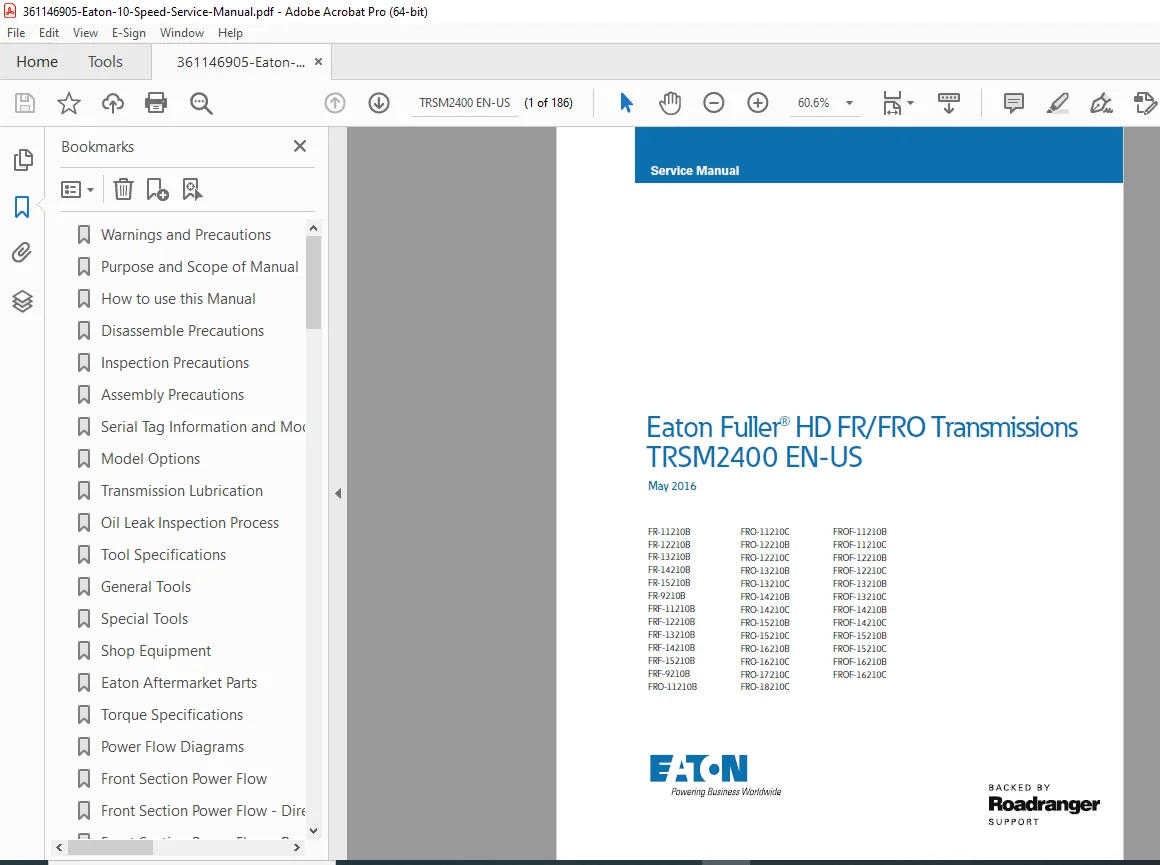

| Manual PDF quality | Clear text with diagrams, tables, and step-by-step procedures |
| Pages | 186 pages |
Rebuild it the right way—get the official Eaton Fuller FR/FRO 10-speed service manual PDF with torque specs, troubleshooting, and full overhaul steps. Instant download so you can start diagnosing and repairing immediately.
