Eaton Fuller Heavy Duty RT-6610 Series Transmission TRSM0515 Service Manual – PDF DOWNLOAD

Description

Eaton Fuller Heavy Duty RT-6610 Series Transmission TRSM0515 Service Manual – PDF DOWNLOAD

DESCRIPTION:

Eaton Fuller Heavy Duty RT-6610 Series Transmission TRSM0515 Service Manual – PDF DOWNLOAD

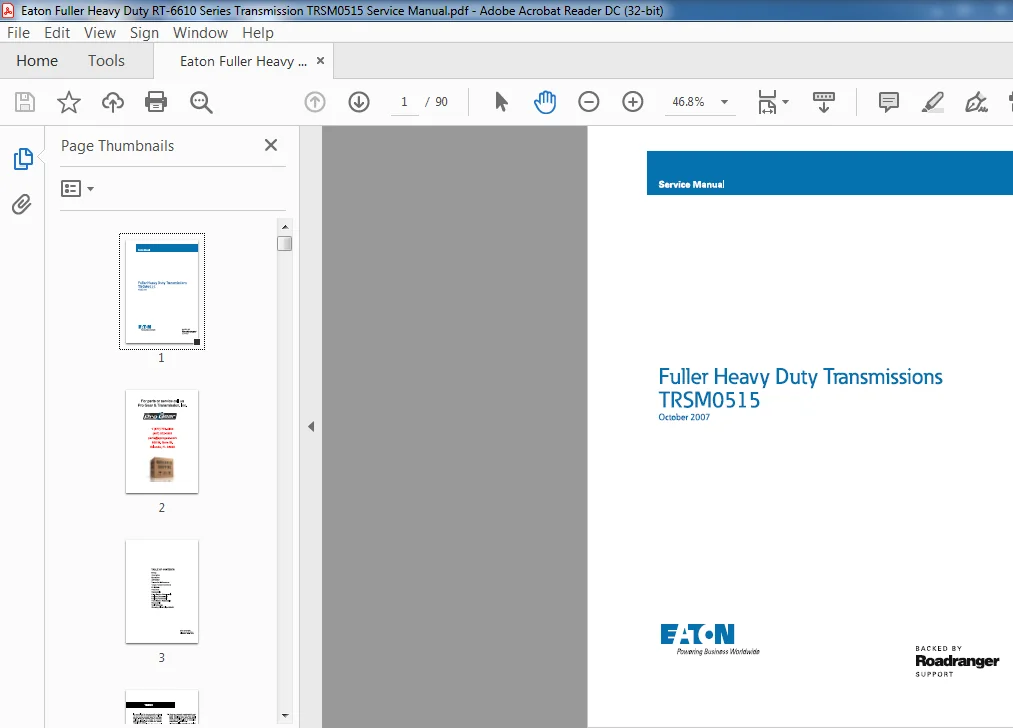

SAMPLE PAGES FROM THE MANUAL:

• It is essential that the two countershafts are timed. This assures that the countershaft gears will con- tact the mating mainshaft gears at the same instant, allowing the mainshaft gears to seek their equilibrium position. This prohibits the mainshaft gears from climbing out of position and prevents unequal tooth contact. Timing one set of gears, the drive gear set. is all that is necessary. It is a simple procedure, consist- ing of marking the proper teeth prior to installation and meshing the teeth so marked.
• The 10—speed Roadranger Transmissions provide ten selective ratios, evenly and progressively spac- ed and shifted with one lever. But you do NOT shift the Roadranger as you would a conventional transmission with an auxiliary or 2-speed axle, because there is no split-shifting. The shifting of the 10—speed Roadranger Trans- missions is much simpler much easier, ALL SHIFTS ARE MADE WITH ONE LEVER .
• you use the RANGE CONTROL BUTTON ONE TIME ONLY during a sequence of up-shifts . . .and ONE TIME ONLY during a down-shift pattern. Why is the Roadranger different? The Roadranger is a 2-RANGE transmission con- sisting of a5-speed front section and an automatic 2-speed auxiliary section in ONE CASE. The ten forward speeds are secured by using a 5-speed shifting pattern TWICE—the first time with the transmission engaged in low gear or low range; the second time engaged in high gear or high range.

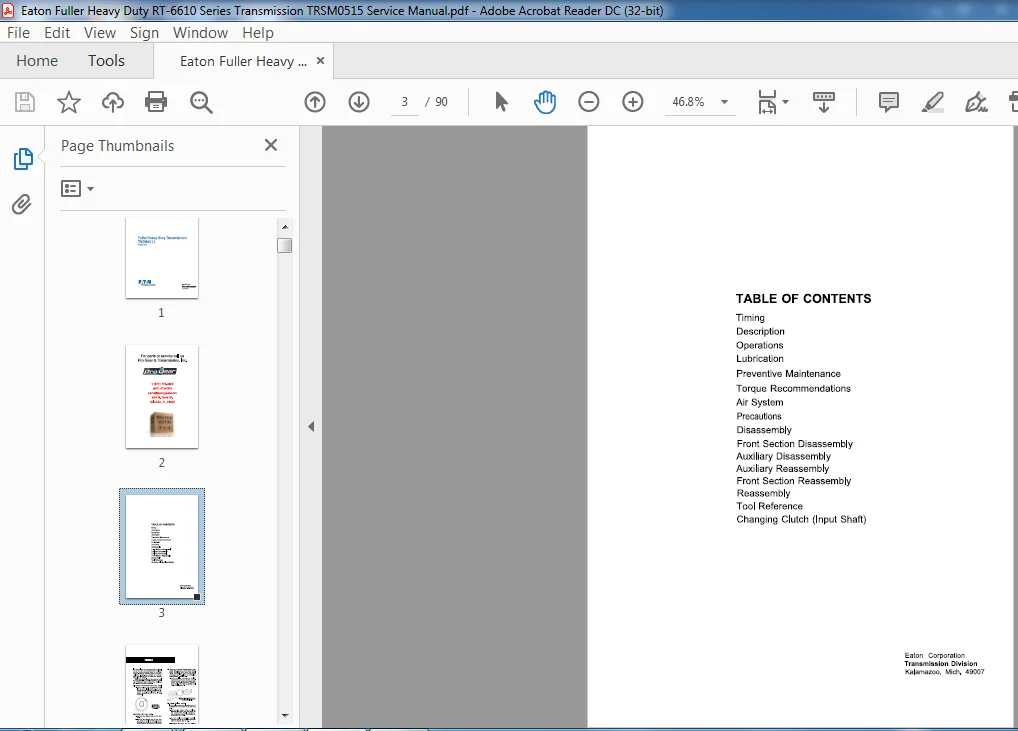

TABLE OF CONTENTS:

Eaton Fuller Heavy Duty RT-6610 Series Transmission TRSM0515 Service Manual – PDF DOWNLOAD

• Timing
• Description
• Operations
• Lubncafion
• Preventive Maintenance
• Torque Recommendations
• Air System
• Precautions
• Disassembly
• Front Section Disassembly
• Auxiliary Disassembly
• Auxiliary Reassembly
• Front Section Reassembly
• Reassembly
• Tool Reference
• Changing Clutch (Input Shaft)

EATON FULLER HEAVY DUTY RT-6610 SERIES TRANSMISSION TRSM0515 SERVICE MANUAL – PDF DOWNLOAD:

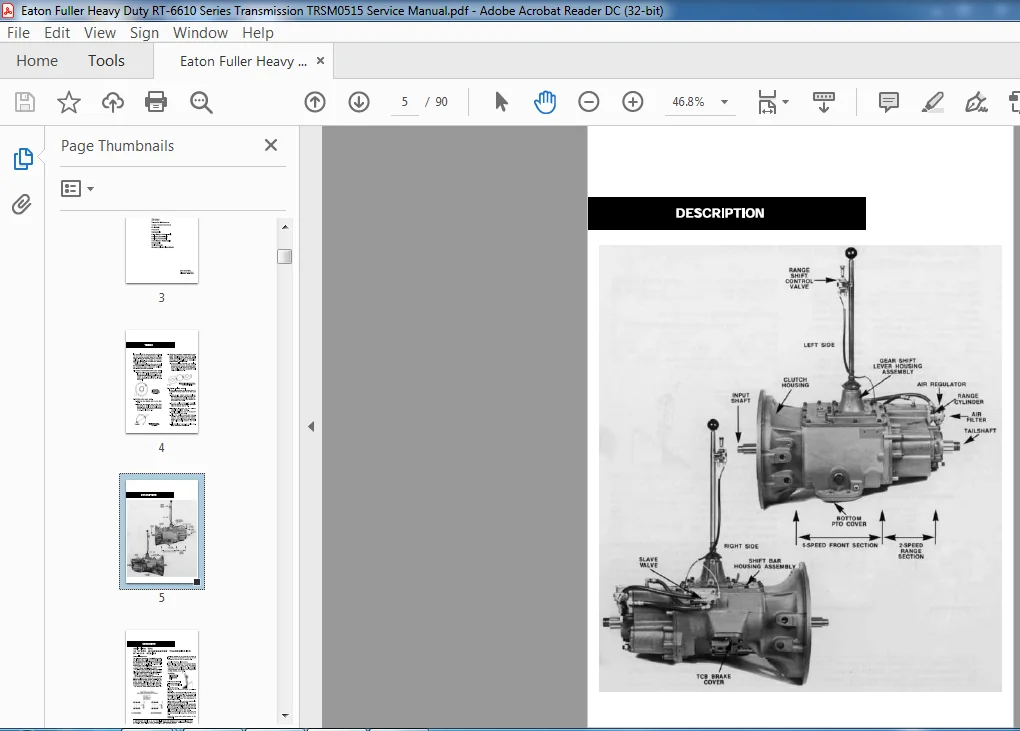

IMAGES PREVIEW OF THE MANUAL:
