Eaton Procision Dual Clutch Transmission Service Manual (2023) PDF
Original price was: $120.00.$20.95Current price is: $20.95.
Unlock the full repair potential of your fleet with the official Eaton Procision Dual Clutch Transmission Service Manual (TRSM0990). This comprehensive 900+ page guide covers every aspect of the Eaton Cummins Procision DCT, from complete disassembly and assembly to precise TCM calibration and fault code clearance. Ideal for heavy-duty technicians working on EDCO-6F107A series models, this high-definition PDF ensures you have the factory-correct torque specs and procedures.
Description
Eaton Procision Dual Clutch Transmission Service Manual TRSM0990 (2023) PDF DOWNLOAD
Description
Master the repair and maintenance of the industry-leading Eaton Procision Dual Clutch Transmission with this extensive service manual. Designed for professional technicians, this TRSM0990 Automated Transmission Repair Guide provides step-by-step instructions for the complete lifecycle of the transmission, ensuring accurate diagnostics and efficient overhauls.
Whether you are performing a routine Eaton Cummins Procision DCT Troubleshooting session or a complex rebuild, this manual integrates essential safety warnings with detailed exploded views. It covers critical service procedures for the Dual Clutch Module (DCM), Actuation Control Manifold (ACM), and the 3-Rail Position Sensor, ensuring you can handle both mechanical and electronic repairs.
This manual is indispensable for working on EDCO-6F107A Transmission Overhaul Instructions, providing deep insights into the unique architecture of the dual-clutch system. It also guides you through essential software tasks, such as Heavy Duty Truck DCT Calibration Procedures using ServiceRanger, ensuring the transmission communicates correctly with the engine and vehicle body.
Comprehensive Table of Contents:
1. General Information
Warnings and Cautions
Serial Tag Information and Model Nomenclature
Service Kits and Parts Index (Detailed breakdown of kits like K-4411, K-4273, etc.)
2. Service Procedures (Component Replacement & Repair)
Electronic Components:
3-Rail Position Sensor & Magnets
Actuation Control Manifold (ACM) & Gaskets
Transmission Control Module (TCM) Replacement & Calibration
Input & Output Speed Sensors
Transmission Range Sensor (TRS)
Mechanical & Hydraulic Systems:
Cartridge Filter & Sump Pan Service
Clutch Cooling Module & Heat Exchanger Relief Valve
Dual Clutch Module (DCM): Removal, Installation, and Input Seal replacement
Pump Assembly & Driven Gear
Disassembly & Assembly (Major Housings):
Clutch Housing: Front Cover, Interface Manifold, and Dampers
Main Housing: Lower Shaft, Upper Shaft, and Gearing (1st-7th, Reverse)
Rear Housing: Output Yoke, Output Seal, and Park Pawl Mechanisms
Synchronizers: Rail A, B, C, and D Assembly and Timing
3. Appendix & Specifications
Lubrication Specifications: Approved fluids (PS-386 HD Synthetic) and capacities.
Torque Specifications: Complete table for all fasteners (e.g., Damper to Flywheel, TCM Cover).
Special Tools: List of required Roadranger tools (e.g., RR1039TR Shift Rail Actuation Tool).
Inspection Procedures: Guidelines for reusing or replacing gears, bearings, and seals.
Quick Reference: Torque Specifications
| Component | Torque (Nm) | Torque (lb-ft) |
| Damper to Flywheel | 40.7–54.2 | 30–40 |
| Main Housing to Clutch Housing | 44.5–51.5 | 32.8–38 |
| Output Yoke Nut (Final) | 95–105 | 70.1–77.4 |
| Sump Pan Cap Screws | 20.5–25.5 | 15.1–18.8 |
File Details

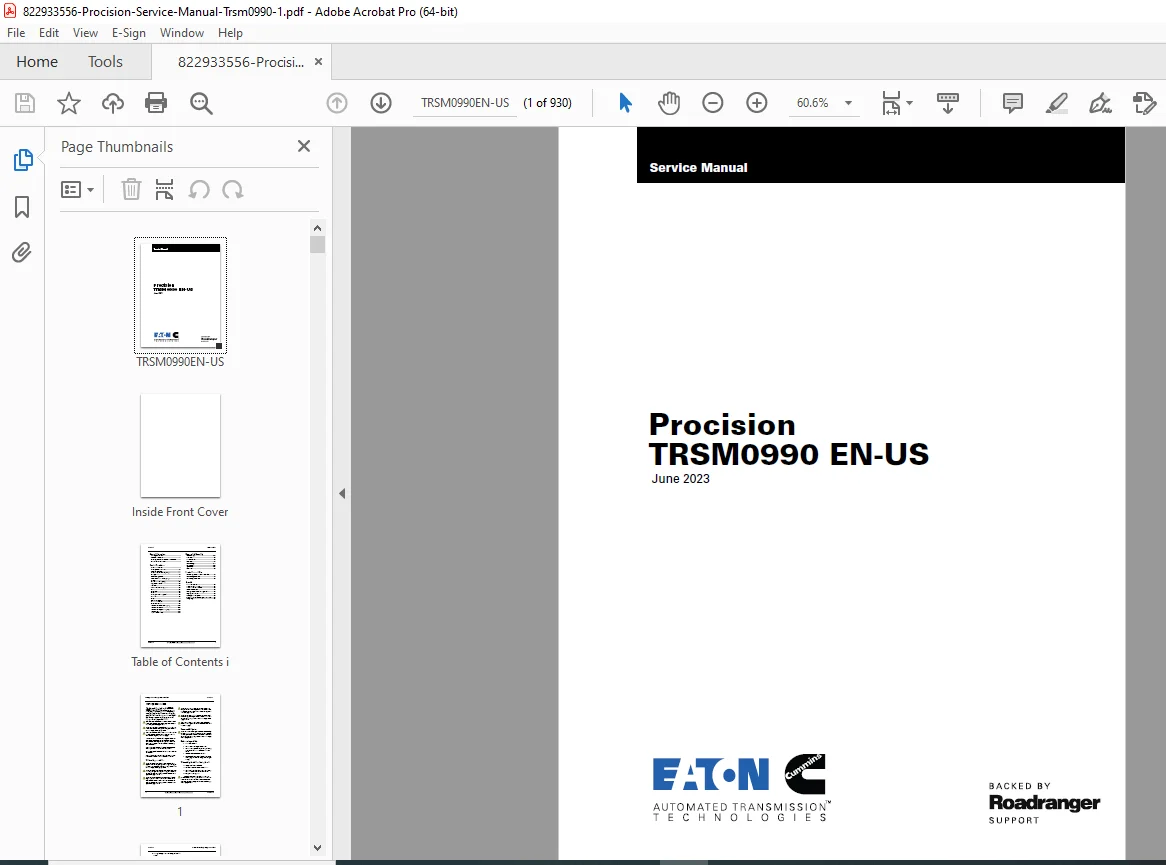

Manual Name: Service Manual Procision (TRSM0990 EN-US)
Models Covered: Eaton Procision DCT Series:
EDC-06F107A
EDCO-6F107A / EDCO-6F107AM
EDCO-6F107A-B
EDCO-6F107AP (Park Pawl variants)
Year: June 2023 (Revised 2024)
File Quality: High-Definition, Searchable, Printable PDF (Original Vector)
Number of Pages: 930 Pages
