Electrolux T3290, T3530, T3650 & TD30-TD75 Dryer Service Repair Manual PDF
Original price was: $95.00.$15.95Current price is: $15.95.
Complete service and repair manual for Electrolux / Wascomat commercial tumble dryers, covering models T3290, T3530, T3650, and the TD30, TD50, TD75 series. This 130+ page guide details every aspect of maintenance, from Selecta Control error codes diagnostics to dryer drum bearing replacement. It includes schematics for electric, gas, and steam heating systems, making it indispensable for laundry technicians.
Description
Electrolux T3290, T3530, T3650 & TD30-TD75 Dryer Service Repair Manual – PDF DOWNLOAD
Description:
Product Overview:
This Electrolux T3530 service manual (and related T/TD series) is the definitive technical resource for maintaining high-volume commercial drying equipment. Whether you are servicing a T3290 with Basic-3 controls or a large T3650 with Selecta Control, this manual provides step-by-step procedures for installation, adjustment, and component replacement. It is specifically written to help technicians perform commercial tumble dryer troubleshooting, ensuring minimal downtime for laundry operations.
Key Technical Coverage:
The manual is divided into comprehensive sections covering mechanical, electrical, and gas systems. It includes detailed guides for T3290 heating element maintenance, gas valve adjustments, and belt tensioning.
Detailed Table of Contents:
Safety & Technical Data
Safety rules and installation warnings (Gas/Electric).
Technical Specifications:
T3290/TD30: 286L Drum, 13.5kg Capacity.
T3530/TD50: 528L Drum, 23kg Capacity.
T3650/TD75: 650L Drum, 34kg Capacity.
Air consumption and pipe connection data.
Control Systems (Microprocessors)
Basic-3 Control: Programming parameters, temperature settings, and error codes (F1-F4).
Selecta Control: User module diagnostics, Selecta Control error codes (e.g., E05 Motor Overheat, E14 Gas Ignition Failure), and main board replacement.
Coin & Card Systems: Connecting external payment systems and time control.
Sensors & Overheating Protection
Inlet and Outlet air overheating thermostats (Gas/Electric).
Thermistor elements (NTC sensors) and Vacuum switches.
Lint filter and Door switch troubleshooting.
Mechanical Systems
Motors: Dismounting and mounting single/dual motor configurations.
Drive Belt: Instructions for checking belt tension (Hz/Newtons) and tightening procedures.
Drum & Bearings: Complete guide for dryer drum bearing replacement (inner and outer bearings), seal replacement, and centering the drum spider.
Heating Systems
Electric: replacing heating elements (13.5kW to 36kW).
Steam: Troubleshooting the steam calorifier, actuator, and damper adjustments.
Gas: TD75 gas dryer repair procedures, including nozzle pressure adjustment, ionization current measurement, and ignition electrode gap settings (3.5mm).
Maintenance & RMC
Periodic maintenance schedules (daily/weekly/yearly).
RMC (Residual Moisture Control): Cleaning lifters and replacing collector graphite.
Technical Specifications Example:
| Model | Drum Volume | Capacity | Motor (Drum) | Heating (Gas) |
| T3290 / TD30 | 286 Liters | 30 lbs (13.5kg) | 0.37 kW | 21 kW / 71.7k BTU |
| T3530 / TD50 | 528 Liters | 50 lbs (23kg) | 0.37 kW | 40 kW / 136k BTU |
| T3650 / TD75 | 650 Liters | 75 lbs (34kg) | 0.37 kW | 57 kW / 151k BTU |
File Details:

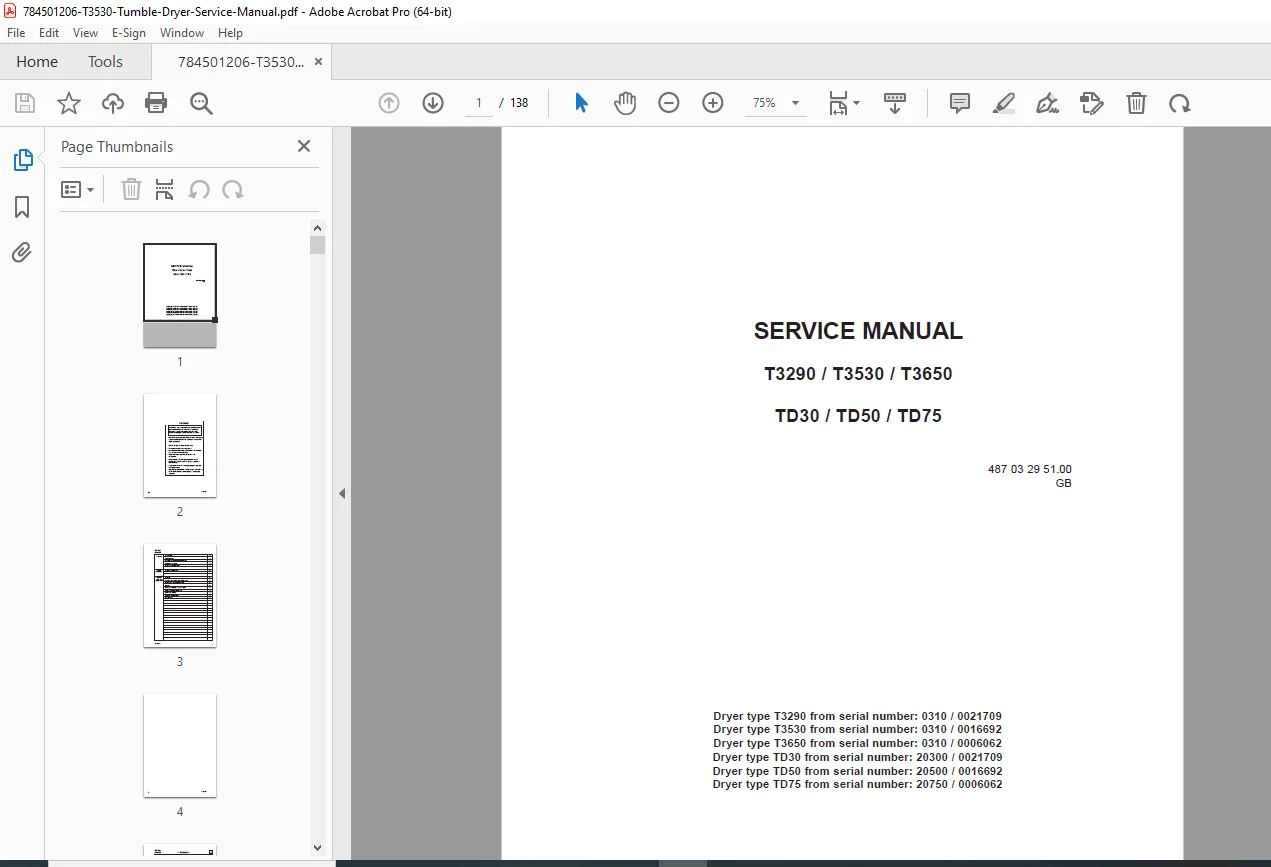

Manual Name: Service Manual T3290/T3530/T3650 & TD30/TD50/TD75
Models Covered: T3290, T3530, T3650, TD30, TD50, TD75
Year: Covers models from Serial No. 0310/xxxxx (Circa 2010+)
Manual PDF Quality: High Quality, Searchable Text, Clear Diagrams
No. of Pages: 138 Pages
