Electromatic JR403-E Automatic Transmission Auto Gearbox Service Manual – PDF DOWNLOAD

Description

Electromatic JR403-E Automatic Transmission Auto Gearbox Service Manual

FILE DETAILS:

Electromatic JR403-E Automatic Transmission Auto Gearbox Service Manual

Language : English
Pages : 120
Downloadable : Yes
File Type : PDF
Size: 5.59 MB

DESCRIPTION:

Electromatic JR403-E Automatic Transmission Auto Gearbox Service Manual

INTRODUCTION:

The JR403-E otherwise known as the ELECTROMATIC is currently found in T988 and up GMC Tiltmaster Trucks, lsuzu Trucks, Nissan Diesel Trucks, Mazda Trucks and Mitsubishi Trucks. This electronic controlled transmission is similar in design to that of an REAROTA found in Nissan Pathfinders, 2408X and 3002)( vehicles, but on a much larger scale. The information contained in this manual was compiled from GMC and lSUZU actory repair manuals. The JR403-E transmission is fully computer controlled consisting shift solenoids, a line pressure solenoid, a converter clutch solenoid, a overrun clutch solenoid and a fluid temperature switch. There is built into the vehicle a self diagnostic test to aid in diagnosing electrical problems which this manual contains. This manual also includes fluid pressure testing and an exhaustive disassembly and reassembly section.

TABLE OF CONTENTS:

Electromatic JR403-E Automatic Transmission Auto Gearbox Service Manual

• SELF DIAGNOSIS AND CODE RETRIEVAL
• ELECTRICAL COMPONENT CHECK
• SOLENOID SHIFT CHART
• LINE PRESSURE CHART
• FRICTION APPLICATION CHART
• UNIT DISASSEMBLY
• SUB-ASSEMBLY OVERHAUL
• CHECK BALL. ORIFICE AND FILTER LOCATION…
• UNIT REASSEMBLY

ELECTROMATIC JR403-E AUTOMATIC TRANSMISSION AUTO GEARBOX SERVICE MANUAL – PDF DOWNLOAD:

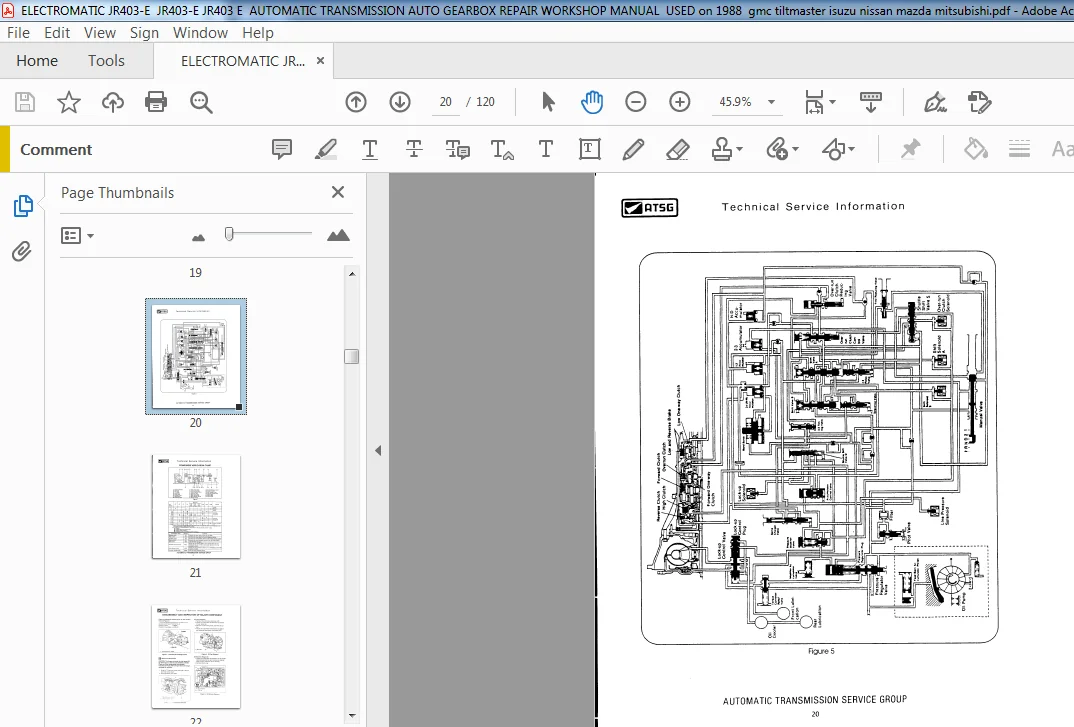

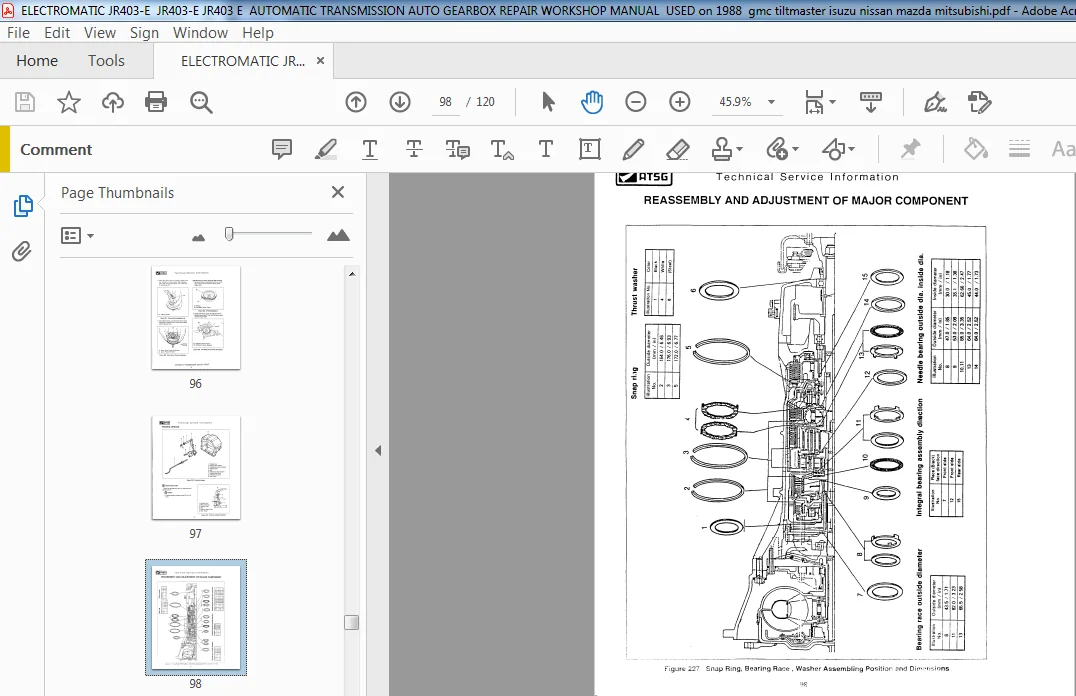

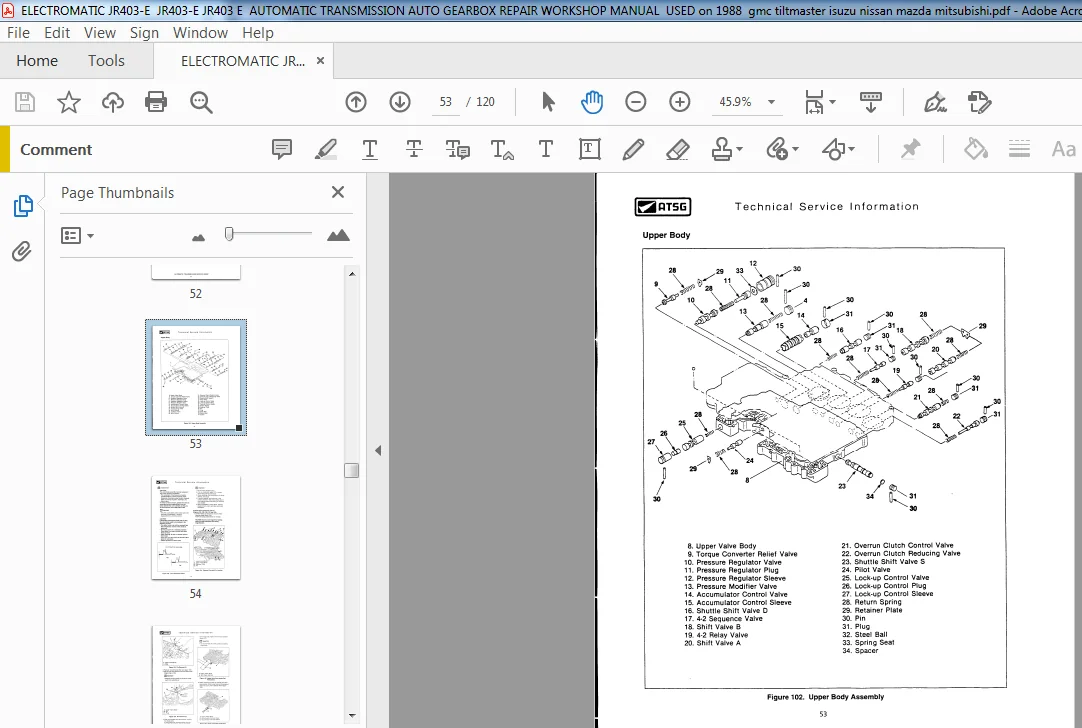

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
