CAT CB34B, CB34B XW, CC34B Compactor Electric Schematic PDF

Description

EN CAT Paving Compactor CB34B CB34B XW CC34B Vibratory Electric Schematic Manual – PDF DOWNLOAD

FILE DETAILS:

EN CAT Paving Compactor CB34B CB34B XW CC34B Vibratory Electric Schematic Manual – PDF DOWNLOAD

Language : English
Pages :20
Downloadable : Yes
File Type : PDF
Size:4.42 MB

CB34B:
4231-284
CB34B XW:
4251-145
CC34B:
3241-144

TABLE OF CONTENTS:

EN CAT Paving Compactor CB34B CB34B XW CC34B Vibratory Electric Schematic Manual – PDF DOWNLOAD

Feature................................... 1
Cover Page................................ 3
Information............................... 0
	Component Location.................... 0
		Machine Wiring.................... 4
		Engine............................ 5
	Connector Location.................... 0
		Machine Wiring.................... 6
		Engine............................ 7
	Specifications and Related Manuals.... 0
		Machine Wiring.................... 8
Schematics................................ 0
	Machine Wiring........................ 9
	Engine................................10
Machine Views............................. 0
	Machine Wiring........................ 0
		HRC Engine........................11
		Machine Front Lower Right.........12
		Machine Front - Top View..........13
		Machine Right.....................14
		Operator Station - Top View.......15
	Engine................................ 0
		DEF Unit..........................16
		ECM Connector.....................17
		Engine Left View..................18
		Engine Right View.................19
		Engine ...........................20

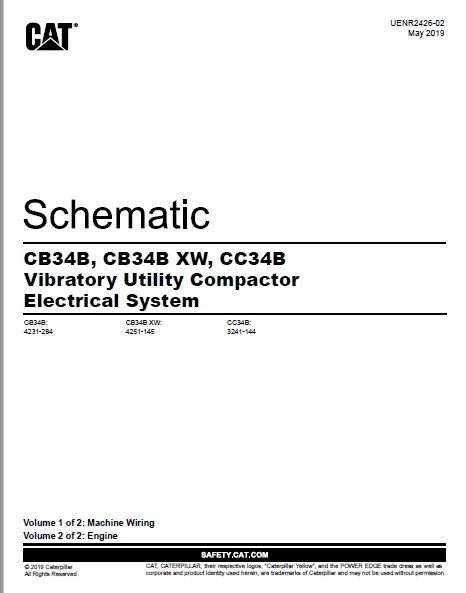

IMAGES PREVIEW OF THE MANUAL:
