EP ES12-12MM/ES12-25MM Electric Pallet Stacker Parts Manual – PDF

Description

EP ES12-12MM/ES12-25MM ES12-12ES/ES12-25DM Electric Pallet Stacker Parts Manual – PDF DOWNLOAD

FILE DETAILS:

EP ES12-12MM/ES12-25MM ES12-12ES/ES12-25DM Electric Pallet Stacker Parts Manual – PDF DOWNLOAD

Language : English & Chinese
Pages : 107
Downloadable : Yes
File Type : PDF

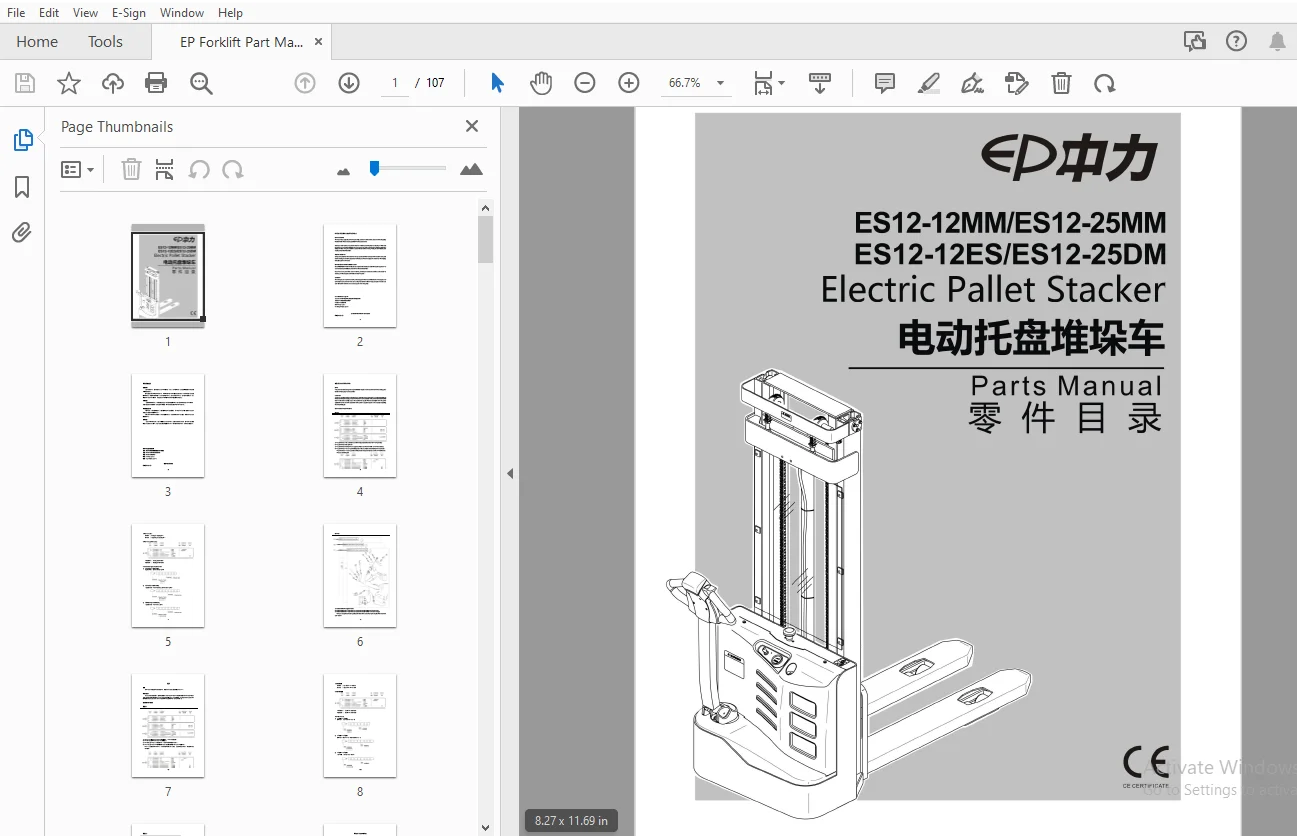

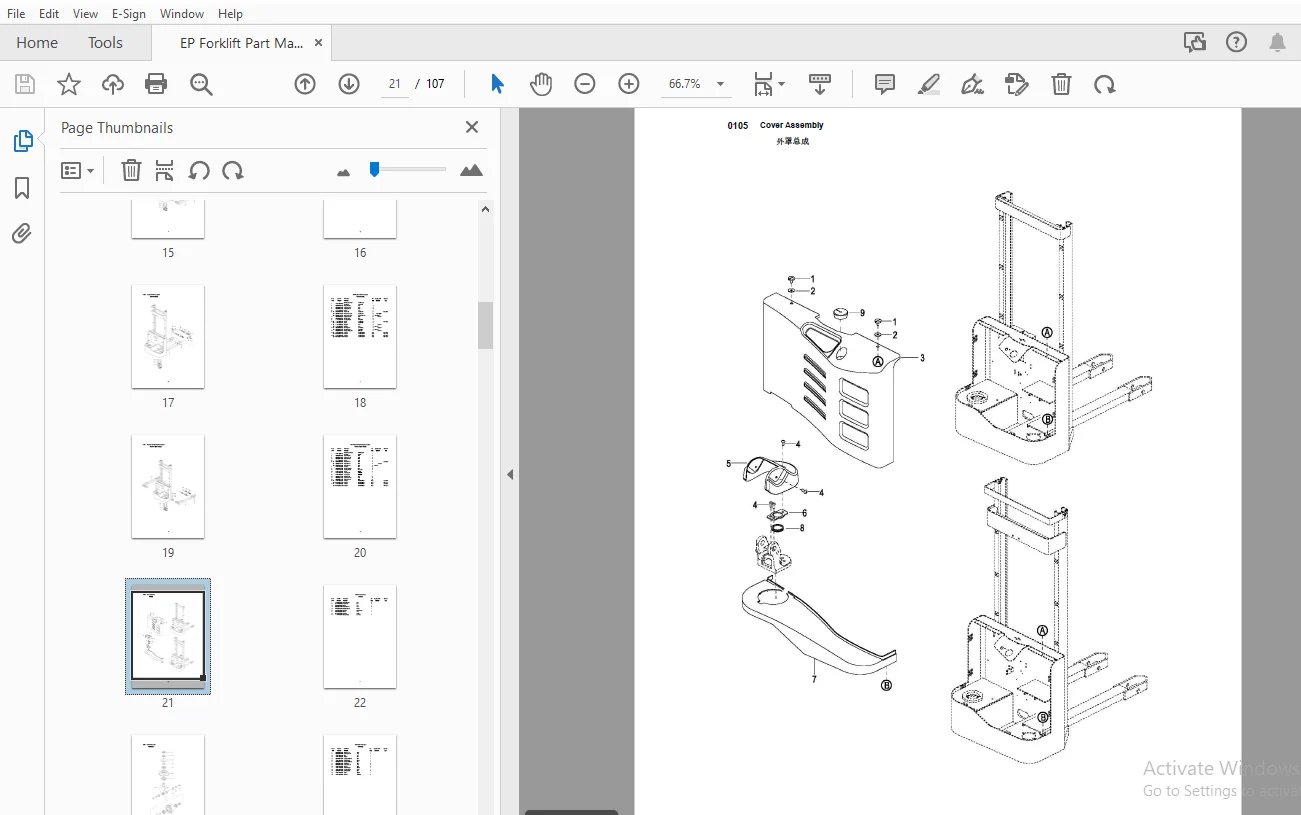

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

EP ES12-12MM/ES12-25MM ES12-12ES/ES12-25DM Electric Pallet Stacker Parts Manual – PDF DOWNLOAD

1000Frame System 车身系统
0101 Single Stage Mast Frame System 单级门架车架系统 3
0102 Single Stage Mast (Straddle) Frame System 单级门架（宽腿）车架系统 5
0103 Duplex Mast Frame System 两级门架车架系统 7
0104 Duplex Mast (Straddle) Frame System 两级门架（宽腿）车架系统 9
0105 Cover Assembly 外罩总成 11
0106 Caster Assembly I 万向轮总成I 13
0107 Caster Assembly II 万向轮总成II 15
2000 Driving System 驱动系统
0201 Driving System 驱动系统 18
3000 Operating Control System 操作系统
0301 Operating Control Assembly 操作总成 24
0302 Control Pod Assembly 操作手柄总成 26
0303 Upper Cover Assembly 上盖总成 30
0304 Button Reverser Assembly 紧急反向开关总成 34
4000Hydraulic System 液压系统
0401 Single Stage Mast Hydraulic System 单级门架液压系统 37
0402 Duplex Mast Hydraulic System 两级门架液压系统 36
0403 Hydraulic System, with Explosion-proof 液压系统（带防爆） 49
0404 Hydraulic Pump Assembly 液压站总成 53
5000 Electric System 电气系统
0501 Single Stage Mast Electric Assembly 单级门架电气总成 60
0502 Duplex Mast Electric Assembly 两级门架电气总成 63
0503 Wiring Harness Assembly 线束总成 66
0504 Cable Assembly 电缆总成 68
6000 Lifting System 起升系统
0601 Single Stage Mast Lifting System 单级门架起升系统 71
0602 Lifting Cylinder 起升油缸 73
0603 Single Stage Mast Fork Frame 单级门架货叉架 75
0604 Single Stage Mast (Straddle) Fork Frame 单级门架（宽腿）货叉架 77
0605 Single Stage Mast Chain Assembly 单级门架链条总成 79
0606 Duplex Mast Lifting System 两级门架起升系统 81
0607 Lifting Cylinder 起升油缸 86
0608 Duplex Mast Fork Frame 两级门架货叉架 88
0609 Duplex Mast (Straddle) Fork Frame 两级门架（宽腿）货叉架 90
0610 Duplex Mast Chain Assembly 两级门架链条总成 92
0611 Windshield Assembly 安全挡板总成 94

S.S 05/24
