Epson TM-L90 Series Service Manual & Repair Guide PDF
Original price was: $85.00.$14.95Current price is: $14.95.
Official Epson TM-L90 Service Manual for thermal label printers. This 147-page guide provides complete disassembly instructions, troubleshooting flowcharts, and circuit diagrams for the TM-L90 series. It covers main board repair, sensor calibration, and print head replacement procedures essential for POS technicians.
Description
Epson TM-L90 Series Service Manual & Repair Guide PDF DOWNLOAD
Description:
Keep your point-of-sale systems running smoothly with the Epson TM-L90 Series Service Manual. This technical document is the definitive resource for diagnosing and repairing Epson’s robust thermal label printers. It offers far more than just user instructions; it provides the deep engineering data needed for component-level repair and hardware maintenance.
Whether you are fixing a paper jam sensor or replacing a worn thermal print head, this manual guides you through every step with clear exploded views and detailed circuit schematics. It includes specific sections on using the TM Service & Support Tool, configuring memory switches, and understanding the theory of operation for the stepper motor and paper feed mechanisms.
Key Technical Coverage:
Disassembly & Assembly:
Step-by-step removal guides for the Case, Main Circuit Board, and Cutter Unit.
Precise instructions for replacing the Thermal Head and Platen Roller assembly.
Installation of the Paper Roll Near-End Sensor and holder guide sheets.
Troubleshooting & Diagnostics:
Diagnosing failures using the LED panel and Hexadecimal Dump mode.
Flowcharts for resolving “Paper Jam,” “Auto Cutter Lock,” and Power failures.
Error code interpretation for specific blinking LED patterns.
Circuit Diagrams & Electronics:
Complete Main Board Circuit Diagrams (CPU, Gate Array, Memory).
Connectors and pinout tables for the Serial/Parallel interfaces.
Power supply unit specifications (PS-170, PS-180).
Adjustments & Maintenance:
Lubrication points (G-36, G-49, O-10) to extend mechanism life.
DIP switch settings and Memory Switch configuration tables.
Table of Contents Overview:
Chapter 1: General Information
Features and Specifications (Print method, fonts, paper dimensions).
Interface specifications (RS-232, Parallel, USB).
Chapter 2: Troubleshooting
Repair flowchart and problem isolation.
Self-test mode and Hex Dump instructions.
Chapter 3: Disassembly and Assembly
Tools required and safety precautions.
Standard removal procedures (Case, Main Board, Mechanism).
Chapter 4: Adjustment and Inspection
Lubrication points and maintenance standards.
Chapter 5: Repair of the Main Circuit Board Components
Circuit operation theory and block diagrams.
Appendix:

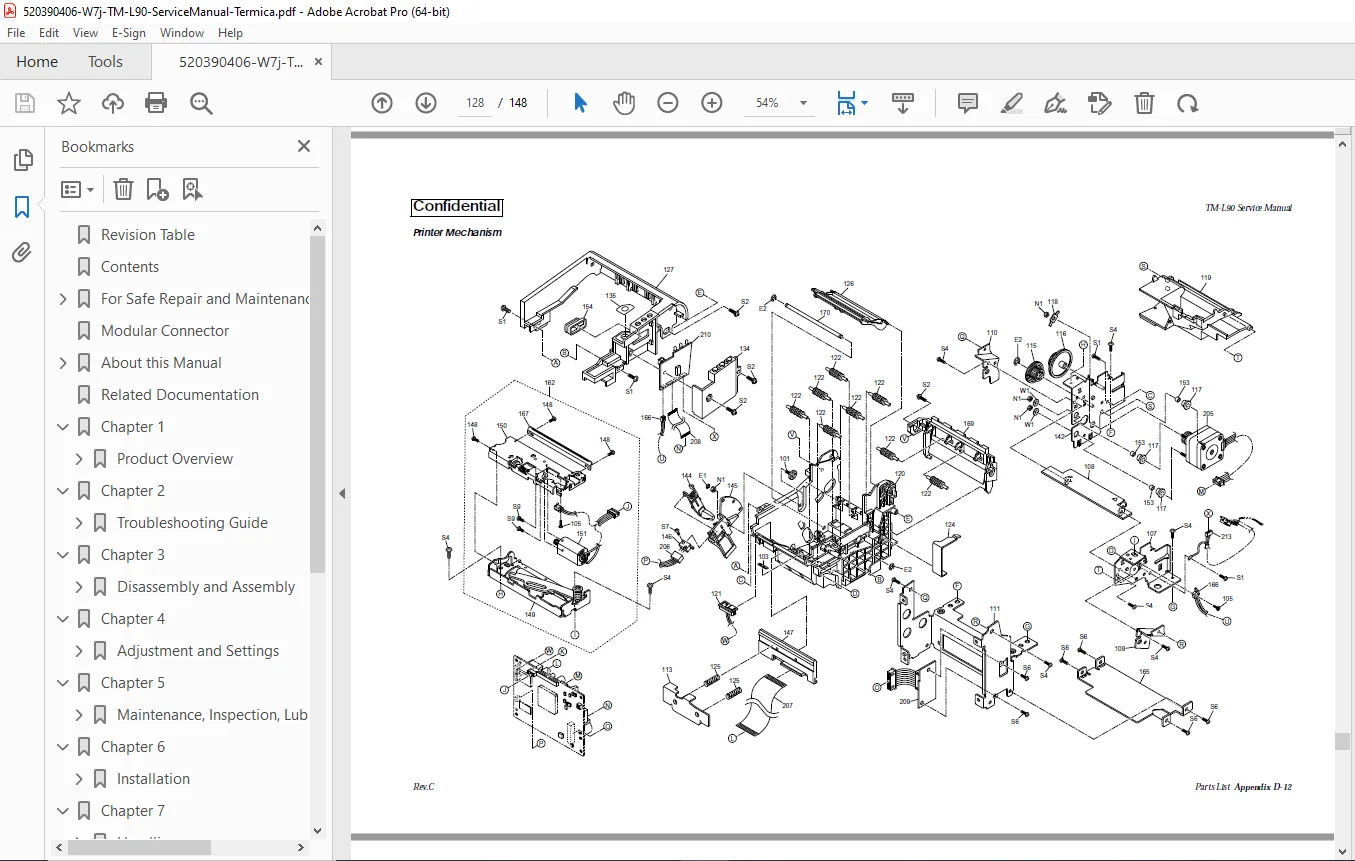

Exploded views and Parts List (Reference).
Schematic Diagrams (Main Board, Panel Board).
File Details:
Manual Name: Epson TM-L90 Series Service Manual
Models Covered: TM-L90 Series Thermal Label Printer
Year: Rev. C (Updated Release)
File Type: Searchable PDF
No. of Pages: 148 Pages
Minimize downtime at the checkout counter. Download this comprehensive service guide now to access the expert repair data needed to fix your Epson TM-L90 printers instantly!
