Erbe VIO 200D 300D Electrosurgical Generator Service Manual PDF Download

Description

Erbe VIO 200D 300D Electrosurgical Generator Service Manual PDF Download

DESCRIPTION:

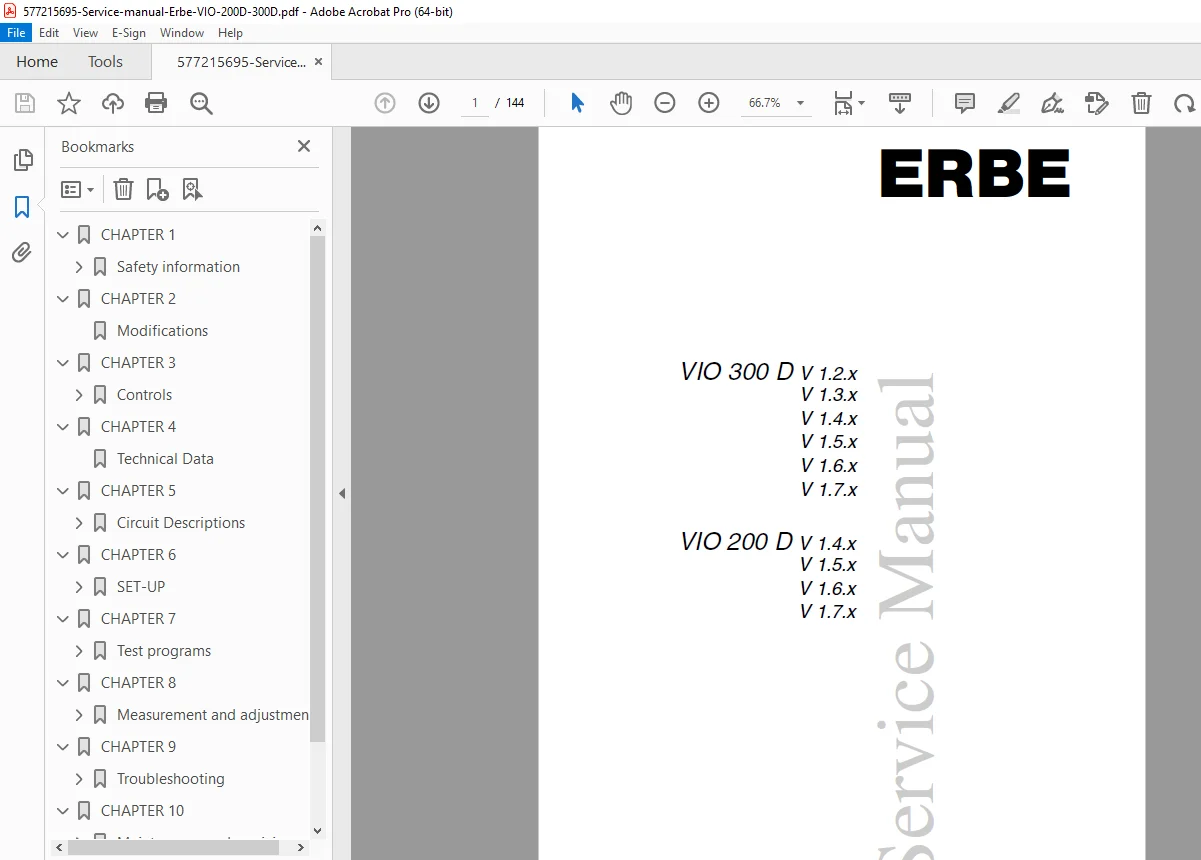

This comprehensive Erbe VIO 200D and VIO 300D service manual provides complete technical documentation for professional service technicians working on these advanced electrosurgical generators. Published by ERBE Elektromedizin GmbH in 2006, this official service manual covers multiple software versions and contains detailed circuit diagrams, troubleshooting procedures, and maintenance instructions.

Equipment Covered

This service manual applies to the following Erbe electrosurgical generator models:

VIO 300D Versions:

• V 1.2.x
• V 1.3.x
• V 1.4.x
• V 1.5.x
• V 1.6.x
• V 1.7.x

VIO 200D Versions:

• V 1.4.x
• V 1.5.x
• V 1.6.x
• V 1.7.x

Manual Contents Overview

Chapter 1: Safety Information

• Classification of safety information (Warning, Caution, Attention indicators)
• Knowledge requirements for user manual
• Protection from electric shock hazards
• Electrostatically sensitive components handling
• Liability and warranty information

Chapter 2: Modifications

• Equipment modification procedures and documentation

Chapter 3: Controls and Interface

• Front panel controls – Complete layout and function descriptions
• Rear panel controls – Connection points and control interfaces

Chapter 4: Technical Data

• Power specifications: 100-120V / 220-240V ± 10%, 50/60 Hz
• Line current: 8A/4A
• Power input (standby): 40 watts
• Power input (max HF output): 500 watts / 920 VA
• Dimensions: 410 x 165 x 380 mm
• Weight: 9.5 kg
• Operating temperature: +10°C to +40°C
• Storage temperature: -40°C to +70°C
• Relative humidity: 15-80% (operation), 10-95% (storage)
• Protection class: EN 60 601-1, Type CF
• Classification: EC Directive 93/42/EEC, Class IIb

Chapter 5: Circuit Descriptions

• Block diagram for VIO 300D – Complete system architecture
• Block diagram for VIO 200D – System configuration overview
• Detailed assembly descriptions:
  • Line input circuitry
  • Low voltage power supply unit (l.v. supply)
  • High-voltage power supply unit
  • HF generator circuit analysis
  • CPU and sensor systems
  • User interface (control panel) electronics
  • ECB (ERBE Communication Bus) protocols
  • IIF (Instrument Interface) specifications
  • Nessy2 system integration

Chapter 6: SET-UP Configuration

• General configuration information
• SET-UP level 1 settings overview
• SET-UP level 2 advanced settings
• Step-by-step procedures to access SET-UP mode
• Parameter change instructions

Chapter 7: Test Programs

• Accessing test program modes
• Exiting test programs safely
• Parameter input procedures
• Complete test program descriptions:
  • Display test procedures
  • TP relay testing
  • TP valves (APC) verification
  • TP activation signal testing
  • TP power supply unit diagnostics
  • TP generator function tests
  • Burn-in test (production use)
  • Watchdog circuit testing
  • CheckStop function verification
  • Measured values monitoring (V 1.3.x and later)

Chapter 8: Measurement and Adjustment

• HF power output measurement procedures
  • Temperature requirements
  • Required test equipment specifications
  • Test setup configurations
  • Detailed test procedures
• Adjustment procedures:
  • Personnel qualification requirements
  • Environmental temperature conditions
  • Complete test sequence protocols
  • Calibrated test equipment listings
  • Voltage measurement and adjustment
  • Spark gap testing procedures
  • Current measurement protocols

Chapter 9: Comprehensive Troubleshooting

• Complete ERROR code reference for VIO system:
  • A/E-Errors – Error codes and resolution procedures
  • B-Errors – Detailed diagnostic information
  • C-Errors – Circuit-related fault diagnosis
  • D-Errors – Device malfunction troubleshooting
  • 2,3,5,6-Errors – System error diagnostics
  • 4 (NE)-Errors – Neutral electrode fault resolution
  • 9-Errors – Critical system failures
• Testing and measuring equipment requirements
• Systematic troubleshooting methodologies

Chapter 10: Maintenance and Servicing

• Technician qualifications – Who may perform service work
• Safety check definitions and requirements
• Service intervals – Recommended maintenance schedules
• Step-by-step safety check procedures:
  • User manual verification and visual inspections
  • National specification compliance testing
  • DC resistance measurements
  • Comprehensive performance tests
  • Footswitch activation verification
  • Fingerswitch activation testing
  • Instrument recognition for MF receptacle
  • Automatic start mode validation
  • Automatic stop mode testing
  • Spark monitor calibration and testing
  • HF power output CUT mode measurements
  • HF power output COAGULATE mode testing
  • Performance test for system upgrades
  • Monitor circuit diagnostics and verification

Chapter 11: Spare Parts Catalog

• VIO D with plug-in power supply module – Complete parts listing with diagrams
• VIO D with screw-in power supply module – Alternative configuration parts

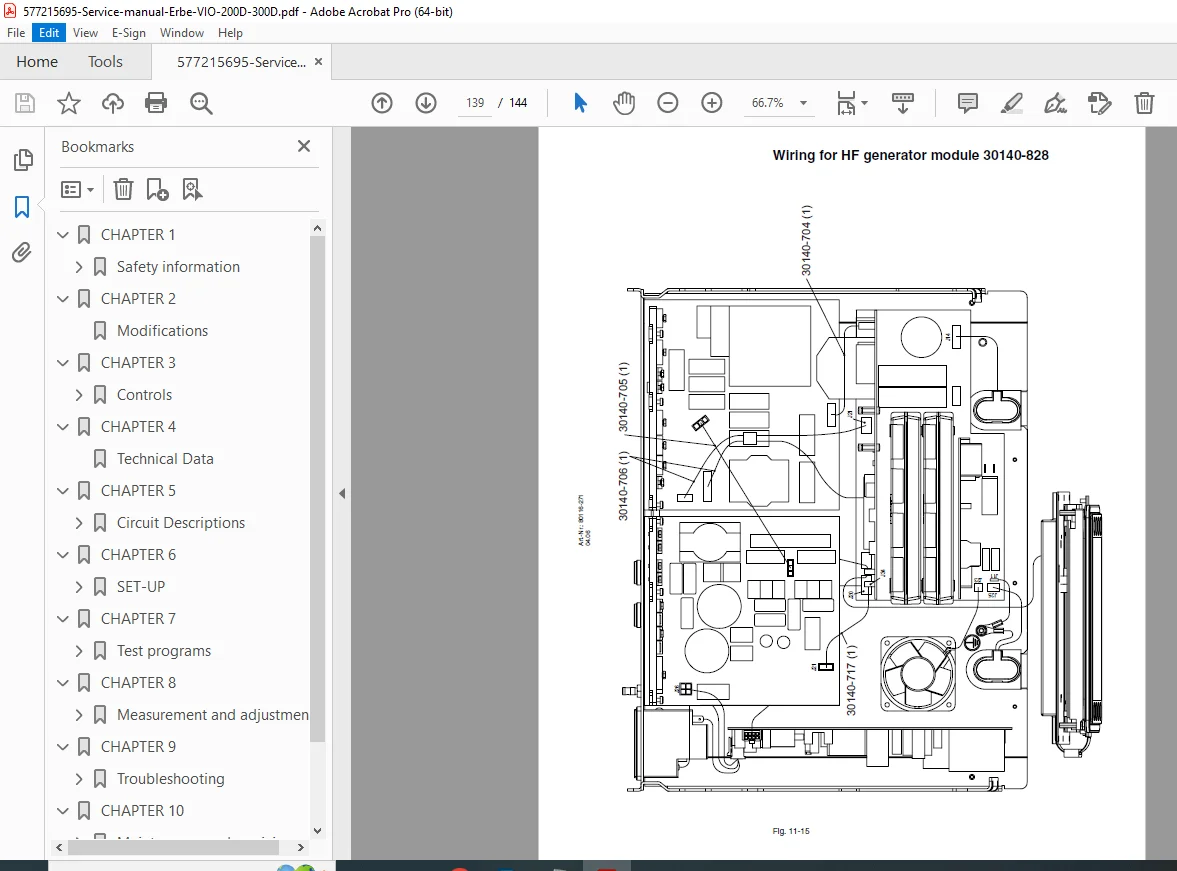

• Wiring diagrams:
  • HF generator module 30140-804 wiring schematic
  • HF generator module 30140-828 wiring schematic
• Circuit boards – Replacement PCB specifications and part numbers
• Receptacle modules catalog:
  • Bipolar receptacle assemblies
  • Monopolar receptacle configurations
  • MF receptacle specifications
  • Neutral electrode receptacle parts

Key Features of This Service Manual

✓ Official manufacturer documentation from ERBE Elektromedizin GmbH ✓ 144 pages of detailed technical information and illustrations ✓ Complete circuit diagrams for both VIO 200D and VIO 300D models ✓ Systematic troubleshooting with comprehensive ERROR code database ✓ Detailed spare parts illustrations with part numbers for ordering ✓ Professional-grade measurement procedures with test equipment specifications ✓ Safety-focused maintenance protocols complying with medical device standards ✓ Multiple software version coverage from V 1.2.x through V 1.7.x ✓ High-quality PDF with searchable text and clear diagrams

Who Should Use This Manual

This Erbe VIO electrosurgical generator service manual is designed for:

• Certified biomedical equipment technicians (BMET)
• Hospital clinical engineering departments
• Medical equipment service providers
• Authorized ERBE service centers
• Healthcare technology management professionals
• Electrosurgical equipment specialists

Important Information

This service manual contains detailed technical information for servicing the Erbe VIO 200D and VIO 300D electrosurgical generators. It includes critical safety information regarding electric shock protection, handling of electrostatically sensitive components, and proper maintenance procedures. Technicians must be familiar with the user manuals and possess appropriate qualifications before performing service work on these medical devices.

The manual emphasizes that only qualified personnel should perform maintenance, adjustments, and repairs on these Class IIb medical devices. All work must comply with EN 60 601-1 standards and EC Directive 93/42/EEC requirements for medical equipment.

Manual Specifications

• Format: Downloadable PDF
• Compatibility: All PDF readers (Adobe Acrobat, Foxit, Preview, etc.)
• Print-friendly: Optimized for printing individual sections or complete manual
• Searchable: Full-text search capability for quick reference
• Bookmarked: Easy navigation through all chapters and sections

This Erbe VIO 200D 300D service manual PDF provides everything professional technicians need for effective troubleshooting, repair, calibration, and maintenance of these sophisticated electrosurgical generators used in operating rooms worldwide.
