EZGO 628519 FUJI TRANSAXLE for Kawasaki Engine Service Manual – PDF DOWNLOAD
DESCRIPTION:
EZGO 628519 FUJI TRANSAXLE for Kawasaki Engine Service Manual – PDF DOWNLOAD
SHOP REBUILD AND SERVICE PARTS MANUAL FUJI TRANSAXLE for Kawasaki Engine Applications
- This manual is designed to suit the needs of mechanics at all levels of experience with the Fuji Transaxle. The outline format will allow the mechanic to choose the level of instructional detail needed to completely disassemble, diagnose, repair/overhaul, and reassemble the transaxle. The manual is divided into four major operational sections,
- which are each divided into smaller operational sections. At the beginning of each major section is a list of tools that will be required to perform the operations desired in that section. Do not use non-specified tools (Vise-grips®, hammers, adjustable wrenches, etc.). The use of these tools could cause permanent damage to the transaxle components.
- 1.Remove and inspect/replace one axle shaft and/or axle shaft bearing.
- 2.Remove and inspect one axle tube.
- 3.Inspect/replace one axle oil seal in the transaxle casing.
- 4.Remove and inspect/replace the input shaft, shifter shaft, and governor shaft oil seals. These components must be removed in order to inspect oil seals..
TABLE OF CONTENTS:
EZGO 628519 FUJI TRANSAXLE for Kawasaki Engine Service Manual – PDF DOWNLOAD
SECTION PAGE No
Fuji Transaxle Shop Rebuild and Service Parts Manual
TABLE OF CONTENTS
SAFETY Inside Covers
GENERAL INFORMATIONII
INTRODUCTION III
SECTION PAGE No
TRANSAXLE DISASSEMBLY A
Wheel Brake RemovalA-1
Axle Shaft and Axle Tube RemovalA-2
Shifter Detent Assembly RemovalA-2
Transaxle Case SeparationA-3
Transaxle Case Disassembly A-4
Select Shift Assembly RemovalA-4
INSPECTION OF PARTSB
Oil Seal Inspection B-1
Bearing Inspection B-1
Transaxle Case InspectionB-1
Gear Teeth InspectionB-1
TRANSAXLE REASSEMBLY C
Select Shift Assembly Installation C-1
Governor Gear C-2
Governor Gear Removal C-2
Governor Gear Installation C-2
Transaxle Case AssemblyC-3
Transaxle Case Installation C-5
Shifter Detent Assembly InstallationC-6
Axle Shaft and Axle Tube InstallationC-6
Brake Assembly Installation C-7
ILLUSTRATED PARTS BREAKDOWND
Model 627892 – GAS REAR AXLED-2
Model 627891 – ED58BA02 GAS REAR AXLED-6
Model 617488 – FUJI WITH LSD GAS REAR AXLE
VIDEO PREVIEW OF THE MANUAL:

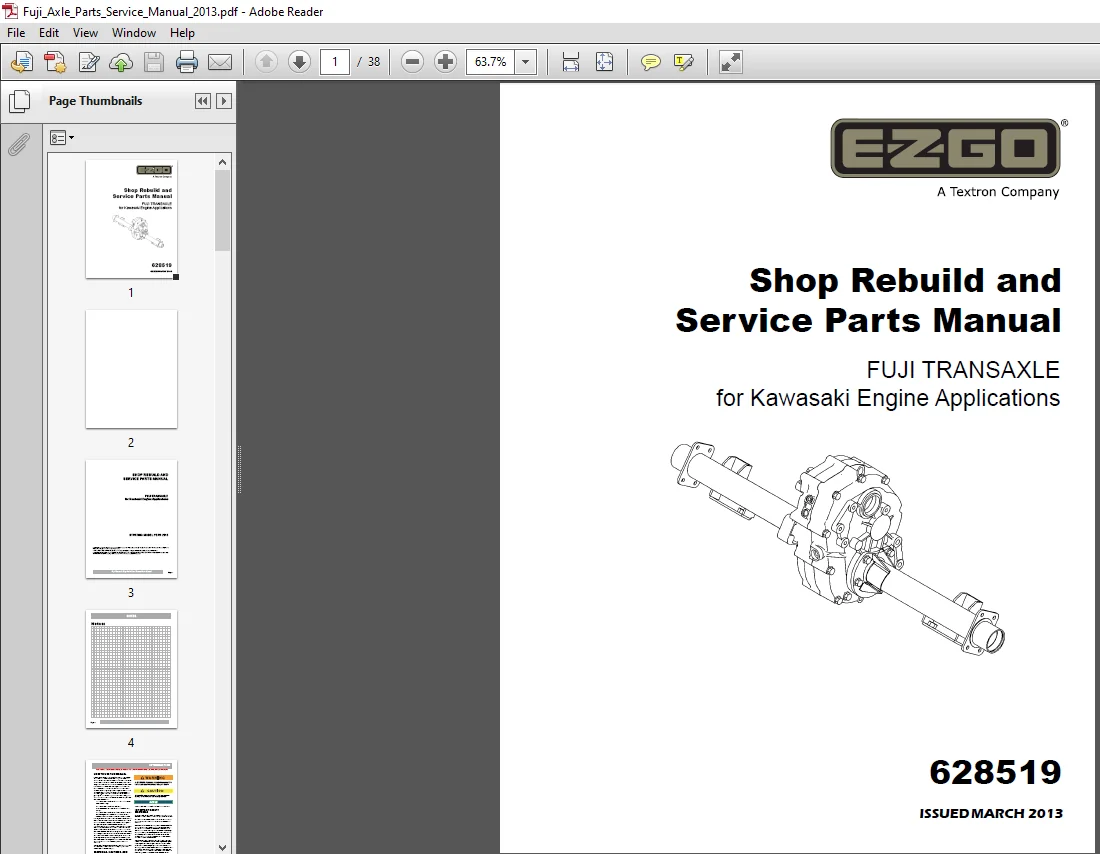

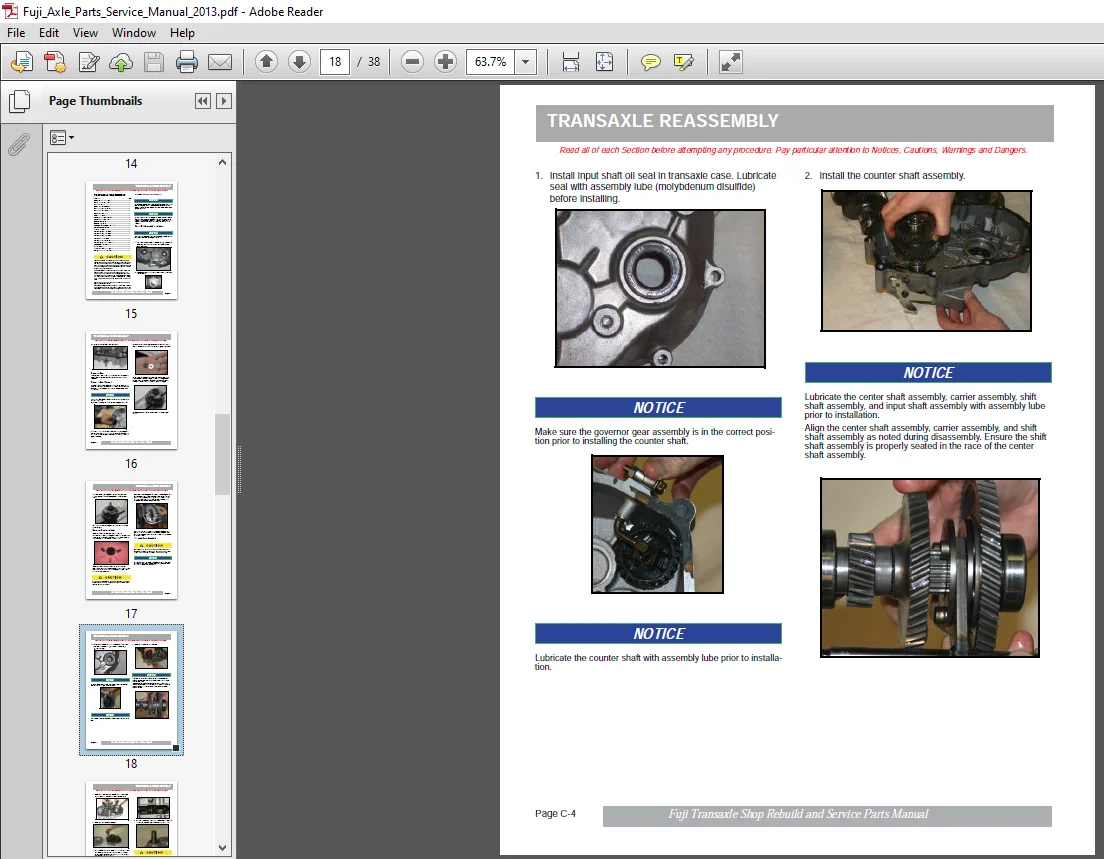

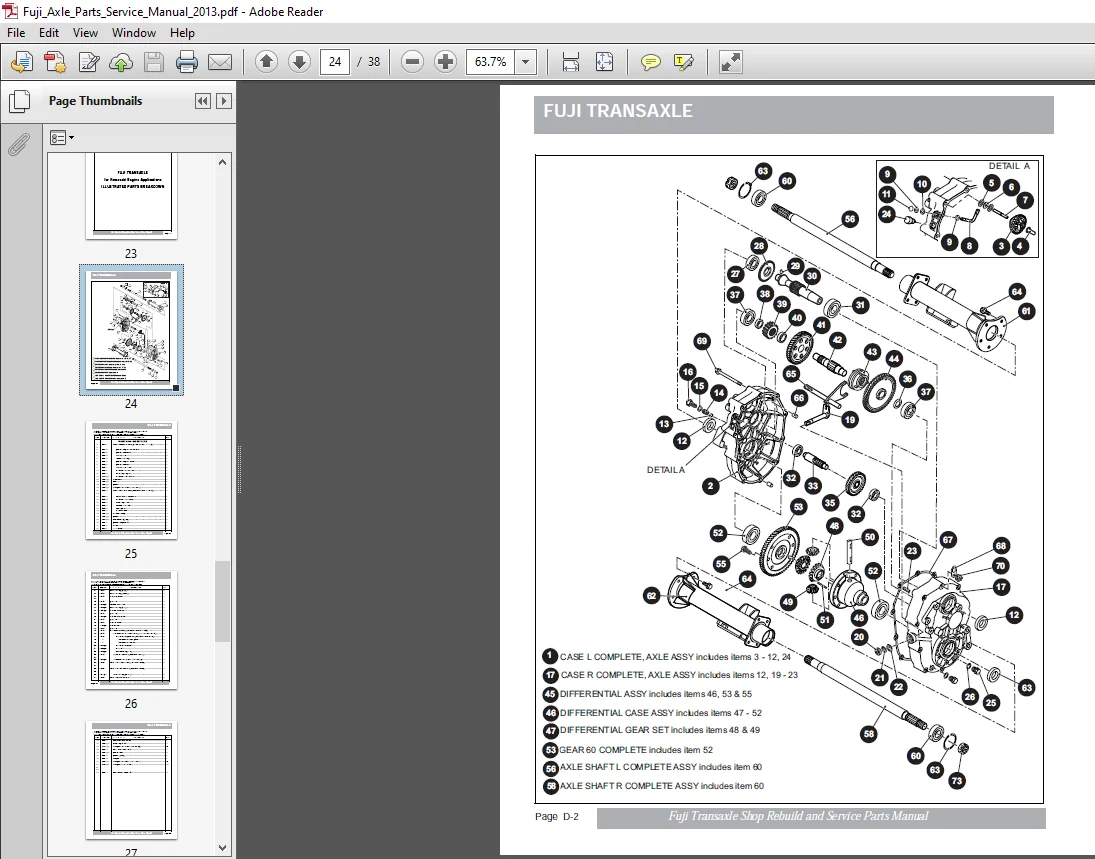

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE
- This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
- You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
- Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
