EZGO Gasoline Golf Car Technician Repair and Service Manual – PDF
Original price was: $85.00.$16.95Current price is: $16.95.
This is the official EZGO Technician’s Repair and Service Manual for gasoline golf car models starting in 2007, including TXT, Freedom™, and Shuttle 2+2 (9 hp/11 hp, CE/CARB). It is an essential resource for advanced diagnostics and repair. The manual details the EZGO gasoline golf car periodic service schedule,
covers troubleshooting EZGO gasoline vehicle performance and electrical circuits, and provides step-by-step procedures for the overhead valve adjustment EZGO twin cylinder engine. Critical maintenance is included, such as mechanical brake pedal free travel adjustment and EZGO Continuously Variable Transmission (CVT) clutch repair and belt service. Numerous warnings are included for safe servicing of these vehicles.
Description
EZGO Gasoline Golf Car Technician Repair and Service Manual – PDF DOWNLOAD
Description
This is the EZGO Technician’s Repair and Service Manual (P/N 605586, Revised Date: January 2007) for gasoline-powered TXT Golf Cars and Personal Vehicles, specifically covering the Fleet Golf Car (9 hp, CE, CARB), Freedom™ (9 hp, CE, CARB, SE, LE, HP), and Shuttle 2 + 2 (9 hp, CE, CARB) models, starting with the 2007 model year1111.
The manual provides comprehensive instructions for maintenance, repair, and troubleshooting of various vehicle systems, emphasizing safety procedures.
🗂️ Table of Contents (Sections)
| Section | Title |
| A | General Information & Routine Maintenance |
| B | Safety |
| C | Body |
| D | Wheels and Tires |
| E | Front Suspension and Steering |
| F | Speed Control |
| G | Engine |
| H | Fuel System |
| J | Continuously Variable Transmission (CVT) |
| K | Direction Selector |
| L | Electrical Wiring |
| M | Brakes |
| N | Rear Suspension |
| P | Rear Axle |

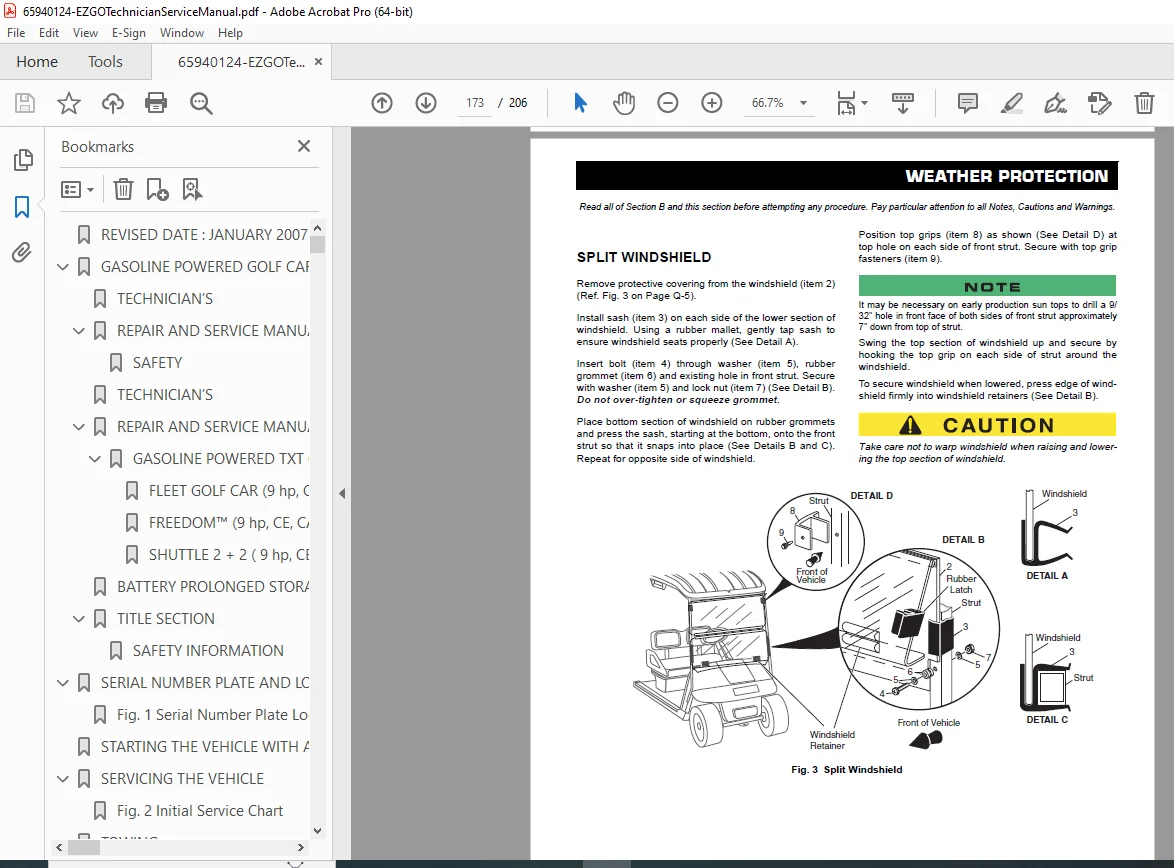

| Q | Weather Protection |
| R | Paint |
| S | Troubleshooting |
| T | Limited Warranty |
| U | General Specifications |
⚙️ Highlighted Service & Troubleshooting Procedures
Routine Maintenance (Section A): Includes the EZGO gasoline golf car periodic service schedule 3, covering checks and replacements from daily up to 500 hours4444444444444444. Also includes a Torque Specifications table for both Grade 2 and Grade 5 bolts
Annual (250-300 Hours) tasks include adjusting and EZGO front wheel bearing packing procedure, checking valve lash, and spark plug replacem
Engine (Section G): Detailed maintenance for the 4-cycle twin-cylinder engine7.
Valve Adjustment: Procedure for overhead valve adjustment EZGO twin cylinder engines, setting clearance to $.004″$ (.10 mm) when cold8888.
Starter/Generator: Belt tension check and adjustment (75-80 lbs. for existing belt)9999.
Compression Test: Dry and wet compression testing procedures for analyzing engine performance101010101010101010.
Speed Control (Section F): Detailed system operation, cable removal/installation, and adjustment procedures11.
Adjustment: Covers Accelerator Pedal Arm and Micro Switch adjustment12121212.
CVT (Section J): Detailed component operation for the Drive and Driven Clutches13131313.
Clutch Service: Procedures for EZGO Continuously Variable Transmission (CVT) clutch repair, removal, installation, and belt service
Brakes (Section M): Covers dual rear wheel mechanical, self-adjusting drum brakes15.
Adjustment: Crucial procedure for mechanical brake pedal free travel adjustment, with the correct travel being 7/8″ – 1 1/8″ (2.2 – 2.9 cm) for models starting in 200116161616. Also details how to check parking brake latching pressure (65–75 lbs.)17
Troubleshooting (Section S): Comprehensive tables for troubleshooting EZGO gasoline vehicle performance issues, covering everything from “STARTER DOES NOT TURN” to “SUSPENSION AND STEERING” problems181818181818181818181818181818181818181818181818181818181818181818181818.
🗃️ File Details

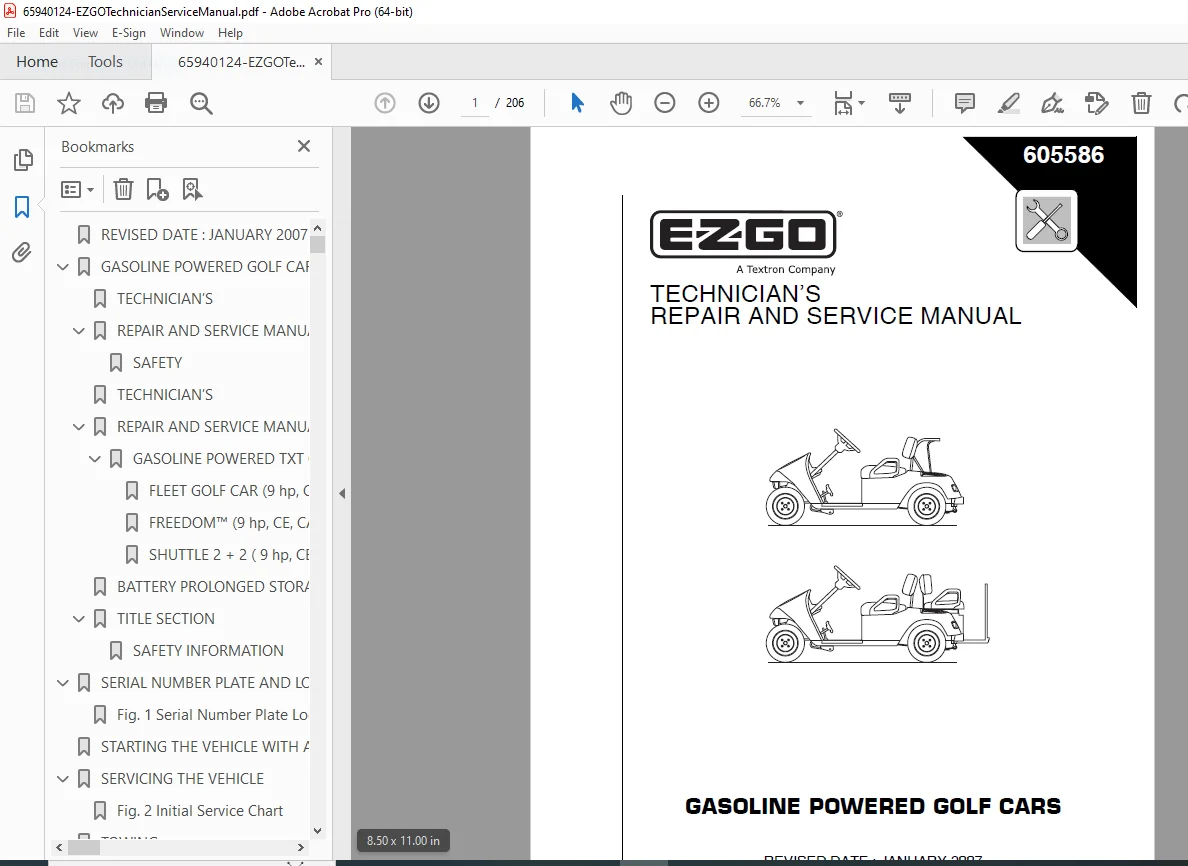

Manual Name: EZGO TECHNICIAN’S REPAIR AND SERVICE MANUAL (605586)
Models Covered: EZGO TXT, Freedom™, Shuttle 2+2 Gasoline-Powered Golf Cars & Personal Vehicles (Starting Model Year 2007) 19191919
Year: January 2007 (Revised Date) 20
Manual PDF Quality: High quality with clear illustrations and diagrams.
No. of Pages: 206
