EZGO TERRAIN 1500 TECHNICIAN’S REPAIR AND SERVICE MANUAL (GASOLINE) – PDF DOWNLOAD

Description

EZGO TERRAIN 1500 TECHNICIAN’S REPAIR AND SERVICE MANUAL (GASOLINE) – PDF DOWNLOAD

DESCRIPTION:

EZGO TERRAIN 1500 TECHNICIAN’S REPAIR AND SERVICE MANUAL (GASOLINE) – PDF DOWNLOAD

GENERAL INFORMATION

• This vehicle has been designed and manufactured in the United States of America (USA) as a ‘World Vehicle’.
• The Standards and Specifications listed in the following text originate in the USA unless otherwise indicated. The use of non Original Equipment Manufacturer (OEM) approved parts may void the warranty. Tampering with or adjusting the governor to permit vehicle to operate at above factory specifications will void the vehicle warranty
• When servicing engines, all adjustments and replacement components must be per original vehicle specifications in order to maintain the United States of America Federal and State emission certification applicable at the time of manufacture.

BATTERY PROLONGED STORAGE

• All batteries will self discharge over time. The rate of self discharge varies depending on the ambient temperature and the age and condition of the batteries. A fully charged battery will not freeze in winter temperatures unless the temperature falls below -75° F (-60° C). BATTERY DISPOSAL Lead-acid batteries are recyclable.
• Return whole scrap batteries to distributor, manufacturer or lead smelter for recycling. For neutralized spills, place residue in acid-resistant containers with absorbent material, sand or earth and dispose of in accordance with local, state and federal regulations for acid and lead compounds. Contact local and/or state environmental officials regarding disposal information.

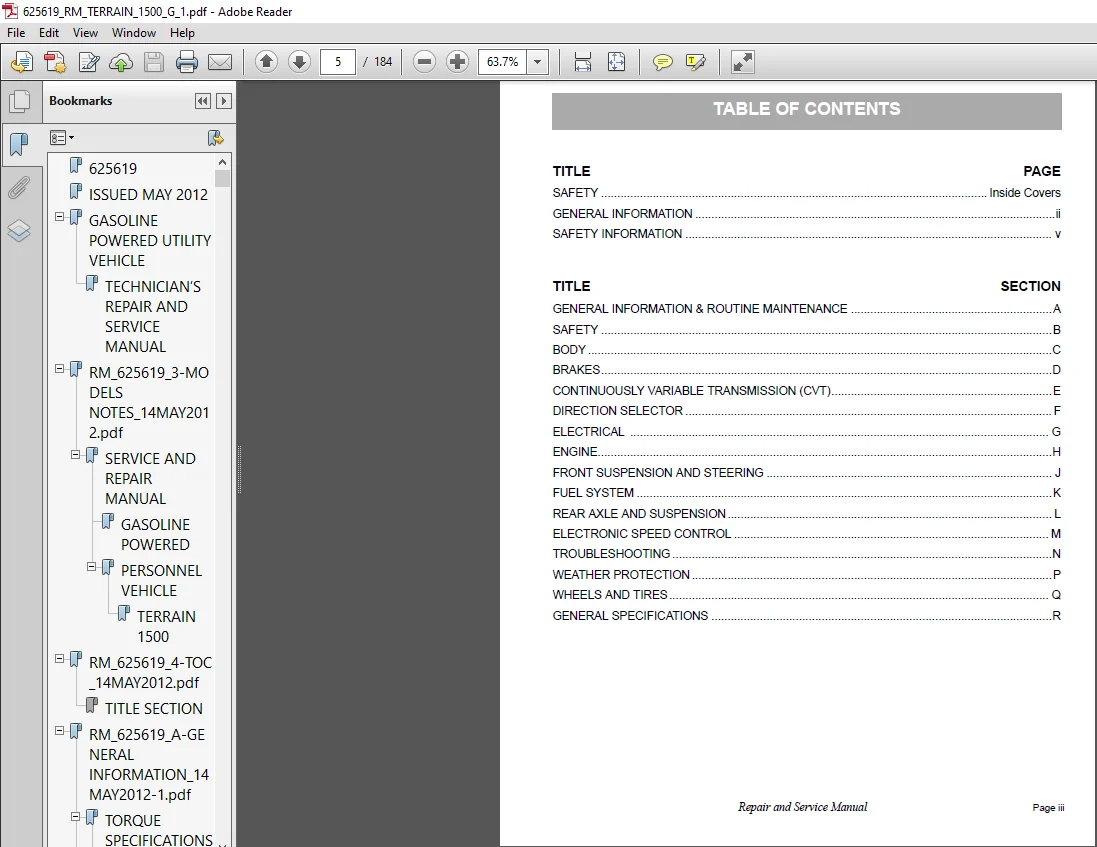

TABLE OF CONTENTS:

EZGO TERRAIN 1500 TECHNICIAN’S REPAIR AND SERVICE MANUAL (GASOLINE) – PDF DOWNLOAD

TITLE PAGE
TABLE OF CONTENTS
SAFETY ……………………………………………………………………………………………………….. Inside Covers
GENERAL INFORMATION …………………………………………………………………………………………………ii
SAFETY INFORMATION ………………………………………………………………………………………………….. v
TITLE SECTION
GENERAL INFORMATION & ROUTINE MAINTENANCE ……………………………………………………..A
SAFETY ………………………………………………………………………………………………………………………….B
BODY……………………………………………………………………………………………………………………………..C
BRAKES………………………………………………………………………………………………………………………….D
CONTINUOUSLY VARIABLE TRANSMISSION (CVT)…………………………………………………………..E
DIRECTION SELECTOR ………………………………………………………………………………………………….. F
ELECTRICAL ………………………………………………………………………………………………………………… G
ENGINE…………………………………………………………………………………………………………………………..H
FRONT SUSPENSION AND STEERING ……………………………………………………………………………. J
FUEL SYSTEM ………………………………………………………………………………………………………………..K
REAR AXLE AND SUSPENSION………………………………………………………………………………………. L
ELECTRONIC SPEED CONTROL ……………………………………………………………………………………. M
TROUBLESHOOTING ………………………………………………………………………………………………………N
WEATHER PROTECTION…………………………………………………………………………………………………P
WHEELS AND TIRES……………………………………………………………………………………………………… Q
GENERAL SPECIFICATIONS ……………………………………………………………………………………………R
EZGO TERRAIN 1500 TECHNICIAN’S REPAIR AND SERVICE MANUAL (GASOLINE) – PDF DOWNLOAD:

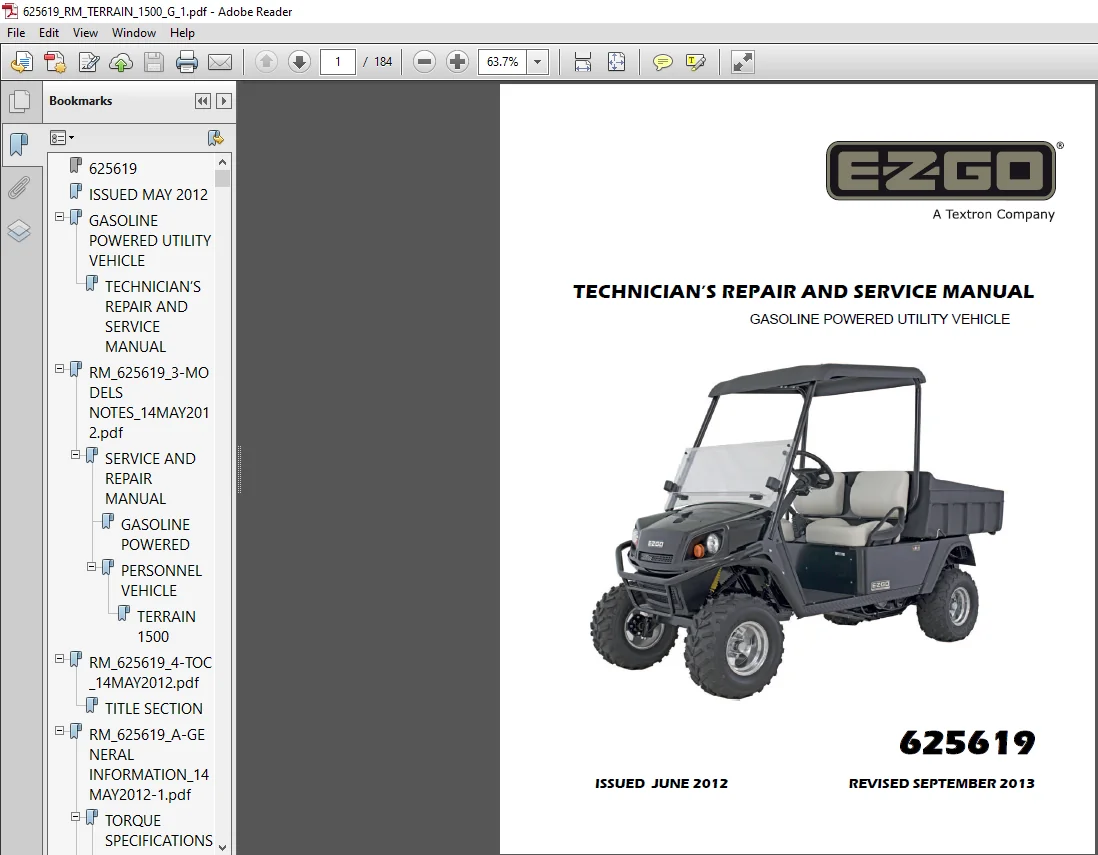

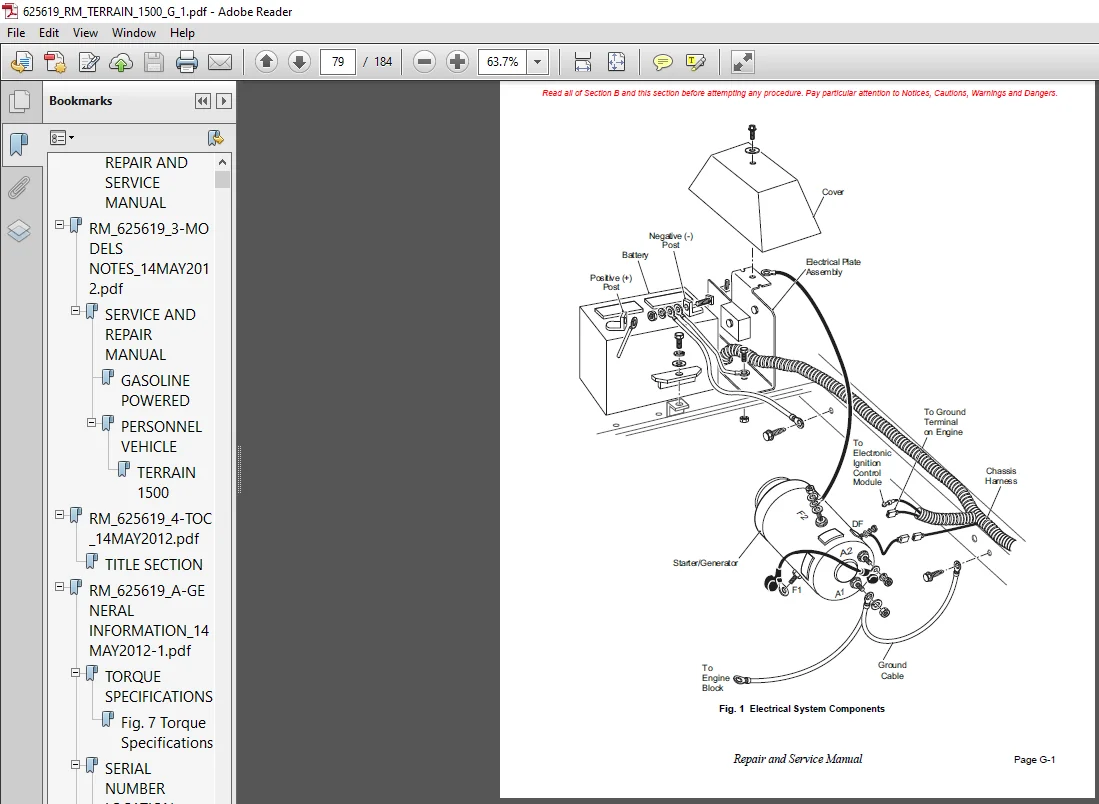

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
