Farmtrac 675-Tier II Export Parts Manual – PDF

Description

Farmtrac 675-Tier II Export Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Farmtrac 675-Tier II Export Parts Manual – PDF DOWNLOAD

Language : English
Pages : 186
Downloadable : Yes
File Type : PDF

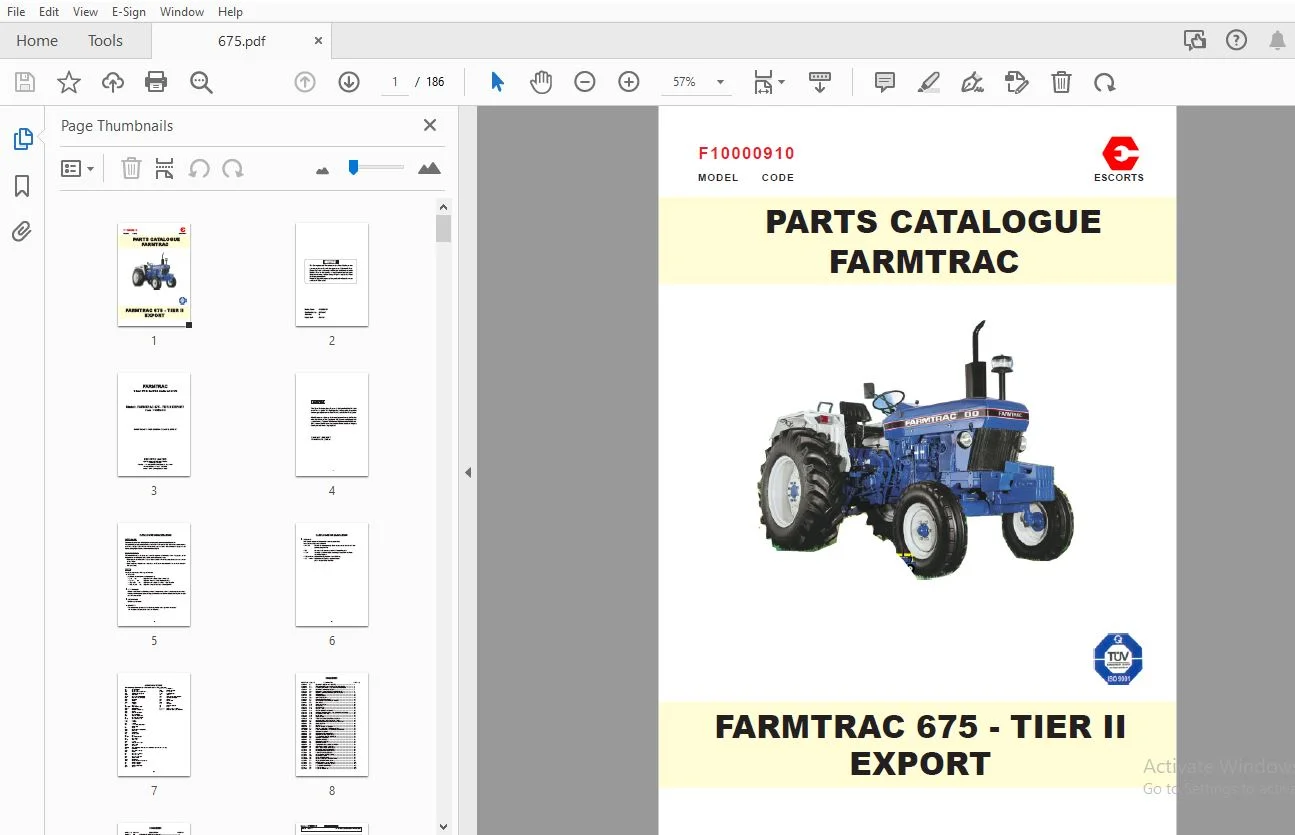

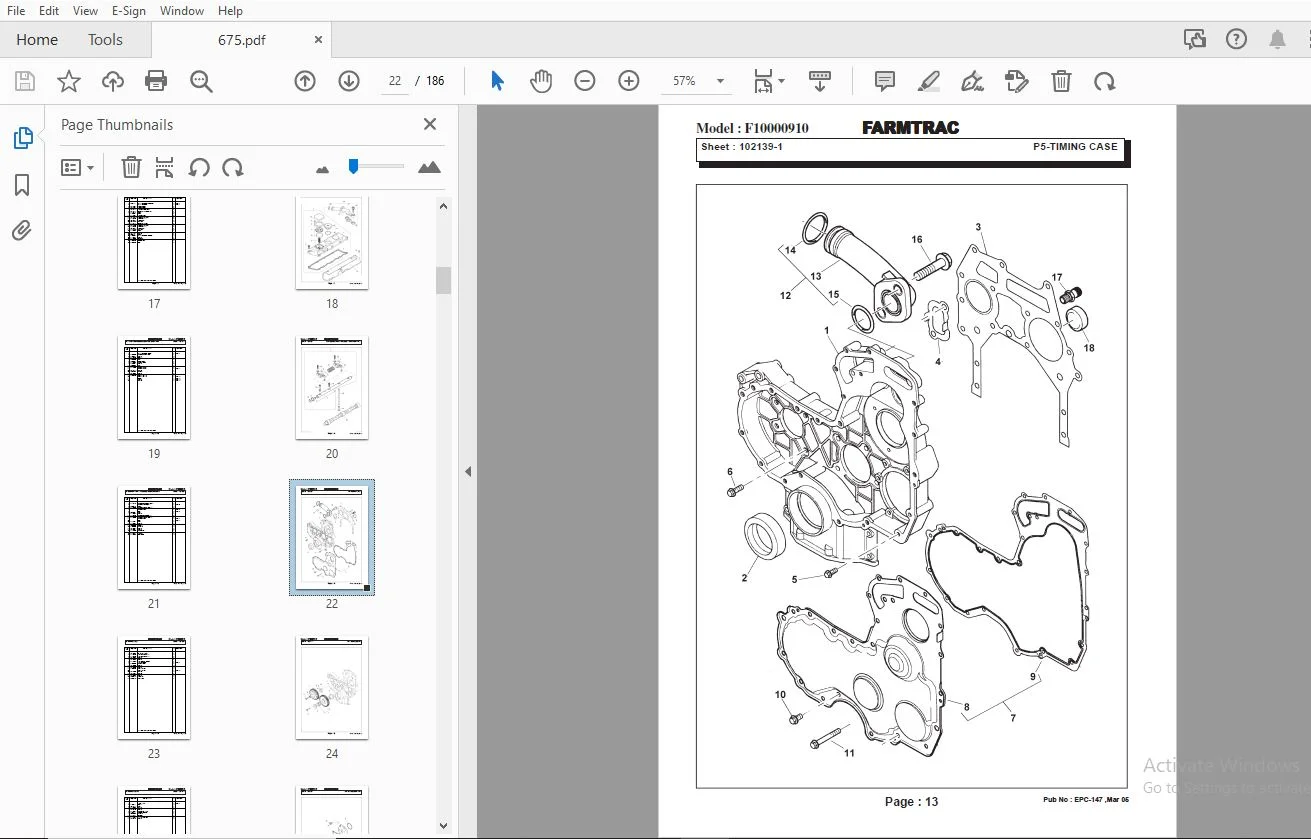

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Farmtrac 675-Tier II Export Parts Manual – PDF DOWNLOAD

102101-1 P1 CYLINDER BLOCK AND LINERS 1
102102-1 P2 CRANKSHAFT, MAIN AND BIG END BEARINGS 3
102104-1 P2-1 PISTONS AND RINGS AND CONNECTING RODS 5
102106-1 P3 CYLINDER HEAD ASSEMBLY 7
102121-1 P3-1 CYLINDER HEAD COVER AND BREATHER 9
102108-1 P4 ROCKER SHAFT ASSEMBLY AND CAMSHAFT 11
102139-1 P5 TIMING CASE 13
102141-1 P6 TIMING GEARS 15
102142-1 P6-1 DRIVE ADAPTOR 17
102109-1 P7 FUEL INJECTION PUMP 19
102115-1 P8 ALTERNTOR AND STARTER MOTOR 21
102116-1 P9 FAN DRIVE 23
102118-1 P10 SUMP, DIPSTICK 25
102126-1 P11 OIL FILTER 27
102125-1 P12 OIL COOLER 29
102130-1 P13 WATER PUMP 31
102133-1 P14 WATER OUTLET HOUSING 33
102144-1 P15 LUBRICATING OIL PUMP AND DELIVERY HOUSING 35
102147-1 P19 EXHAUST MANIFOLD 37
102149-1 P20 LIFT PUMP 39
102157-1 P21 FUEL FILTER 41
102160-1 P22 THROTTLE STOP CONTROL AND KITS 43
101964-7 B2 AIR CLEANER ( DRY ELEMENT TYPE ) 45
101965-1 B3 MANIFOLD INTAKE AND EXHAUST SYSTEM 47
101968-4 B5 FUEL SYSTEM 49
101979-6 C1 RADIATOR 51
101981-2 D1 FRONT WHEEL ASSEMBLY 53
101982A-1 D2 FRONT AXLE AND STEERING PARTS 55
103107A-1 D4 PUMP HYDRAULIC / STEERING AND MOTOR 59
101989-3 E2 CLUTCH HOUSING 63
101990-1 E3 CLUTCH INNER CONTROLS 65
101991-2 E4 CLUTCH OUTER CONTROLS 67
101992-2 E5 PTO CLUTCH OUTER CONTROL 69
101993-1 E6 CLUTCH ASSEMBLY 71
101994-1 E7 CLUTCH SHAFTS 73
101995-1 F1 HOUSING GEAR BOX 75
101996-1 F2 LEVERS COVER 77
101997-1 F3 TRANSMISSION OUTER CONTROL 79
101998A-1 F4 REVERSE OUTER CONTROL 81
101999-1 F5 GEAR BOX INNER CONTROLS 83
102000-1 F6 REDUCER INNER CONTROLS 85
102001-1 F7 REVERSE INNER CONTROLS 87
102002-1 F8 PRIMARY SHAFT, GEARS 89
102003-1 F9 SECONDARY SHAFT, GEARS 91
102004-1 F10 REVERSE GEARS 93
102005-1 G1 REAR DIFFERENTIAL 95
102006A-1 G2 BEVEL GEAR SET, DIFFERENTIAL 97
102007-1 G3 REAR DIFFERENTIAL LOCK 99
102008-1 G4 DIFFERENTIAL LOCK LINKAGE 101
102009-1 G5 PTO INNER GEAR AND SHAFT 103
102010-1 G6 PTO OUTER CONTROLS 105
102011-1 G7 PTO 540 RPM 107
102012-1 G8 PTO 540/1000 RPM 109
102013-3 G9 PTO OUTER CONTROLS 540/1000 111
102014-4 G10 PTO GUARD 113
102015-1 G11 AXLE SHAFTS 115
102016-1 G12 FINAL DRIVE HOUSING 117
102017-7 G13 REAR WHEELS 119
102018-1 H1 BRAKE ASSEMBLY 121
102019-3 H2 BRAKE PEDAL 123
102020-1 H3 BRAKE RELEASE SYSTEM 125
102021-1 H4 HAND BRAKE SYSTEM 127
102022-1 I1 HYDRAULIC BODY 129
102023-1 I2 RAM CYLINDER 131
102024-1 I3 INSIDE LIFTING CONTROLS 133
102025-1 I4 YOKE TOP LINK SENSING 135
102026-1 I5 OUTER LIFTING CONTROLS 137
102027-5 I6 OUTER LIFTING CONTROL LEVERS 139
102028-1 I7 MAIN DISTRIBUTOR VALVE 141
102029-4 I8 HYDRAULIC LIFT LINKAGE 143
102030-5 I10 DOUBLE ACTING TWO WAY SPOOL VALVE (VV) 145
102035-3 J3 BATTERY AND BATTERY SUPPORT 147
102036-5 J4 ELECTRICAL SWITCHES AND CONTROLS 149
102037-2 J5 INSTRUMENT CLUSTER AND TACHO DRIVE 151
102038-4 J6 WIRING HARNESS SYSTEM 153
102039-7 J7 HEAD LAMP AND WORK LAMP 155
102047-11 K2 RUNNING BOARD 157
102048A-6 K3 FENDERS 159
102049-4 K4 DELUXE SEAT ASSEMBLY 161
102050A-11 K5 DECALS AND TOOL KIT 163
102051-2 K6 TOW HOOK 165
102054A-3 K9 SWINGING DRAW BAR 167
