Fassi Crane F 80A.22 Use & Maintenance Manual (0001) – PDF Download

Description

Fassi Crane F 80A.22 Use & Maintenance Manual (0001)

File Details:

Fassi Crane F 80A.22 Use & Maintenance Manual (0001)

• Manual Language:English
• Pages: 52
• Size: 3.98 MB
• File Format:PDF
• Downloadable:Yes

FASSI CRANE F 80A.22 USE & MAINTENANCE MANUAL (0001) – PDF DOWNLOAD:

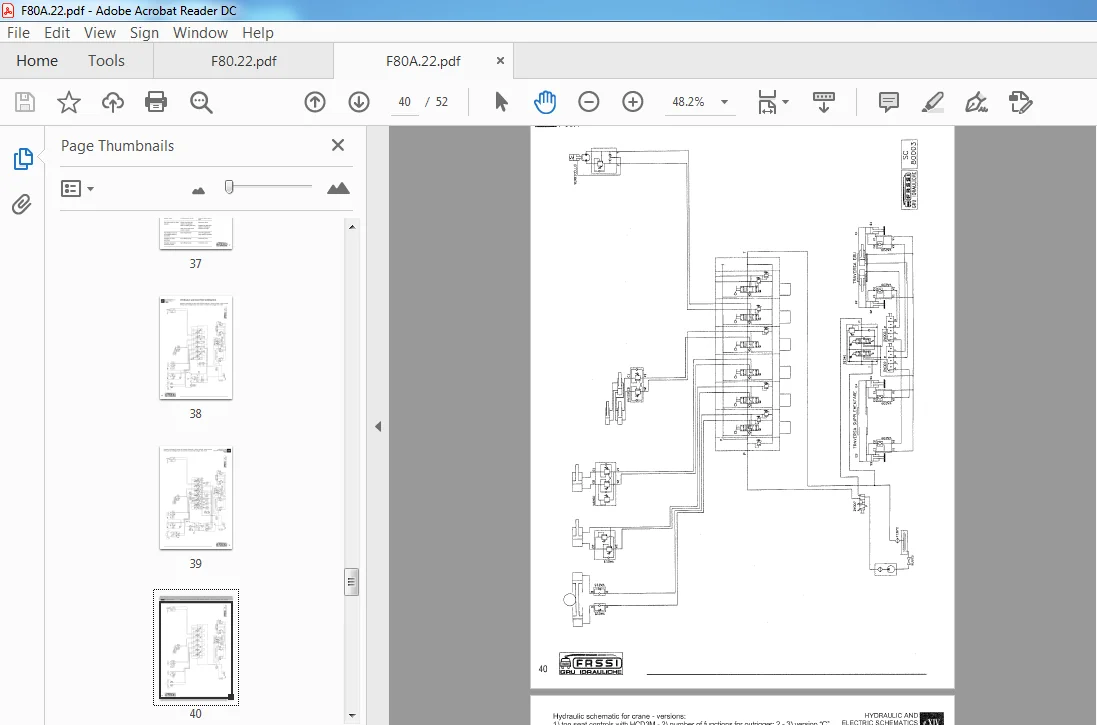

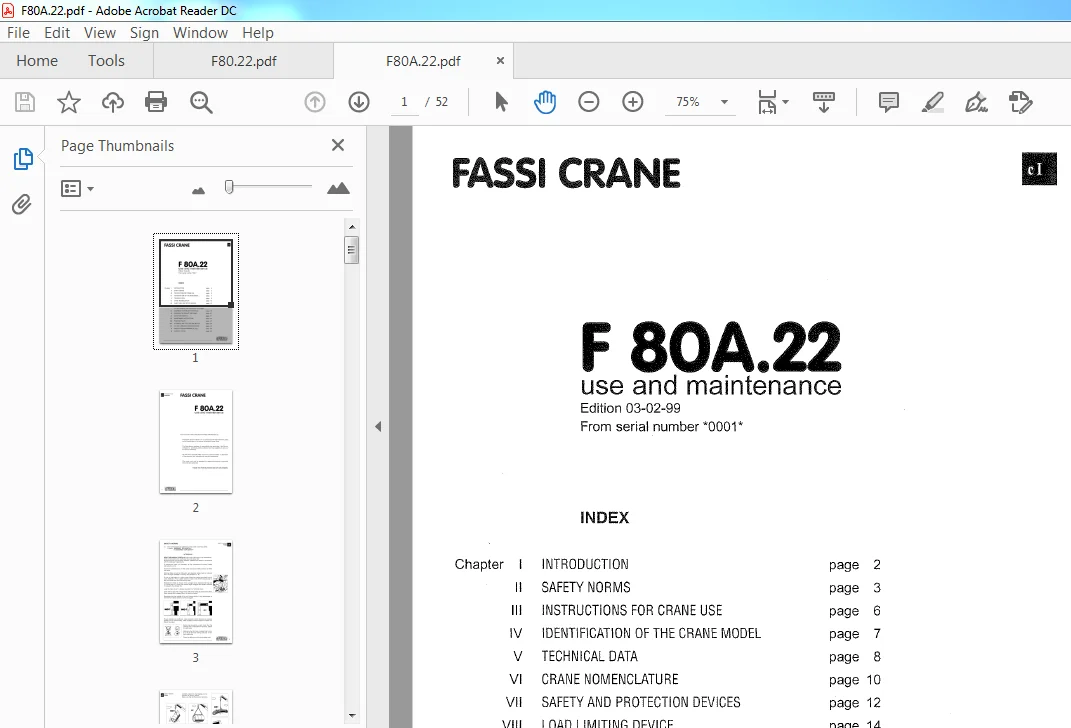

Image Preview:

Description:

Fassi Crane F 80A.22 Use & Maintenance Manual (0001)

• READ THIS MANUAL CAREFULLY prior to use of the crane or any maintenance. A few minutes spent now could save time and labour later.
• Be sure that the unit has been installed, inspected and tested in accordance with the local legal requirements.
• To operate the crane it is necessary to fully understand its working, safety and warranty norms.
• Check that protections are in their place and that all safety devices are fitted and active.
• Warning plates, as well as instruction and operation plates must be replaced when no longer readable or missing. (See chapters A – B)
• Do not run the engine in a indoor area without first making sure there is ade-quate ventilation. Fit a suitable extension tube to the vehicle exhaust pipe to take the fumes away from the working area.
• Stabilize the vehicle by means of the outrigger rams, checking that they rest on a solid base; if in doubt use special larger outrigger base plates (available on request). (See chapter IX)
• Level the crane so as it is always operated on a horizontal plane.
• Check that the taps of the outrigger rams safety check valves are dosed (when fitted). Never operate the outriggers when the crane is loaded.
• Remember that the stability of the unit (crane-vehicle) is only guaranteed by the maximum lateral extension of the outriggers.

Table of Contents:

Fassi Crane F 80A.22 Use & Maintenance Manual (0001)

I INTRODUCTION
II SAFETY NORMS
III INSTRUCTIONS FOR CRANE USE
IV IDENTIFICATION OF THE CRANE MODEL
V TECHNICAL DATA
VI CRANE NOMENCLATURE
VII SAFETY AND PROTECTION DEVICES
VIII LOAD LIMITING DEVICE LIFTING MOMENT LIMITING DEVICE (OPTIONAL)
IX CONTROLS TO STABILIZE THE VEHICLE
X CONTROLS TO OPERATE THE CRANE
XI USE OF IMPLEMENTS
XII MAINTENANCE INSTRUCTIONS
XIII POSSIBLE FAULTS
XIV HYDRAULIC AND ELECTRIC SCHEMATICS
XV OIL AND LUBRICANT CHARACTERISTICS
A INSTRUCTION AND WARNING PLATES
B CAPACITY PLATES
