Fendt F 390 395 GTA GHA Tractor Shop Manual

FILE DETAILS:

LANGUAGE:ENGLISH
PAGES:1400+
DOWNLOADABLE:YES
FILE TYPE:PDF

FENDT F 390 395 GTA GHA TRACTOR SHOP MANUAL – PDF DOWNLOAD:

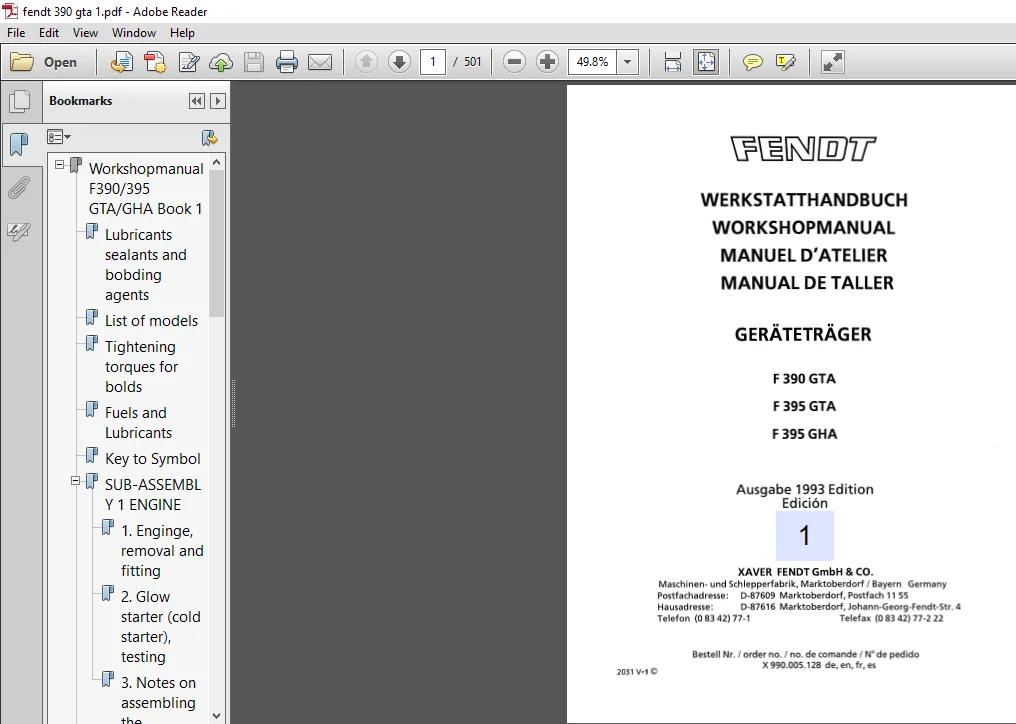

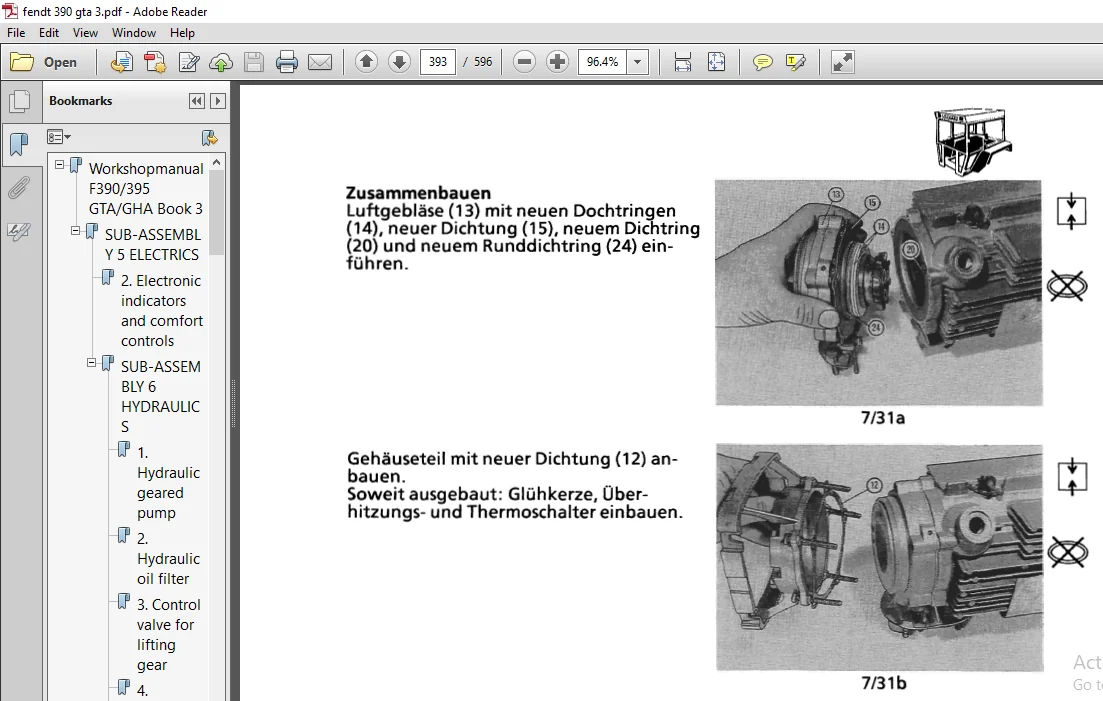

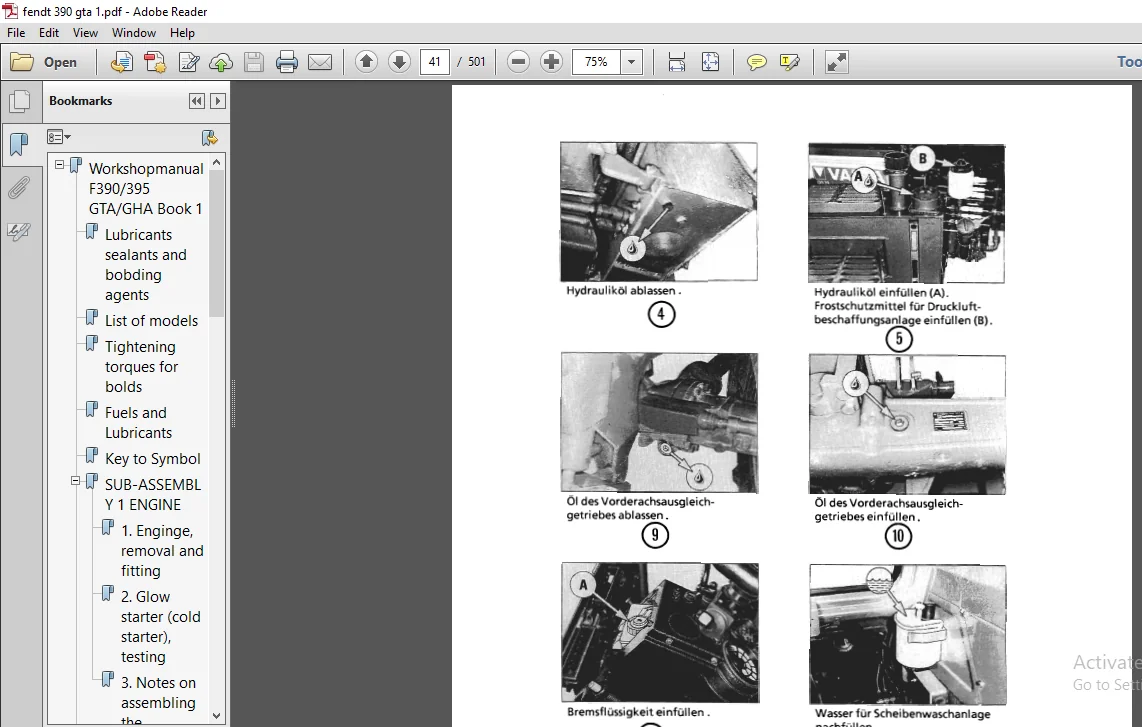

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Fendt F 390 395 GTA GHA Tractor Shop Manual

This workshop manual provides for the trained specialist detailed information relating to the repair of our tractors. Conventional tools and the general equipment which is normally to be found in a workshop will be required. Some special tools will also be needed for special applications; these are indicated in the appropriate sections of this book as well as being described in the final special tools section. If components have to be changed, only Original spares may be used!

• When ordering components from us, please always quote the chassis number in accordance with the valid documentation relating to those components. The sub-assembly sections in this workshop manual conform to the arrangement of our spare parts micro—fiche system.
• For-repairing the engines, the separate engine manual X 990.005.003, 1991 edition, should be used. Workshop personnel should also observe the data which appears in the maintenance manuals and technical data sheets.
• When the repair work has been completed, the person responsible must conduct a test—run so as to be in a position to guarantee the reliability of the work done and to vouch for the road— worthiness of the vehicle in question. We reserve the right to make any design changes we deem necessary in the interests of technical advancement and development.

TABLE OF CONTENTS:

Fendt F 390 395 GTA GHA Tractor Shop Manual

Workshopmanual F390/395 GTA/GHA Book 1.......................................  1
	Lubricants sealants and bobding agents................................... 33
	List of models........................................................... 43
	Tightening torques for bolds............................................. 37
	Fuels and Lubricants..................................................... 51
	Key to Symbol............................................................ 56
	SUB-ASSEMBLY 1 ENGINE.................................................... 63
		1. Enginge, removal and fitting...................................... 64
		2. Glow starter (cold starter), testing.............................. 87
		3. Notes on assembling the enginge-oil sump.......................... 88
	SUB-ASSEMBLY 2 GEARS..................................................... 91
		1. Drive clutch...................................................... 92
		2. Repair kit for clutch master and slave cylinders, fitting......... 99
		3. Drive clutch......................................................100
		4. P.t.o. clutch, adjusting..........................................111
		Separating tractor between engine and clutch housing.................121
		5. Double clutch, removal and fitting................................133
		6. Double clutch, repairing..........................................134
		7. Clutch mechanism in clutch housing, removal and fitting...........142
		8. Driving shafts, sealing...........................................157
		9. Side selector assembly and housing cover..........................168
		10. 40 km/h gear, locking............................................192
		11. 30 km/h gear.....................................................201
		12. 40 km/h gear, removal and fitting................................227
		Separating tractor between clutch housing and transmission...........253
		13. 540/750/1000 p.t.o. mechanism, removal and fitting, adjusting....273
		14. Transmission L-M-S spliter.......................................304
		Separating tractor between transmission and rear axle housing........474

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
