Feraboli Entry 150 Parts Manual – PDF

Description

Feraboli Entry 150 Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Feraboli Entry 150 Parts Manual – PDF DOWNLOAD

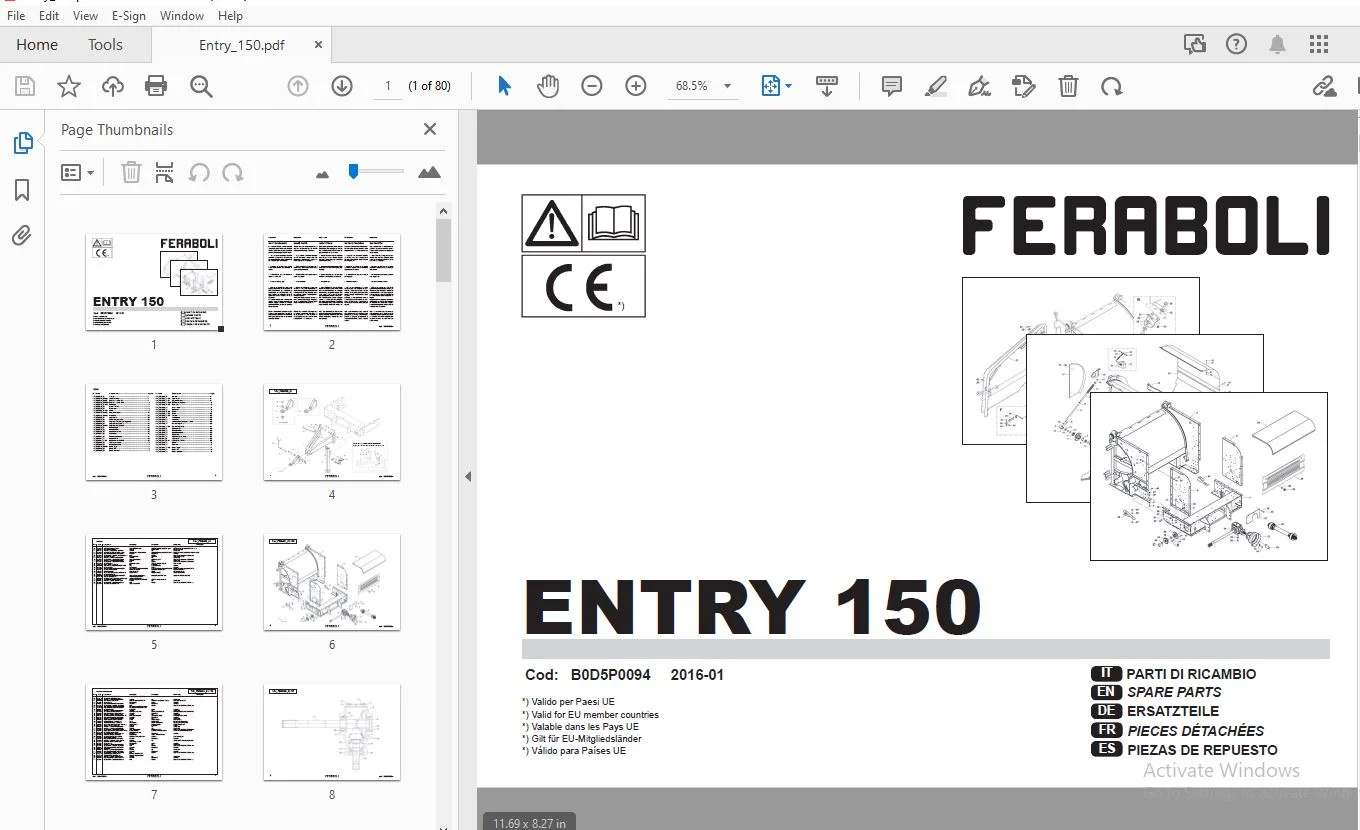

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Feraboli Entry 150 Parts Manual – PDF DOWNLOAD

N° Table Description Page
TAV_P000500_01 Drawbar 4
TAV_P000501_02-150 Front frame 6
TAV_P000206_02-BP BP gearbox parts 8
TAV_P000206_02-COM COM gearbox parts 10
TAV_P000502_01-150 Rear gate 12
TAV_P000280_00 Hub + wheel 14
TAV_P000509_00 Brakes hub 16
TAV_P000518_01-150 Carter 18
TAV_P000205_03-150 Chain 22
TAV_P000203_03-150 Feeder 26
TAV_P000213_01 Twine binder 30
TAV_P000522_00 Twine box 36
TAV_P000214_00 2 twine binder (only parts added) 38
TAV_P000215_00 Net binder (part 1) 40
TAV_P000508_00-120 Net binder (part 2) 44
TAV_P000505_01 Pick-up large 50
TAV_P000506_00 Pick-up narrow 56
TAV_P000519_00 Hydraulic system 60
TAV_P000217_00 Control box 62
TAV_P000517_00 Automatic chain oiling 64
TAV_P000511_02 Lights plant 66
TAV_P000511_02-ES Lights plant: SPAIN 68
TAV_P000510_00 Ejector 70
TAV_P000512_00 Extractor 72
TAV_P000281_00-150 Decal “Logo” 74
TAV_P000515_00 Decal “CE“ 76
TAV_P000516_00 Decal “Instruction” 78

S.S 09/24
